Msi

MSI Intel B860 Express LGA1851 Micro-ATX

Mainboard|MSI|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|B860MGAMINGPLUSWIFI
Ean:
4711377286558
Price:
199.78 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
ACPI version 6.5
BIOS memory size 256 Mbit
BIOS type UEFI AMI
System Management BIOS (SMBIOS) version 3.7
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
Number of M.2 (M) slots 3
PCI Express x16 (Gen 4.x) slots 3
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset Intel B860
Motherboard chipset family AMD
Motherboard form factor micro ATX
Product colour Black
Windows operating systems supported Windows 11 x64
Internal I/O
CPU fan connector Yes
Number of CPU fan connectors 1
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
RGB LED pin header Yes
Total number of SATA connectors 4
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8800 MHz
Supported memory clock speeds 4800/6400/8800 MHz
Supported memory types DDR5-SDRAM
Network
Bluetooth Yes
Bluetooth version 5.4
Ethernet interface type 5 Gigabit Ethernet
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model Killer Wi-Fi 7 1750x
Processor
Compatible processor series Intel Core Ultra (Series 2)
Maximum internal memory supported by processor 256 GB
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851

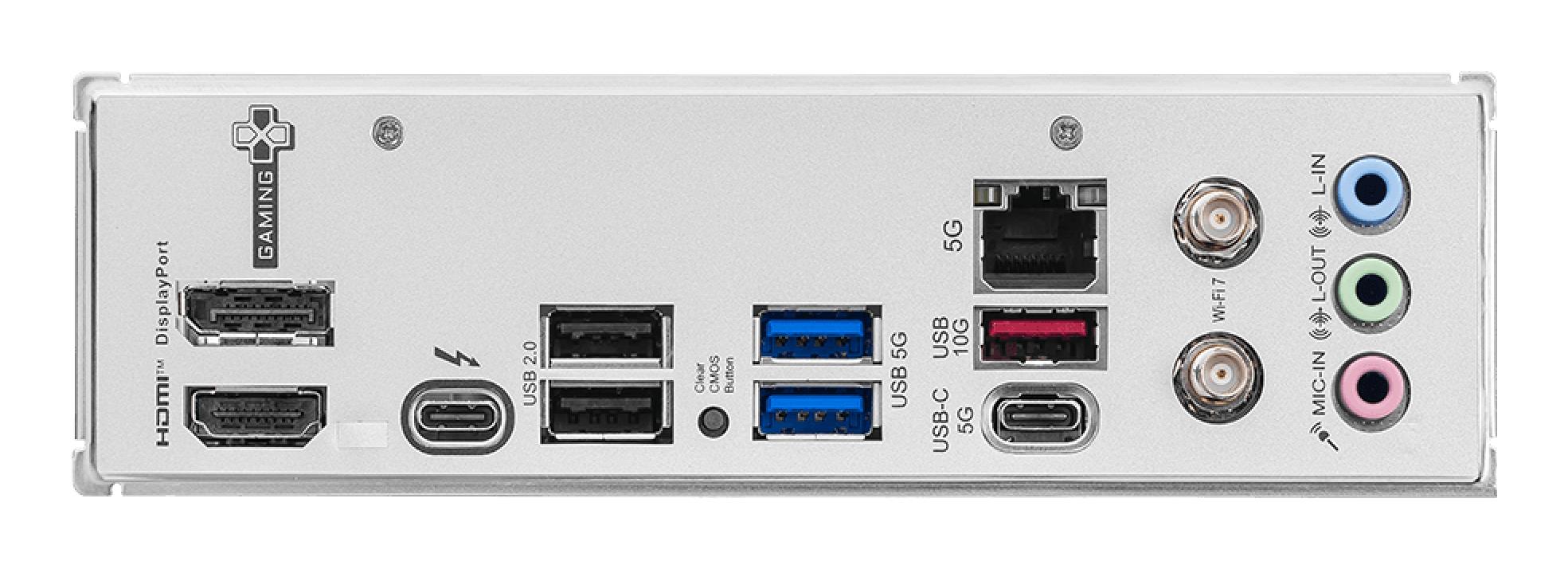

Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Specification
Summary MSI B860M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Category Code MBI
Unit Box Height 0.07
Unit Box Length 0.28
Unit Box Width 0.28
Model B860M GAMING PLUS WIFI
Units per Shipping Box 10
Unit Calculated Volume 0.006597 cubm
Unit Calculated Weight 1.56 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,Micro SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 243.84 mm
Width 243.84 mm
