AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series/AMD Ryzen PRO 3000 Series/AMD Ryzen PRO 4000 Series/AMD Ryzen PRO 5000 Series
Processor manufacturer
AMD
Processor socket
Socket AM4
Supported processor sockets
Socket AM4

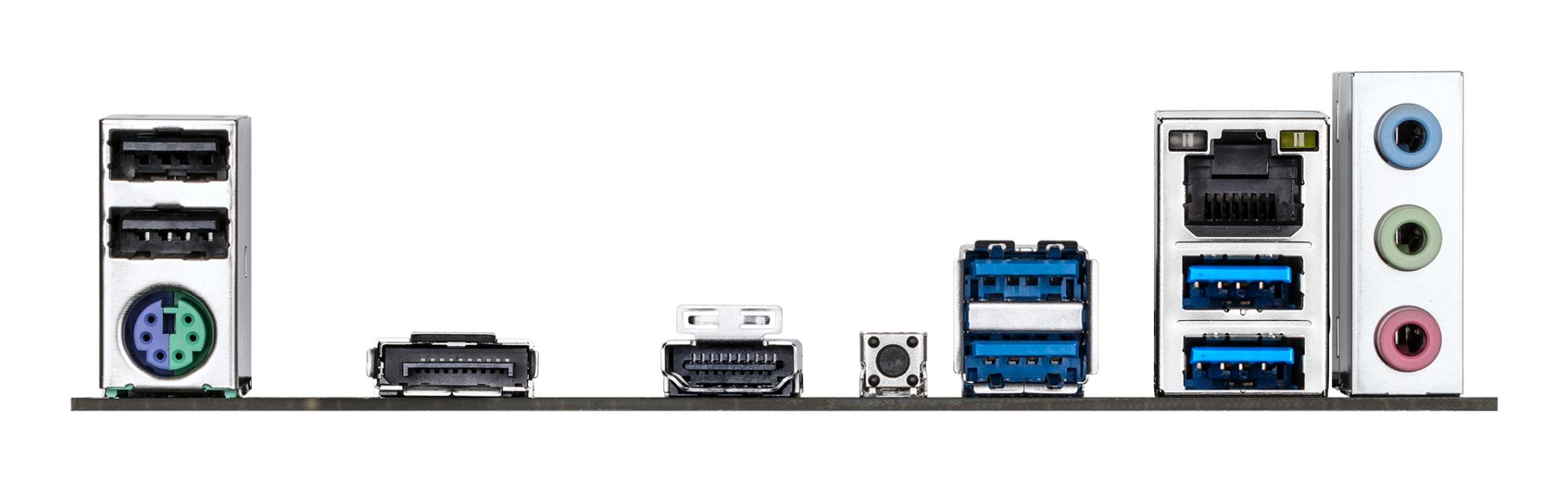

Rear panel I/O ports
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Specification
Summary

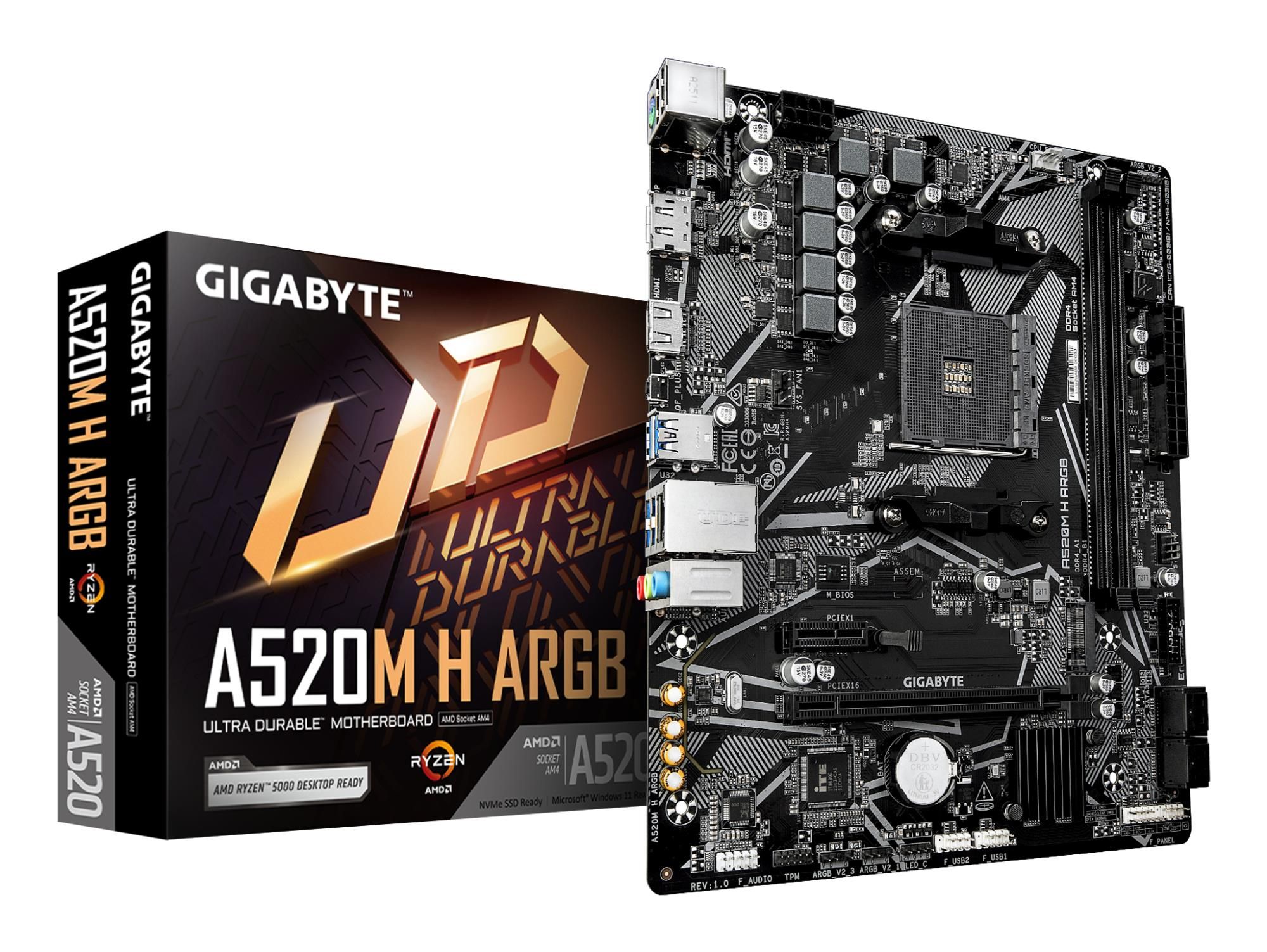

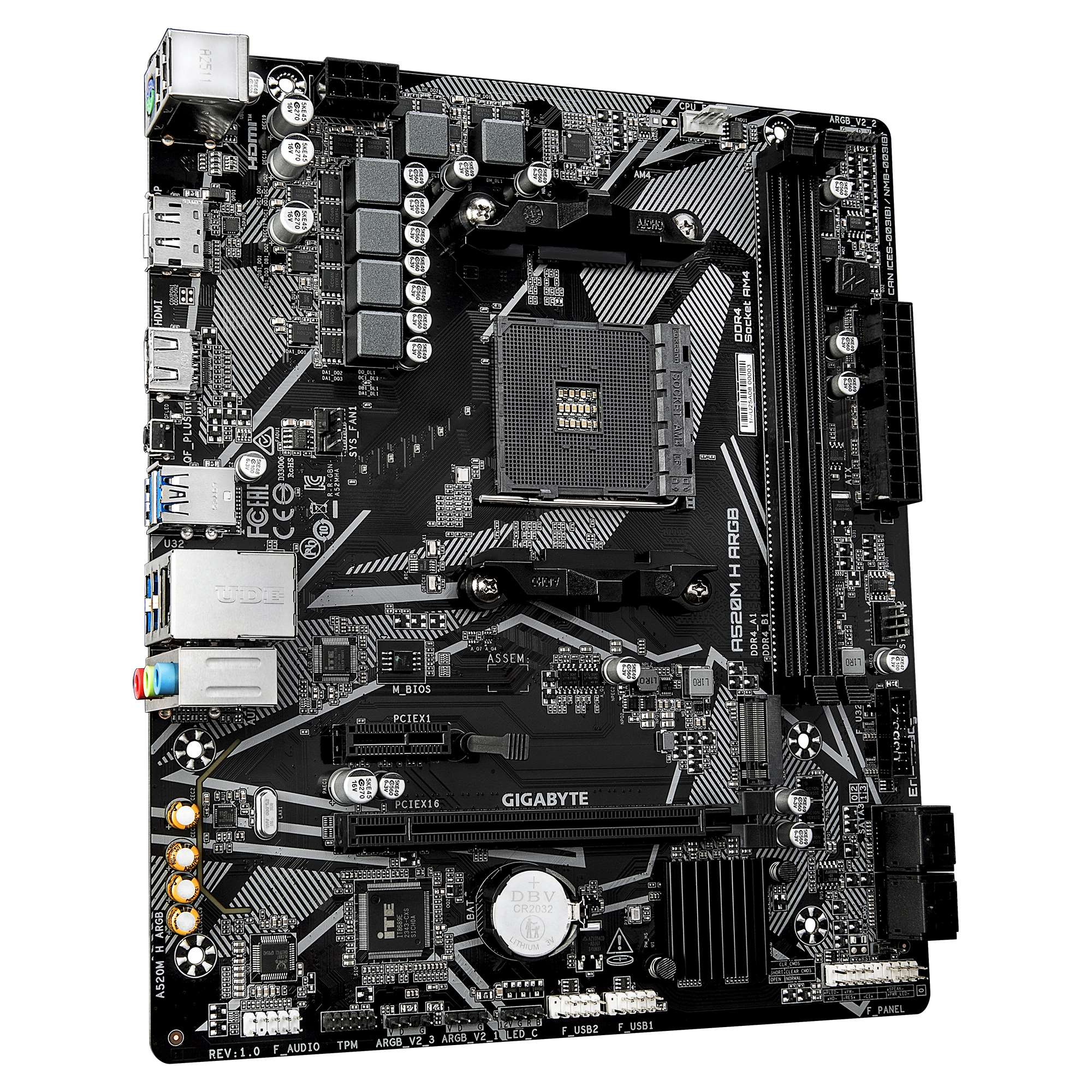

GIGABYTE A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Category Code
MBA
Unit Box Height
0.05
Unit Box Length
0.27
Unit Box Width
0.235
Storage controllers
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
5
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 3.0,SATA III
Technical details
Warranty period
3 year(s)
Weight & dimensions
Depth
198 mm
Height
35 mm
Width
233 mm
