Msi

MSI AMD B850 SAM5 Micro-ATX

Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|PROB850M-PWIFI
Ean:
4711377350181
Price:
177.24 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
ACPI version 6.5
BIOS memory size 256 Mbit
BIOS type UEFI AMI
System Management BIOS (SMBIOS) version 3.7
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
Number of M.2 (M) slots 3
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 slots 1
PCI Express x4 slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD B850
Motherboard chipset family AMD
Motherboard form factor micro ATX
Product colour Black
Windows operating systems supported Windows 11 x64
Graphics
On-board graphics card No
Internal I/O
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Front panel audio connector Yes
Front panel connector Yes
Number of CPU fan connectors 2
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
RGB LED pin header Yes
Total number of SATA connectors 4
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8200 MHz
Supported memory clock speeds 6000/6400/8200 MHz
Supported memory types DDR5-SDRAM
Network
Bluetooth Yes
Bluetooth version 5.4
Ethernet interface type 5 Gigabit Ethernet
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5

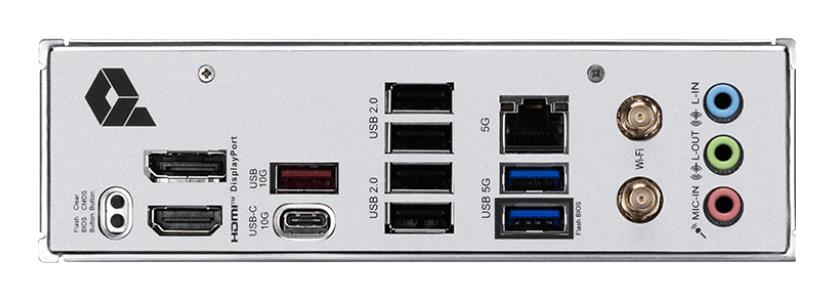

Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
Specification
Model PRO B850M-P WIFI
Units per Shipping Box 10
Unit Calculated Volume 0.006568 cubm
Unit Calculated Weight 1.41 kg
Summary MSI PRO B850M-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Category Code MBA
Unit Box Height 0.075
Unit Box Length 0.275
Unit Box Width 0.285
Storage controllers
Supported storage drive interfaces M.2
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10
RAID support Yes
Weight & dimensions
Depth 243.84 mm
Width 243.84 mm
