EMC
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Compliance certificates
Low Voltage Directive (LVD)/RoHS
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Design
Display type
LCD
Form factor
Rackmount
LED indicators
Yes
Product colour
Black,Silver
Rack capacity
1U
Features
Automatic Voltage Regulation (AVR)
Yes
Efficiency
98.2 %
Heat dissipation
465 BTU/h
Input frequency
47/70 Hz
Input operation voltage (max)
294 V
Input operation voltage (min)
150 V
Noise level
35 dB
Number of input phases
1
Number of output phases
1
Output frequency
50/60 Hz
Output operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output power
920 W
Output power capacity
1.15 kVA
Power factor
0.8
UPS topology
Line-Interactive
Waveform
Sine
Operational conditions
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
USB cable
Quick installation guide
Yes
Rack mount kit
Yes
Ports & interfaces
AC outlet types
C13 coupler
AC outlets quantity
6 AC outlet(s)

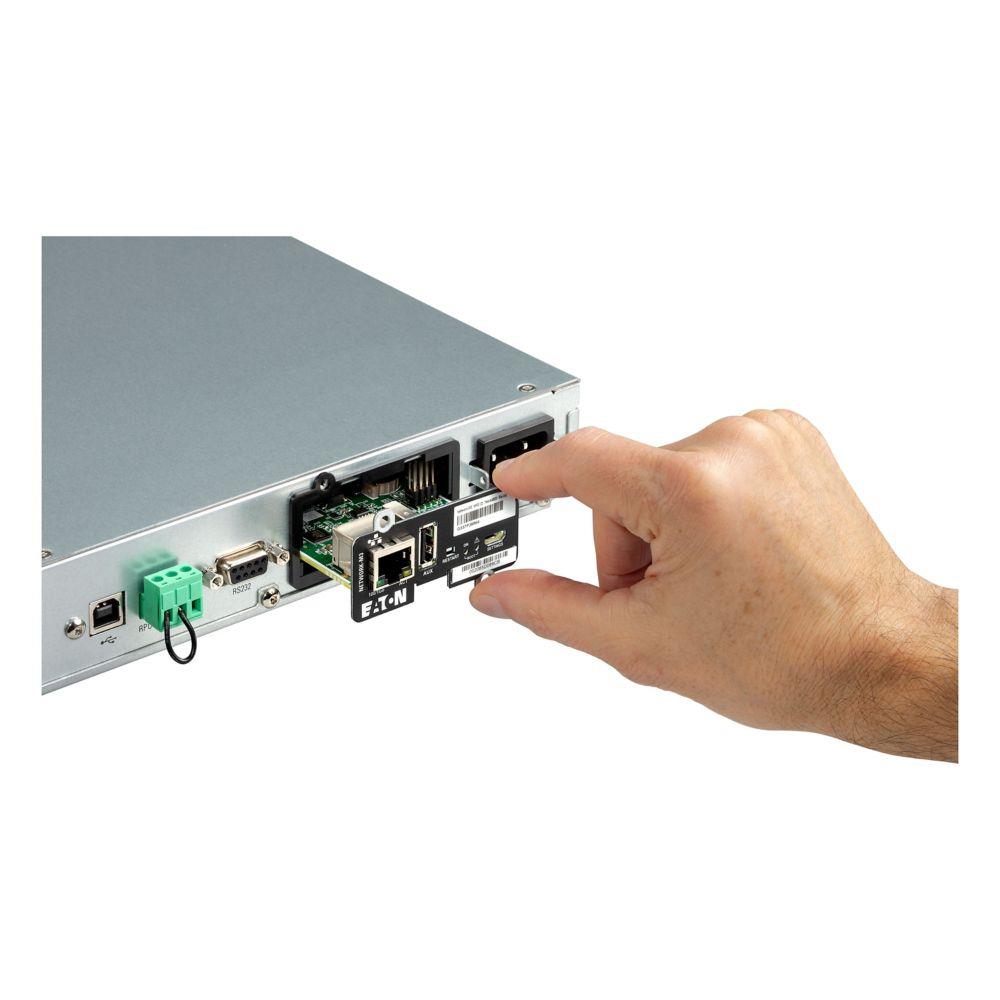

Network card slot
Yes
Power plug
C14 coupler
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
USB port
Yes
USB port type
USB Type-B
Specification
Summary
Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Category Code
UPW
Unit Box Height
0.175
Unit Box Length
0.59
Unit Box Width
0.54
Model
Eaton 5P Gen2
Units per Shipping Box
1
Unit Calculated Volume
0.055755 cubm
Unit Calculated Weight
19.2 kg
Weight & dimensions
Depth
509 mm
Height
43.2 mm
Weight
14280 g
Width
438 mm
