IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Cm
Compliance certificates
CB/CE/RoHS/WEEE
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Design
Display type
LED
Form factor
Tower
Product colour
Black
Features
Efficiency
97 %
Efficiency (ECO mode)
97 %
Input frequency
46/70 Hz
Input operation voltage (max)
284 V
Input operation voltage (min)
161 V
Noise level
25 dB
Number of input phases
1
Number of output phases
1
Output frequency
50/60 Hz
Output operation voltage (max)
284 V
Output operation voltage (min)
161 V
Output power
420 W
Output power capacity
0.7 kVA
Output power factor
0.6
Surge protection
Yes
UPS topology
Standby (Offline)
Waveform
Stepwise
Operational conditions
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 40 °C
Packaging content

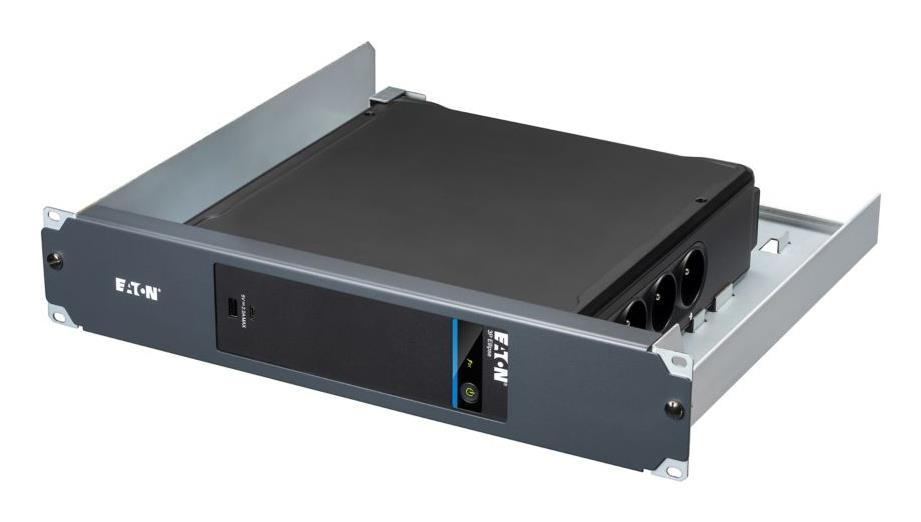

Rack mount kit
No
Ports & interfaces
AC outlet types
C14 coupler
AC outlets quantity
4 AC outlet(s)
Specification
Summary
Eaton 3P Ellipse. UPS topology: Standby (Offline), Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LED. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Category Code
UPW
Unit Box Height
0.32
Unit Box Length
0.285
Unit Box Width
0.14
Model
3P700D
Units per Shipping Box
1
Unit Calculated Volume
0.01277 cubm
Unit Calculated Weight
4.32 kg
Weight & dimensions
Depth
235 mm
Height
263 mm
Weight
3700 g
Width
81 mm
