IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Compliance certificates
Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Design
Display type
LCD
Form factor
Rackmount
Product colour
Black,Silver
Features
Automatic Voltage Regulation (AVR)
Yes
Efficiency
98 %
Heat dissipation
307 BTU/h
Input frequency
47/70 Hz
Input operation voltage (max)
294 V
Input operation voltage (min)
150 V
Noise level
35 dB
Number of input phases
1
Number of output phases
1
Output frequency
50/60 Hz
Output operation voltage (max)
240 V
Output operation voltage (min)
200 V
Output power
680 W
Output power capacity
0.85 kVA
Power factor
0.8
UPS topology
Line-Interactive
Waveform
Sine
Operational conditions
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
USB cable
Quick installation guide
Yes
Rack mount kit
Yes
Ports & interfaces
AC outlet types
C13 coupler
AC outlets quantity
4 AC outlet(s)

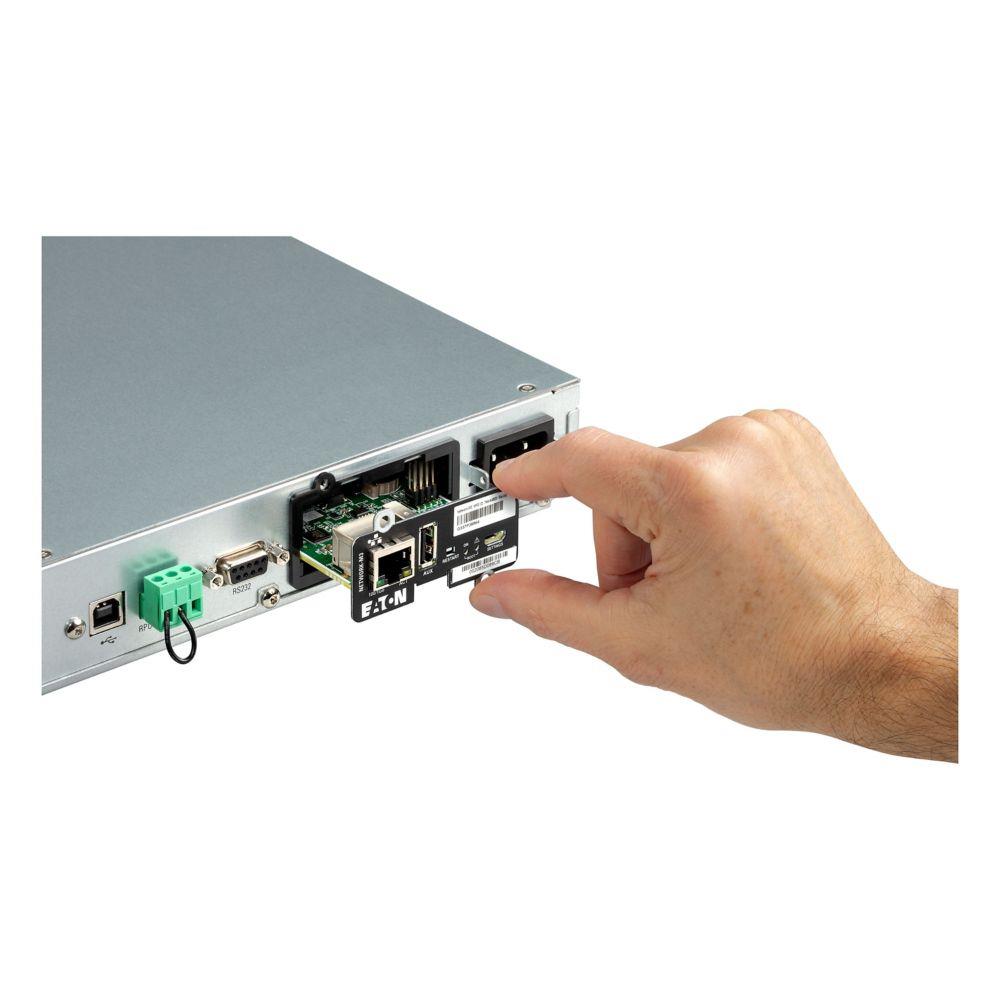

Network card slot
Yes
Power plug
C14 coupler
RS-232 ports
1
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
1
USB port
Yes
USB port type
USB Type-B
Specification
Summary

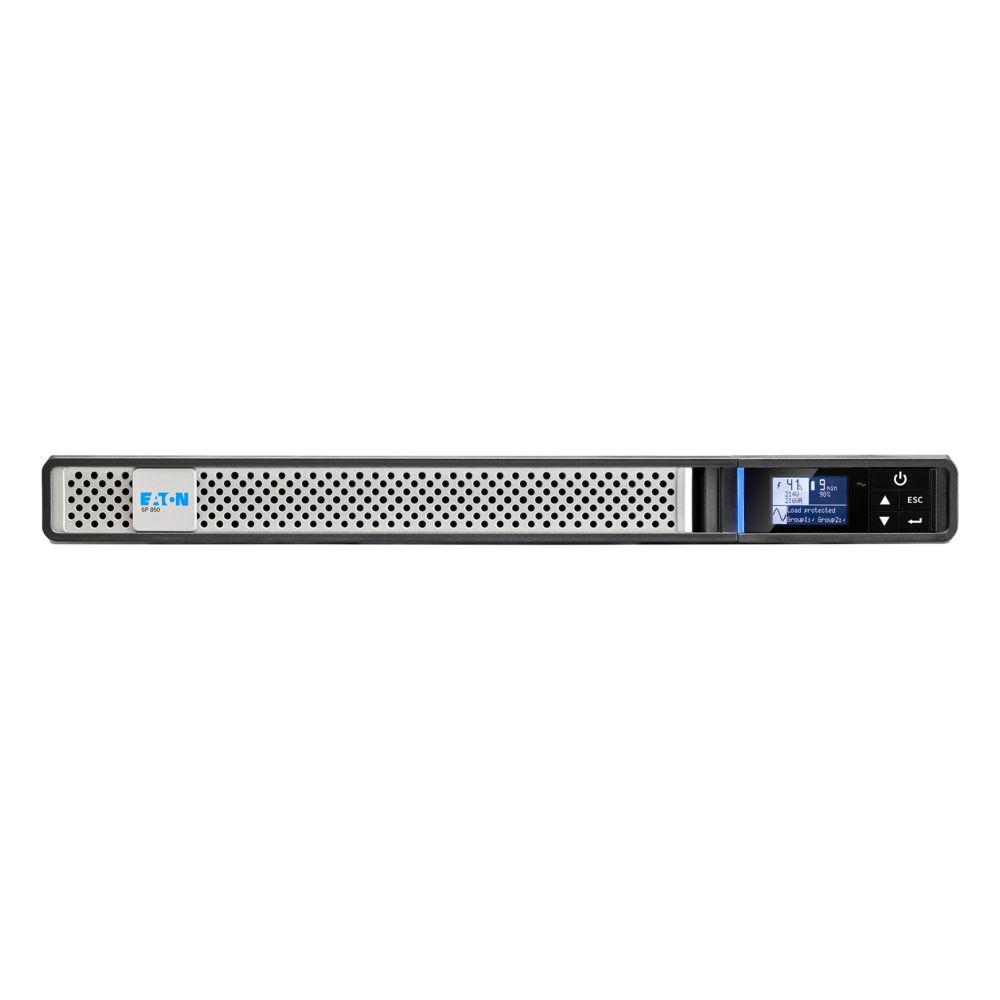

Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Category Code
UPW
Unit Box Height
0.17
Unit Box Length
0.59
Unit Box Width
0.54
Model
5P850IRNG2
Units per Shipping Box
1
Unit Calculated Volume
0.05416 cubm
Unit Calculated Weight
18.5 kg
Weight & dimensions
Depth
509 mm
Height
43.2 mm
Weight
13780 g
Width
438 mm
