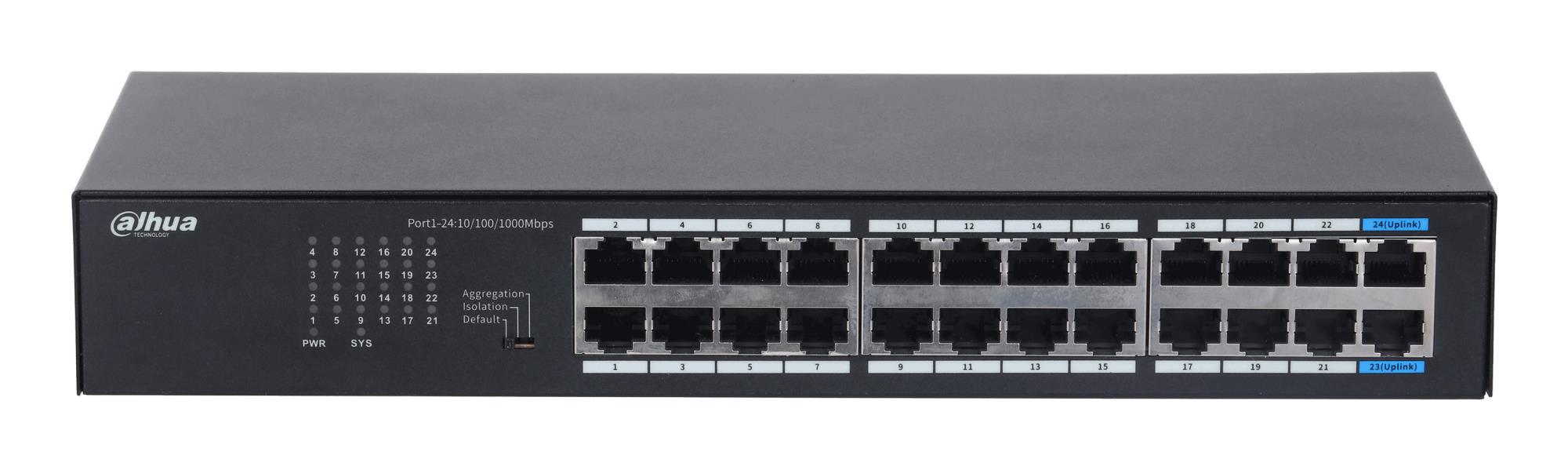

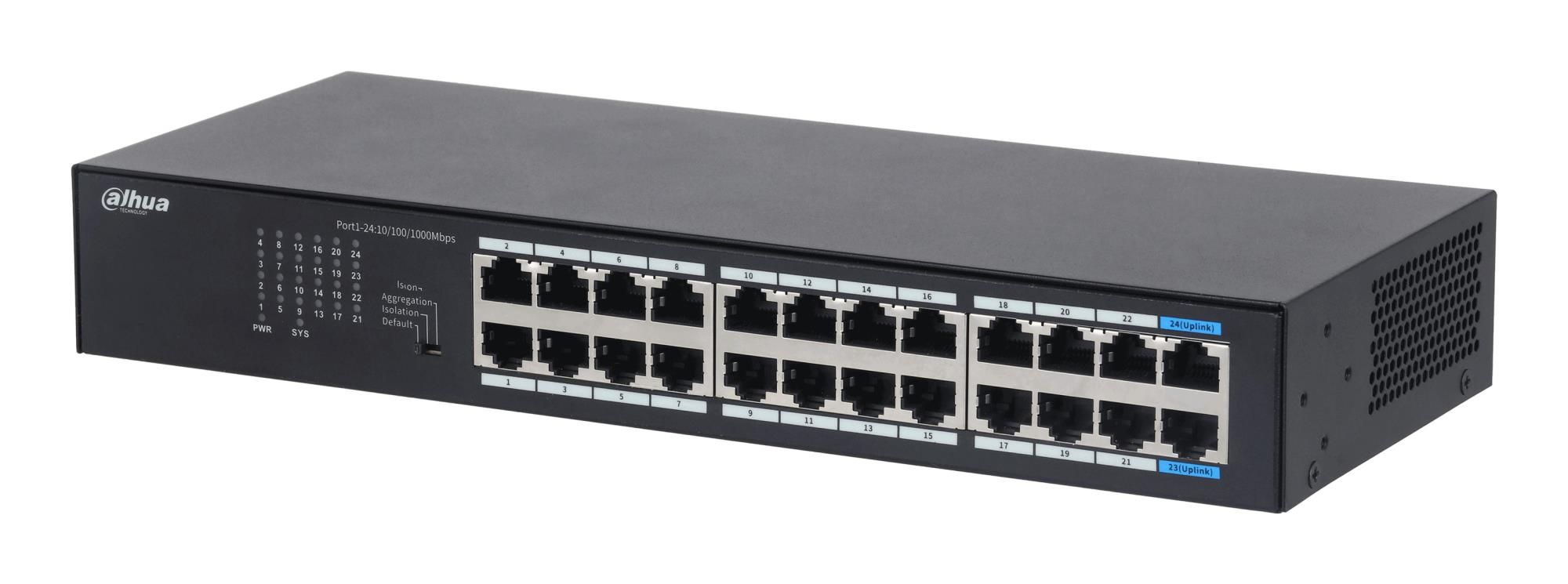

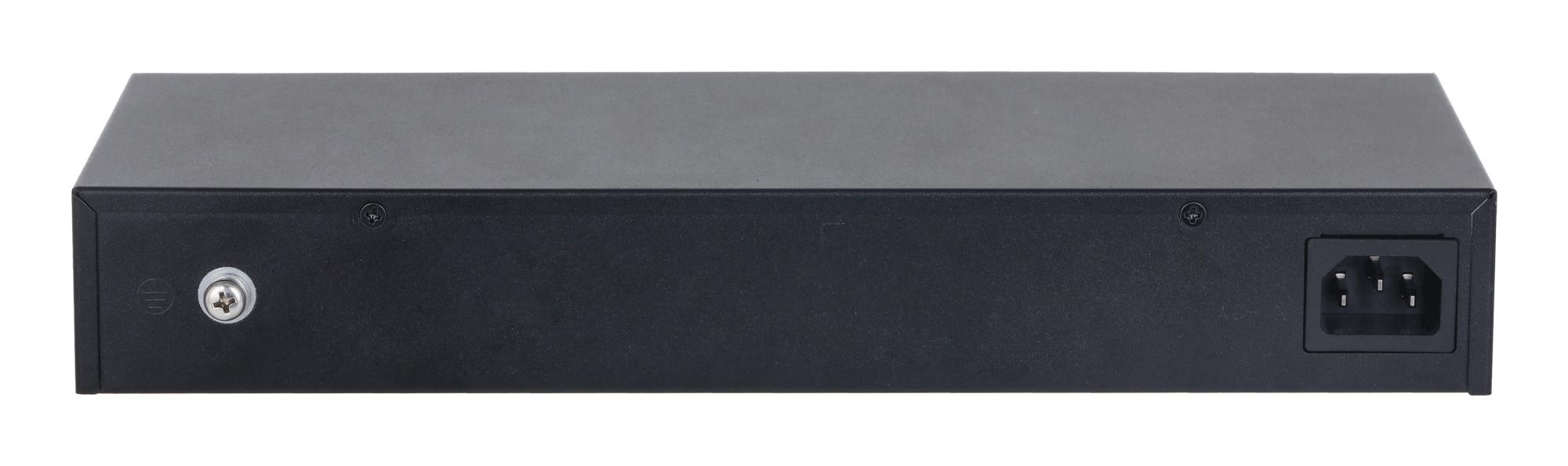

DAHUA DH-S3024-24GT Switch type Unmanaged Switch layer L2

Switch|DAHUA|DH-S3024-24GT|Switch type Unmanaged|Switch layer L2|Rack mounting Yes|Stackable Yes|Form factor Desktop/Wall-Mounting|24xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|24xGigabit Ethernet (copper) ports quantity|S3024-24GT
Price:
71.63 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Aplinkos sąlygos
Darbo temperatūros diapazonas (TT) -10 - 55 °C
Sandėliavimo temperatūros norma (T-T) -40 - 70 °C
Darbo santykinės drėgmės diapazonas 5 - 95 %
Sandėliavimo santykinis drėgmės diapazonas 5 - 95 %
Duomenų perdavimas
Perjungimo pajėgumas 48 Gbit/s
Persiuntimo dažnis 35.712 Mpps
Adreso lentelės dydis 16000 įrašai
Jumbo Frames palaikymas Taip
„Jumbo“ kadrai 12000
Paketo buferio atmintis 8.4 MB
ELKO Internal Logistics Data
Unit Brutto Volume 0.005644 cubm
Shipping Box Weight 1.5 kg
Shipping Box Height 21.5 cm
Shipping Box Depth 35 cm
Shipping Box Width 7.5 cm
ELKO Verified Logistics Data
Bruto svoris 1.5 kg
Neto svoris 0.83 kg
Vienetų skaičius vienoje siuntimo dėžėje 1
Vieneto plotis 7.5 cm
Vieneto gylis 35 cm
Vieneto aukštis 21.5 cm
Energijos valdymas
Maitinimo šaltinis AC
Pridėtas maitinimo šaltinis Taip
Maitinimo šaltinių skaičius 1
AC įėjimo įtampa 100 - 240 V
AC įėjimo dažnis 50/60 Hz
Įvesties srovė 0.4 A
Galios suvartojimas (maks.) 12.3 W
Konstrukcija
Stovo montavimas Taip
Didinimas Taip
Forma Stalinis / tvirtinamas prie sienos
Produkto spalva Juoda
Korpuso medžiaga Metalas
LED indikatoriai Taip
Montuojamas ant sienos Taip
Pakuotės duomenys
Pakuotės tipas „Box“
Pakuotės plotis 215 mm
Pakuotės gylis 353 mm
Pakuotės aukštis 75 mm
Paketo svoris 1340 g
Pakuotės turinys
Instrukcija Taip
Stovo montavimo rinkinys Taip
Pridėti kabeliai AC
Ryšys
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 24
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (varinis) portų kiekis 24
Maitinimo jungtis AC įėjimo lizdas
Sertifikatai
Atitikties sertifikatai CE
Specification
Name NET SWITCH 24PORT/S3024-24GT DAHUA
Model name DH-S3024-24GT
Summary Dahua Technology DH-S3024-24GT. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x. Power connector: AC-in jack. Wall mountable, Rack mounting, Form factor: Desktop/Wall-Mounting
Category Code SWI
Unit Box Height 0.215
Unit Box Length 0.35
Unit Box Width 0.075
Svoris ir matmenys
Plotis 119 mm
Ilgis 294 mm
Aukštis 44 mm
Svoris 830 g
Tinklas
Tinklo standartai IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x
10G parama Ne
Eterneto LAN duomenų perdavimo norma 10,100,1000 Mbit/ai
Nuorodų agregacija Taip
Srauto kontrolės palaikymas Taip
Valdymo funkcijos
Perjungimo tipas Ne-valdomas
Perjungimo sluoksnis L2
„Power over Ethernet“ (PoE)
Maitinimas per Eternetą (PoE) Ne
