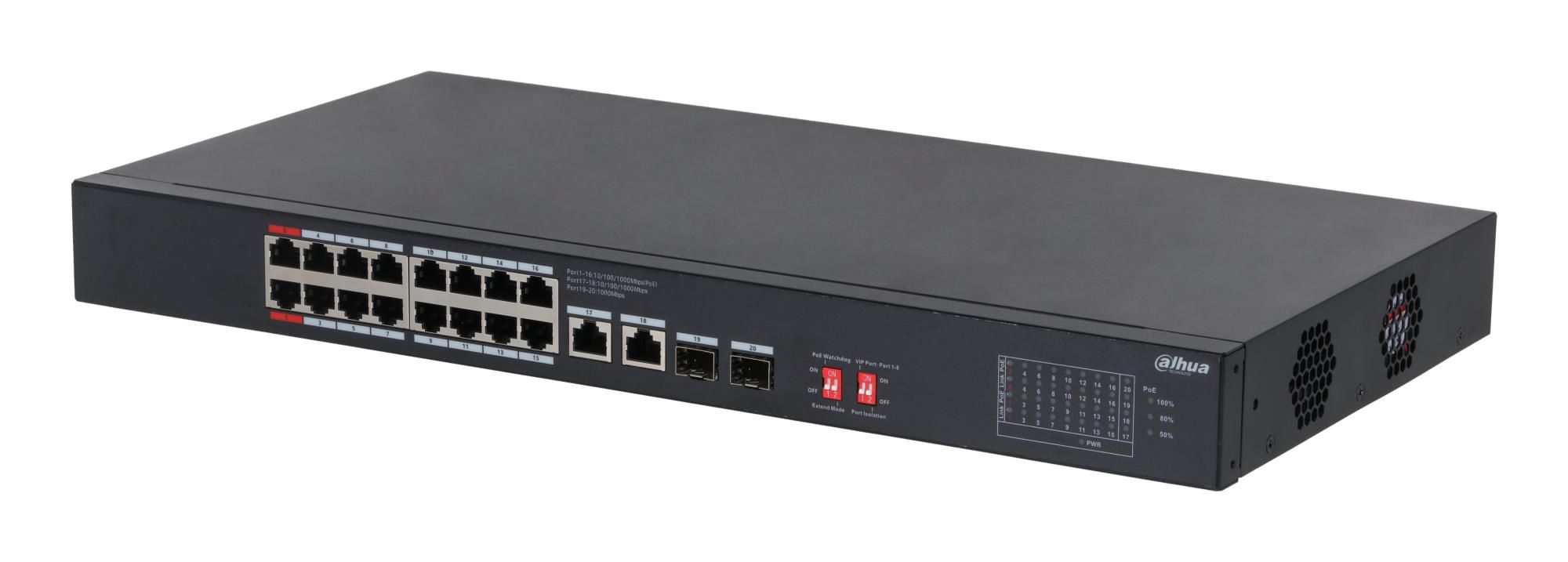

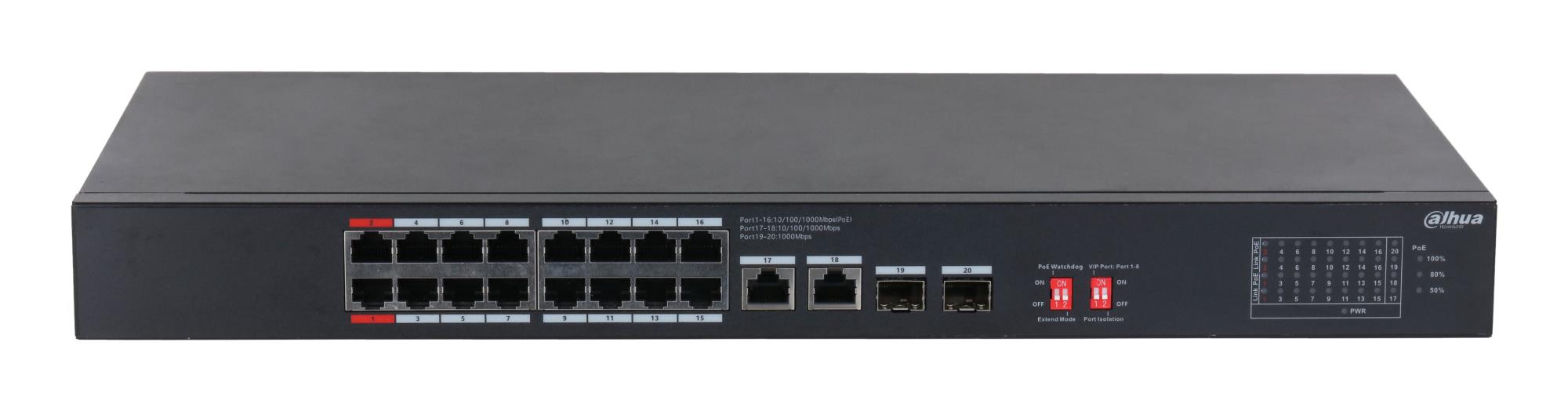

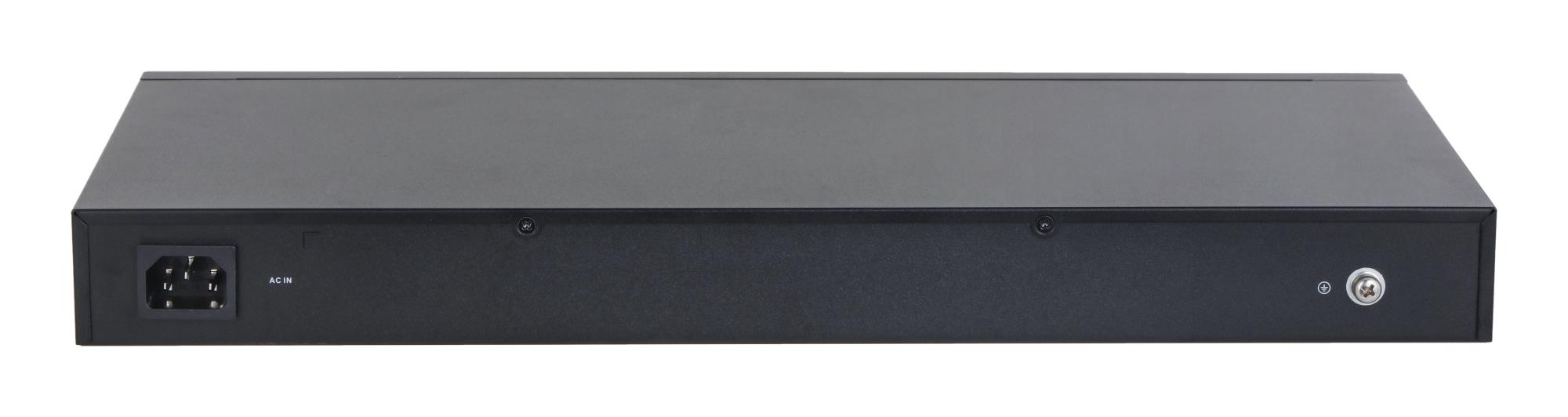

DAHUA S3220-16GT-190 Switch type Unmanaged Rack mounting Yes

Switch|DAHUA|S3220-16GT-190|Switch type Unmanaged|Rack mounting Yes|Form factor Desktop|16xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|2xFiber uplink ports quantity|Power over Ethernet (PoE) Yes|16xPower over Ethernet (PoE) ports quantity|2xPower over Ethernet 4PPoE (PoE++) ports quantity|Total Power over Ethernet (PoE) budget 190 W|S3220-16GT-190
Price:
201.88 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Aplinkos sąlygos
Darbo temperatūros diapazonas (TT) -10 - 55 °C
Sandėliavimo temperatūros norma (T-T) -40 - 75 °C
Darbo santykinės drėgmės diapazonas 5 - 95 %
Sandėliavimo santykinis drėgmės diapazonas 5 - 95 %
Duomenų perdavimas
Perjungimo pajėgumas 40 Gbit/s
Persiuntimo dažnis 29.76 Mpps
Adreso lentelės dydis 8000 įrašai
Jumbo Frames palaikymas Taip
„Jumbo“ kadrai 15000
Paketo buferio atmintis 4 MB
ELKO Internal Logistics Data
Unit Brutto Volume 0.01637 cubm
Shipping Box Weight 3.2 kg
Shipping Box Height 34 cm
Shipping Box Depth 53.5 cm
Shipping Box Width 9 cm
ELKO Verified Logistics Data
Bruto svoris 3.2 kg
Vienetų skaičius vienoje siuntimo dėžėje 1
Vieneto plotis 9 cm
Vieneto gylis 53.5 cm
Vieneto aukštis 34 cm
Energijos valdymas
Maitinimo šaltinis AC/PoE
Pridėtas maitinimo šaltinis Taip
Maitinimo šaltinių skaičius 1
AC įėjimo įtampa 100 - 240 V
AC įėjimo dažnis 50/60 Hz
Įvesties srovė 4 A
Galios suvartojimas (maks.) 212 W
Konstrukcija
Stovo montavimas Taip
Forma Desktopas
Produkto spalva Juoda
Korpuso medžiaga Metalas
LED indikatoriai Taip
Pakuotės duomenys
Pakuotės tipas „Box“
Pakuotės plotis 342 mm
Pakuotės gylis 540 mm
Pakuotės aukštis 90 mm
Paketo svoris 2910 g
Pakuotės turinys
Pridėti kabeliai AC
Instrukcija Taip
Ryšys
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 16
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Aukštynkryčio ryšio prievadų skaičius 2
Aukštynkrypčio optinio ryšio prievadų skaičius 2
Šviesolaidžio optinė jungtis SFP
Maitinimo jungtis AC įėjimo lizdas
Sertifikatai
Atitikties sertifikatai CE
Specification
Summary Dahua Technology PoE S3220-16GT-190. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching optical modules type: Gigabit Ethernet. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: Desktop
Category Code SWI
Unit Box Height 0.34
Unit Box Length 0.535
Unit Box Width 0.09
Name NET SWITCH 20PORT 16POE/S3220-16GT-190 DAHUA
Model name S3220-16GT-190
Šviesolaidis
Optinių perjungimo blokų tipas Gigabitinis eternetas
Svoris ir matmenys
Plotis 220 mm
Ilgis 440 mm
Aukštis 44 mm
Svoris 2260 g
Tinklas
Tinklo standartai IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
10G parama Ne
Eterneto LAN duomenų perdavimo norma 10,100,1000 Mbit/ai
Valdymo funkcijos
Perjungimo tipas Ne-valdomas
„Power over Ethernet“ (PoE)
Maitinimas per Eternetą (PoE) Taip
Palaikomas maitinimo per eternetą (en. PoE) tipas Active PoE/PoE+/PoE++ (4PPoE)
Maitinimo per Eternetą (PoE) prievadų skaičius 16
Maitinimo eternetu 4PPoE (PoE++) jungčių skaičius 2
Bendrosios galios per Eternetą (PoE) charakteriskos 190 W
