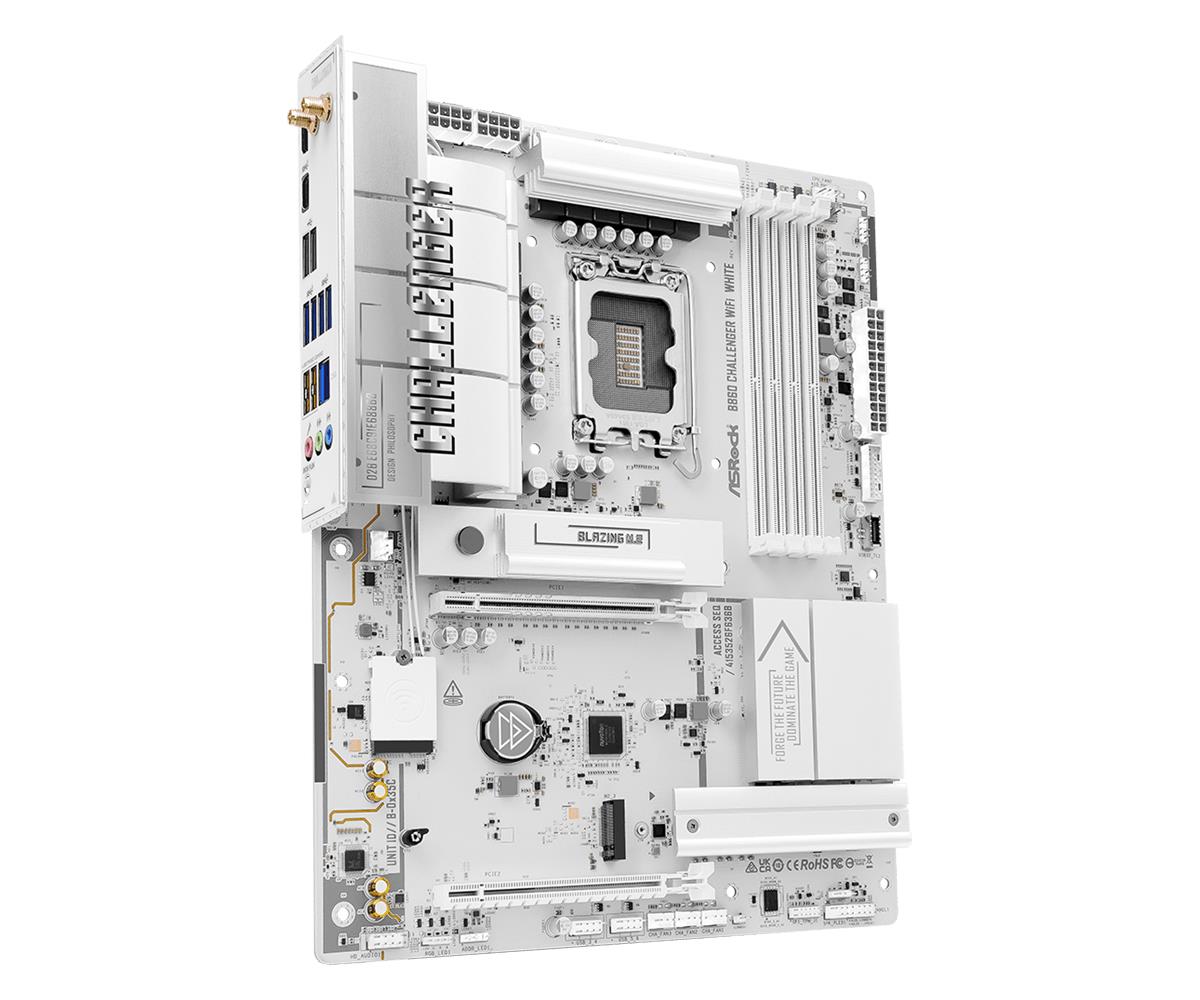

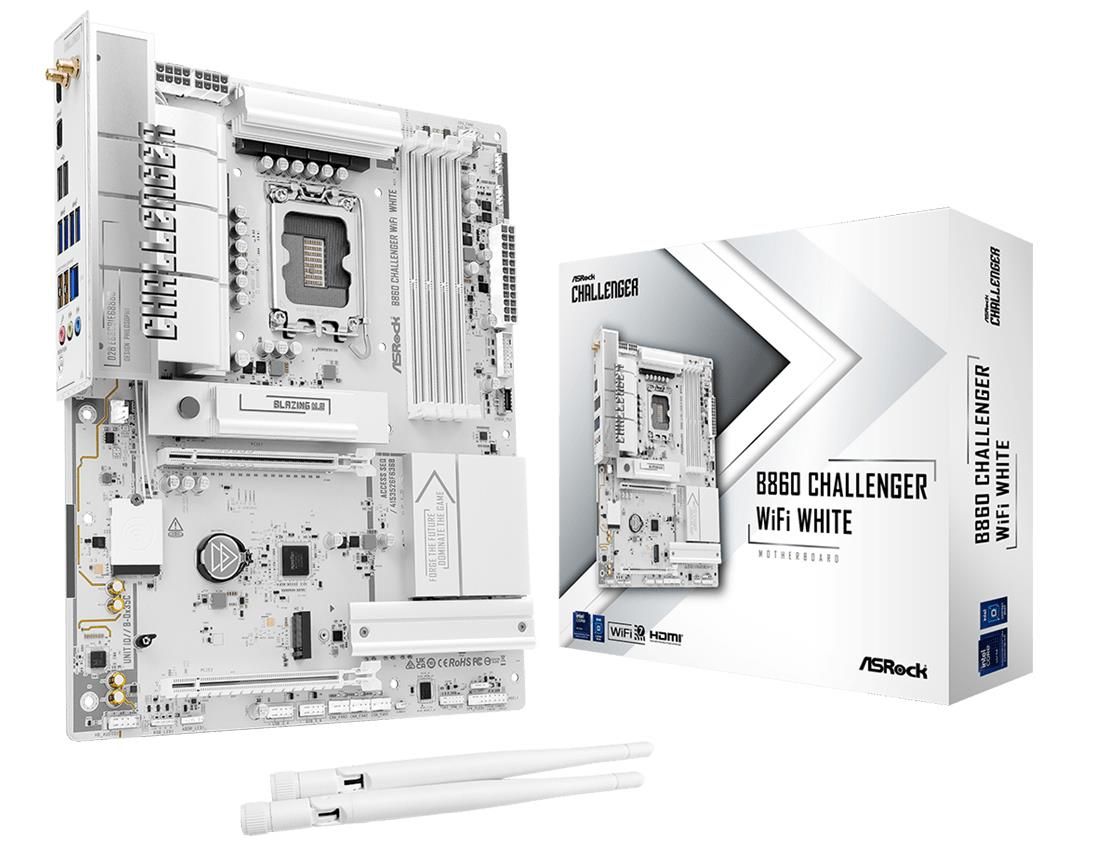

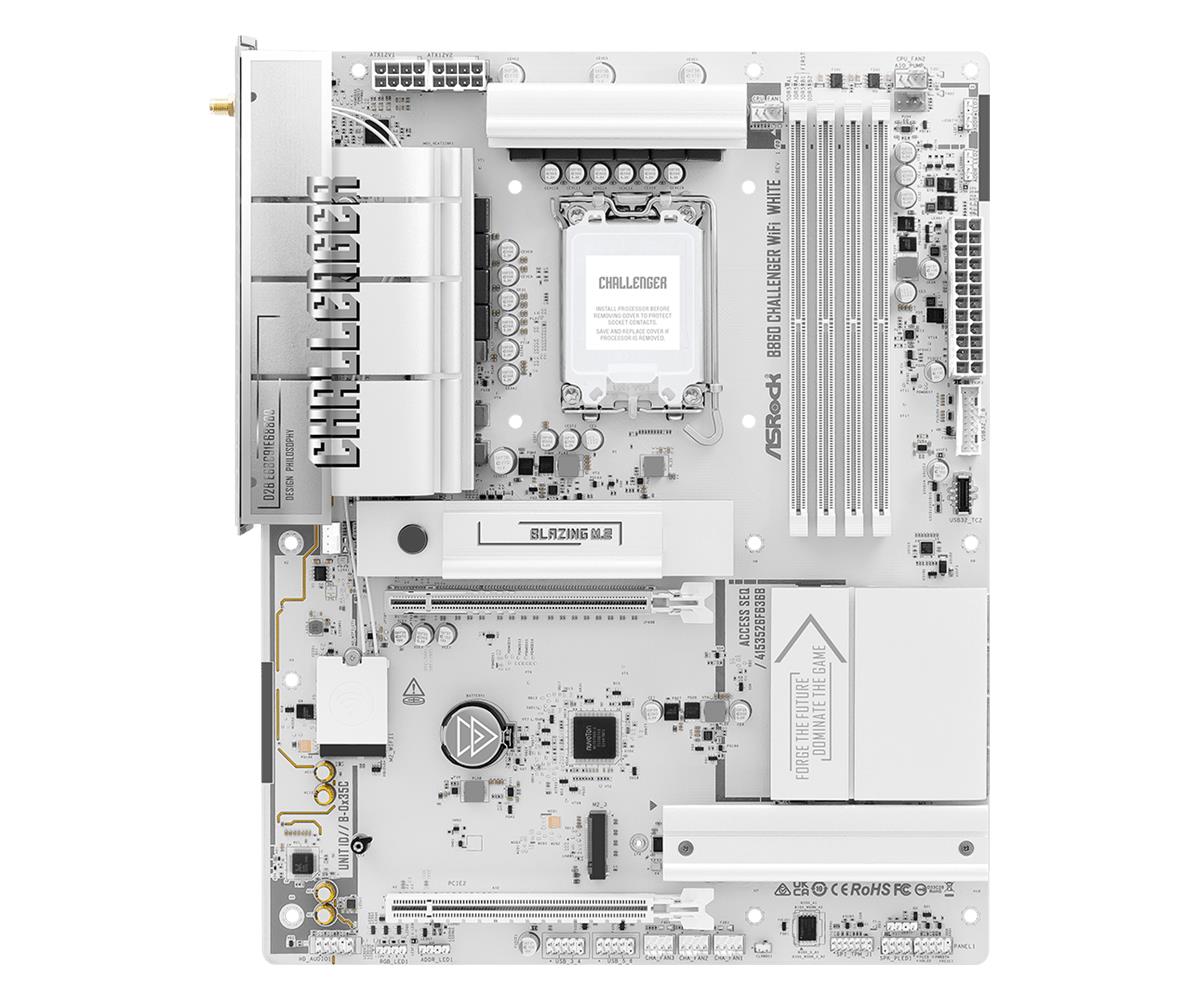

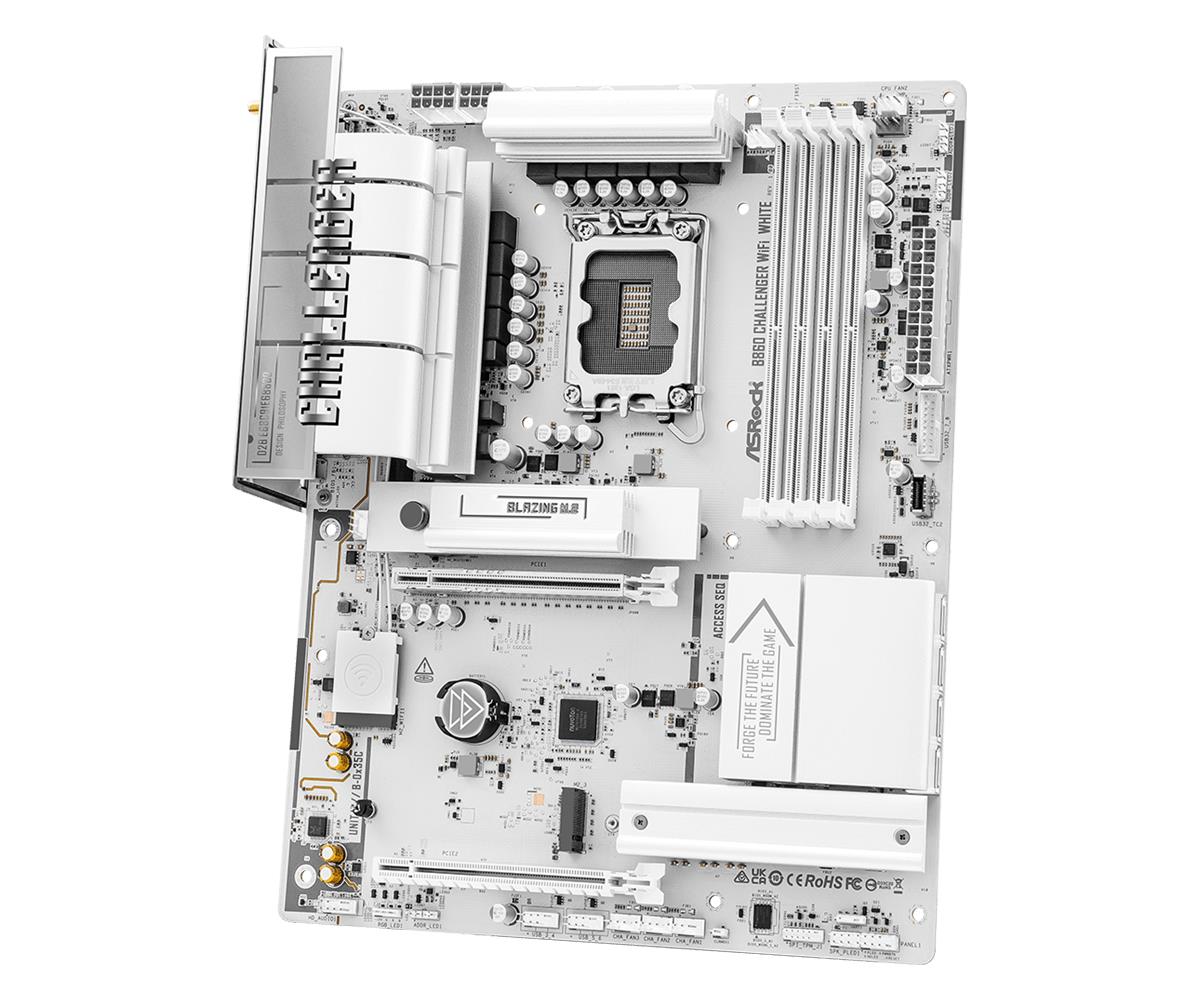

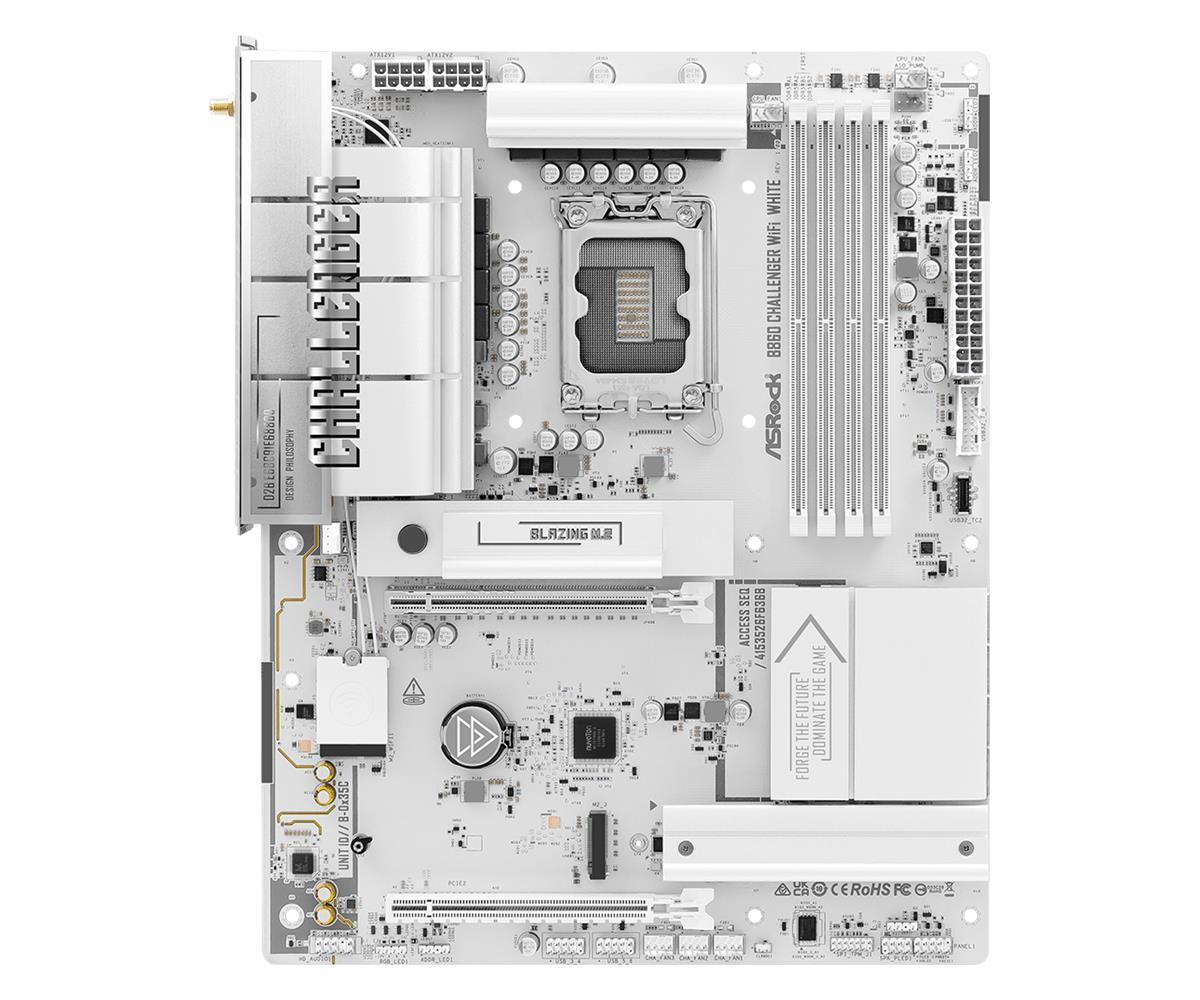

ASROCK Intel B860 LGA 1851 (Socket V1) ATX

Mainboard|ASROCK|Intel B860|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B860CHALLENGERWIFIWH
Ean:
4711581494183
Price:
175.68 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS flashback button Yes
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
Number of M.2 (M) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor ATX
Product colour White
Windows operating systems supported Windows 11 x64
Graphics
HDCP Yes
HDCP version 2.3
High Dynamic Range (HDR) supported Yes
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EATX power connectors 1
Number of SATA III connectors 4
Number of water pump connectors 1
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 9
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8666 MHz
Supported memory clock speeds 4400/4800/5600/6533/6800/8666 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.4
Ethernet interface type 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
LAN controller Dragon RTL8125BG
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Packaging content
Antenna included Yes
Cables included SATA
M.2 standoff included Yes
Screws included Yes
Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851
Processor special features
Intel Extreme Memory Profile (XMP) Yes

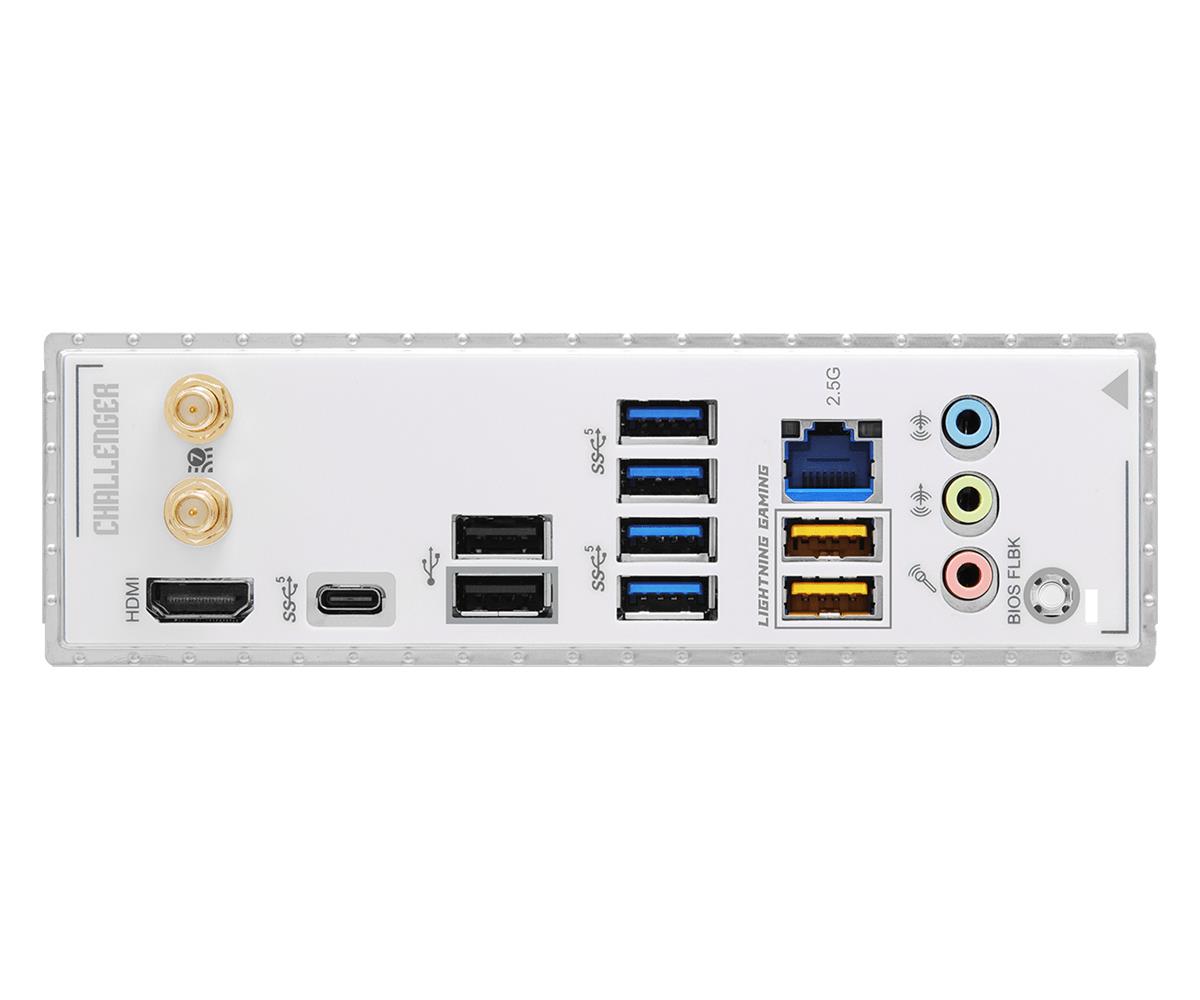

Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Line-in Yes
Microphone in Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
WiFi-AP antenna jack 2
Specification
Summary Asrock B860 Challenger WiFi White. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 5.0, M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Category Code MBI
Unit Box Height 0.28
Unit Box Length 0.075
Unit Box Width 0.35
Units per Shipping Box 5
Unit Calculated Volume 0.00959 cubm
Unit Calculated Weight 2.07 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces PCI Express 5.0,M.2,SATA III
Supported storage drive types HDD & SSD
Technical details
Compliance certificates CE/Federal Communications Commission (FCC)
Sustainability certificates ErP
Weight & dimensions
Depth 305 mm
Width 244 mm
