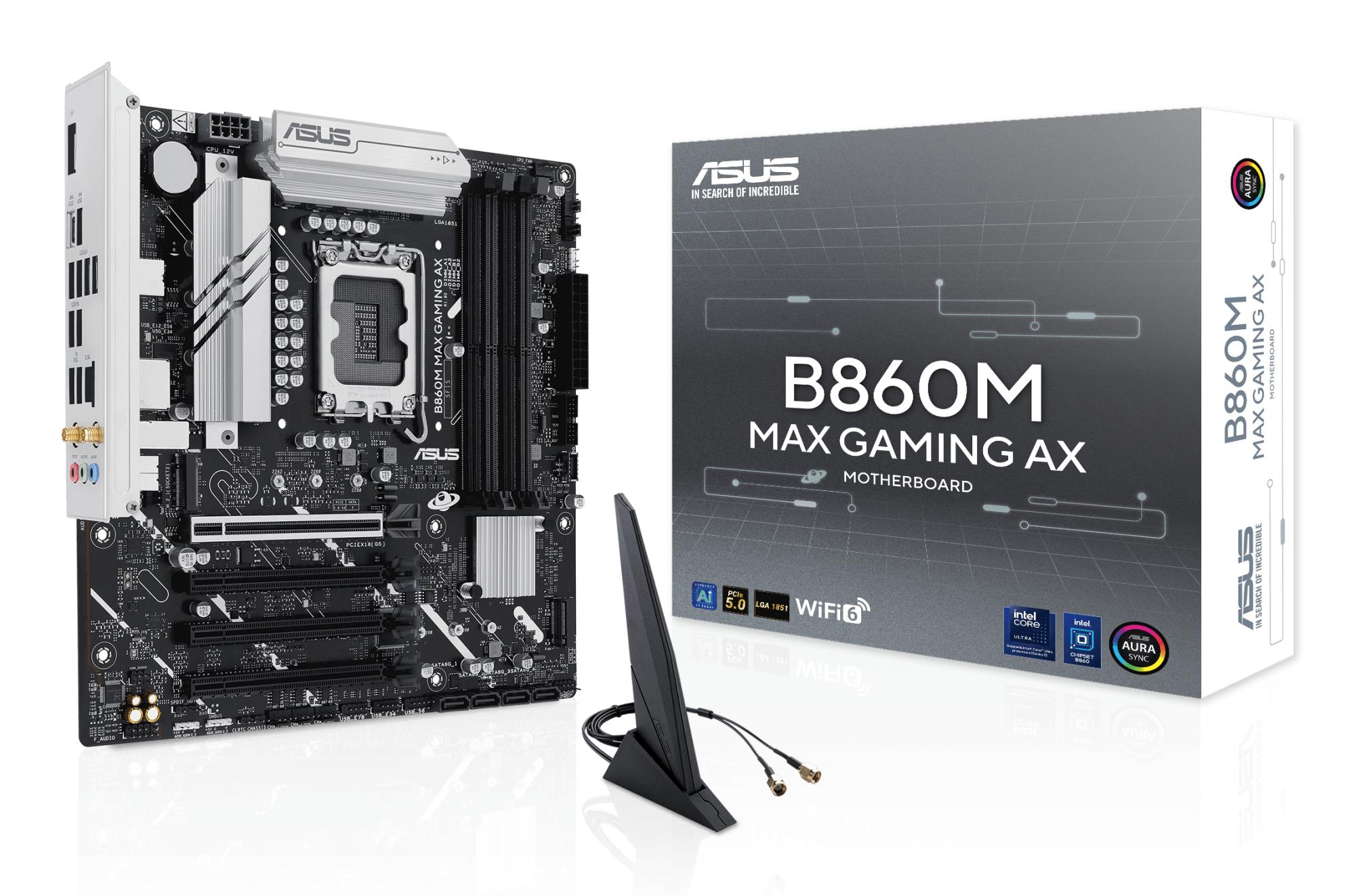

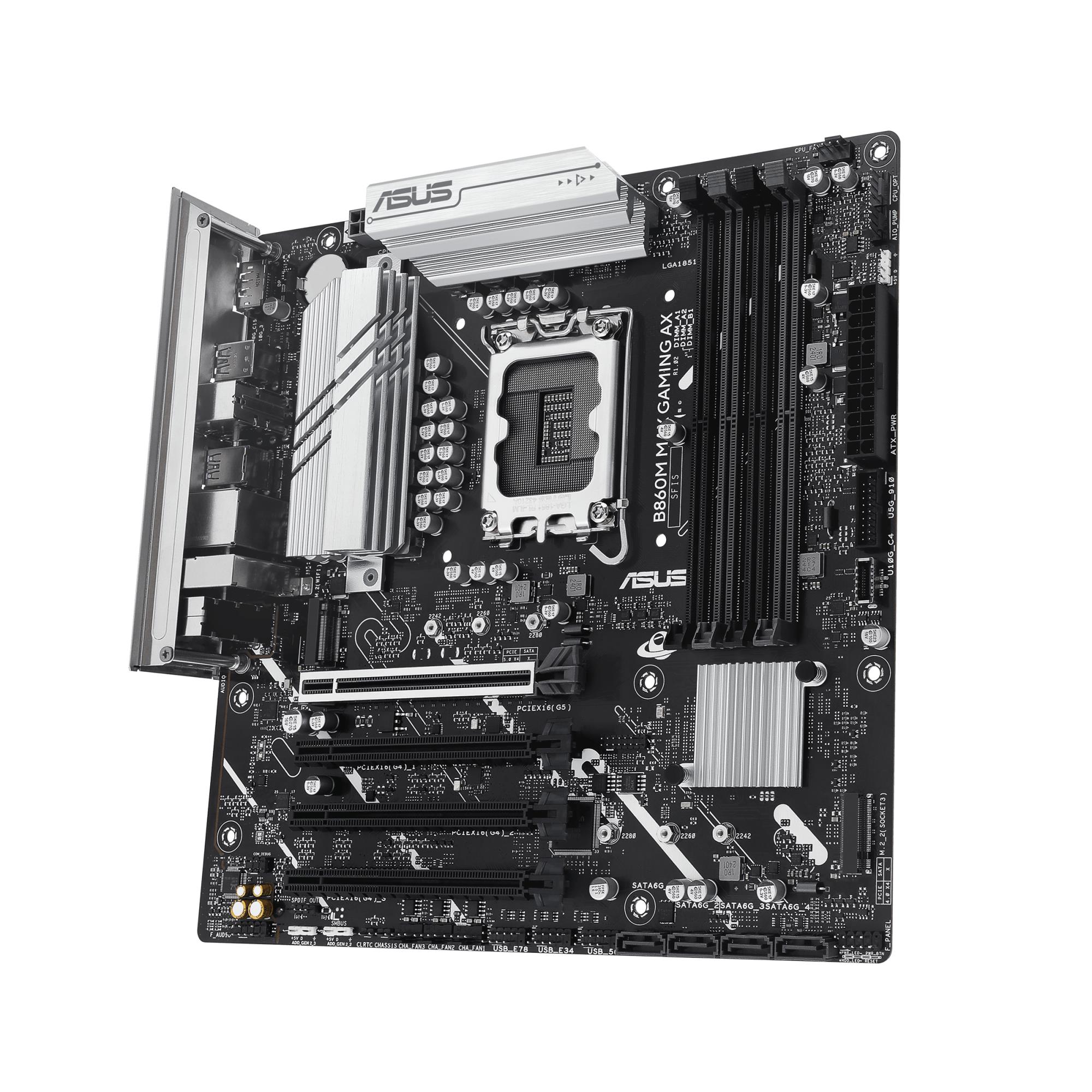

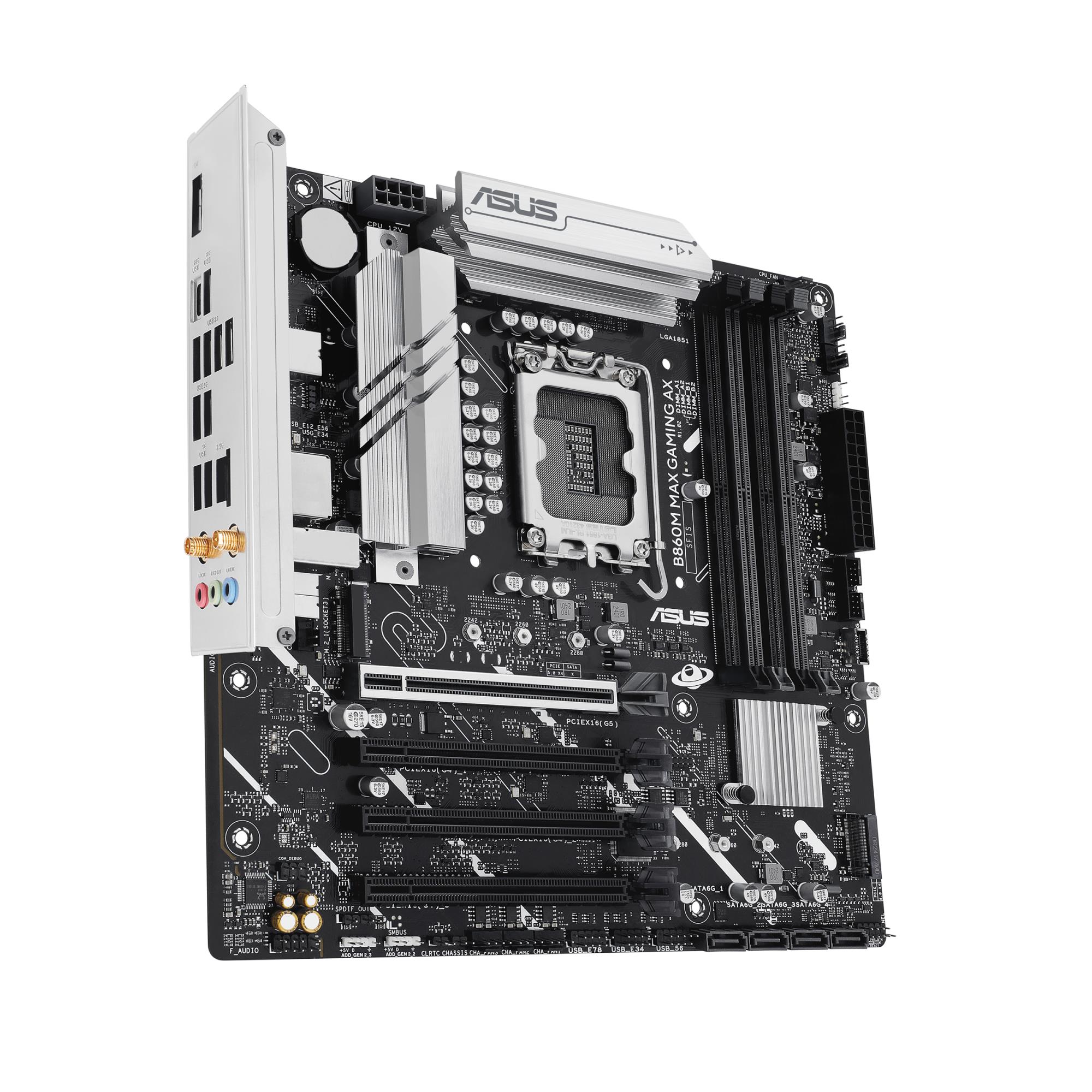

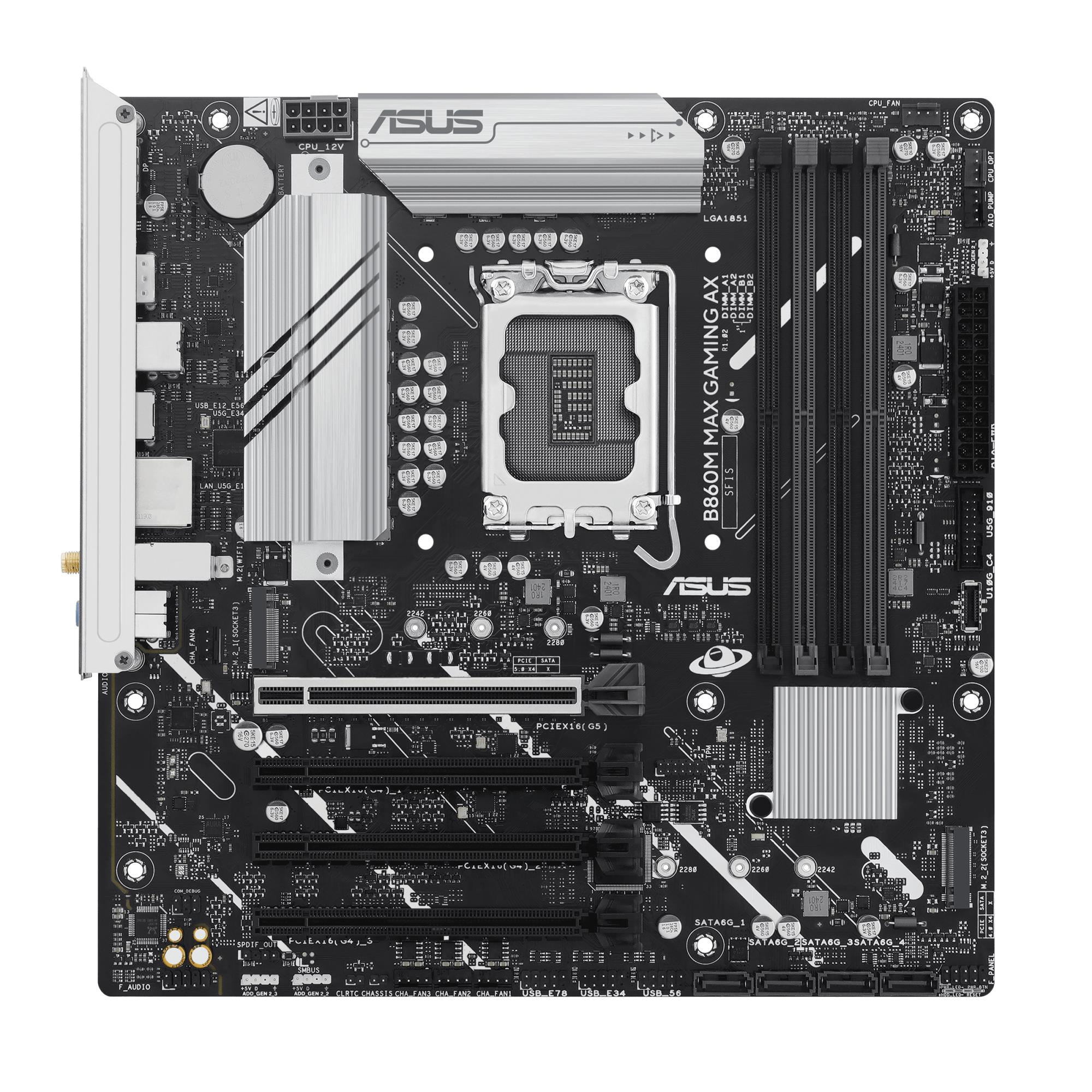

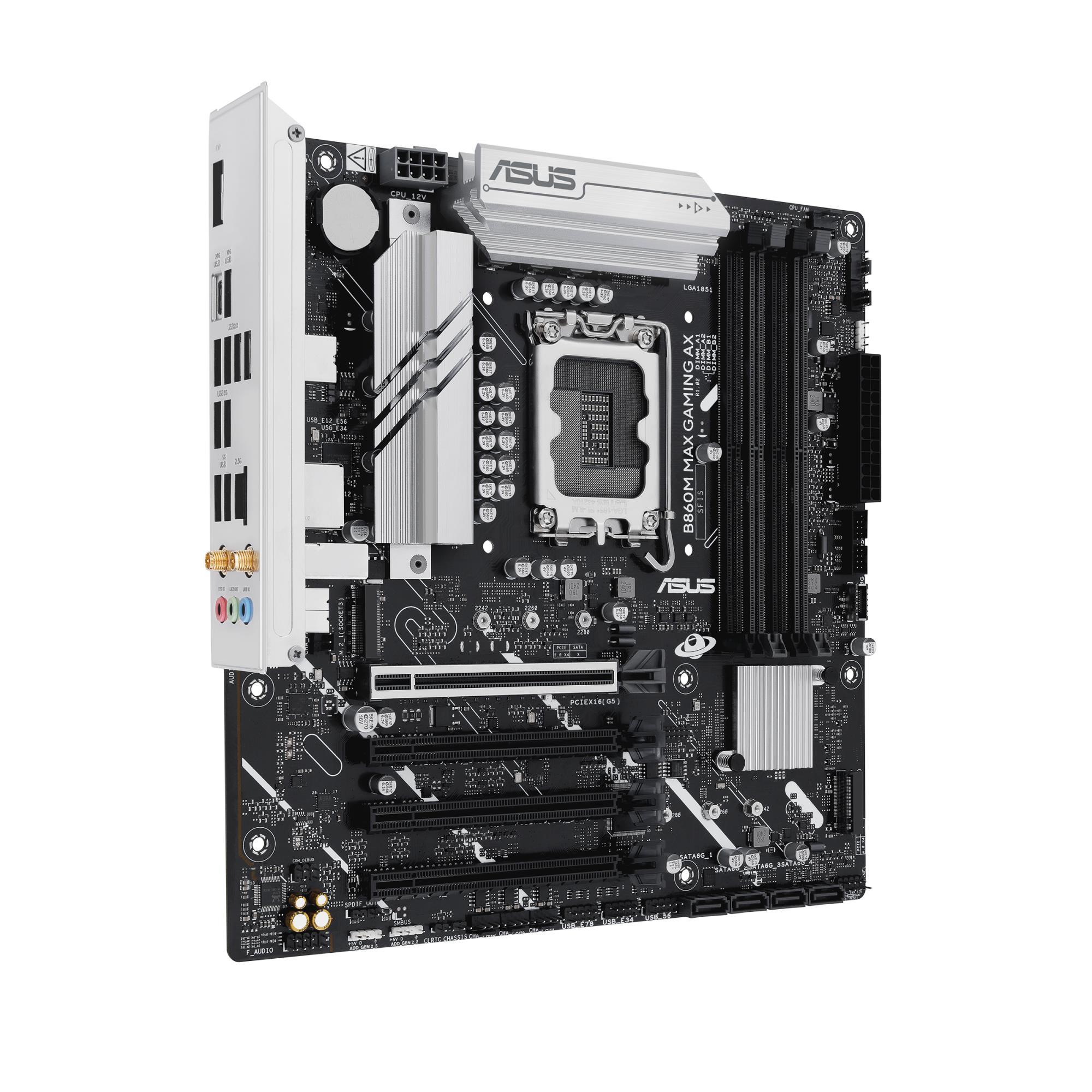

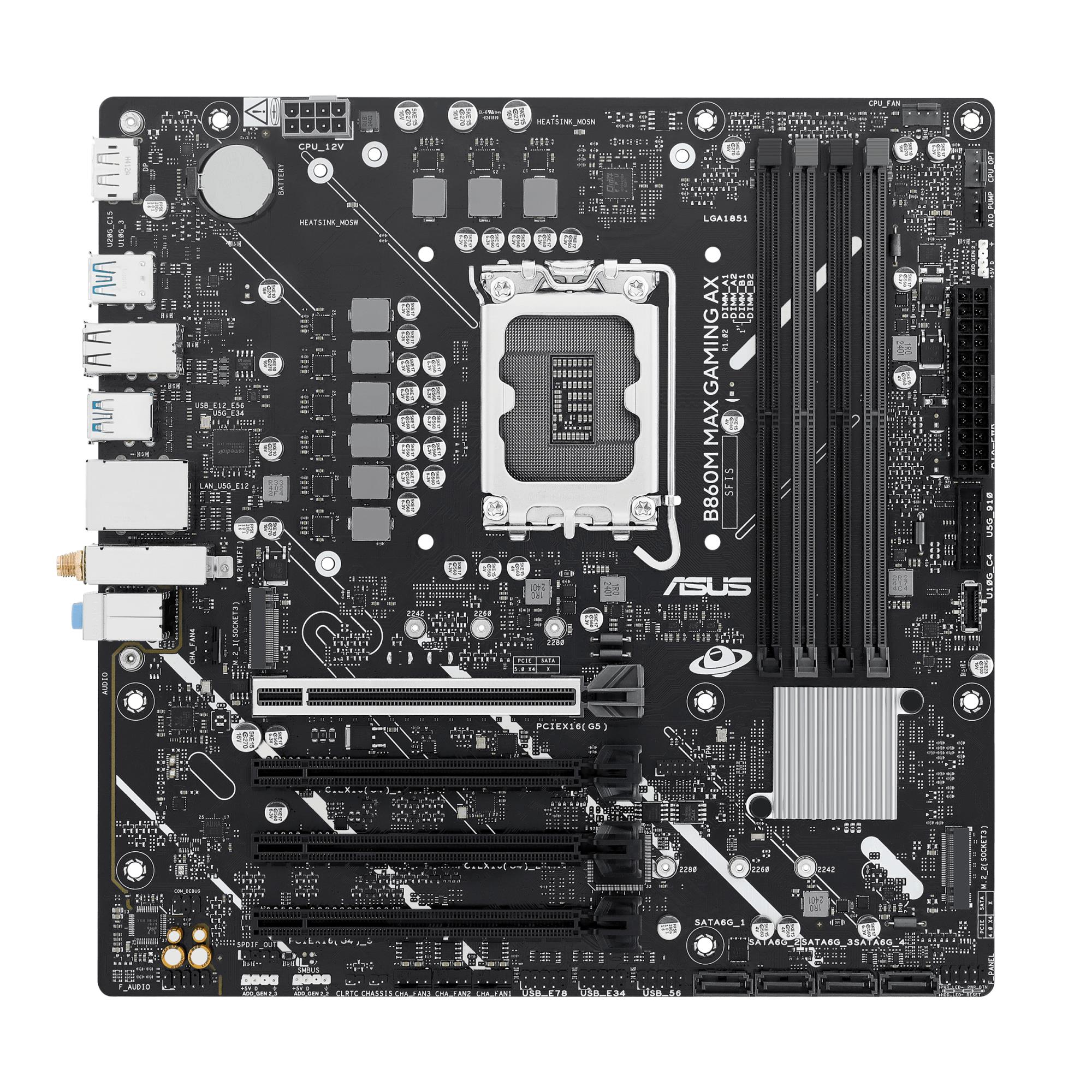

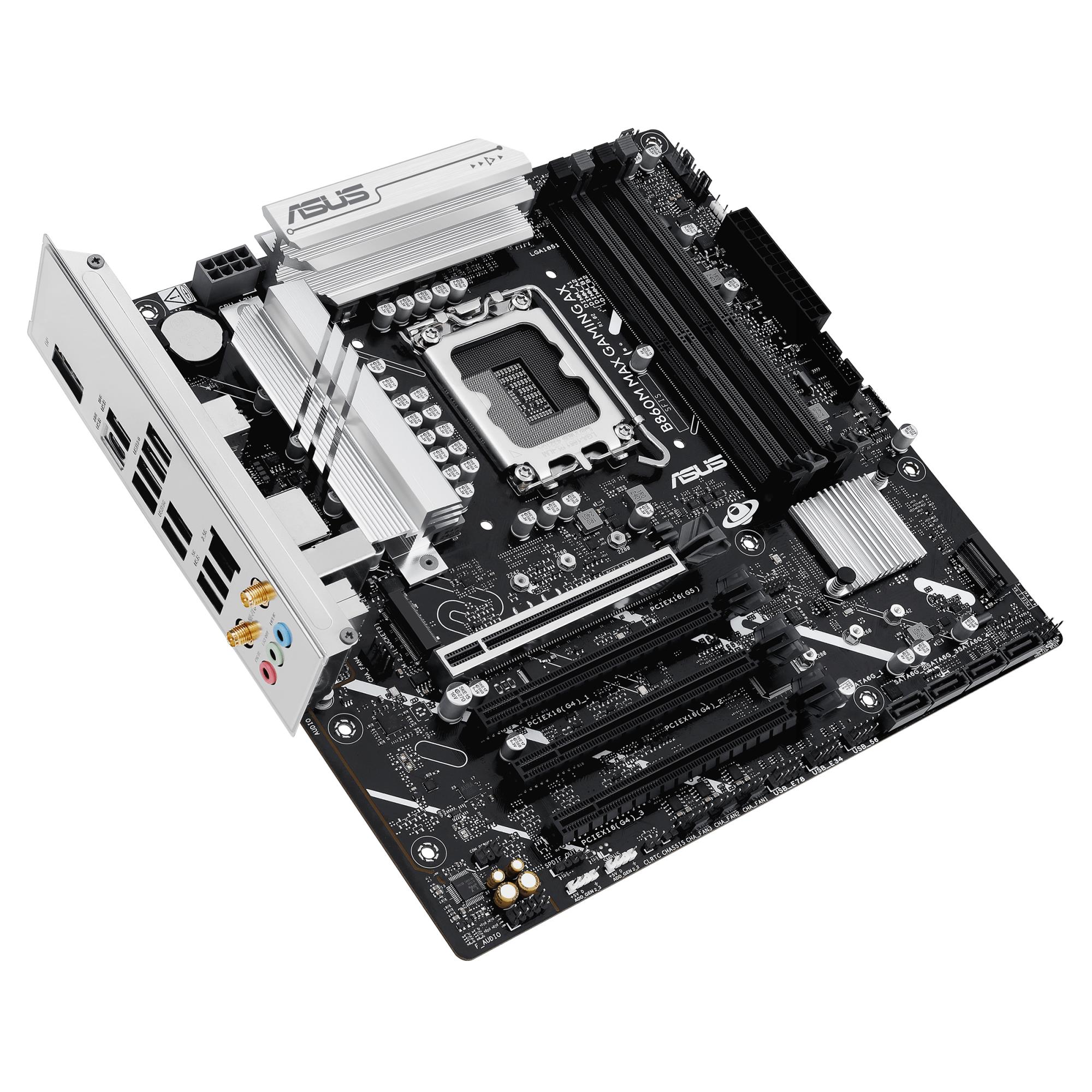

ASUS Intel B860 Express LGA1851 Micro-ATX

Mainboard|ASUS|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|B860MMAXGAMINGAX
Ean:
4711387831694
Price:
188.52 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
Number of M.2 (M) slots 3
PCI Express x16 (Gen 4.x) slots 3
PCI Express x16 (Gen 5.x) slots 1
Features
Audio output channels 7.1 channels
Component for PC
Cooling type Passive
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor micro ATX
Power source type ATX
Product colour Grey
Windows operating systems supported Windows 10 x64/Windows 11
Graphics
Maximum resolution 3840 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 4
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
RGB LED pin header Yes
S/PDIF out connector Yes
TPM connector Yes
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8666 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi Yes
Wi-Fi standards Wi-Fi 6 (802.11ax)
Other features
Quick installation guide Yes
Packaging content

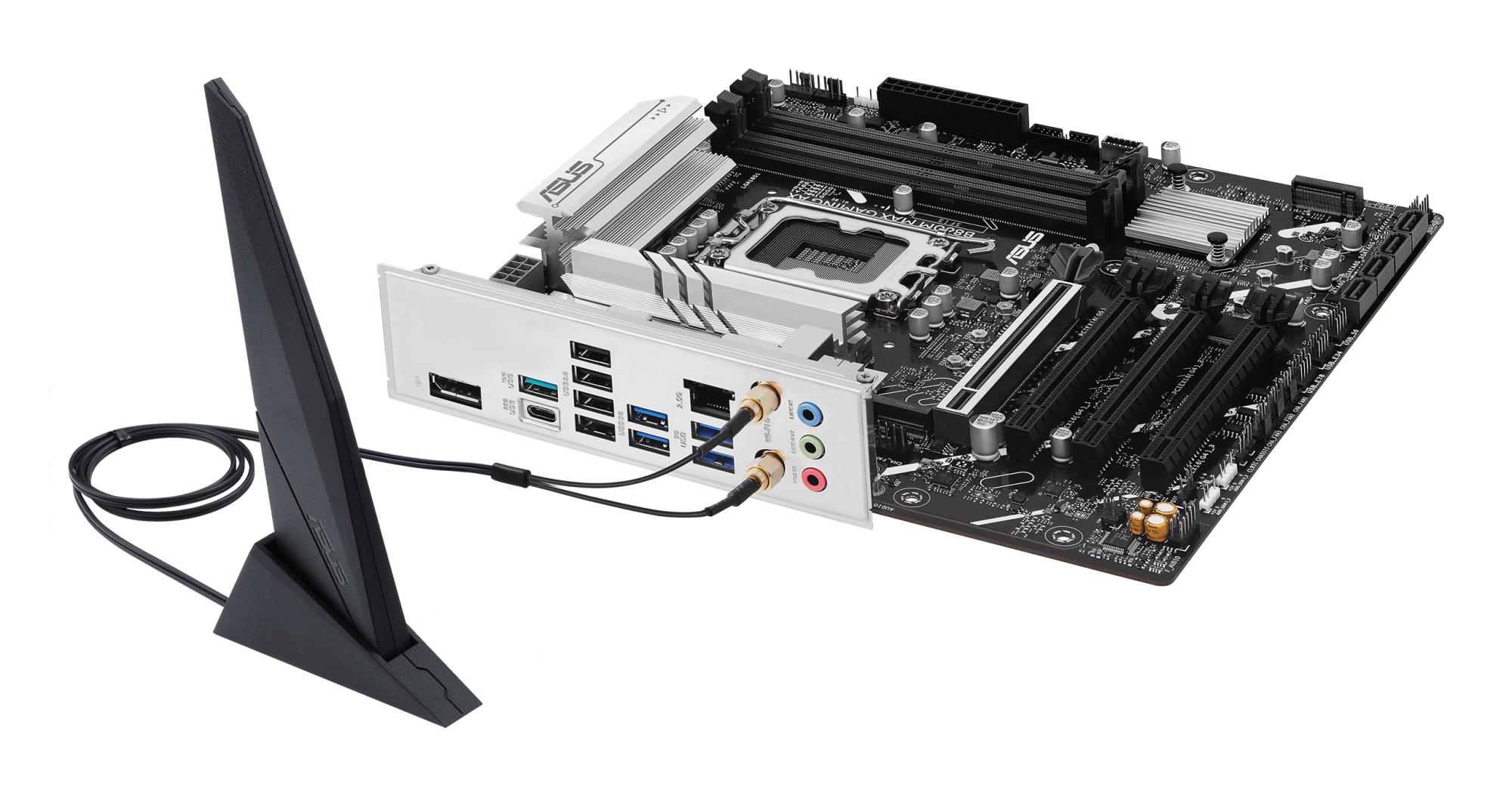

Antenna included Yes
Cables included SATA
Screws included Yes
Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851

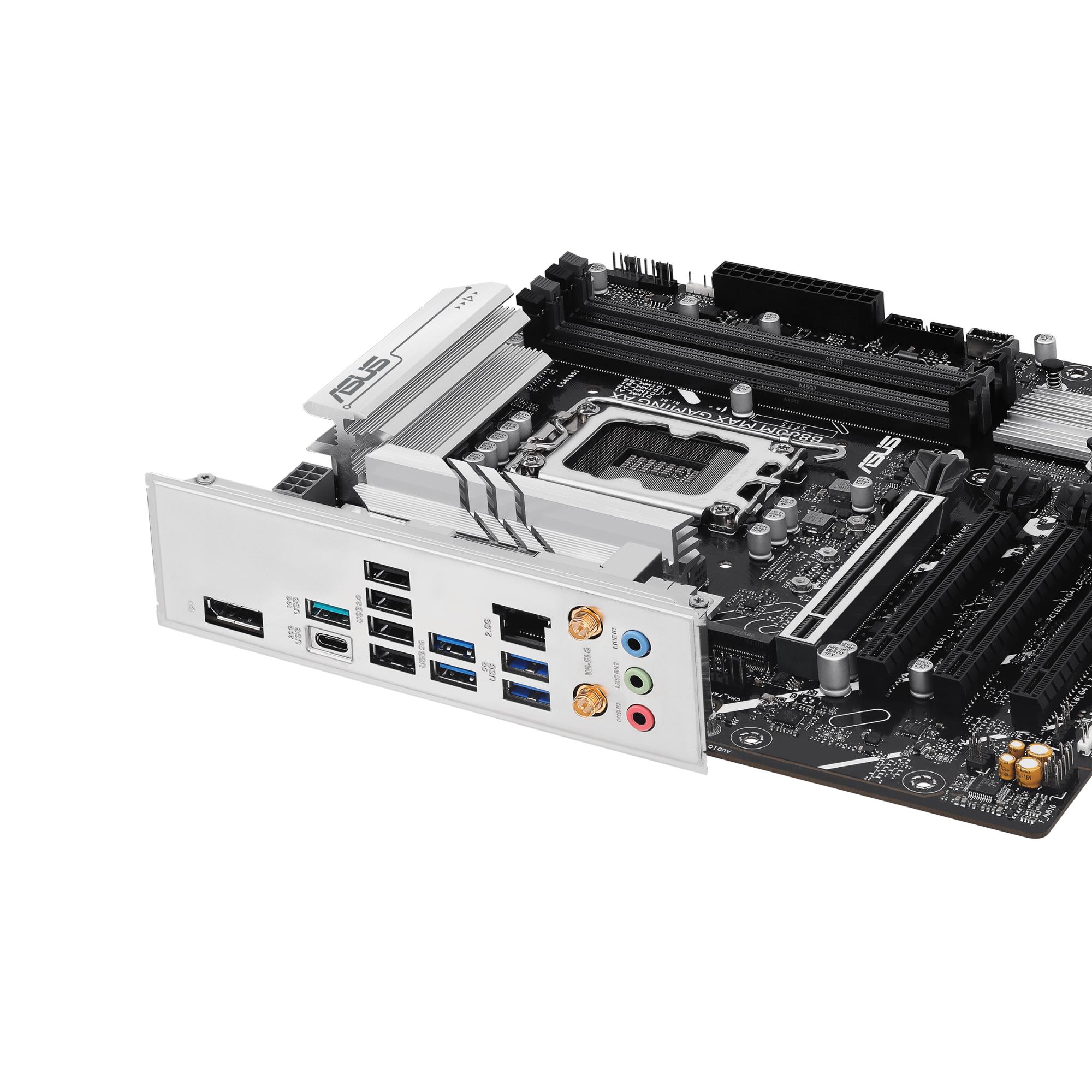

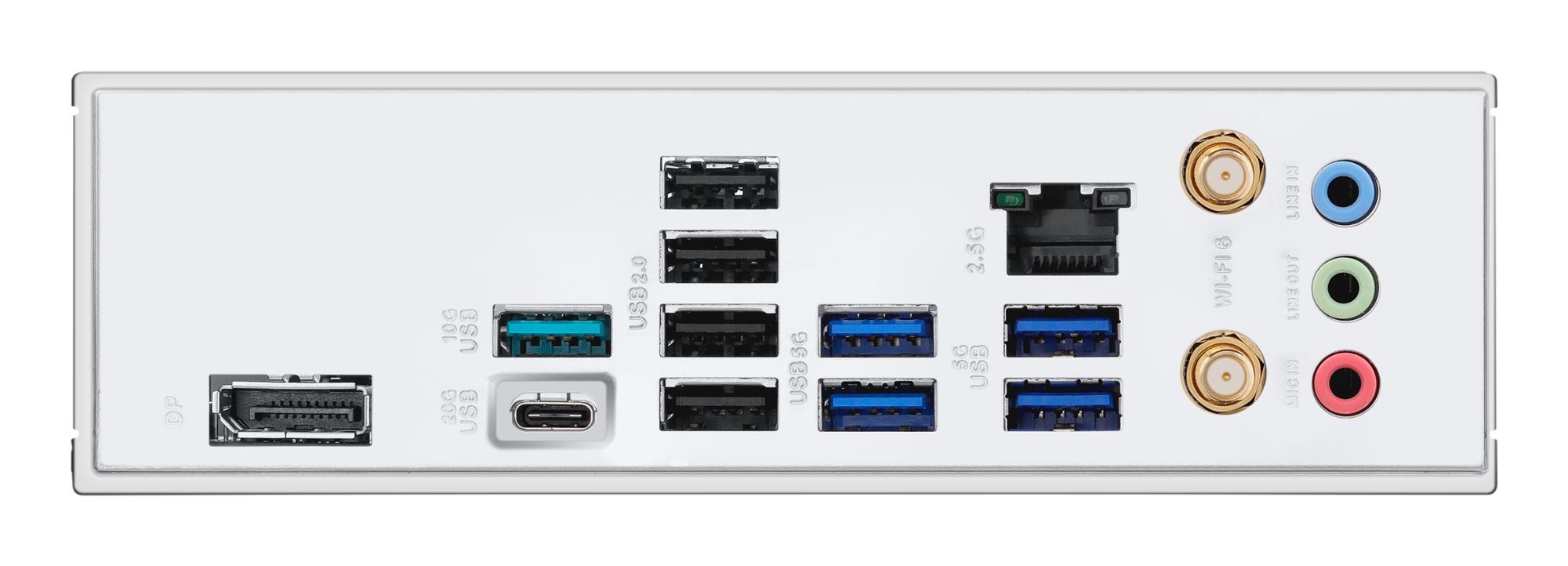

Rear panel I/O ports
DisplayPort version 1.4
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
Line-in Yes
Microphone in Yes
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2x2 Type-C ports quantity 1
WiFi-AP antenna jack 2
Specification
Summary ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax)
Category Code MBI
CnCode 84733020
Unit Box Height 0.068
Unit Box Length 0.279
Unit Box Width 0.275
Model B860M MAX GAMING AX
Units per Shipping Box 10
Unit Calculated Volume 0.0061551 cubm
Unit Calculated Weight 1.435 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 244 mm
Width 244 mm
