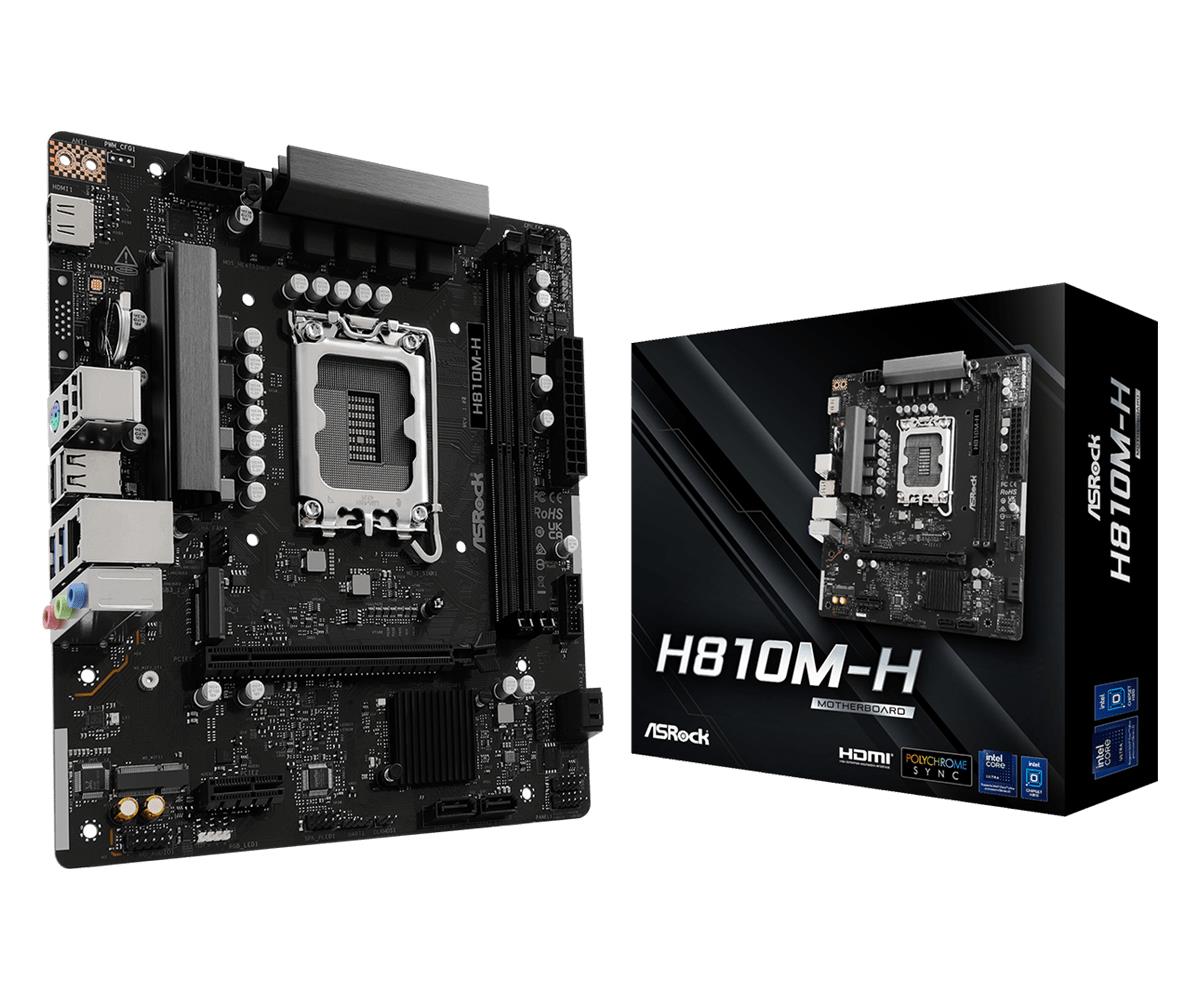

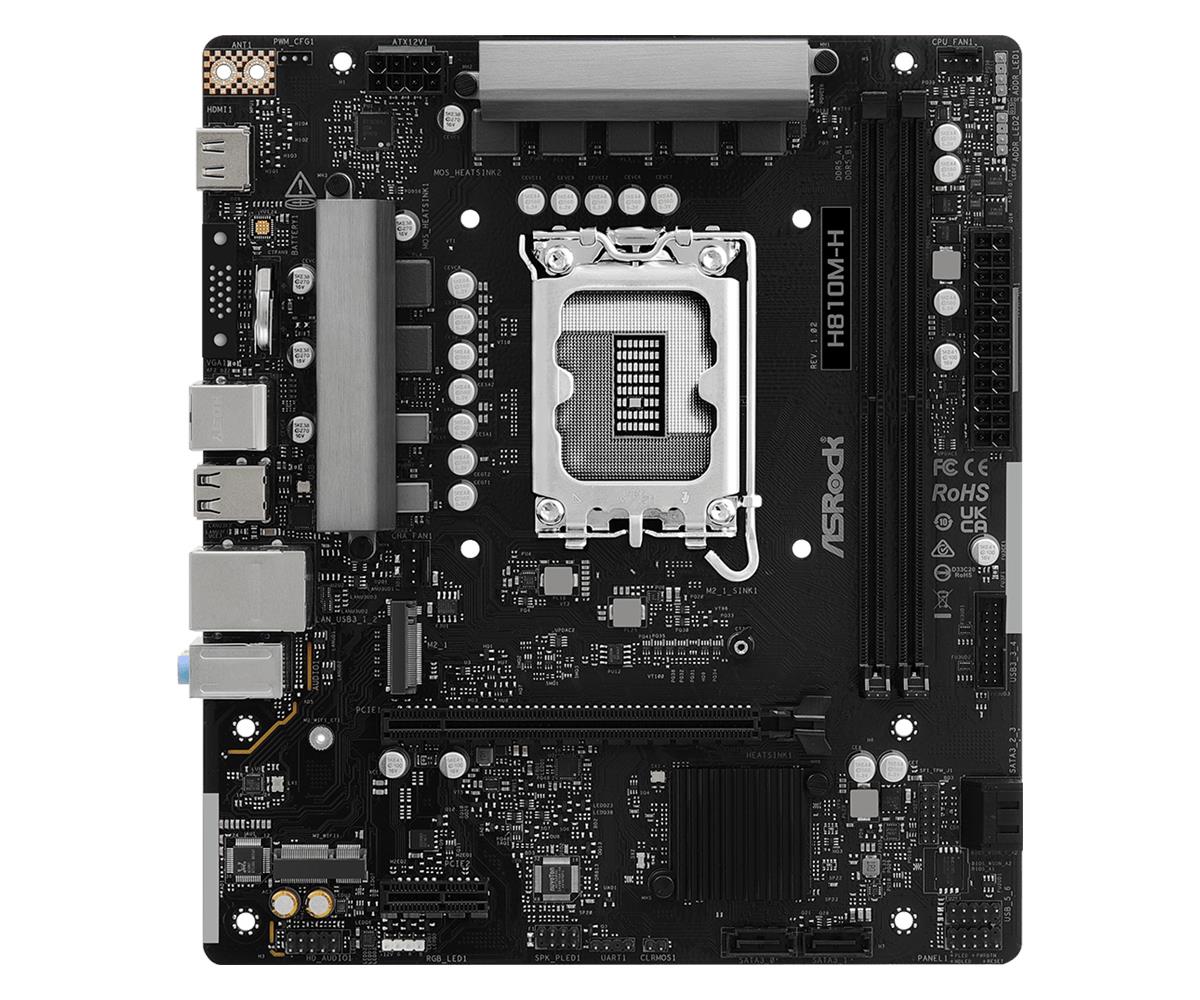

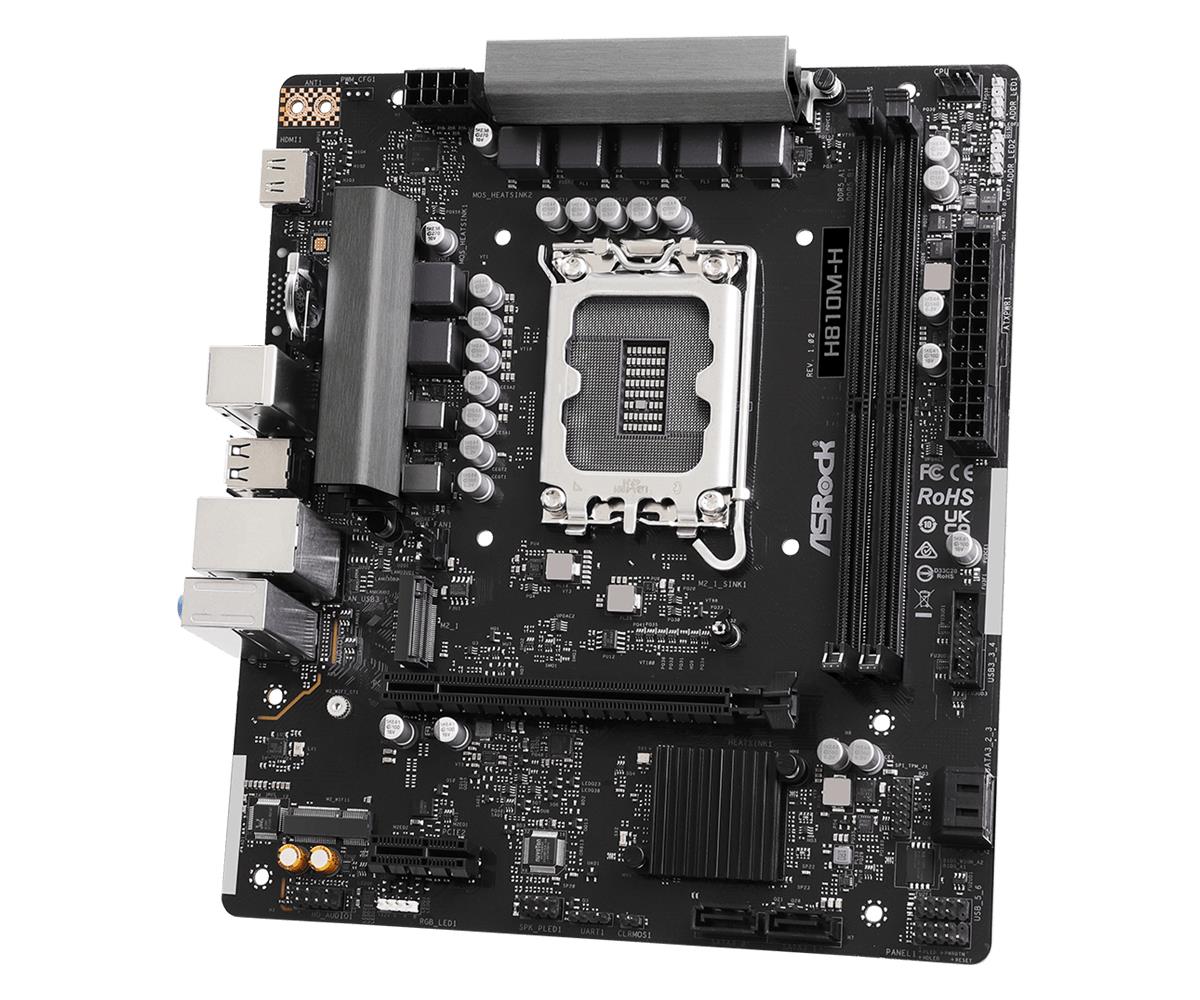

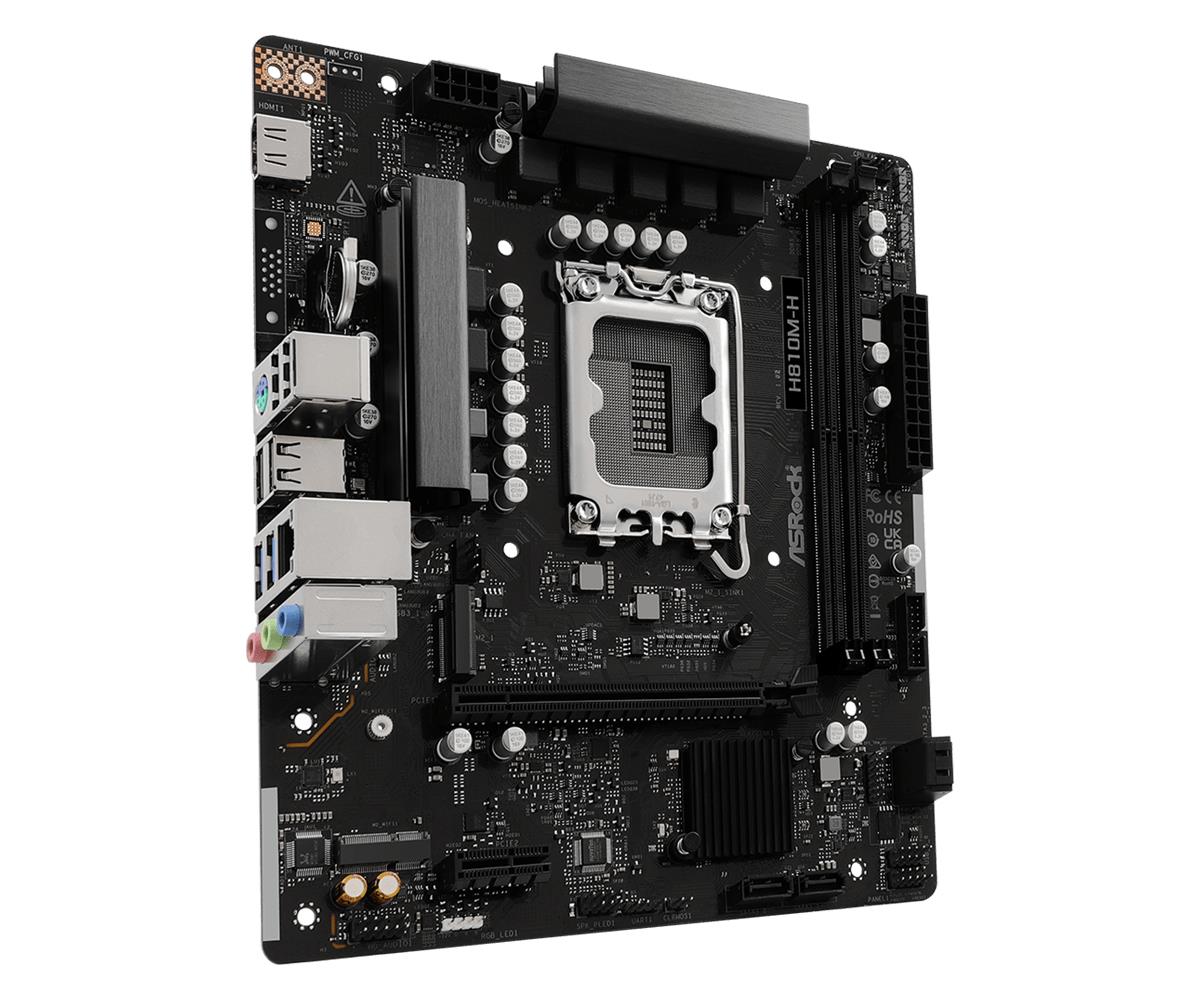

ASROCK H810M-H Intel H810 LGA 1851 (Socket V1)

Mainboard|ASROCK|H810M-H|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|1xNumber of M.2 (M) slots|H810M-H
Ean:
4711581490833
Price:
84.13 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
Number of M.2 (M) slots 1
PCI Express x1 (Gen 4.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Certification FCC, CE, ErP/EuP ready
Component for PC
Motherboard chipset Intel H810
Motherboard chipset family Intel
Motherboard form factor micro ATX
Product colour Black
Windows operating systems supported Windows 11 x64
Graphics
HDCP Yes
HDCP version 2.3
High Dynamic Range (HDR) supported Yes
Maximum resolution 3840 x 2160 pixels
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Front panel audio connector Yes
Number of chassis fan connectors 1
Number of CPU fan connectors 1
Number of RGB LED pin headers 1
Number of SATA III connectors 4
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory clock speed (max) 6400 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Wi-Fi No
Packaging content
Cables included SATA
Screws included Yes
Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Supported processor sockets Intel LGA1851

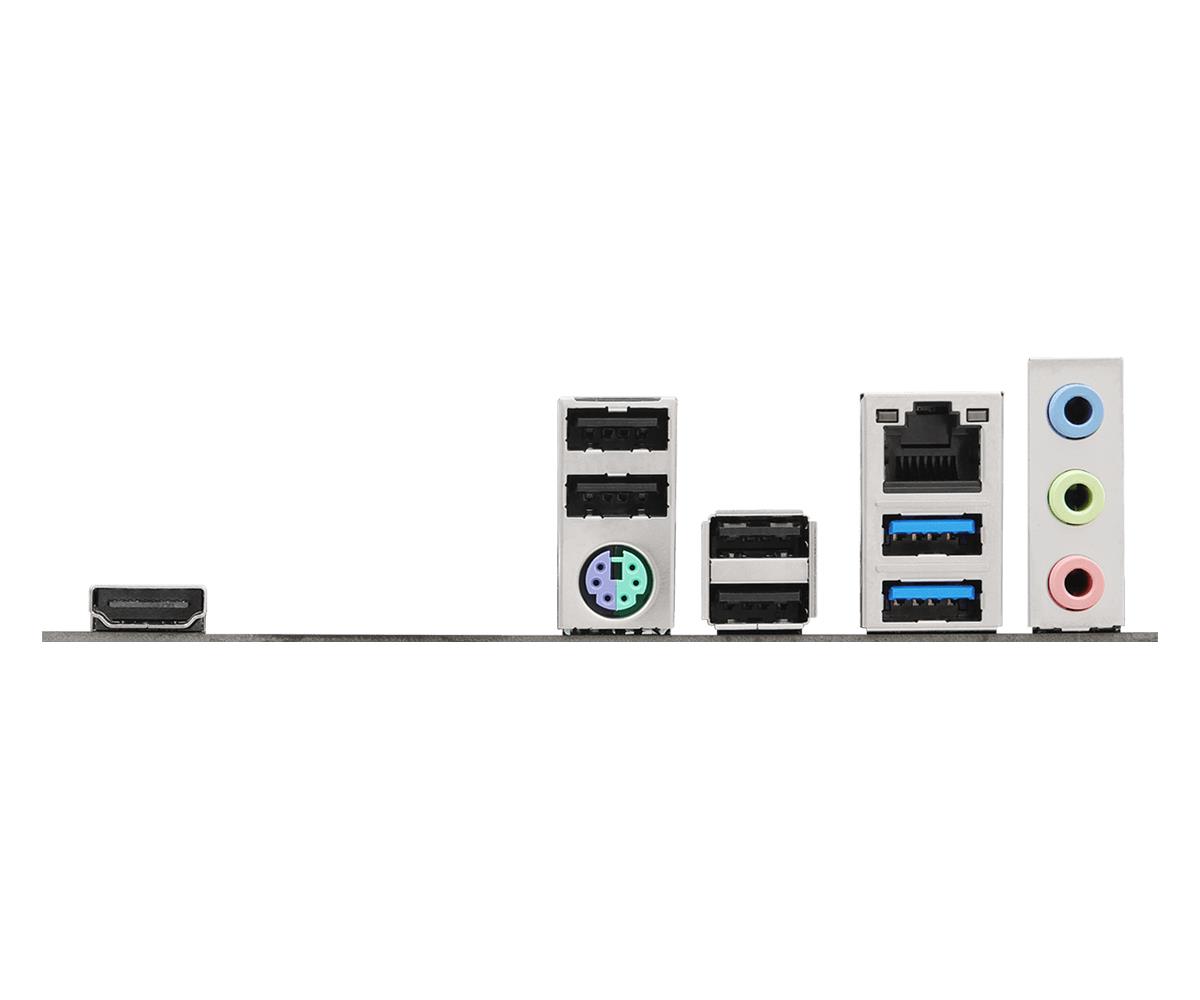

Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Line-in Yes
Microphone in Yes
PS/2 ports quantity 1
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Specification
Summary Asrock H810M-H. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Category Code MBI
Unit Box Height 0.06
Unit Box Length 0.28
Unit Box Width 0.24
Model H810M-H
Units per Shipping Box 20
Unit Calculated Volume 0.0044225 cubm
Unit Calculated Weight 0.897 kg
Storage controllers
Number of storage drives supported 5
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 193 mm
Width 220 mm
