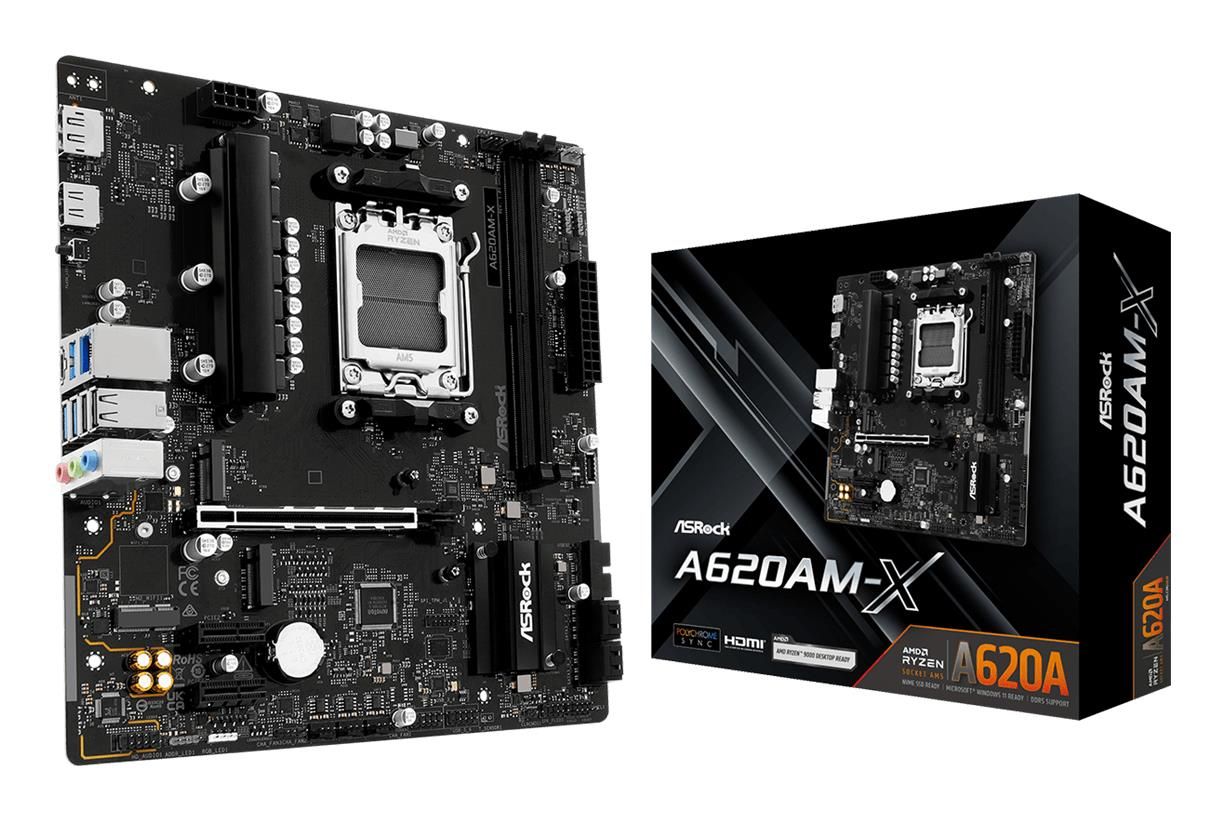

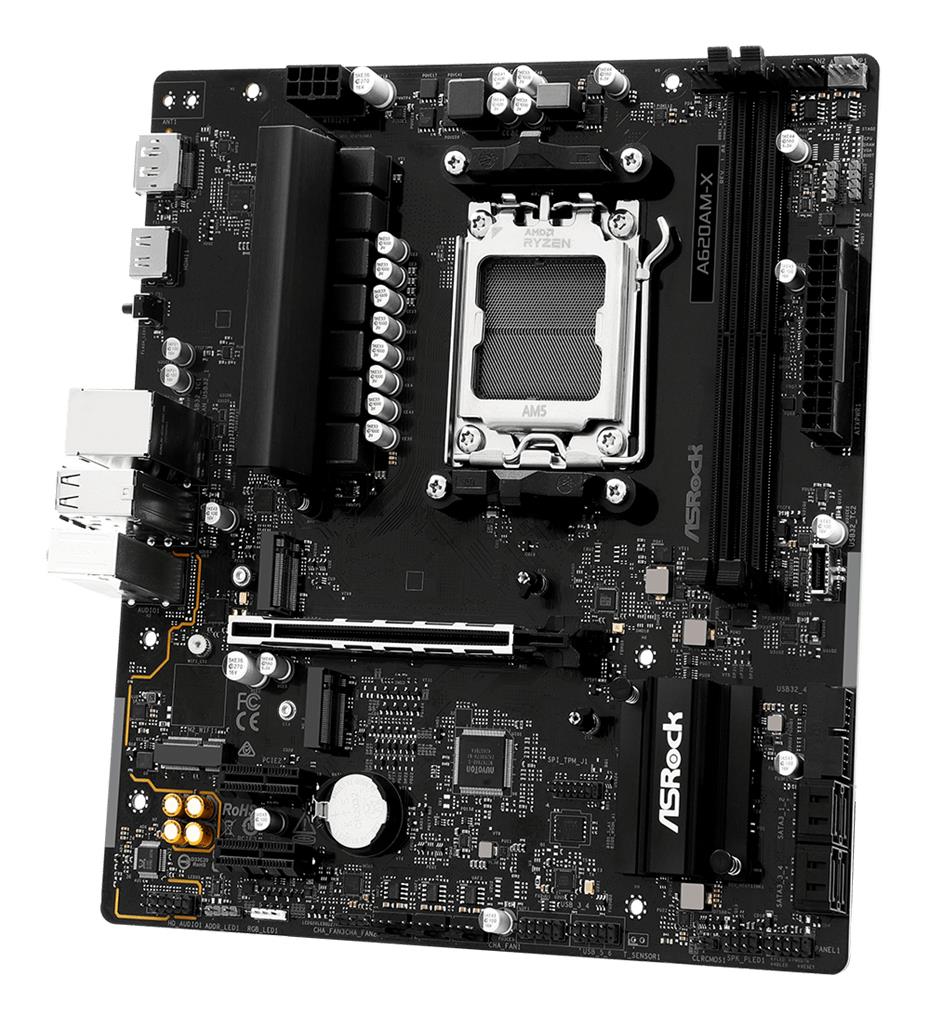

ASROCK AMD A620A SAM5 Micro-ATX

Mainboard|ASROCK|AMD A620A|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|A620AM-X
Ean:
4711581490819
Price:
93.42 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS flashback button Yes
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Cooling type Passive
Motherboard chipset AMD A620
Motherboard chipset family AMD
Motherboard form factor micro ATX
Product colour Black
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
Graphics card AMD RDNA 2
Graphics card family AMD
HDCP Yes
HDCP version 2.3
High Dynamic Range (HDR) supported Yes
Maximum resolution 3840 x 2160 pixels
On-board graphics card Yes
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
Audio connector Yes
CPU fan connector Yes
Front panel audio connector Yes
Number of chassis fan connectors 3
Number of CPU fan connectors 1
Number of RGB LED pin headers 1
Number of SATA III connectors 4
Number of water pump connectors 3
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory clock speeds 8000 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth No
Ethernet interface type 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN Yes
LAN controller Dragon RTL8125BG
Wi-Fi No
Packaging content
Cables included SATA
Manual Yes
Screws included Yes
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Processor special features
AMD Extended Profiles for Overclocking (EXPO) Yes
Intel Extreme Memory Profile (XMP) Yes

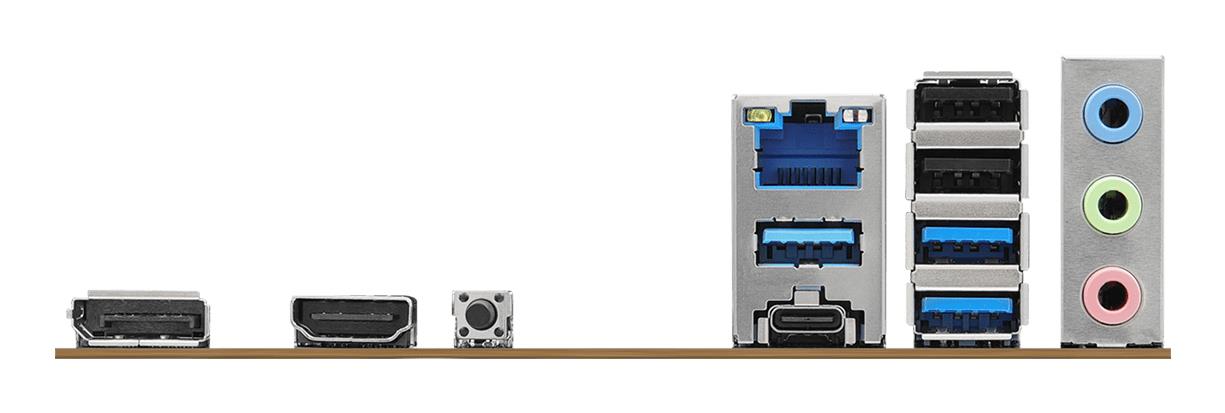

Rear panel I/O ports
DisplayPort version 1.4
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Line-in Yes
Microphone in Yes
Rear speaker out Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Specification
Summary Asrock A620AM-X. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG
Category Code MBA
Unit Box Height 0.265
Unit Box Length 0.3
Unit Box Width 0.055
Model A620AM-X
Units per Shipping Box 10
Unit Calculated Volume 0.005579 cubm
Unit Calculated Weight 1.16 kg
Storage controllers
Number of HDDs supported 4
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,NVMe,SATA III
Supported storage drive types HDD & SSD
Technical details
Compliance certificates CE/Federal Communications Commission (FCC)
Weight & dimensions
Depth 244 mm
Width 244 mm
