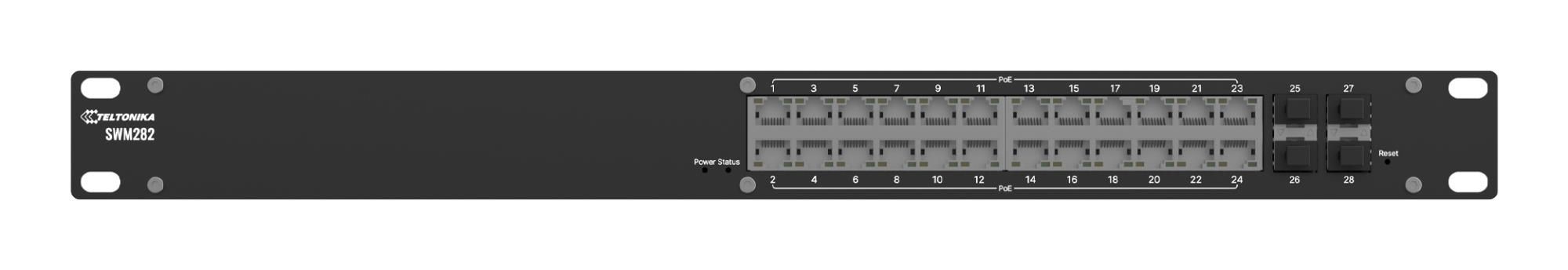

TELTONIKA SWM282000200 Switch type Managed Switch layer L2

Switch|TELTONIKA|SWM282000200|Switch type Managed|Switch layer L2|24xRJ-45 ports|Power over Ethernet (PoE) Yes|24xPower over Ethernet plus (PoE+) ports quantity|SWM282
Ean:
4779051846276
Price:
352.05 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Certificates
Compliance certificates CB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA
Data transmission
Forwarding rate 83.33 Mpps
Jumbo frames 10000
Jumbo frames support Yes
MAC address table 8000 entries
Packet buffer memory 0.512 MB
Static route Yes
Switching capacity 56 Gbit/s
Design
Housing material Aluminium
International Protection (IP) code IP30
Product colour Black
Rack mounting Yes
Reset button Yes
Management features
Quality of Service (QoS) support Yes
Switch layer L2+
Switch type Managed
Traffic shaping Yes
Web-based management Yes
Network
10G support No
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Port mirroring Yes
Rate limiting Yes
VLAN support Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Packaging content
Quick start guide Yes
Packaging data
Package type Box
Performance
Built-in processor Yes
Firmware upgradeable Yes
Flash memory 16 MB
Internal memory 128 MB
Memory type DDR3-SDRAM
Processor frequency 500 MHz
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector AC-in jack
SFP module slots quantity 4
Power
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 330 W
Power source AC
Power supply included No
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) modes Alternative A
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) type supported Active PoE/PoE+
Power over Ethernet plus (PoE+) ports quantity 24
Total Power over Ethernet (PoE) budget 300 W
Security
Authentication type RADIUS,TACACS+
DHCP features DHCP client/DHCP server/DHCPv6 client
Loop protection Yes
MAC address filtering Yes
Queue scheduling algorithms SP/Weighted Round Robin (WRR)/WFQ
Specification
Summary Teltonika SWM282. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
Category Code SWI
Unit Box Height 0.1
Unit Box Length 0.52
Unit Box Width 0.33
Model SWM282
Model name SWM282000200
Units per Shipping Box 1
Unit Calculated Volume 0.01716 cubm
Unit Calculated Weight 2.58 kg
Weight & dimensions
Depth 234 mm
Height 44 mm
Weight 2291 g
Width 483 mm
