Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Operational conditions
Operating relative humidity (H-H)
10 % to 90 % non-condensing %
Operating temperature (T-T)
-40 C to 75 C °C
Other features
USB ports quantity
1xUSB A port for external devices

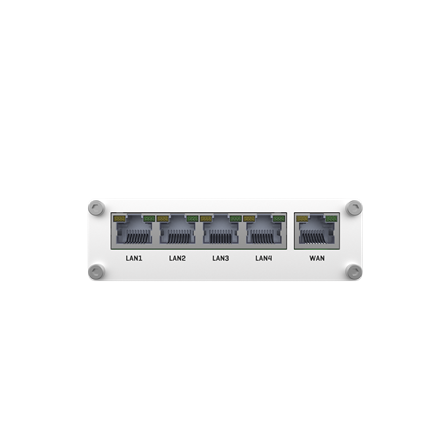

Ethernet LAN (RJ-45) ports
5
Connectivity LEDs
5 x ETH status, 1 x Power
Performance
Ethernet LAN data rates
10/100 Mbps Mbit/s
Ports & interfaces
WAN connection
1x10/100 Mbps (compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover)
I/O ports
2 x Configurable digital Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Power
Power supply
1x4 pin DC connector W
Power consumption (typical)
Idle: 1.3 W, Max: 3 W W
Protocols
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
DHCP server
HTTP(S), MQTT, Azure MQTT, Kinesis
Security
Firewall security
Port forwards, traffic rules, NAT rules, custom rules
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Software
Operating system installed
Teltonika Remote Management System (RMS)
Storage
Flash memory
16 MB, SPI Flash GB
Technical details
Gross weight
0.435 kg
Net weight
0.348 kg
Wireless LAN features
Channels quantity
4 (can be configured as secondary WAN ports)
Wi-Fi band
No Wi-Fi
