7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
Video formats supported
H.264/H.264+/H.265/H.265+/MJPG
Video input channels
16 channels
Video loss detection
Yes
Video motion detection
Yes

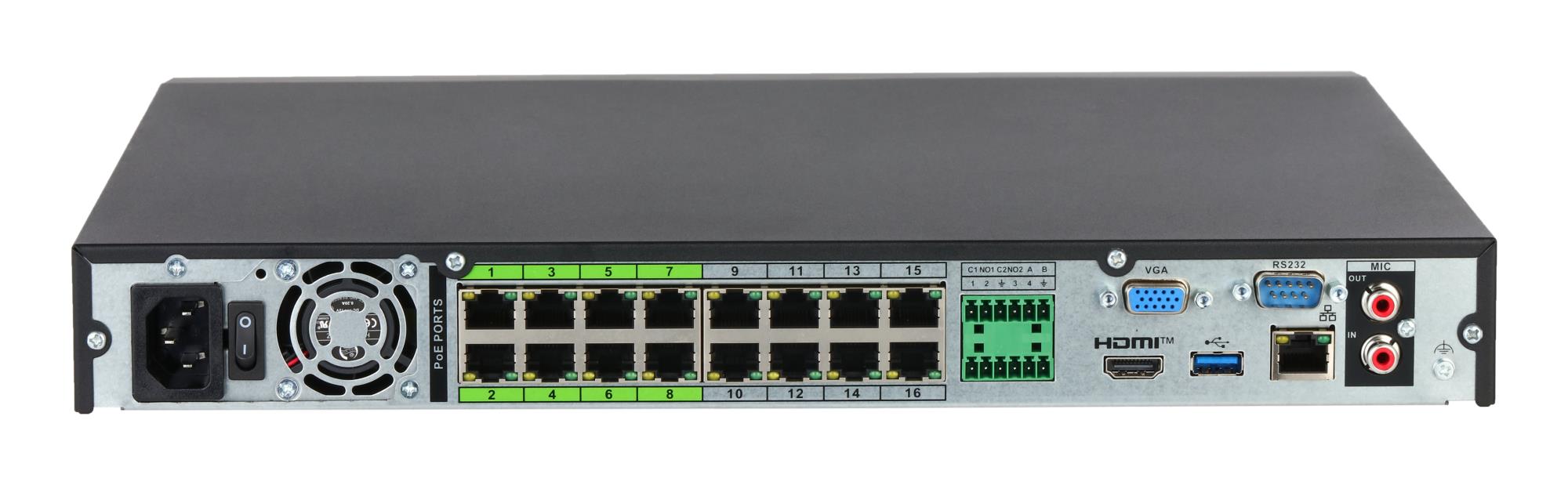

Ports & interfaces
Audio RCA inputs
1
Audio RCA outputs
1
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10/100/1000 Mbit/s
HDMI output
Yes
HDMI ports quantity
1
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
16
RS-232 interface
Yes
RS-232 ports
1
RS-485 ports
1
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
VGA (D-Sub) output ports
1
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
10 W
Power over Ethernet (PoE) power per port
25.5 W
Total Power over Ethernet (PoE) budget
130 W
Processor
Built-in processor
Yes
Specification
Summary

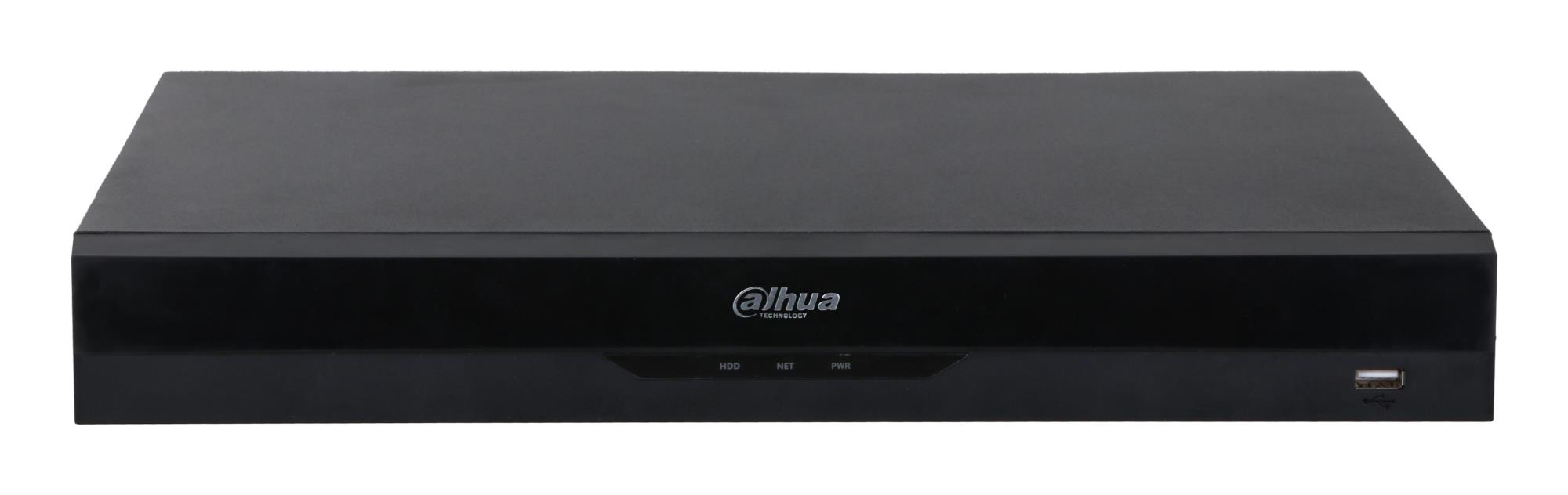

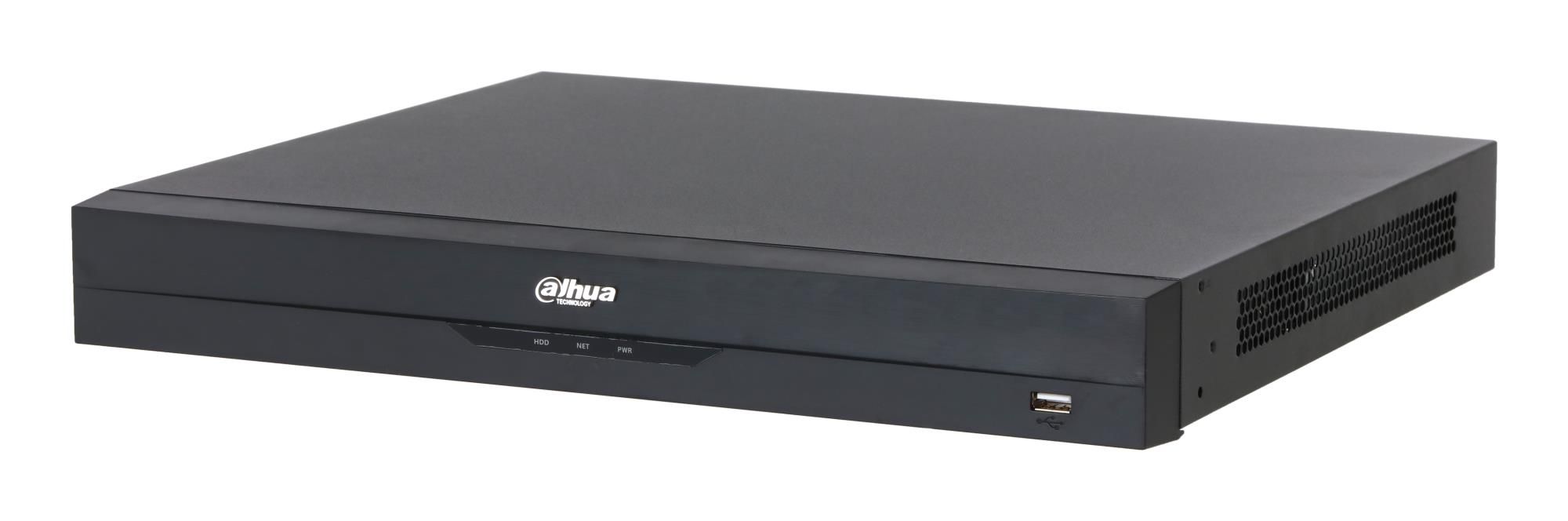

Dahua Technology WizSense NVR5216-16P-EI2. Video input channels: 16 channels, Maximum resolution: 7680 x 4320 pixels, Supported resolutions: 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rack capacity: 1U, Product colour: Black. Power consumption (max): 10 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Category Code
NVR
Unit Box Height
0.42
Unit Box Length
0.455
Unit Box Width
0.145
Model
NVR5216-16P-EI2
Model name
NVR5216-16P-EI2
System requirements
Browser supported
Chrome, IE, Safari, Edge, Firefox
Mobile operating systems supported
Android/iOS
Technical details
Compliance certificates
CE
Weight & dimensions
Depth
329.6 mm
Height
53 mm
Package depth
147 mm
Package height
425 mm
Package weight
4060 g
Package width
451 mm
Weight
2620 g
Width
375 mm
Wireless LAN features
Wi-Fi
No
