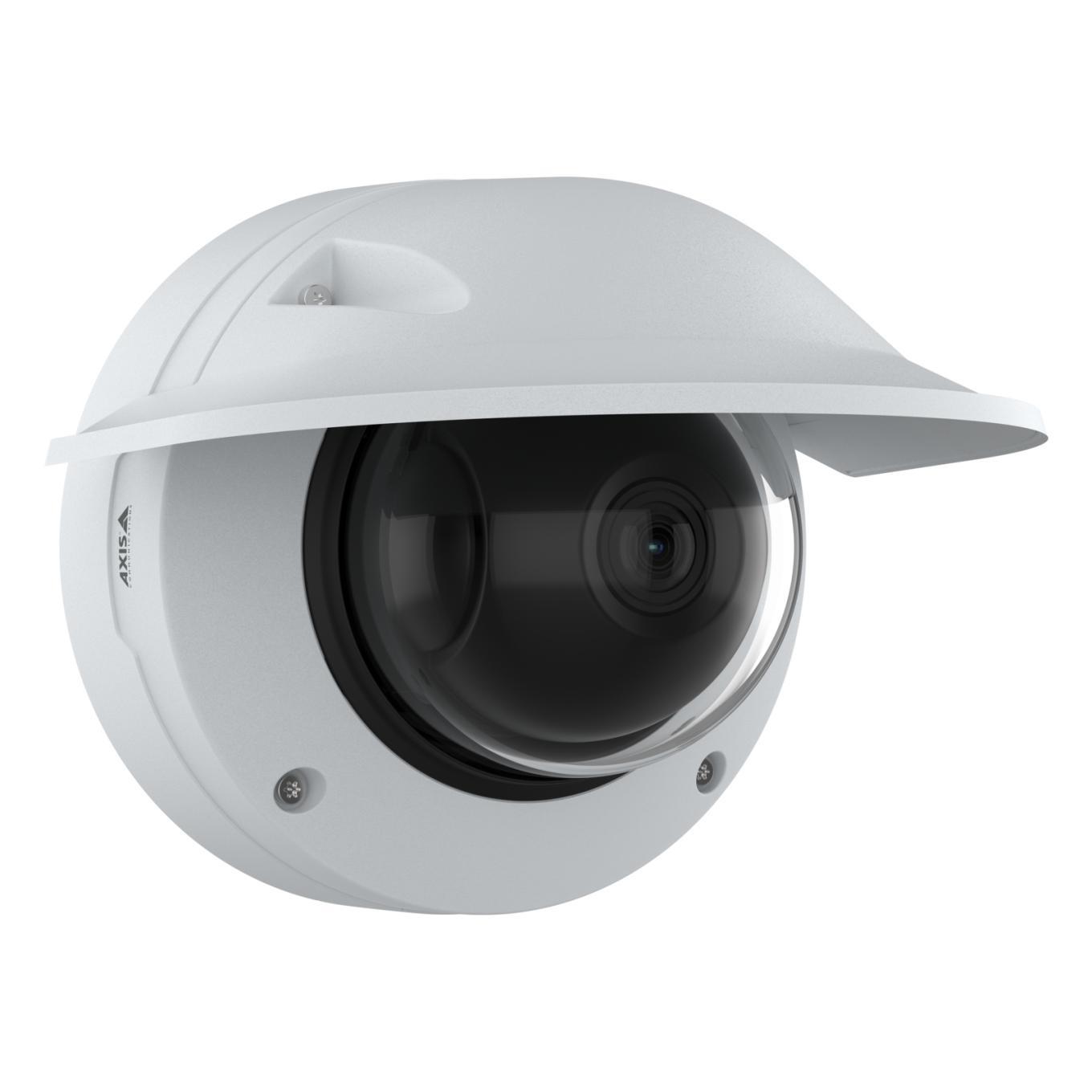

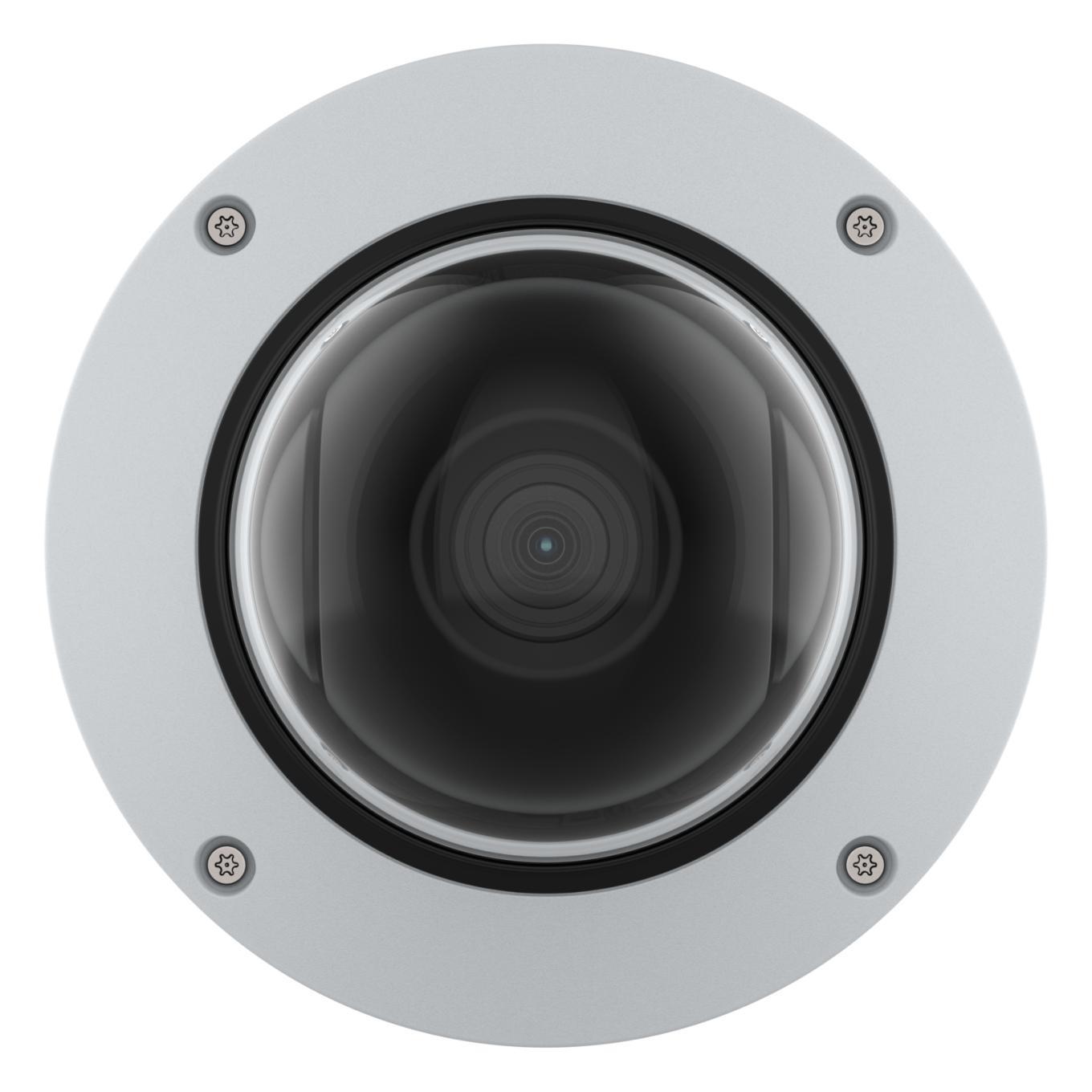

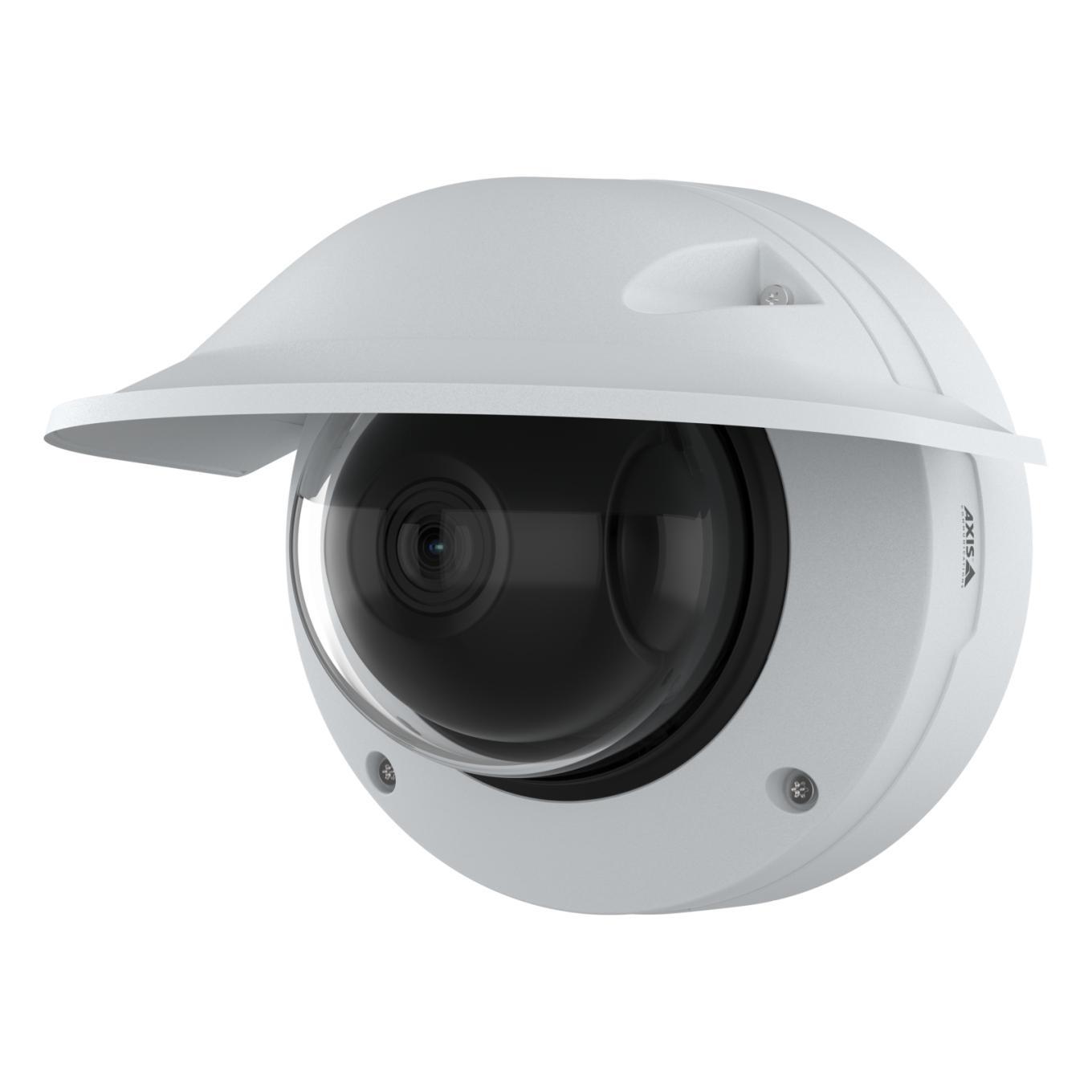

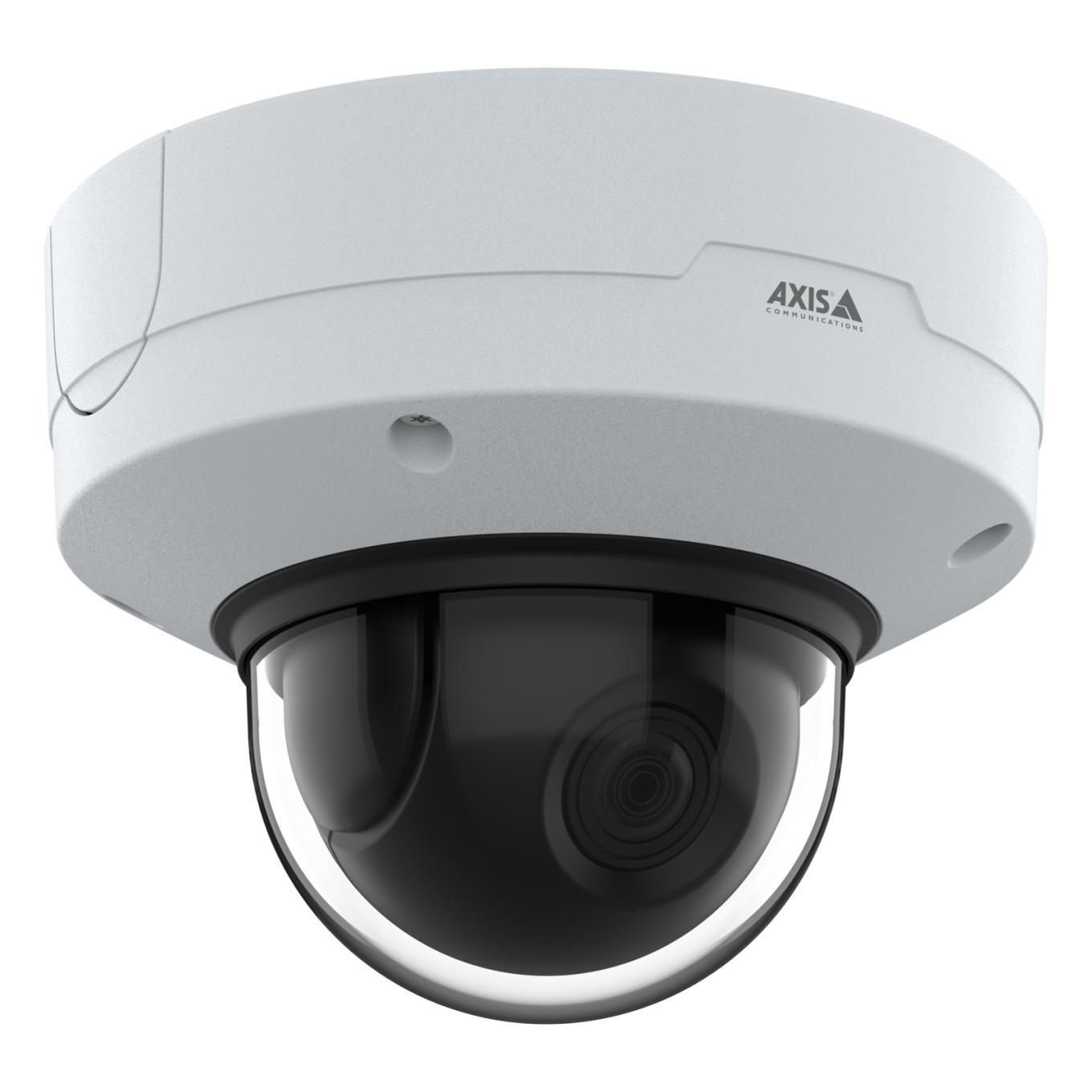

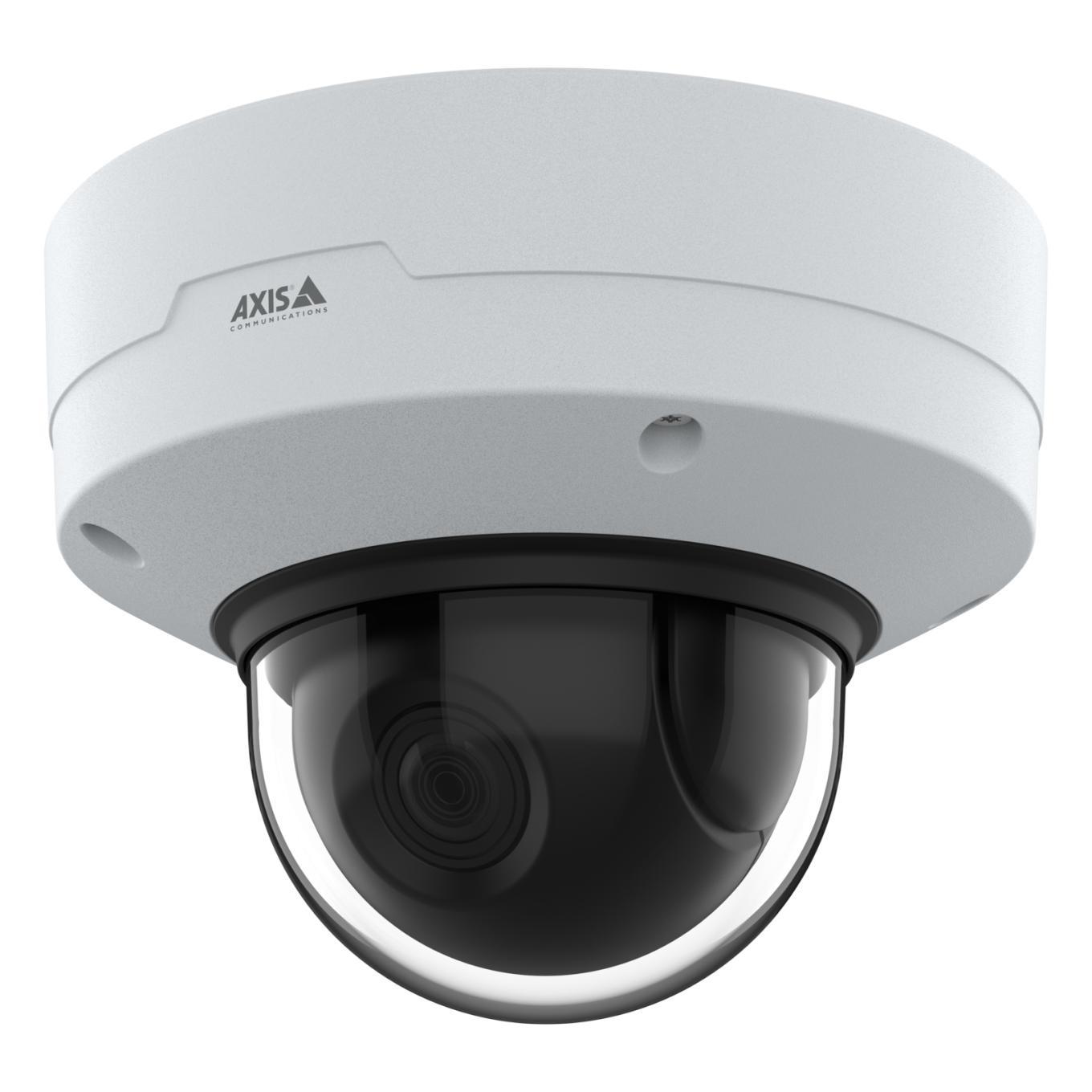

NET CAMERA Q3628-VE DOME/02617-001 AXIS

NET CAMERA Q3628-VE DOME/02617-001 AXIS
Ean:
7331021080140
Price:
2,489.39 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Audio
Audio detection Yes
Audio formats supported AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
Audio system 2-way
Audio system full duplex Yes
Sample rate 48 kHz
Voice codecs AGC
Camera
Camera pan control Yes
Camera shutter speed 1/66500 - 2 s
Camera tilt control Yes
Lens viewing angle, horizontal 103 - 48 °
Lens viewing angle, vertical 56.4 - 27.4 °
Minimum illumination 0.07 lx
Pan range 0 - 190 °
Tilt angle range -8 - 75 °
Design
Form factor Dome
Housing material Aluminium/Polycarbonate (PC)
IK code IK10
International Protection (IP) code IP66
Mounting type Wall/Pole
Product colour White
ELKO Internal Logistics Data
Shipping Box Depth 27 cm
Shipping Box Height 19.5 cm
Shipping Box Weight 2.8199999332428 kg
Shipping Box Width 22.5 cm
Unit Calculated Volume 0.01185 cubm
ELKO Logistics Data
Product Net Weight 2.1 kg
Unit Calculated Weight 2.82 kg
Units per Shipping Box 1
Image sensor
Number of sensors 1
Optical sensor size 1/1.2 "
Progressive scan Yes
Sensor type CMOS
Lens system
Focal length range 6.2-12.9 mm
Maximum aperture number 2.9
Minimum aperture number 1.6
Network
Bluetooth No
Ethernet LAN Yes
Networking standards IEEE 802.3at
Quality of Service (QoS) support Yes
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
Wi-Fi No
Night vision
Night vision Yes
Other features
Doesn't contain BFR/PVC
Packaging content
Manual Yes
Mounting brackets included Yes
Number of cameras 1
Screws included Yes
Panoramic camera
Signal-to-Noise Ratio (SNR) (panoramic camera) 55 dB
Performance
Connectivity technology Wired
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Languages support Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Number of languages 19
Placement supported Outdoor
Preset points Yes
Processor model ARTPEC-8
PTZ control Yes
PTZ modes Digital PTZ
Type IP security camera
Wide Dynamic Range (WDR) Yes
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
Terminal block port Yes
Power
DC output voltage 10,28
Power consumption (max) 25 W
Power consumption (typical) 8 W
Power source type DC,PoE
Security
Alert notification type E-mail
Digest authentication Yes
HTTPS encryption Yes
IP address filtering Yes
Password protection Yes
Pixel counter Yes
Video motion detection Yes
Specification
Summary Axis 02617-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Lens viewing angle, horizontal: 103 – 48, Lens viewing angle, vertical: 56.4 - 27.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Category Code FNC
Unit Box Height 0.195
Unit Box Length 0.27
Unit Box Width 0.225
Model Q3628-VE
Storage
Built-in HDD No
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
Flash memory 8192 MB
Internal memory 2048 MB
Sustainability
Compliance certificates CE/KC/REACH/RoHS/UKCA
Sustainability compliance Yes
Video
Frame rate 30 fps
Image quality adjustment Brightness/Contrast/Saturation/Sharpness
Image stabilizer Yes
Maximum resolution 3840 x 2160 pixels
Privacy masking Yes
Supported graphics resolutions 1280 x 800/160 x 120/160 x 90/2880 x 2160/3840 x 2160
Text caption overlay Yes
Total megapixels 8 MP
Video compression formats H.264/H.265/M-JPEG
Video streaming Yes
