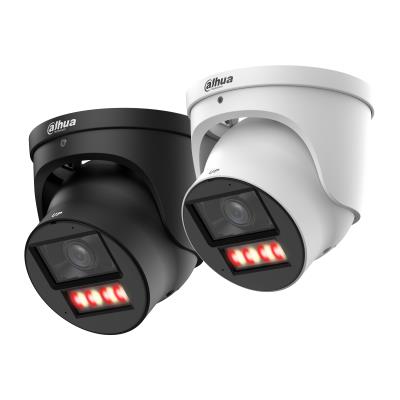

NET CAMERA 6MP EYEBALL/HDW5659H-ASE-PV0360BPRO DAHUA

NET CAMERA 6MP EYEBALL/HDW5659H-ASE-PV0360BPRO DAHUA
Ean:
6937552406360
Price:
552.43 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Audio
Audio formats supported G.723/G.726/PCM
Audio input channels 1.0 channels
Audio output channels 1.0 channels
Built-in microphone Yes
Built-in speaker(s) Yes
Number of microphones 1
Signal-to-Noise Ratio (SNR) 56 dB
Camera
Angle of rotation 360 °
Camera pan control Yes
Camera shutter speed 1/3 - 1/100000 s
Camera shutter type Electronic
Camera tilt control Yes
Lens viewing angle, diagonal 111 °
Lens viewing angle, horizontal 93 °
Lens viewing angle, vertical 50 °
Minimum illumination 0.0003 lx
Number of Privacy masking areas 8
Pan range 0 - 360 °
Tilt angle range 0 - 78 °
White balance Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Design
Form factor Turret
Housing material Metal
IK code IK10
International Protection (IP) code IP67
Mounting type Ceiling
Product colour Black/White
Protection features Dustproof/Vandal proof/Waterproof
Image sensor
Number of sensors 1
Optical sensor size 1/1.8 "
Progressive scan Yes
Sensor type CMOS
Lens system
Closest focusing distance 4.4 m
Detect distance 85.6 m
Fixed focal length 3.6 mm
Identify distance 8.6 m
Maximum aperture number 1
Number of lenses 1
Observe distance 34.3 m
Recognize distance 17.1 m
Management features
Web browser Yes
Network
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Networking standards IEEE 802.3at
Streaming method Multicast
Supported network protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Night vision
LED type IR
Night vision Yes
Night vision distance 60 m
Operational conditions
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 60 °C
Packaging content
Number of cameras 1
Packaging data
Package weight 1150 g
Performance
Alarm input/output Yes
Built-in light Yes
Certification CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Connectivity technology Wired
People counting function Yes
Placement supported Outdoor
PTZ control Yes
Type IP security camera
Wide Dynamic Range (WDR) Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
RS-485 ports 1
Power
DC output current 0.165 A
DC output voltage 12
Power consumption (max) 21.6 W
Power consumption (Power over Ethernet (PoE)) 24.2 W
Power consumption (typical) 4.1 W
Power source type PoE,DC
Security
Alarm input channels 1
Alarm output channels 1
Digital watermark Yes
Human and vehicle targets classification Yes
Intelligent Video Surveillance (IVS) system features Face detection/Tripwire
Specification
Summary Dahua Technology IPC-HDW5659H-ASE-PV-PRO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.0003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 85.6 m, Observe distance: 34.3 m, Recognize distance: 17.1 m
Category Code FNC
Unit Box Height 0.135
Unit Box Length 0.16
Unit Box Width 0.155
Units per Shipping Box 1
Unit Calculated Volume 0.003348 cubm
Unit Calculated Weight 1.44 kg
Storage
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash)
Maximum memory card size 1000 GB
RAM capacity 2000 MB
ROM capacity 4000 MB
Video
Back Light Compensation (BLC) Yes
Bit rate H.264: 3 kbps-16384 kbps, H.265: 3 kbps-16384 kbps
Bit rate control Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate 30 fps
Gain control type Auto/Manual
Highlight Compensation (HLC) Yes
Maximum resolution 3072 x 2048 pixels
Noise reduction Yes
Noise reduction technology 3D noise reduction
Region of Interest (ROI) encoding Yes
Supported graphics resolutions 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/3200 x 1800/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels 6 MP
Video compression formats H.264B/H.264H
Video formats supported H.264/H.265/M-JPEG
Video streaming Yes
Weight & dimensions
Depth 122 mm
Height 127.6 mm
Weight 920 g
Width 122 mm
