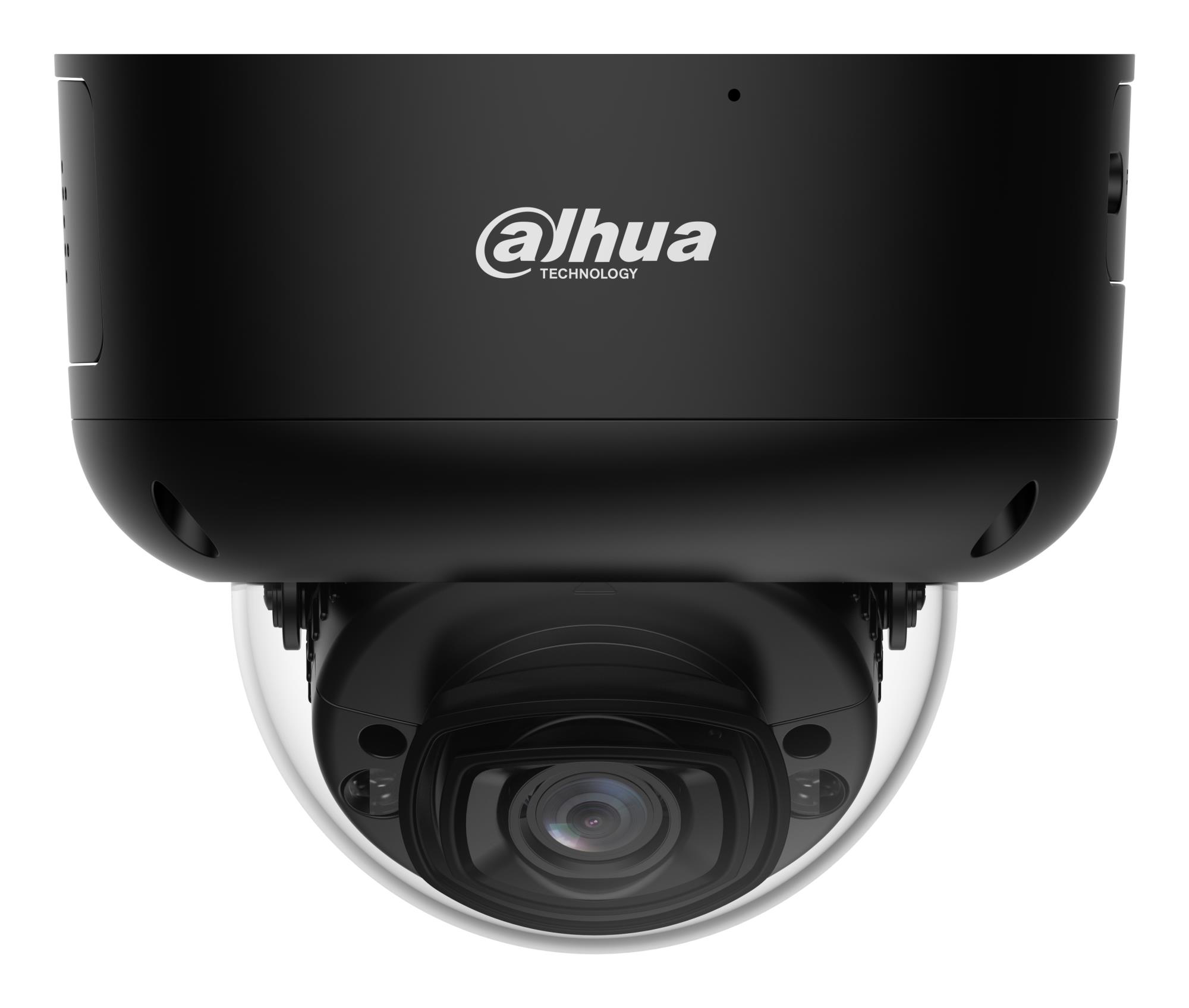

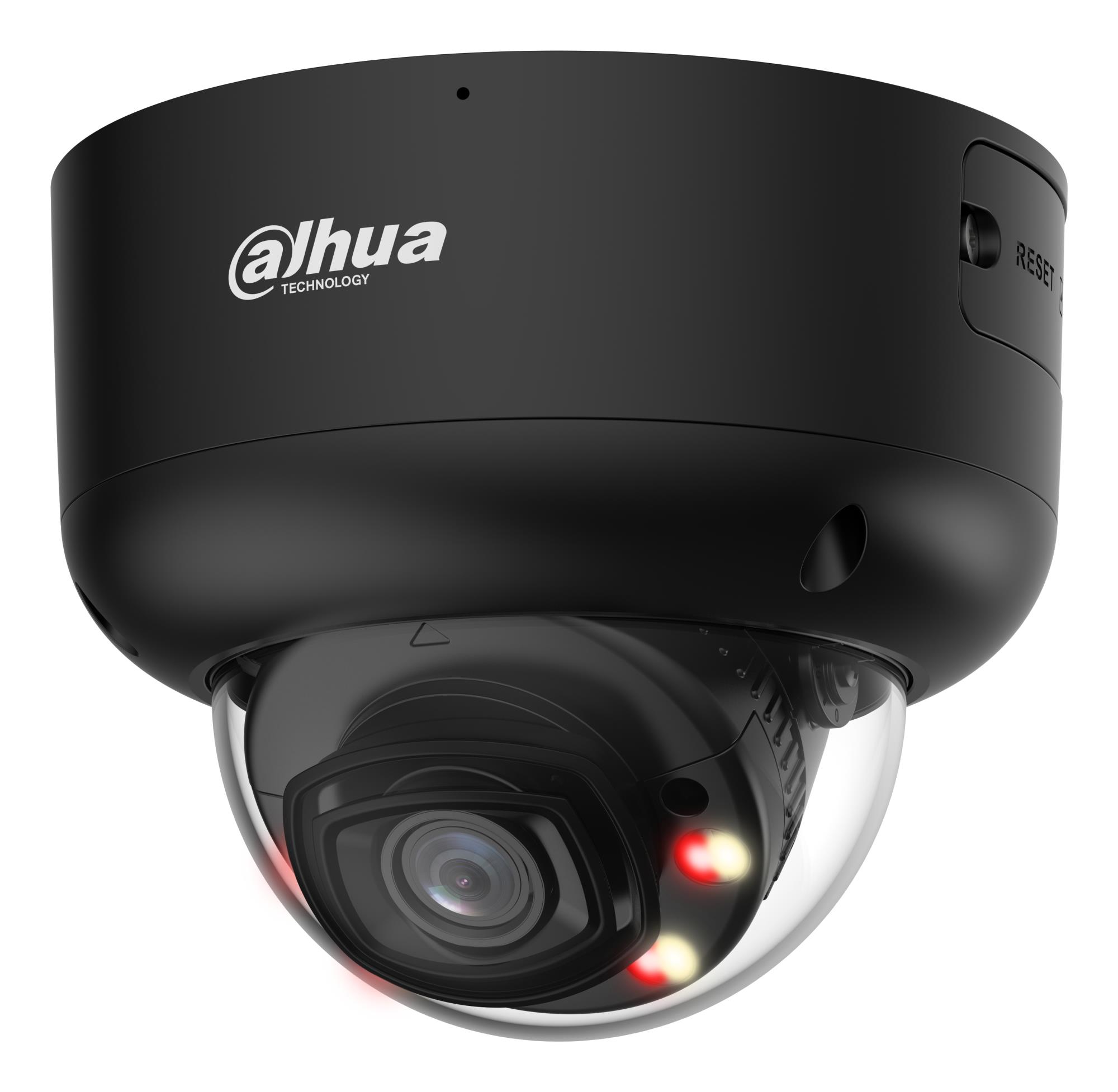

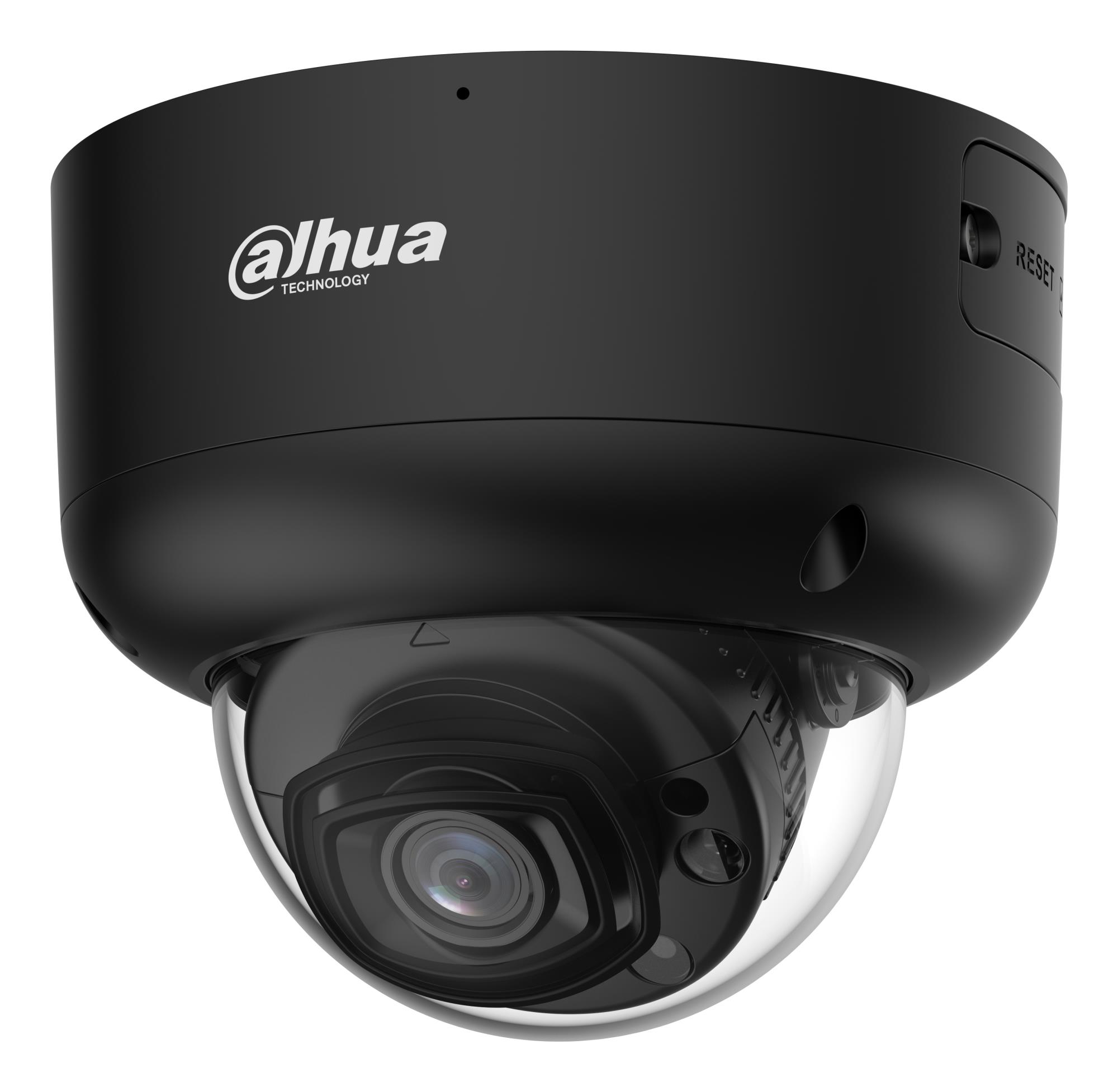

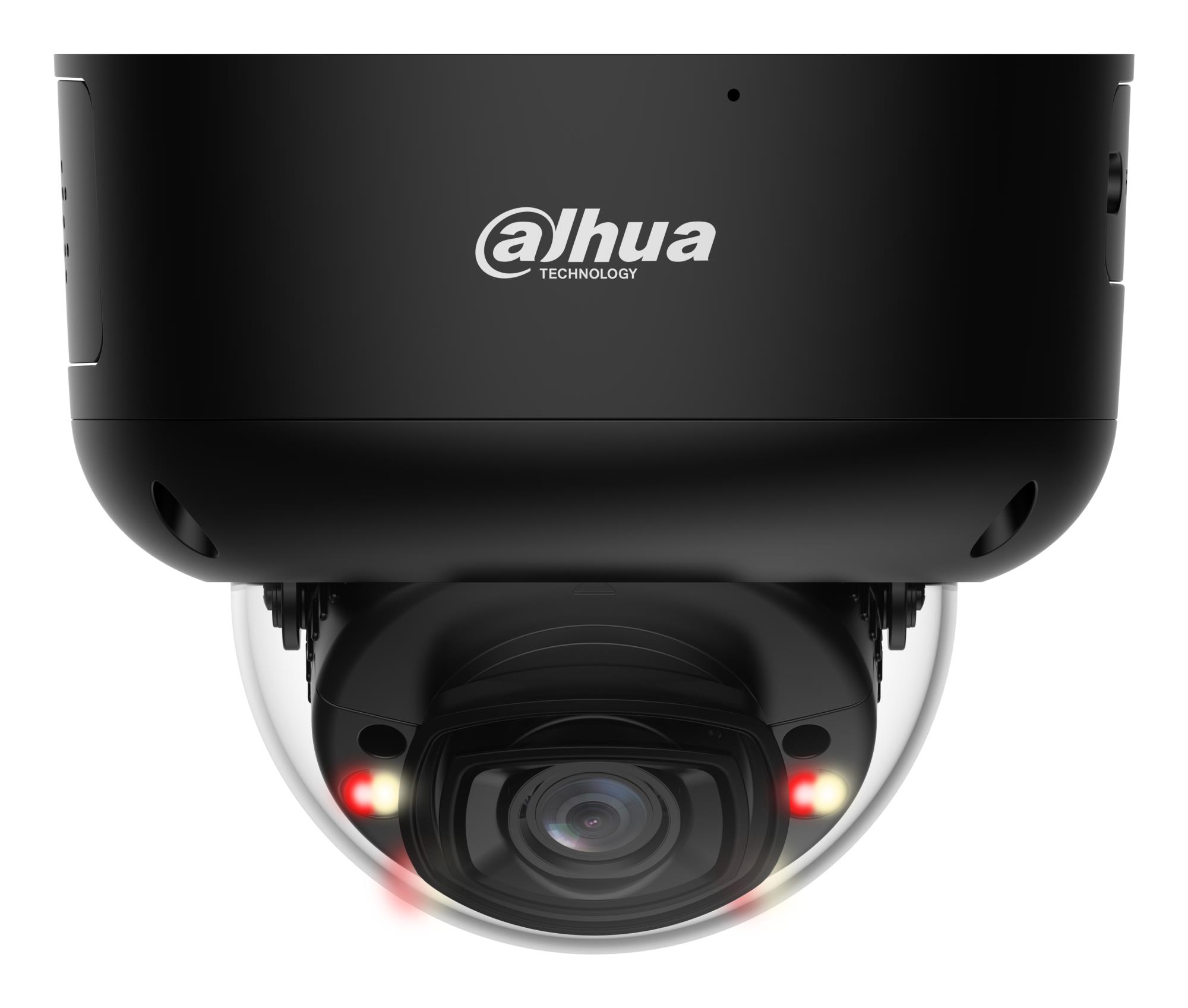

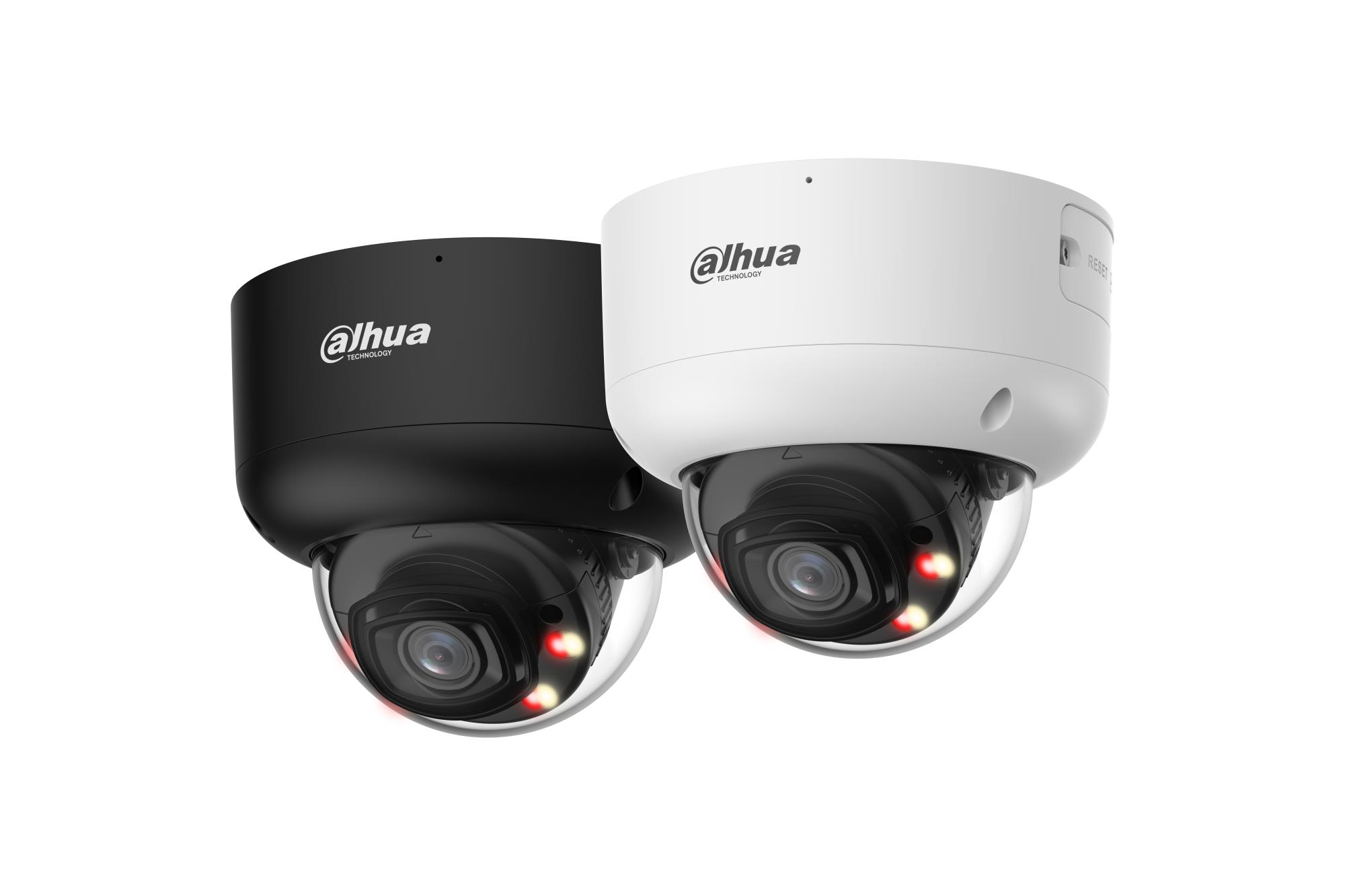

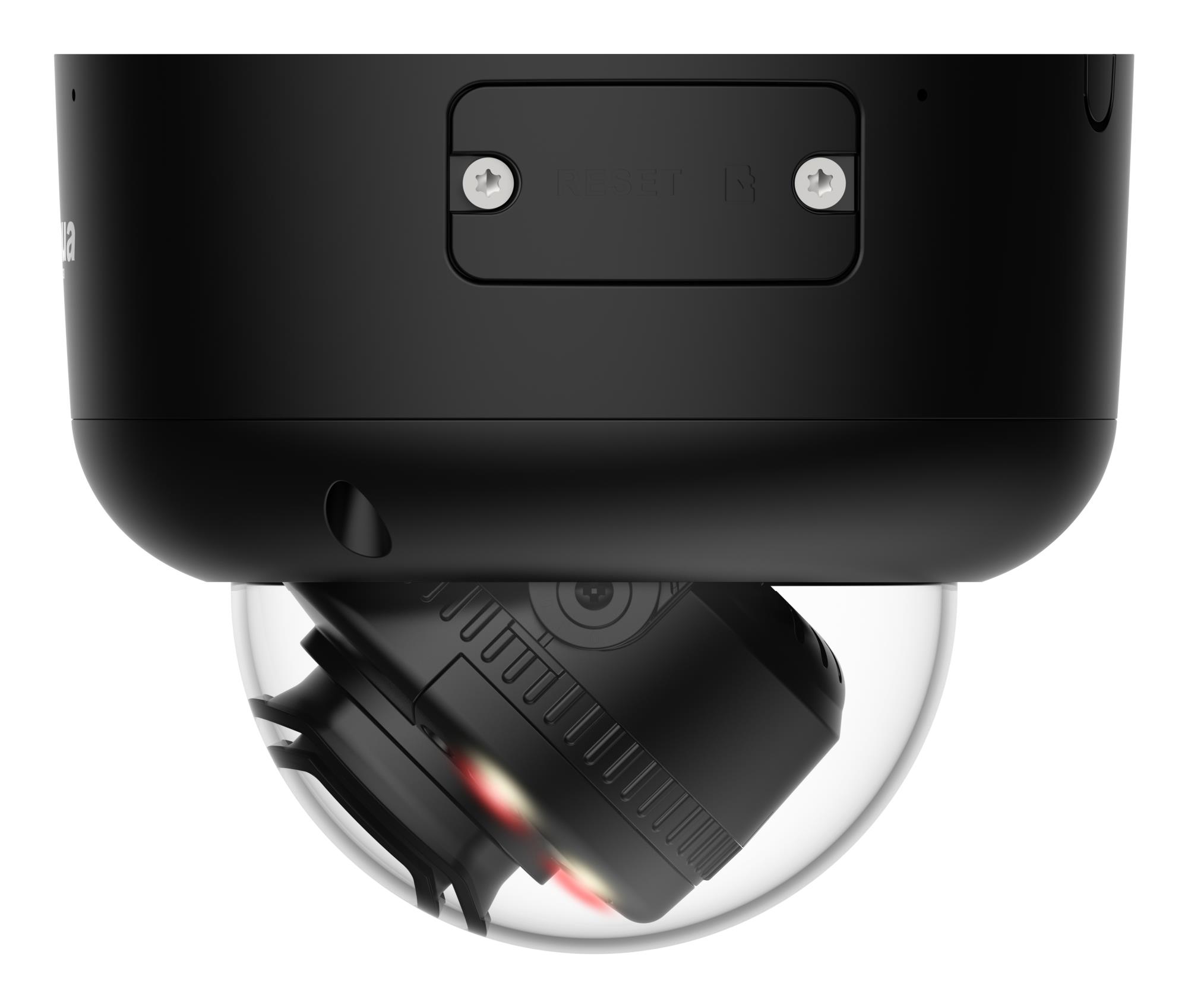

NET CAMERA 6MP DOME/HDBW5659R1ASEPV0280PROB DAHUA

NET CAMERA 6MP DOME/HDBW5659R1ASEPV0280PROB DAHUA
Ean:
6923172597557
Price:
601.13 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Audio
Audio detection Yes
Built-in microphone Yes
Built-in speaker(s) Yes
Number of microphones 1
Signal-to-Noise Ratio (SNR) 56 dB
Camera
Angle of rotation 360 °
Camera pan control Yes
Camera shutter speed 1/3 - 1/100000 s
Camera shutter type Electronic
Camera tilt control Yes
Lens viewing angle, diagonal 111 °
Lens viewing angle, horizontal 93 °
Lens viewing angle, vertical 50 °
Pan range 0 - 355 °
Tilt angle range 0 - 75 °
White balance Auto
Design
Form factor Spherical
Housing material Metal
IK code IK10
International Protection (IP) code IP67
Mounting type Ceiling
Product colour Black
Protection features Corrosion resistant/Waterproof
Image sensor
Optical sensor size 1/1.8 "
Progressive scan Yes
Sensor type CMOS
Lens system
Closest focusing distance 3.2 m
Detect distance 85.6 m
Fixed focal length 3.6 mm
Fixed focus Yes
Identify distance 86 m
Maximum aperture number 1
Observe distance 34.3 m
Recognize distance 17.1 m
Network
Bluetooth No
Ethernet LAN Yes
Supported network protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Wi-Fi No
Night vision
LED type IR/White
Night vision Yes
Night vision distance 40 m
Number of illumination LEDs 4
Operational conditions
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 60 °C
Packaging content
Memory card included MicroSD
Number of cameras 2
Packaging data
Package weight 940 g
Performance
Alarm input/output Yes
Auto pan mode Yes
Auto-tracking Yes
Built-in light Yes
Certification CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Connectivity technology Wired
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Maximum operating distance 124 m
People counting function Yes
Placement supported Indoor & outdoor
PTZ control Yes
Type CCTV security camera
Wide Dynamic Range (WDR) Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
DC output voltage 12
Power consumption (max) 21.7 W
Power consumption (Power over Ethernet (PoE)) 23.9 W
Power source type DC
Security
Detection distance 124 m
Mirror Yes
Motion sensor Yes
Specification
Summary Dahua Technology WizMind IPC-HDBW5659R1-ASE-PV-PRO. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Spherical. Angle of rotation: 360°, Lens viewing angle, horizontal: 93°, Lens viewing angle, vertical: 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 85.6 m, Observe distance: 34.3 m, Recognize distance: 17.1 m
Category Code FNC
Unit Box Height 0.135
Unit Box Length 0.16
Unit Box Width 0.16
Units per Shipping Box 1
Unit Calculated Volume 0.003456 cubm
Unit Calculated Weight 0.99 kg
Storage
Built-in HDD Yes
Built-in SSD Yes
RAM capacity 2000 MB
ROM capacity 4000 MB
Sustainability
Compliance certificates CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Technical details
Lens mount interface M16
Video
Back Light Compensation (BLC) Yes
Frame rate 30 fps
Gain control type Auto
Highlight Compensation (HLC) Yes
Image quality adjustment Gain/Mirror
Maximum resolution 3072 x 2048 pixels
Noise reduction Yes
Noise reduction technology 3D noise reduction
Smart IR Yes
Supported graphics resolutions 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/3072 x 2048/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes 1080p/720p
Total megapixels 4 MP
Video compression formats H.264/H.264B/H.264H/H.265/M-JPEG
Weight & dimensions
Depth 126 mm
Height 105 mm
Weight 730 g
Width 126 mm
