Audio
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio system | 2-way |
| Bit rate range | 3 - 16384 Kbit/s |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 2 |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.723/G.726/PCM |
Camera
| Angle of rotation | 270 ° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 109.5 - 56 ° |
| Lens viewing angle, horizontal | 92.6 - 48 ° |
| Lens viewing angle, vertical | 50 - 27 ° |
| Number of Privacy masking areas | 8 |
| Pan range | -5 - 5 ° |
| Tilt angle range | -70 - 5 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
Design
| Fog proof | Yes |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Wall |
| Product colour | Silver |
| Protection features | Corrosion resistant/Water resistant |
| Weatherproof | Yes |
ELKO Internal Logistics Data
| Shipping Box Depth | 59 cm |
| Shipping Box Height | 38 cm |
| Shipping Box Weight | 11 kg |
| Shipping Box Width | 37 cm |
| Unit Calculated Volume | 0.04148 cubm |
ELKO Logistics Data
| Product Net Weight | 3.91 kg |
| Unit Calculated Weight | 5.5 kg |
| Units per Shipping Box | 2 |
Image sensor
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 0.16 m |
| Detect distance (tele) | 128.7 m |
| Detect distance (wide) | 70.9 m |
| Focal length range | 2.7 - 12 mm |
| Identify distance (tele) | 12.9 m |
| Identify distance (wide) | 7.1 m |
| Maximum aperture number | 1.2 |
| Observe distance (tele) | 51.5 m |
| Observe distance (wide) | 28.4 m |
| Recognize distance (tele) | 25.7 m |
| Recognize distance (wide) | 14.2 m |
Management features
| Management software | SmartPSS Lite; DSS; DMSS; DoLynk Care |
| Web browser | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Wi-Fi | No |
Night vision
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 60 m |
| Number of illumination LEDs | 4 |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
Other features
| Audio output | RCA |
| Browser supported | Chrome, IE, Firefox, Safari, Edge |
| Data transfer rate | 100 Mbit/s |
Packaging content
| Number of cameras | 1 |
| Wiper included | Yes |
Packaging data
| Package weight | 5030 g |
Performance
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 140 dB |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Power
| DC output voltage | 12 |
| Power consumption (max) | 16.3 W |
| Power consumption (Power over Ethernet (PoE)) | 4.9 W |
| Power consumption (typical) | 3.4 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC,PoE |
Security
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Face detection/Intrusion/Missing object/Tripwire |
| Mirror | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
Specification

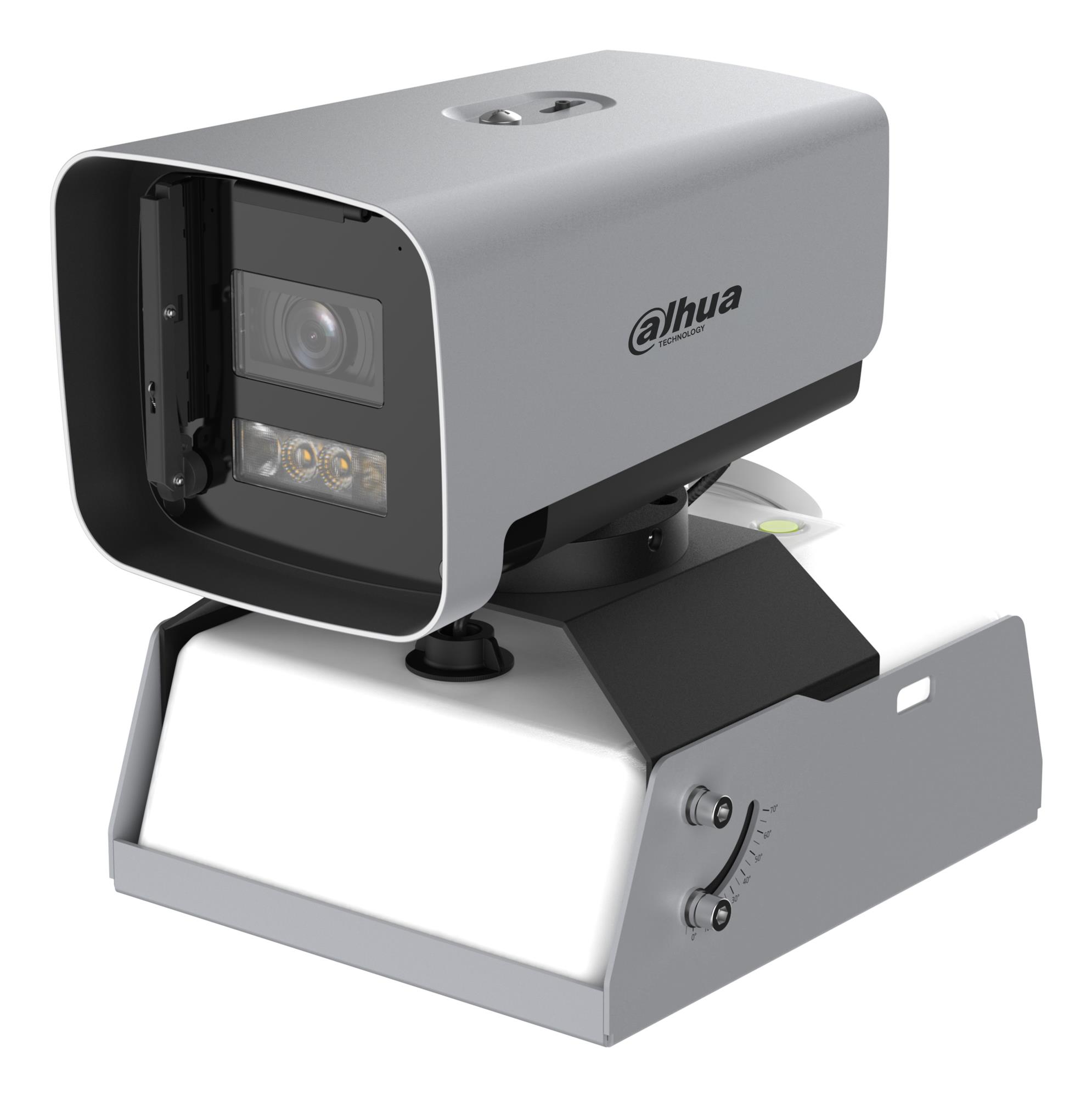

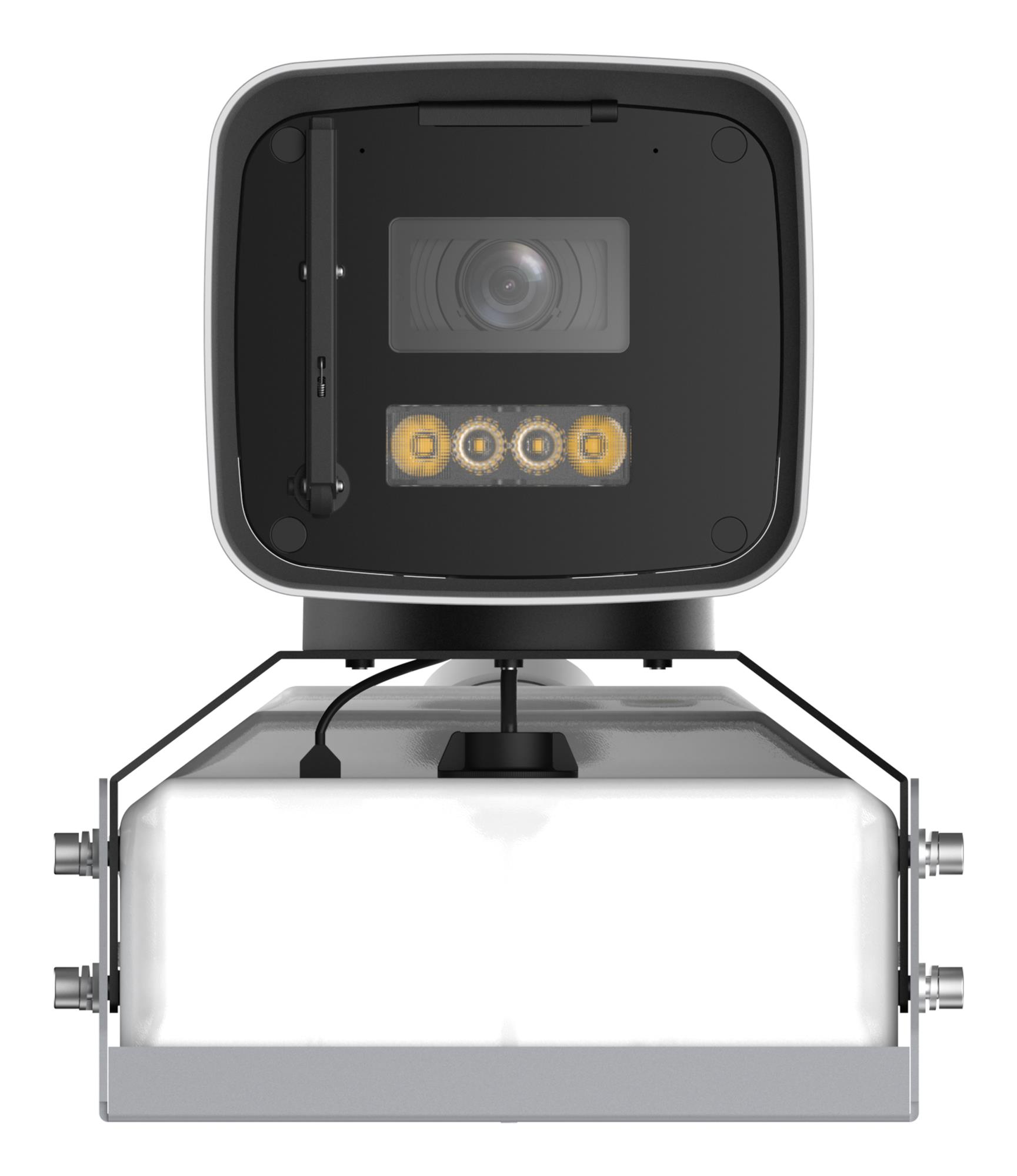

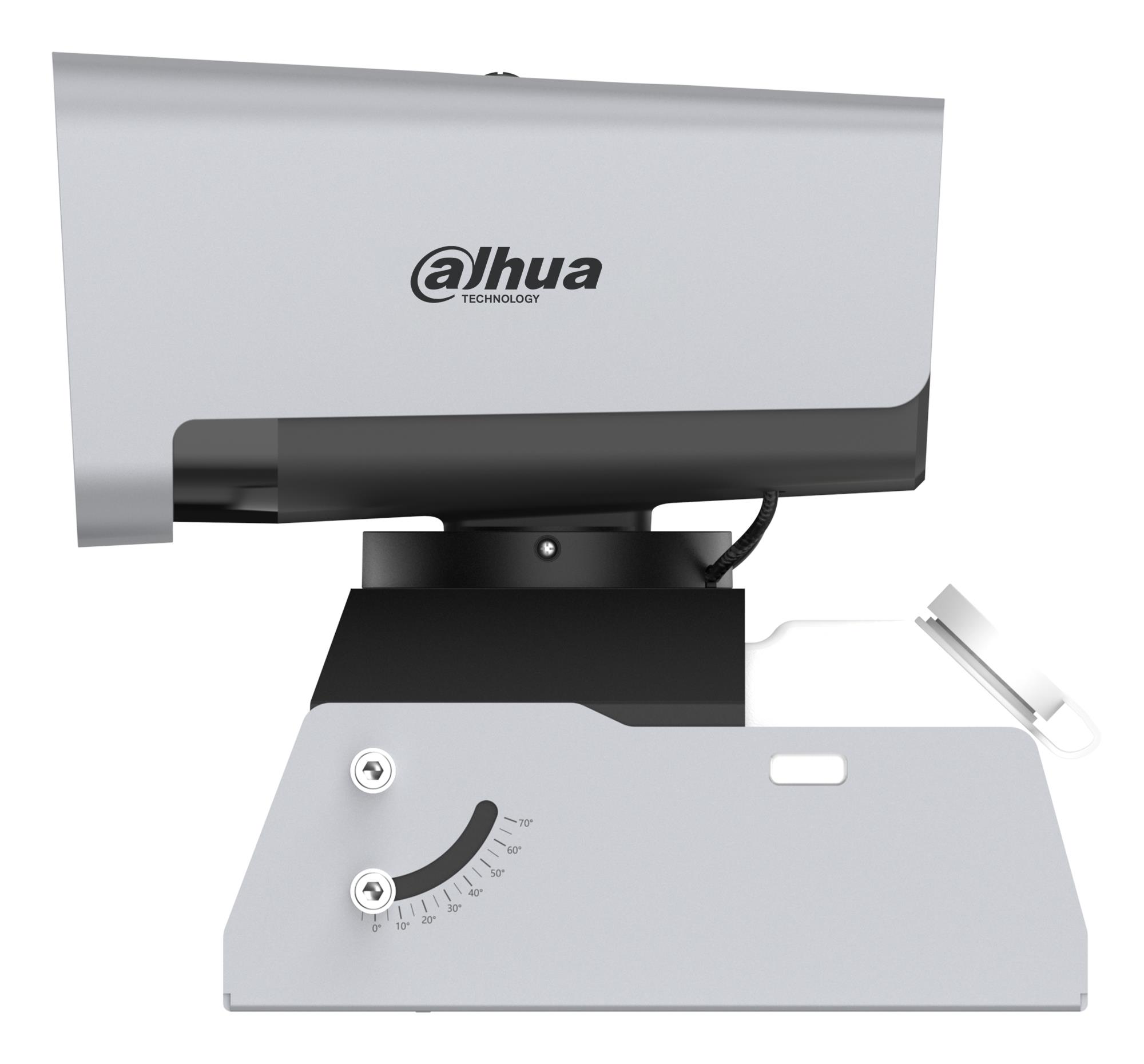

| Summary | Dahua Technology WizMind 4MP Self-Cleaning Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Silver, Form factor: Bullet. Angle of rotation: 270°, Lens viewing angle, horizontal: 92.6 - 48°, Lens viewing angle, vertical: 50 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 70.9 m, Detect distance (tele): 128.7 m |
| Category Code | FNC |
| Unit Box Height | 0.345 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.285 |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RAM capacity | 1000 MB |
| ROM capacity | 4000 MB |
Sustainability
| Compliance certificates | Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
System requirements
| Mobile operating systems supported | Android/iOS |
Technical details
| Audio input | RCA |
| Iris | Yes |
| Lens type | Varifocal |
| Number of video streams | 3 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1920/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported video modes | 1080p/1296p/1440p/1520p/1536p/240p/480p/576p/720p/960p |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264B/H.265/M-JPEG |
| Video streaming | Yes |
Weight & dimensions
| Height | 254.8 mm |
| Length | 274.9 mm |
| Weight | 3910 g |
| Width | 217.1 mm |
