In the box:
CSV-1568 Docking Station
PowerSupply Input:100-110/240VAC, Output: up to 120W
USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft

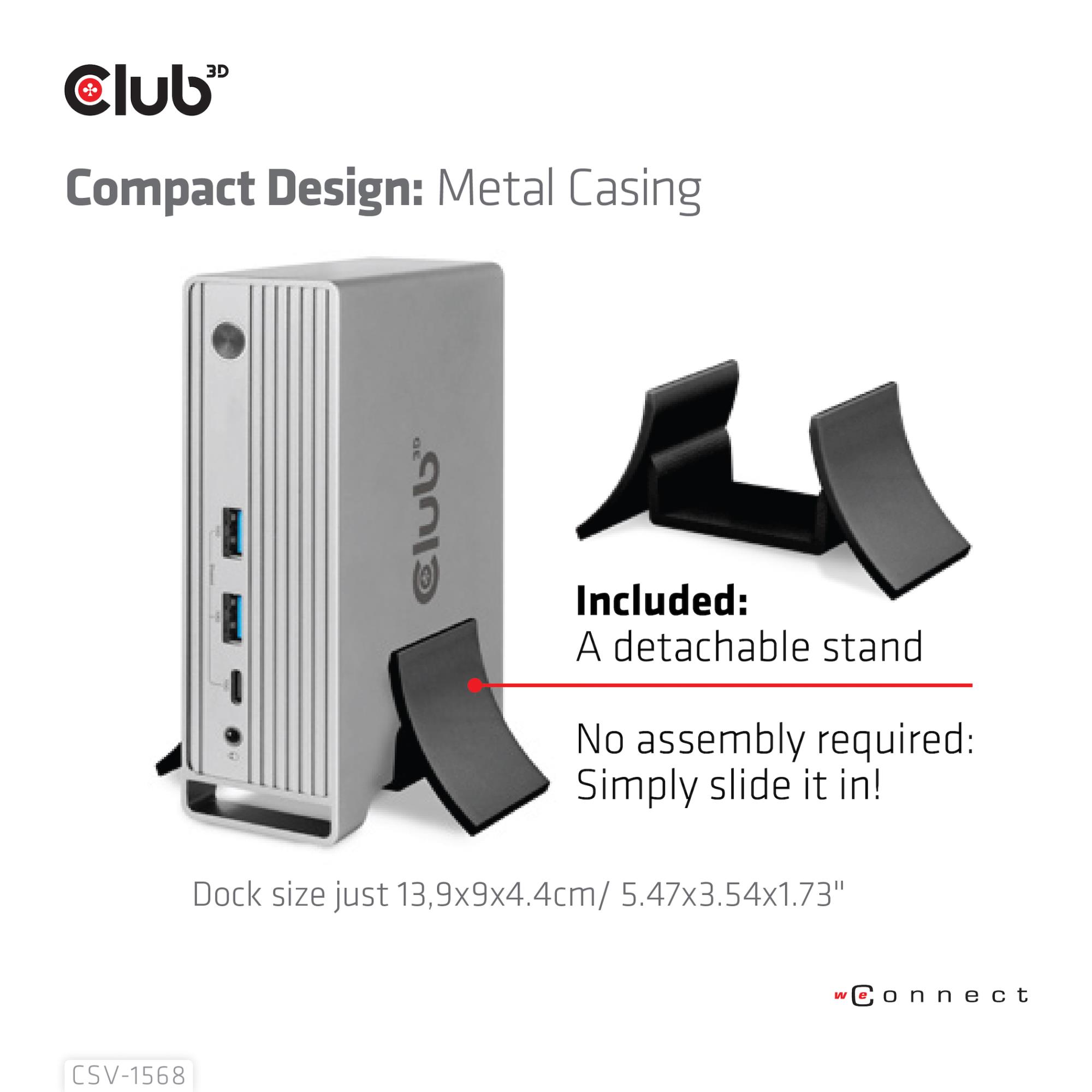

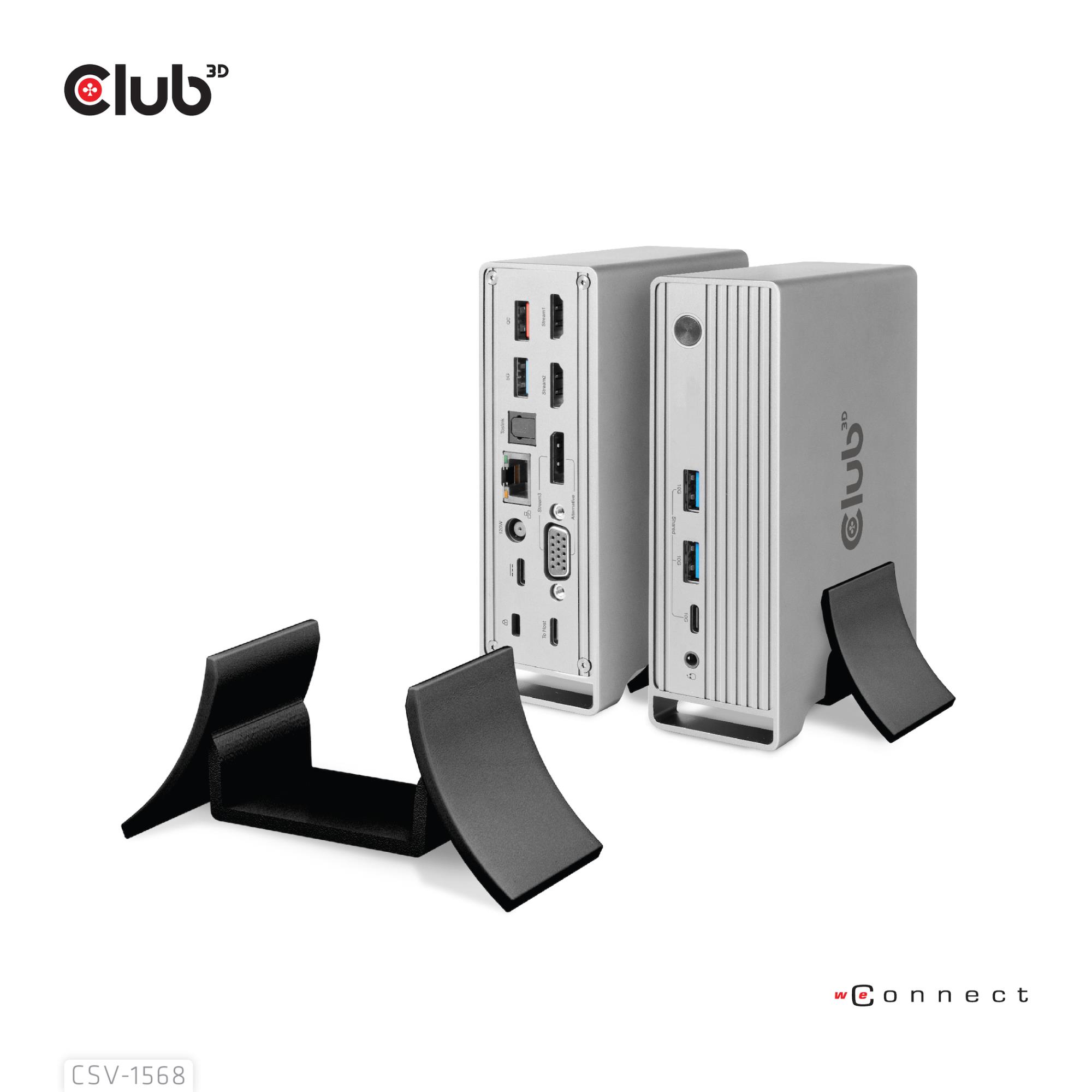

Detachable stand

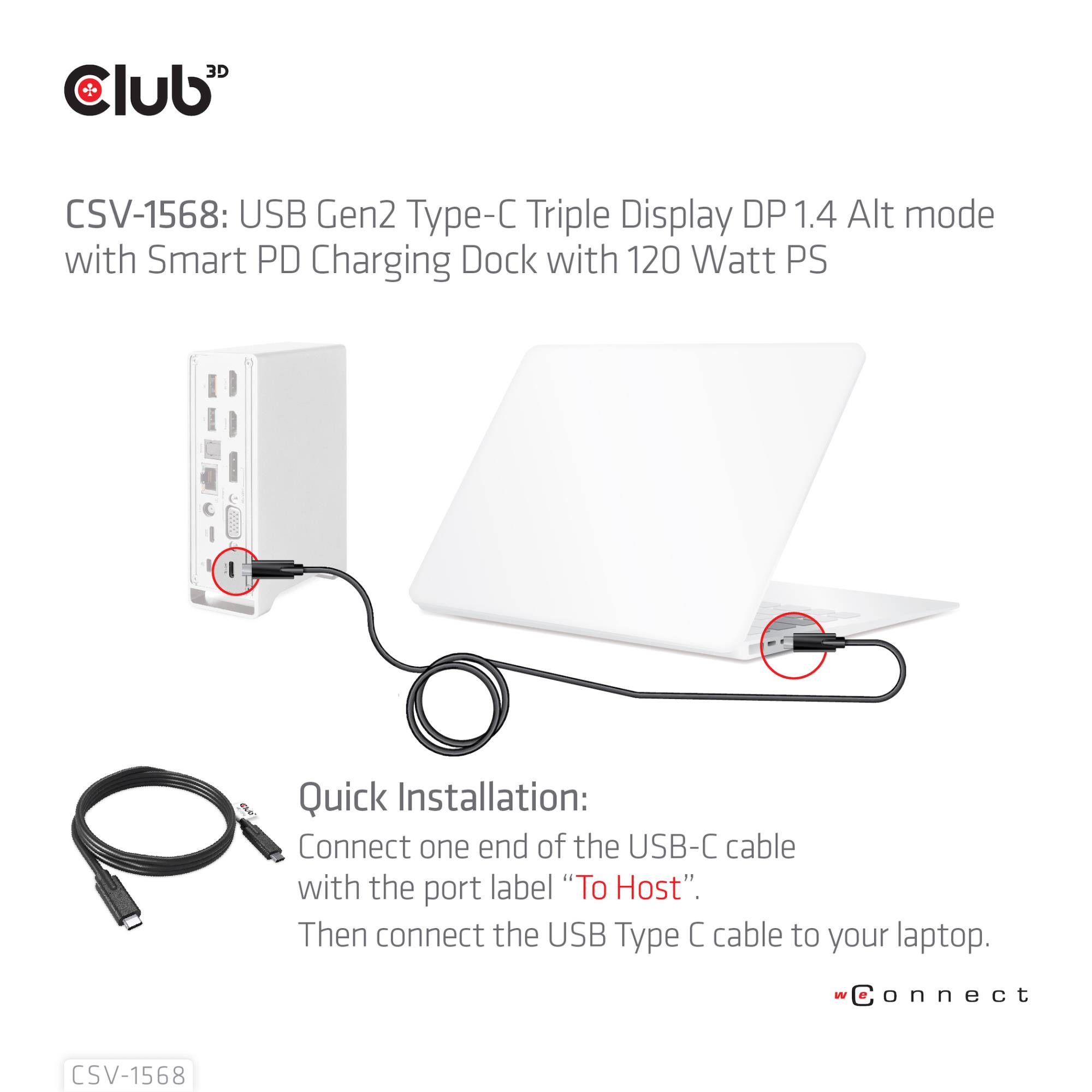

Quick Install Guide
Voltage
20.5 V

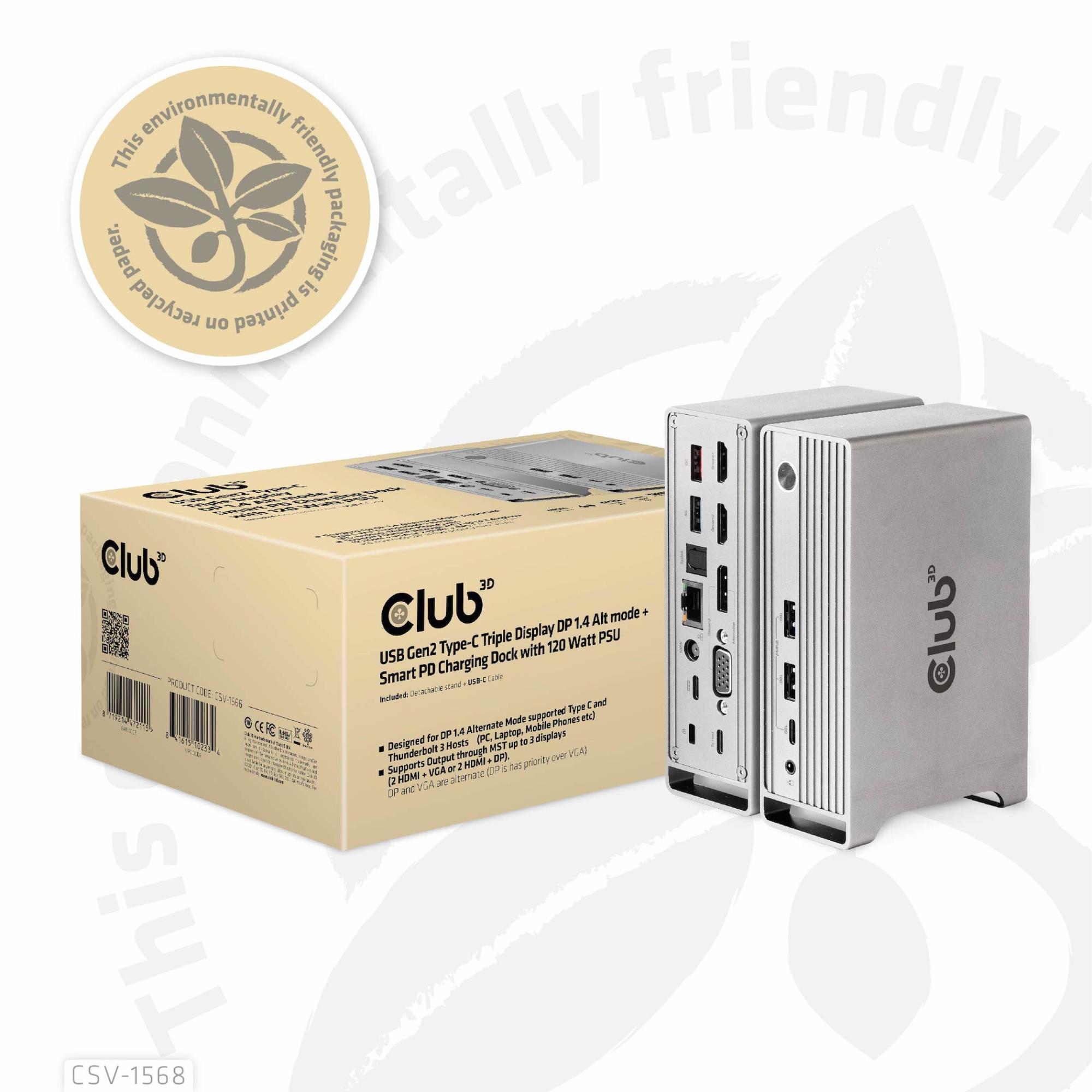

Packaging composition
Paper/cardboard packaging weight
168 g
Plastic packaging weight
5 g
Packaging content
AC adapter included
Yes
Quick start guide
Yes
Stand included
Yes
Packaging data
Package depth
155 mm
Package height
97 mm
Package weight
1359 g
Package width
225 mm
Quantity per pack
1 pc(s)
Performance
Brand compatibility
Apple
Card reader integrated
Yes
Certification
Meets ROHS, FCC, and CE EMI requirements
Compatibility
Lenovo
Dell
Acer
Asus
MSI
Toshiba
Apple
HP
Razer
Country of origin
China
Data transfer rate
16.2 Gbit/s
High Dynamic Range (HDR) supported
Yes
Key lock
Yes
Maximum refresh rate
60 Hz
Plug and Play
Yes
Product colour
Metallic

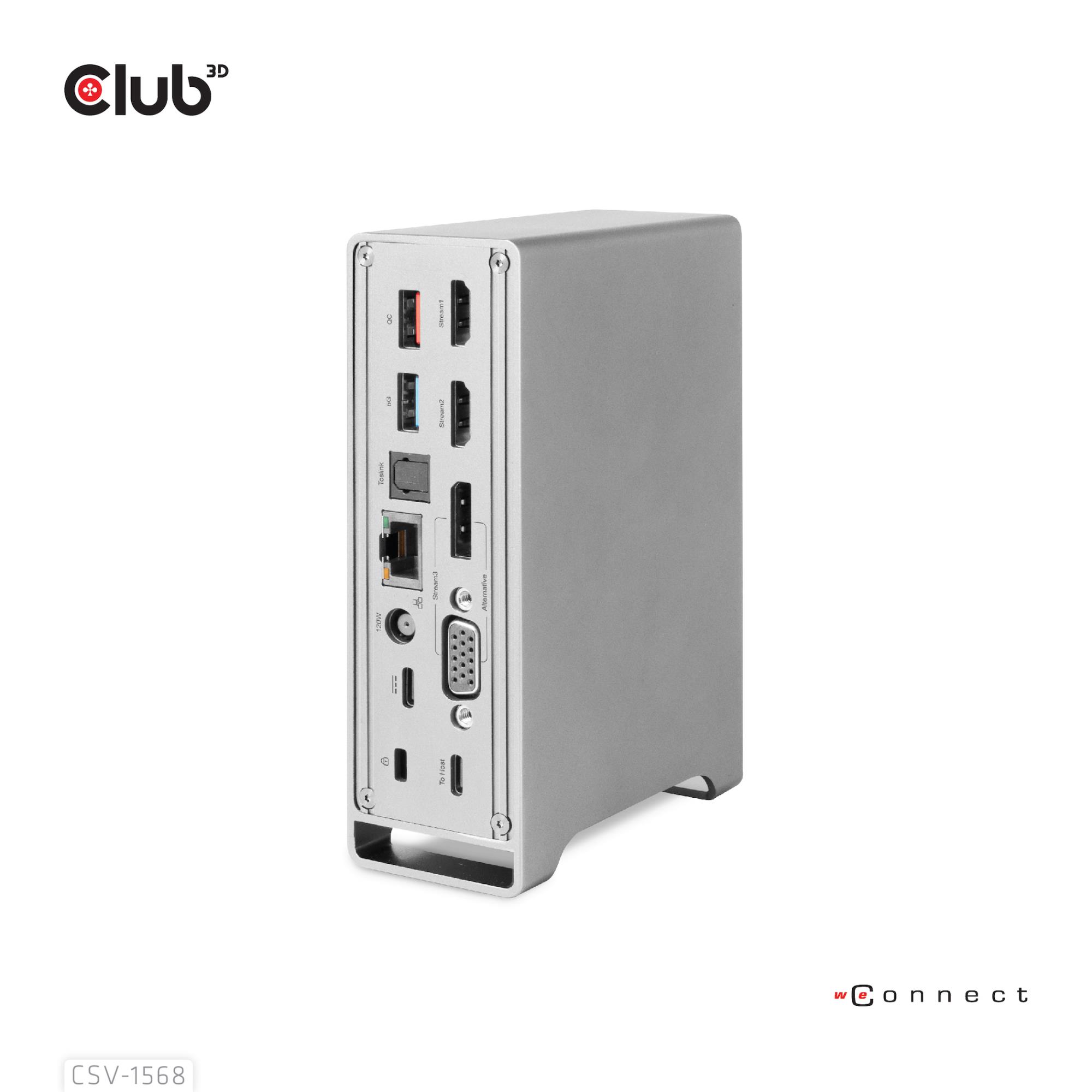

Ports & interfaces
Combo headphone/mic port
Yes
Connectivity technology
Docking
DC-in jack
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
HDCP version
1.4/2.2
HDMI ports quantity
2
Headphone connectivity
3.5 mm
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Thunderbolt 3 Power Delivery
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
USB Type-C DisplayPort Alternate Mode
Yes
VGA (D-Sub) ports quantity
1
Power
AC input voltage
100 - 240 V
Power cable length
1 m
Power connector
USB Type-C
Power consumption (max)
120 W
Power source type
DC
Power supply
120 W
Software
Mac operating systems supported
Yes
Windows operating systems supported
Yes
Specification
Summary

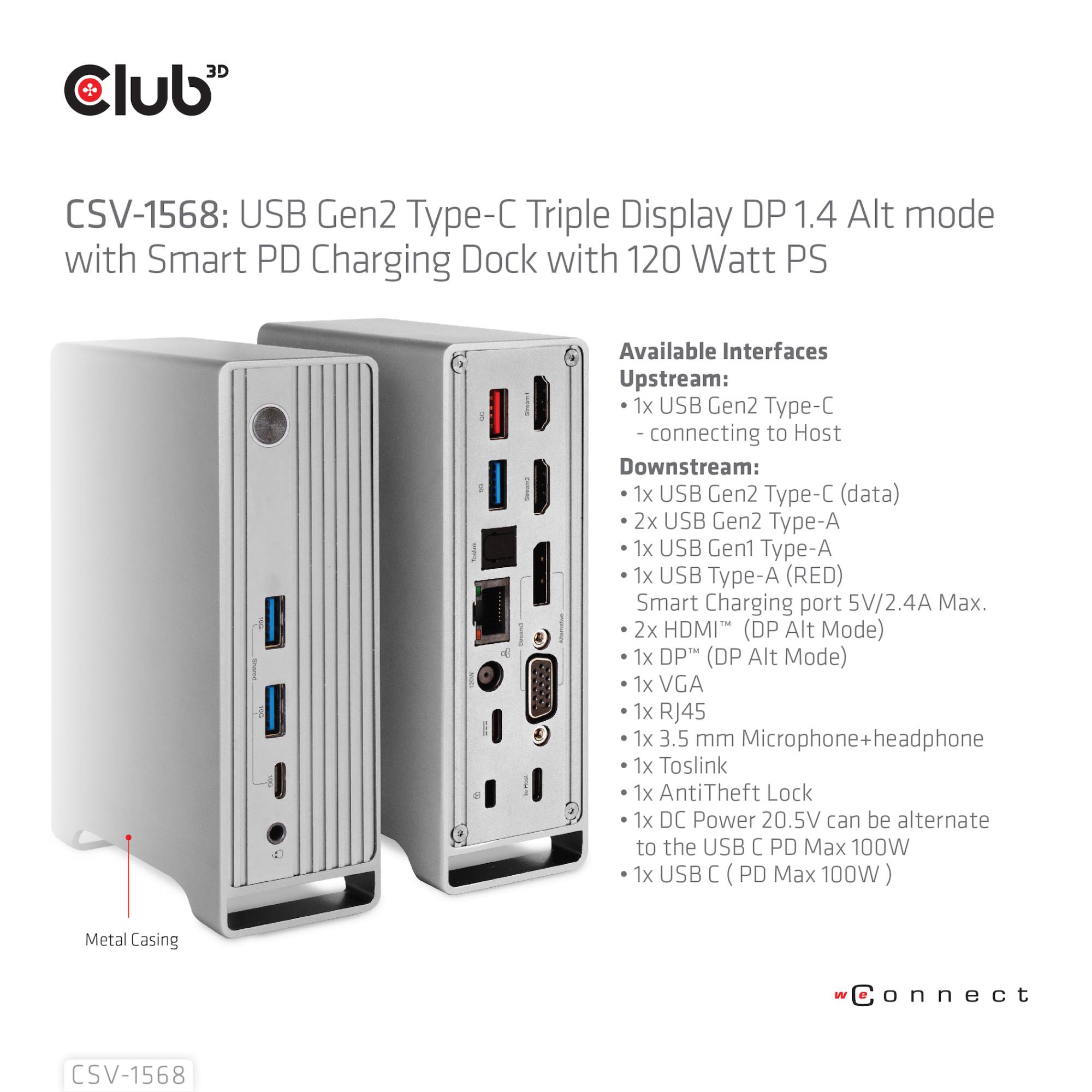

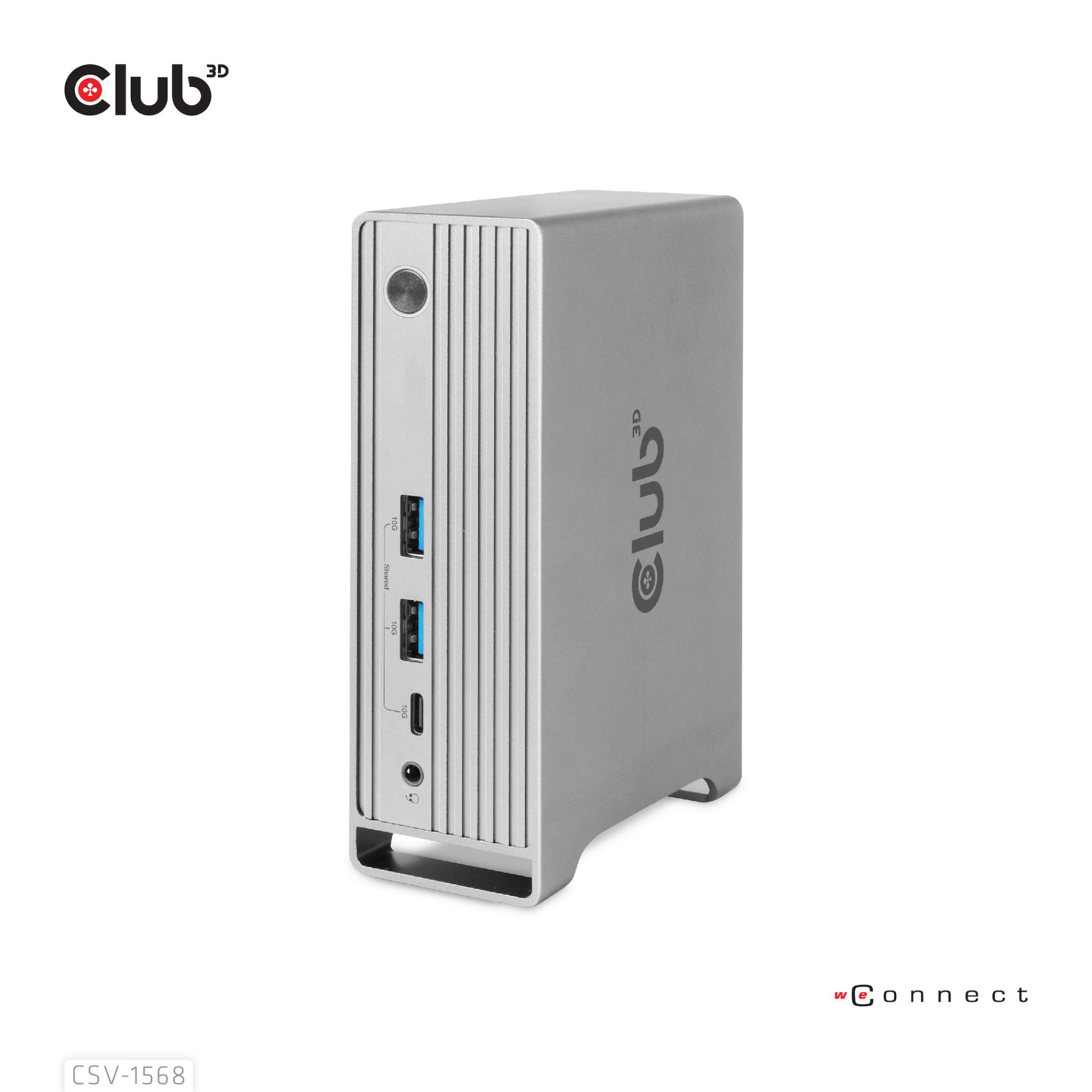

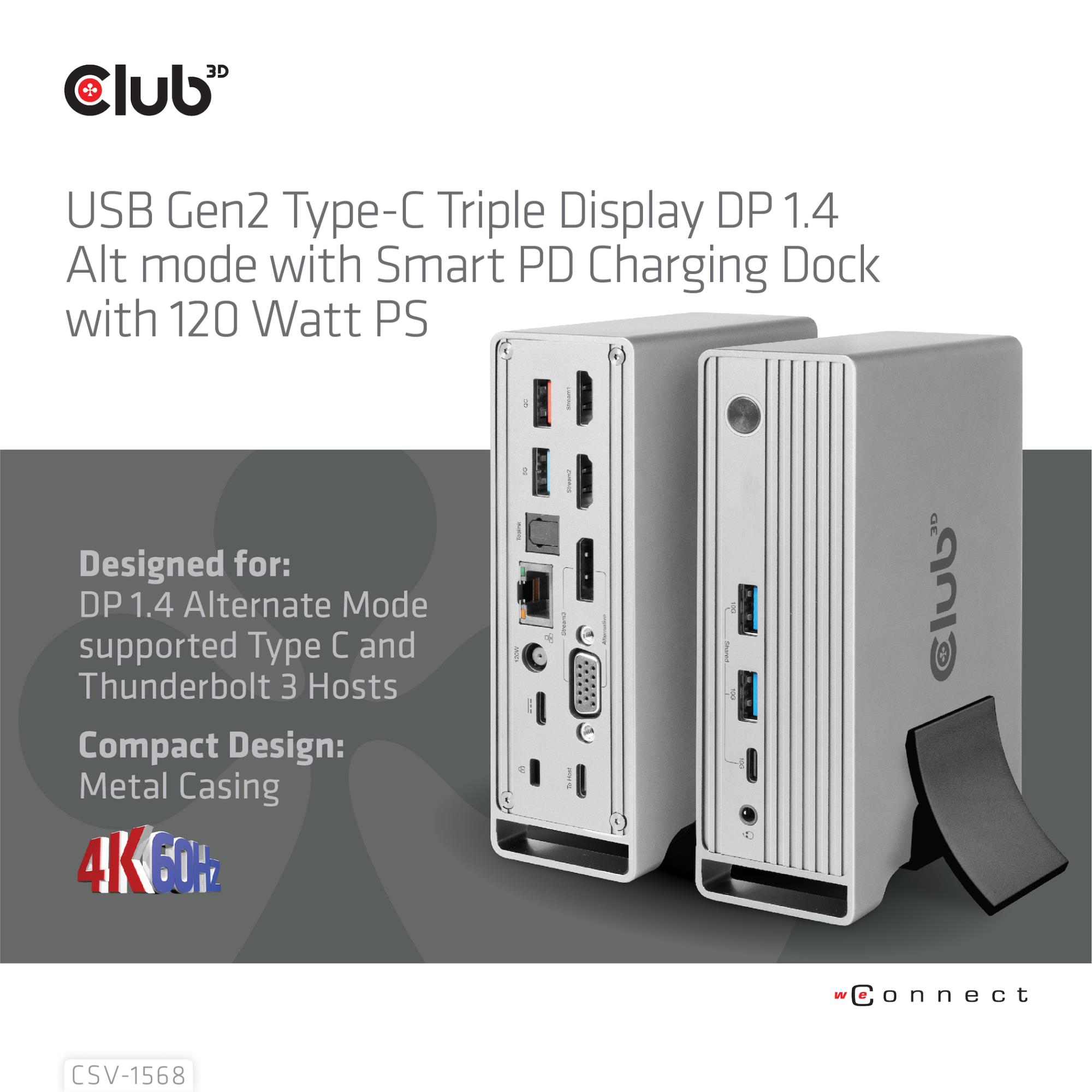

CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Category Code
NBK
Unit Box Height
0.095
Unit Box Length
0.225
Unit Box Width
0.16
Model
CSV-1568
Units per Shipping Box
1
Unit Calculated Volume
0.00342 cubm
Unit Calculated Weight
1.39 kg
Weight & dimensions
Depth
90 mm
Height
44 mm
Weight
563 g
Width
139 mm
