Msi

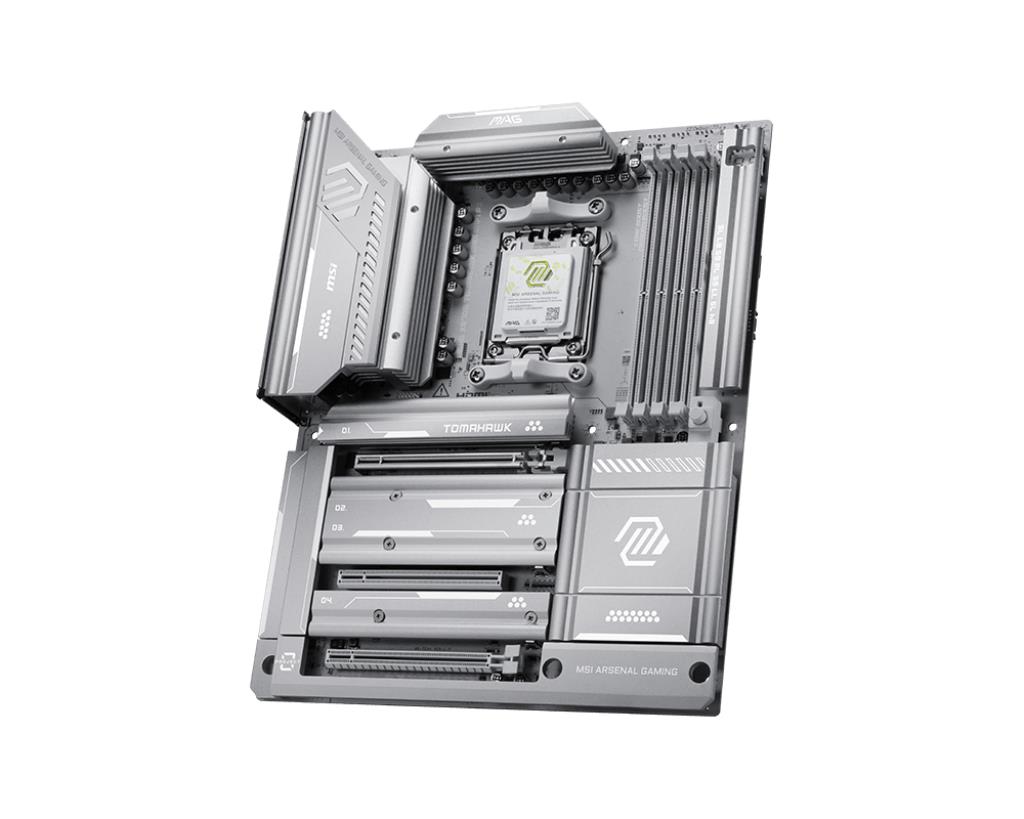

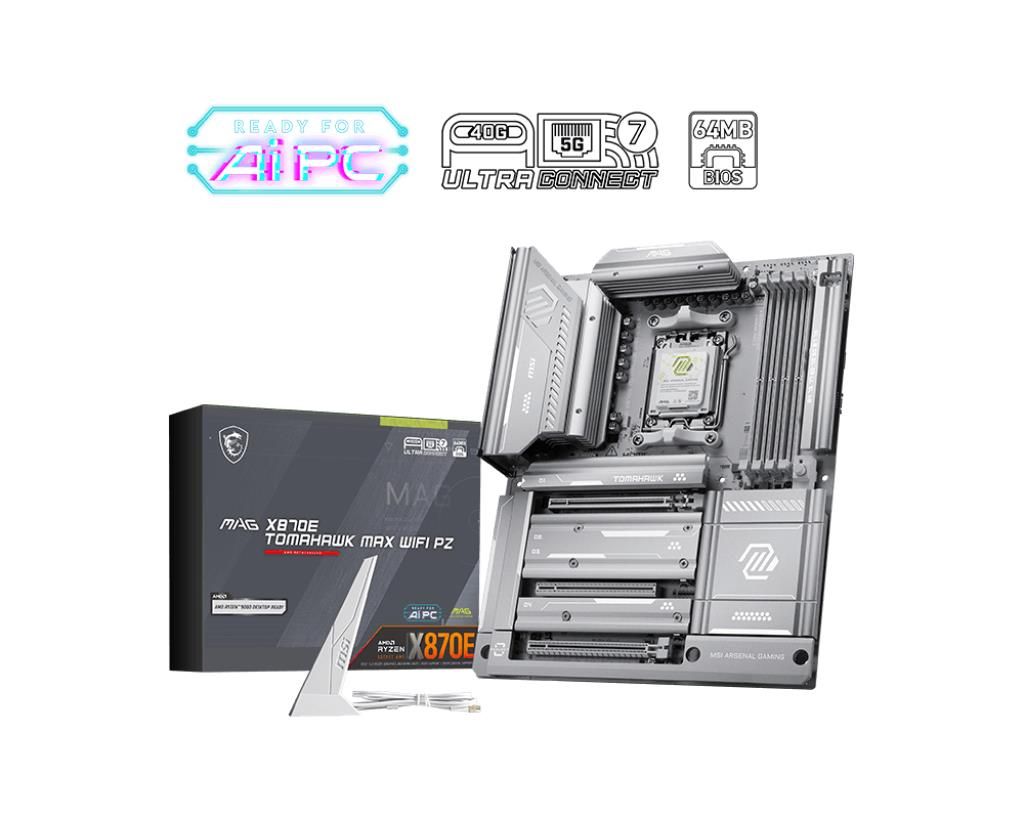

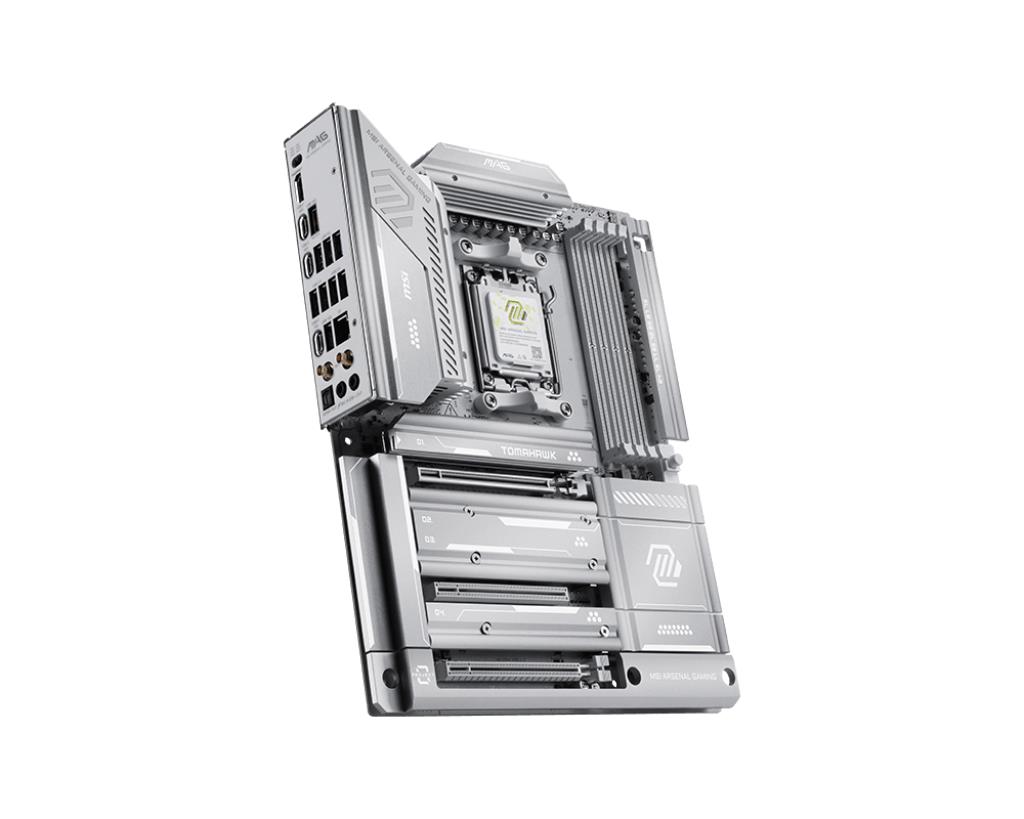

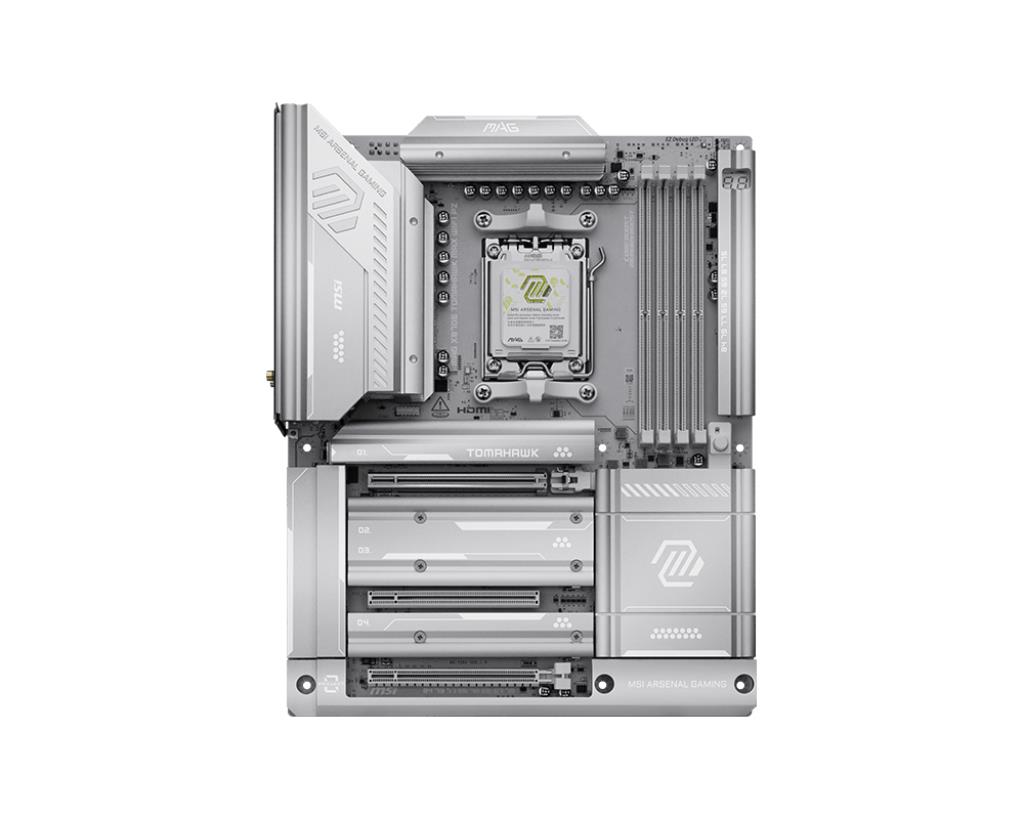

MSI AMD X870E Socket AM5 ATX

Mainboard|MSI|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|4xNumber of M.2 (M) slots|X870ETOMAHAWKMAXWIFIPZ
Ean:
4711377391283
Price:
399.95 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
ACPI version 6.5
System Management BIOS (SMBIOS) version 3.7
ELKO Internal Logistics Data
Unit Calculated Volume 0.00986 cubm
Shipping Box Weight 14.3000001907349 kg
Shipping Box Height 32.5 cm
Shipping Box Depth 41 cm
Shipping Box Width 37 cm
ELKO Logistics Data
Unit Calculated Weight 2.86 kg
Units per Shipping Box 5
Unit Width 7.5 cm
Unit Depth 35 cm
Unit Height 29 cm
Expansion slots
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
1st M.2 largest key size 22110
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
Features
Motherboard chipset AMD X870E
Product colour White
PC health monitoring CPU/Fan/Temperature/Voltage
Component for PC
Motherboard form factor ATX
Audio output channels 7.1 channels
Motherboard chipset family AMD
Graphics
On-board graphics card No
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Total number of SATA connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 4800/5600/6400/8400 MHz
Supported memory clock speed (max) 8400 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
LAN controller Realtek RTL8126
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor sockets Socket AM5

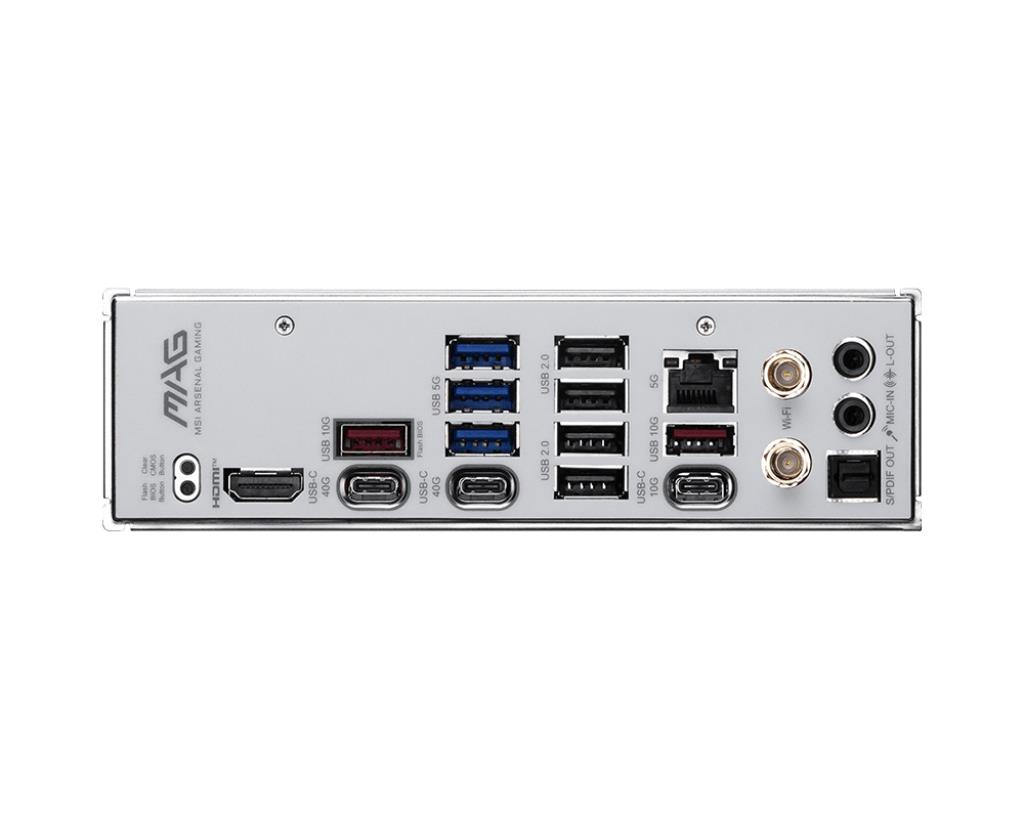

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB4 Gen 2x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 2
DisplayPort version 1.4
Microphone in Yes
S/PDIF out port Yes
Specification
Summary MSI MAG X870E TOMAHAWK MAX WIFI PZ. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Category Code MBA
Unit Box Height 0.29
Unit Box Length 0.35
Unit Box Width 0.075
Name MB AMD X870E SAM5 ATX/X870E TOMAHAWK MAX WIFI PZ MSI
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,SATA III
Number of HDDs supported 4
Number of storage drives supported 8
RAID support Yes
RAID levels 0/1/10
Weight & dimensions
Width 243.84 mm
Depth 304.8 mm
