Msi

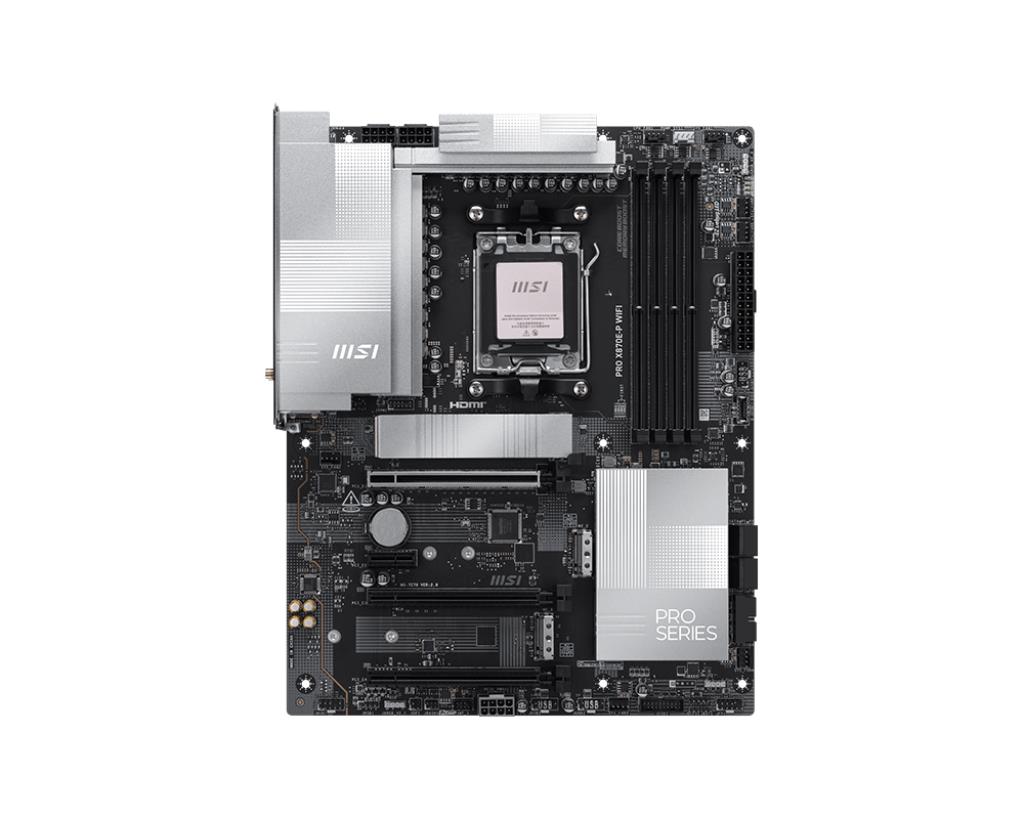

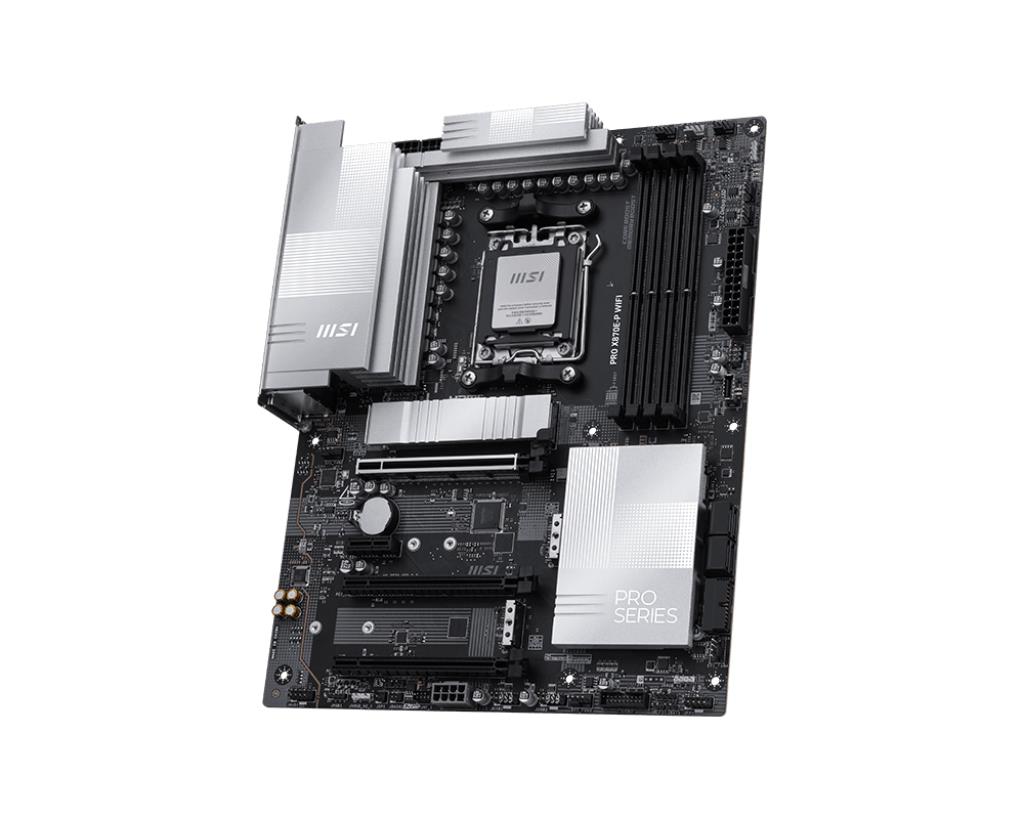

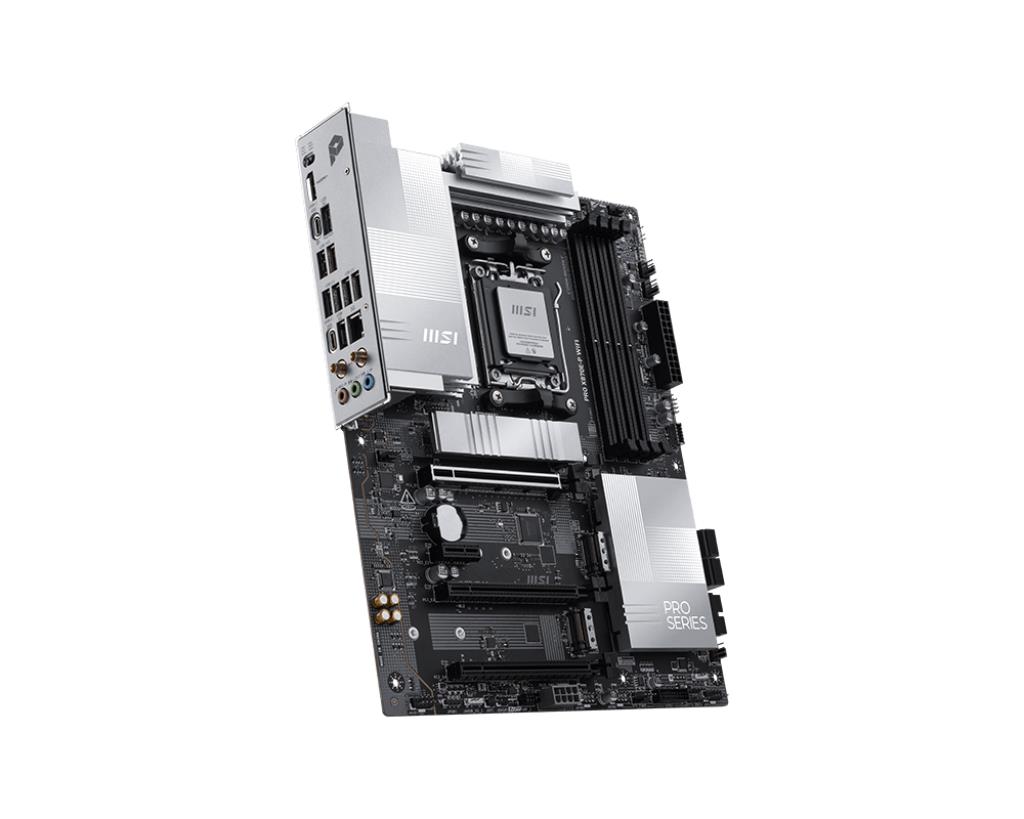

MSI AMD X870E SAM5 ATX

Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|PROX870E-PWIFI
Ean:
4711377347600
Price:
263.94 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2580
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
Number of M.2 (M) slots 3
PCI Express x1 slots 1
PCI Express x16 slots 3
Features
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD X870E
Motherboard chipset family AMD
Motherboard form factor ATX
PC health monitoring CPU/Fan/Temperature/Voltage
Product colour Black
Windows operating systems supported Windows 11 x64
Graphics
On-board graphics card No
Internal I/O
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Number of SATA III connectors 4
RGB LED pin header Yes
Total number of SATA connectors 4
TPM connector Yes
USB 2.0 connectors 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Memory
Supported memory types DDR5-SDRAM
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8200 MHz
Supported memory clock speeds 4800/5600/8200 MHz
Network
Bluetooth Yes
Bluetooth version 5.4
Ethernet interface type 5 Gigabit Ethernet
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5
Rear panel I/O ports
DisplayPort version 1.4
DisplayPorts quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB4 Gen 2x2 ports quantity 1
USB4 Gen 3x2 ports quantity 1
Specification
Model PRO X870E-P WIFI
Units per Shipping Box 5
Unit Calculated Volume 0.007909 cubm
Unit Calculated Weight 2.15 kg
Summary MSI PRO X870E-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax),.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Category Code MBA
Unit Box Height 0.275
Unit Box Length 0.345
Unit Box Width 0.075
Storage controllers
Number of HDDs supported 7
Number of storage drives supported 4
RAID levels 0/1
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 304.8 mm
Width 243.84 mm
