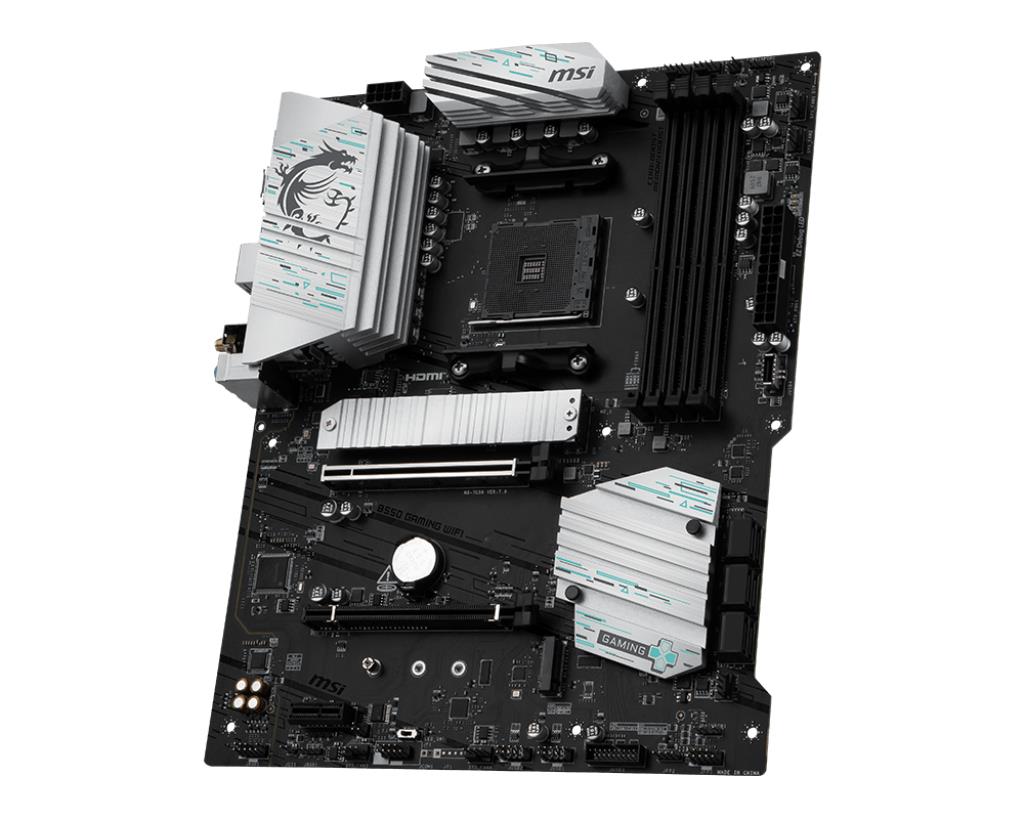

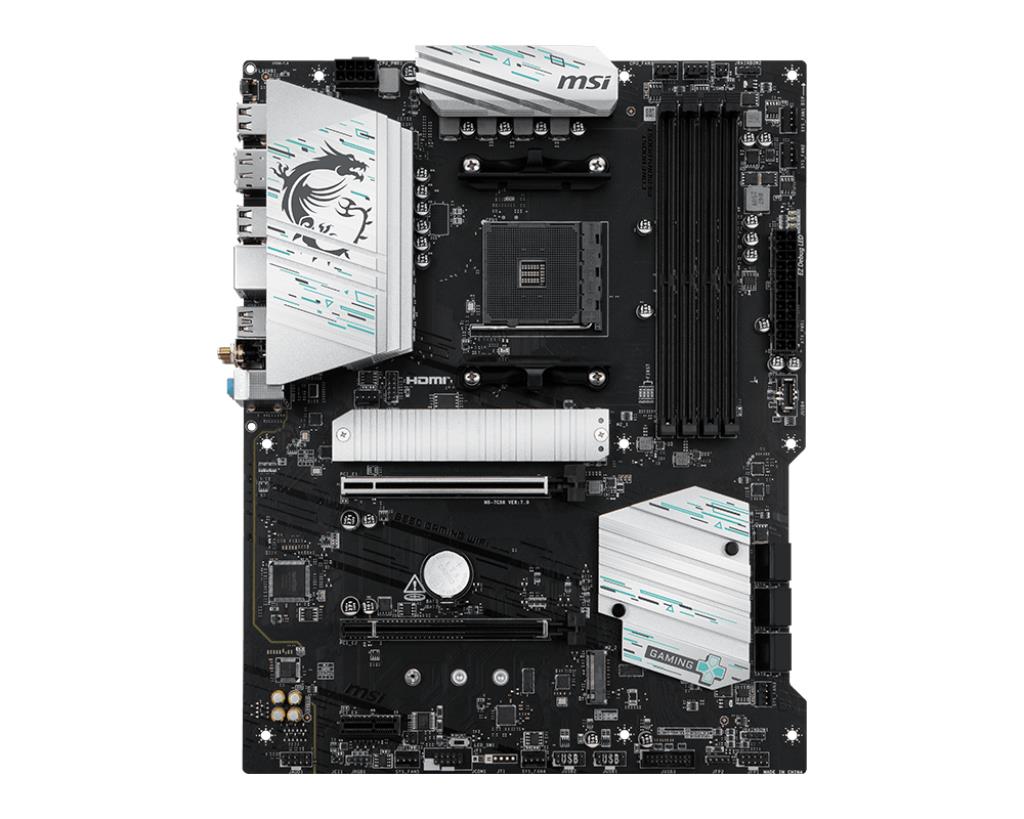

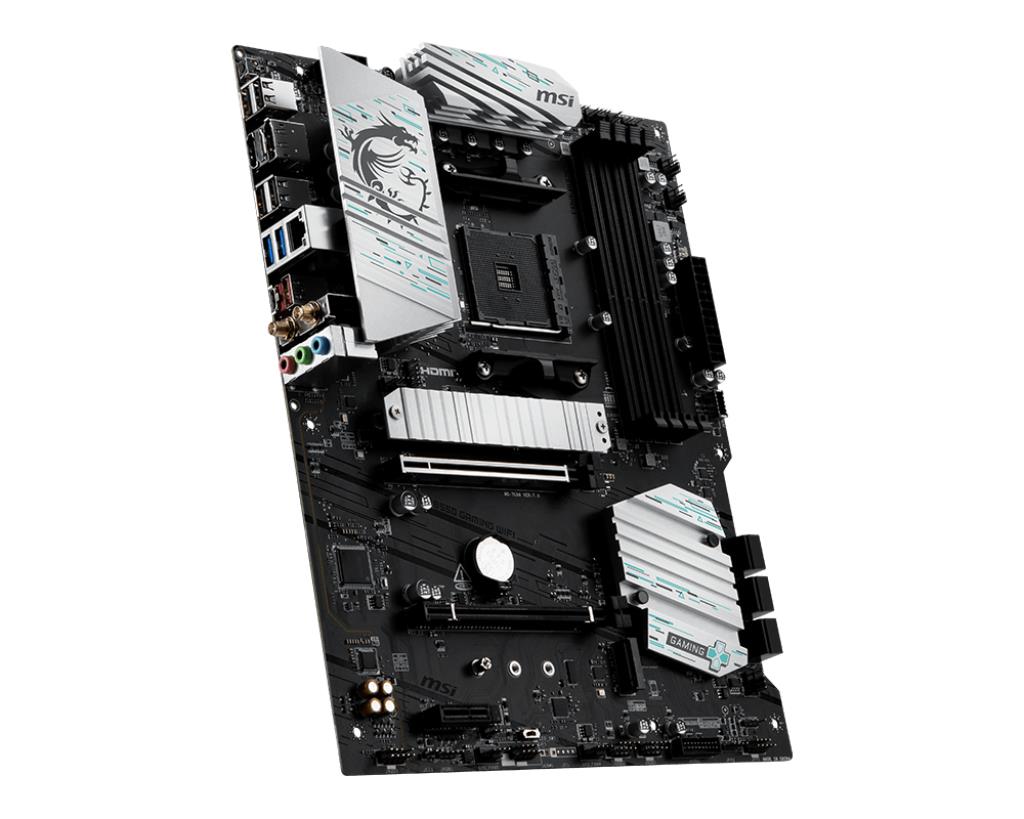

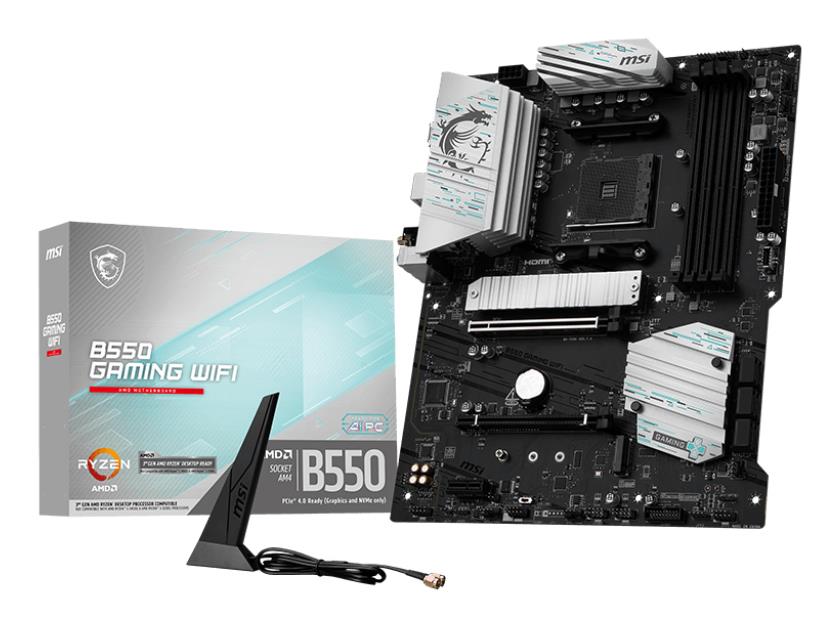

MSI AMD B550 Socket AM4 ATX

Mainboard|MSI|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550GAMINGWIFI
Ean:
4711377376143
Price:
146.03 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
ACPI version 6.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS jumper Yes
System Management BIOS (SMBIOS) version 2.8
Expansion slots
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 22110
2nd M.2 highest PCI Express generation 3.0
2nd M.2 largest key size 2280
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD B550
Motherboard chipset family AMD
Motherboard form factor ATX
PC health monitoring CPU/Fan/Temperature
Graphics
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
CPU fan connector Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 6
Number of SATA III connectors 6
RGB LED pin header Yes
Total number of SATA connectors 6
TPM connector Yes
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Logistics data
Harmonized System (HS) code 84733020
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 2667 MHz
Supported memory clock speeds 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866 MHz
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.0
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek 8111H
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Wi-Fi standards Wi-Fi 5 (802.11ac)
Packaging content
Cables included SATA
Drivers included Yes
Processor
Maximum number of SMP processors 1
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series

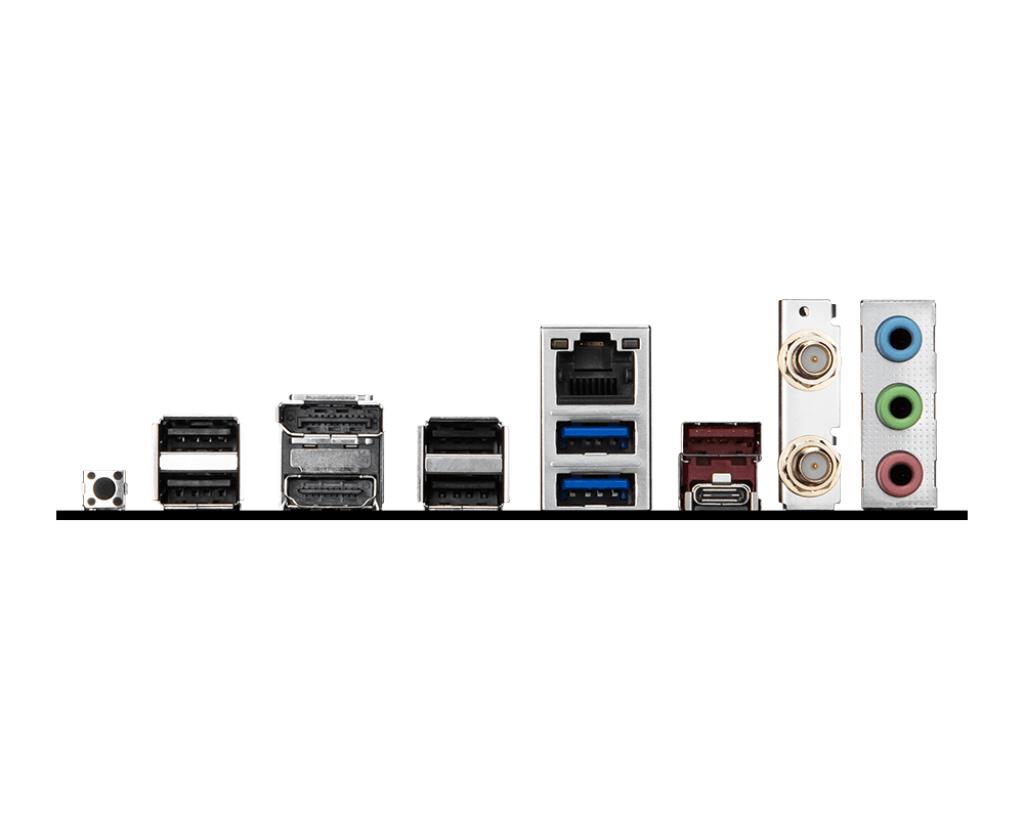

Rear panel I/O ports
Digital audio optical out 1
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
PS/2 ports quantity 1
S/PDIF out port Yes
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
WiFi-AP antenna jack 2
Specification
Units per Shipping Box 1
Unit Calculated Volume 0.007803 cubm
Unit Calculated Weight 1.64 kg
Summary MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Category Code MBA
Unit Box Height 0.085
Unit Box Length 0.34
Unit Box Width 0.27
Storage controllers
Supported storage drive interfaces SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 243.84 mm
Width 304 mm
