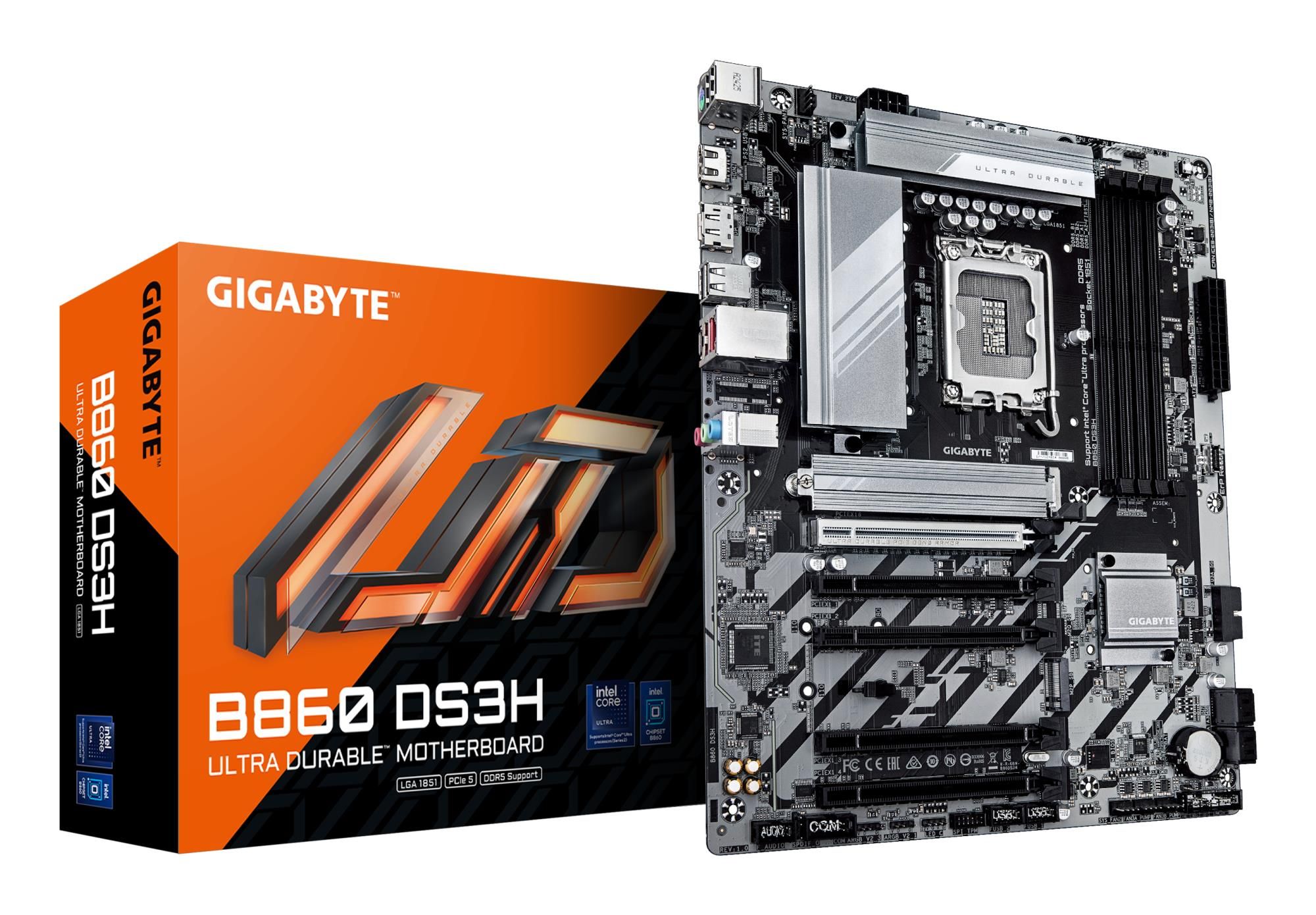

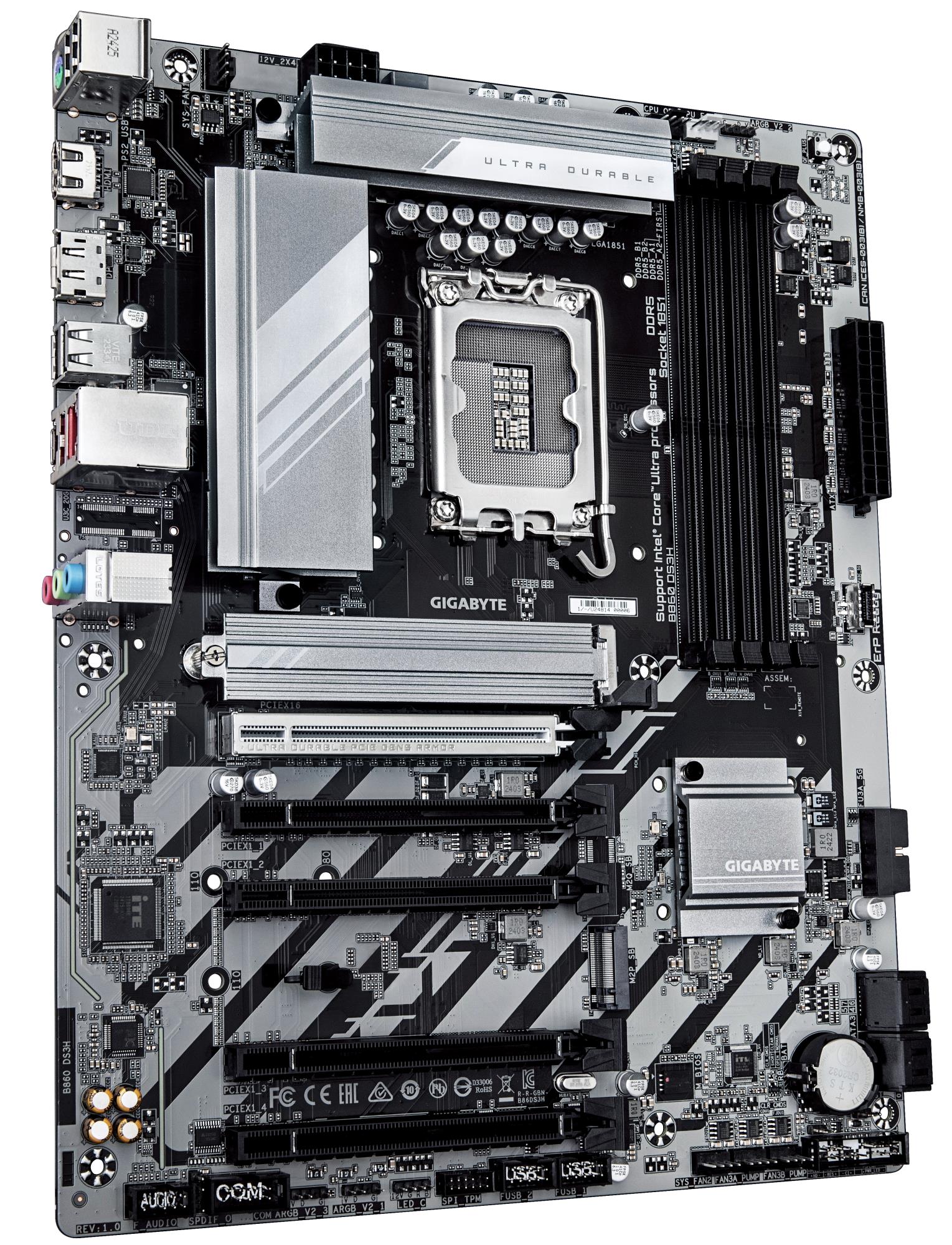

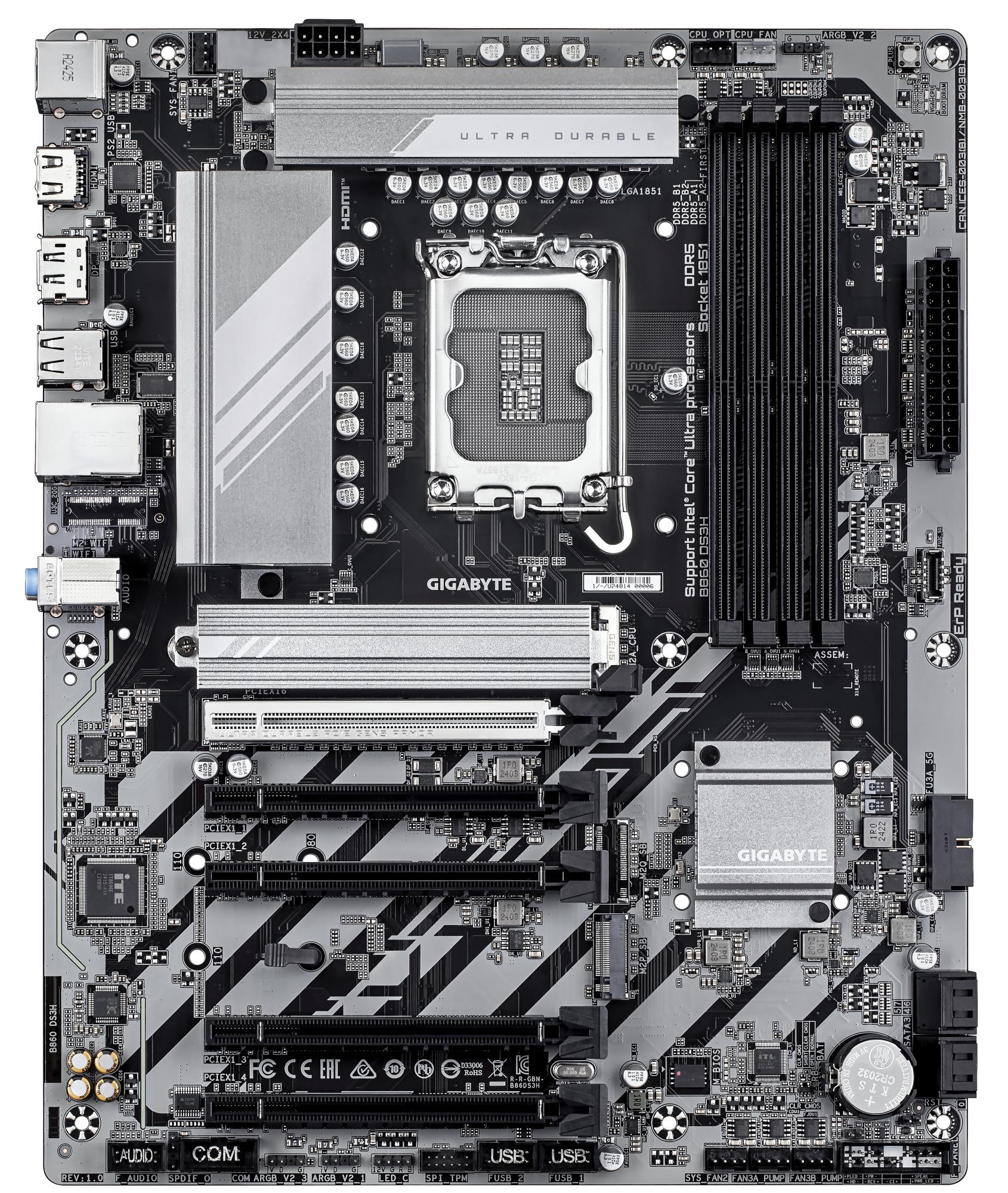

GIGABYTE Intel B860 Express LGA1851 ATX

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H
Ean:
4719331868178
Price:
164.02 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
BIOS
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 25110
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 4
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Cooling type Passive
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor ATX
PC health monitoring Fan/Temperature/Voltage/Water cooling
Power source type ATX
Product colour Dark brown
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Number of water pump connectors 3
RGB LED pin header Yes
S/PDIF out connector Yes
Serial port headers 1
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 9066 MHz
Supported memory clock speeds 5600/6400/9066 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8125
Wi-Fi No
Other features
Weight 2000 g
Packaging content
Batteries included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included Yes
Packaging data
Package depth 270 mm
Package height 80 mm
Package width 335 mm
Processor
Compatible processor series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851

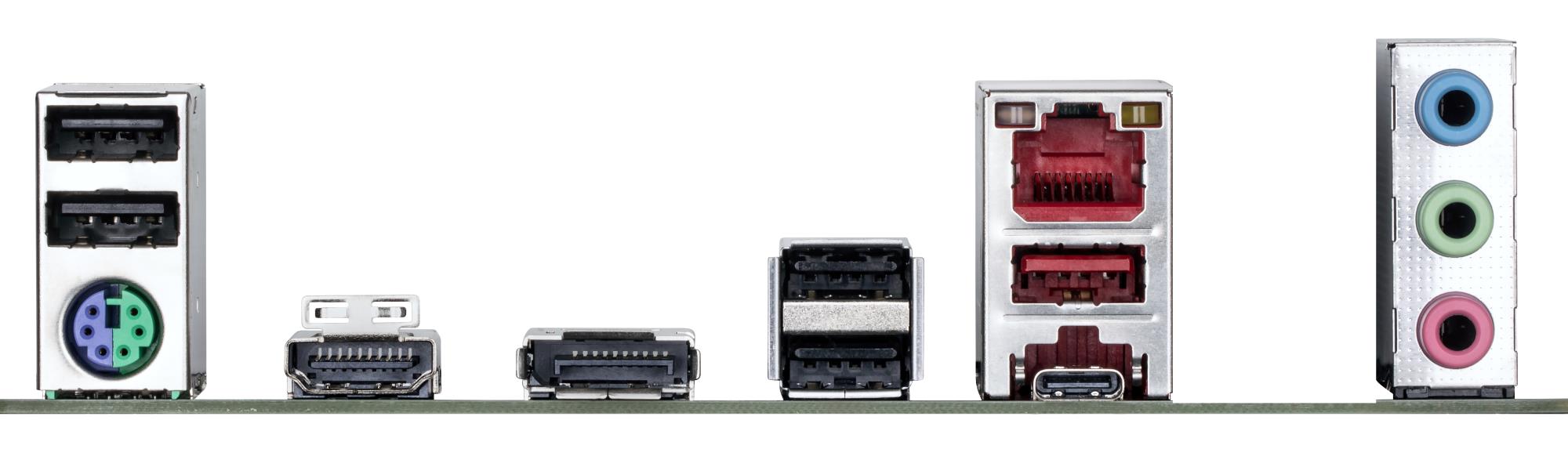

Rear panel I/O ports
DisplayPort version 2.1
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
PS/2 ports quantity 1
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Specification
Summary GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Category Code MBI
Unit Box Height 0.27
Unit Box Length 0.34
Unit Box Width 0.08
Model B860 DS3H
Units per Shipping Box 1
Unit Calculated Volume 0.007344 cubm
Unit Calculated Weight 1.5 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Technical details
Warranty period 3 year(s)
Weight & dimensions
Depth 244 mm
Height 35 mm
Width 305 mm
