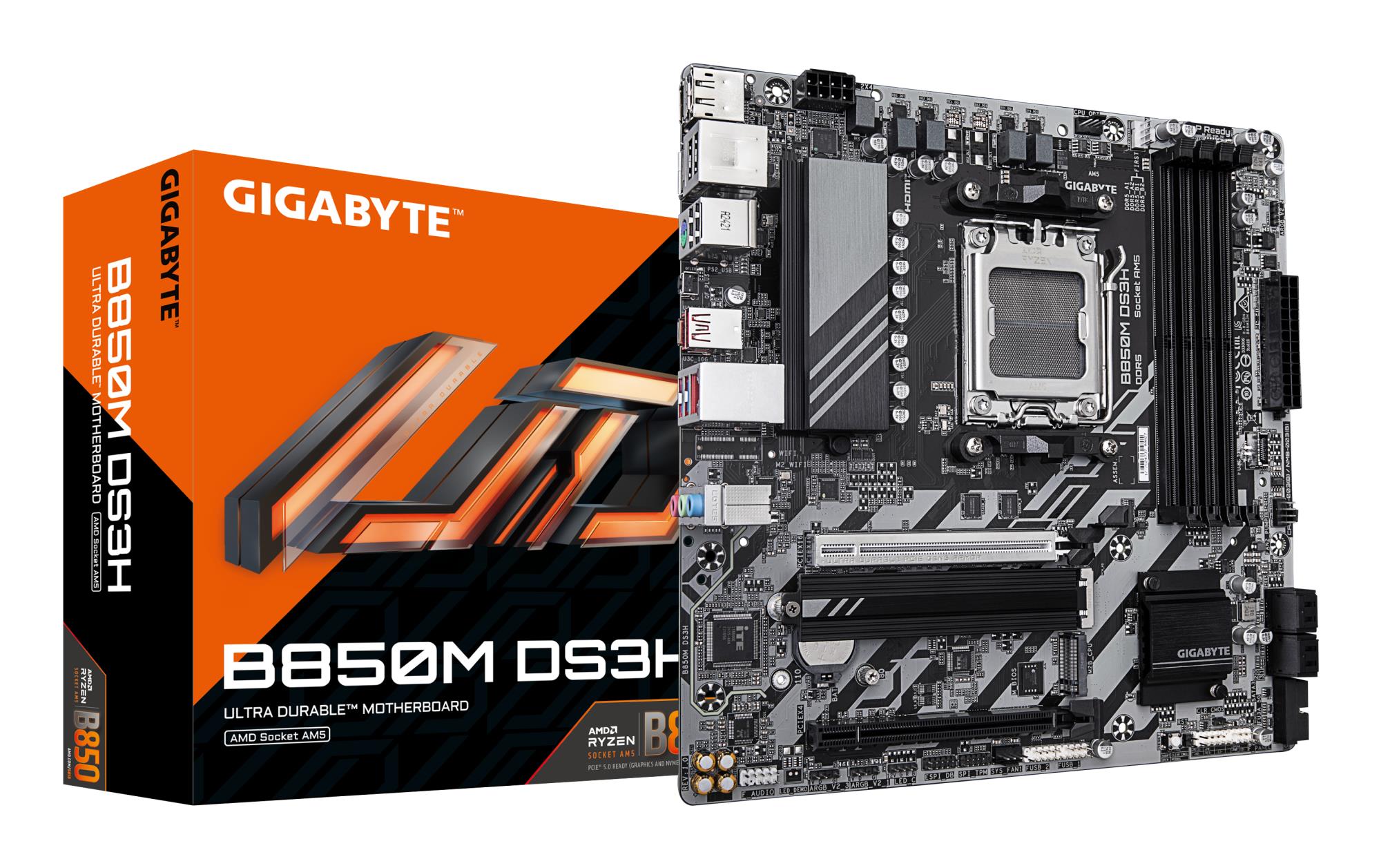

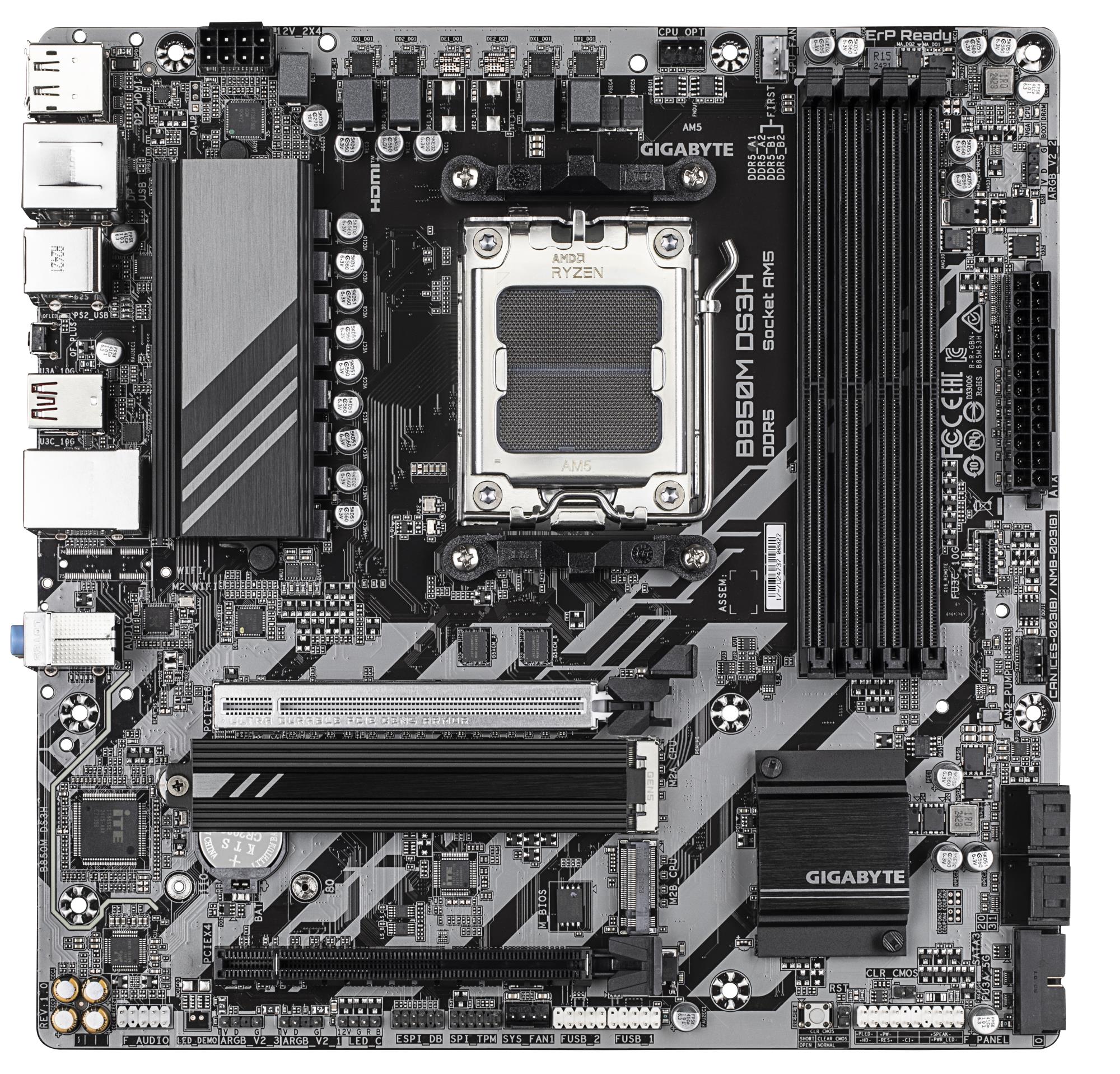

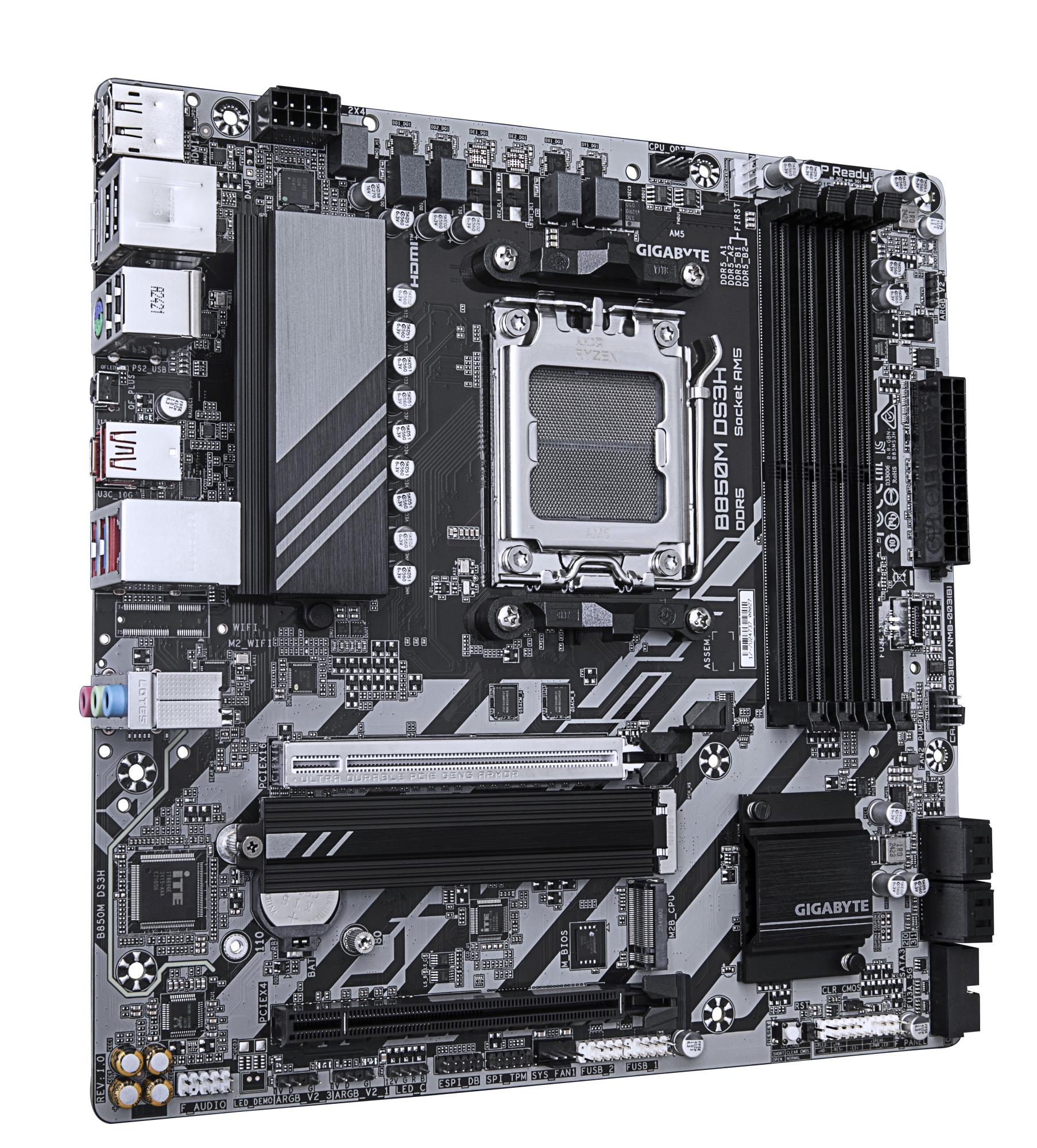

GIGABYTE AMD B850 Socket AM5 micro ATX

Mainboard|GIGABYTE|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|2xNumber of M.2 (M) slots|B850MDS3H1.2
Ean:
4719331866518
Price:
150.25 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
BIOS
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS button Yes
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 25110
Number of M.2 (M) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD B850
Motherboard chipset family AMD
Motherboard form factor micro ATX
PC health monitoring Fan/Temperature/Voltage/Water cooling
Power source type ATX
Product colour Brown
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Peripheral (Molex) power connectors (4-pin) 1
RGB LED pin header Yes
Serial port headers 1
Total number of SATA connectors 4
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8200 MHz
Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
Other features
Weight 1135 g
Packaging content
Antenna included Yes
Batteries included Yes
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Screws included Yes
Packaging data
Package depth 268 mm
Package height 68 mm
Package weight 1337 g
Package width 270 mm
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5
Rear panel I/O ports
DisplayPort version 2.1
DisplayPorts quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
WiFi-AP antenna jack 2
Specification
Summary GIGABYTE B850M DS3H Motherboard - AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
Category Code MBA
Unit Box Height 0.265
Unit Box Length 0.27
Unit Box Width 0.07
Units per Shipping Box 10
Unit Calculated Volume 0.006161 cubm
Unit Calculated Weight 1.25 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 6
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Technical details
Warranty period 3 year(s)
Weight & dimensions
Depth 244 mm
Height 35 mm
Width 244 mm
