GIGABYTE AMD A520 Socket AM4 micro ATX

Mainboard|GIGABYTE|AMD A520|Socket AM4|micro ATX|RAM DDR4-SDRAM|2xSlots|1xNumber of M.2 (M) slots|A520MS2HP1.0
Ean:
4719331882457
Price:
69.89 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery capacity 220 mAh
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Clear CMOS button Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
ELKO Internal Logistics Data
Unit Calculated Volume 0.004187 cubm
Shipping Box Weight 7.8 kg
Shipping Box Height 26 cm
Shipping Box Depth 56.5 cm
Shipping Box Width 28.5 cm
ELKO Verified Logistics Data
Unit Calculated Weight 0.78 kg
Units per Shipping Box 10
Unit Width 23 cm
Unit Depth 27 cm
Unit Height 5.5 cm
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 1
Features
Motherboard chipset AMD A520
Product colour Black
Component for PC
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Motherboard chipset family AMD
Graphics
On-board graphics card No
HDCP Yes
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
ATX Power connector (24-pin) Yes
Power fan connector Yes
CPU fan connector Yes
Number of chassis fan connectors 2
RGB LED pin header Yes
Number of RGB LED pin headers 4
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 2133/2400/2667/2933/3200/3333/3600/4866 MHz
Supported memory clock speed (max) 3200 MHz
Maximum internal memory 64 GB
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
Packaging content
Batteries included Yes
Packaging data
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 772 g
Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series
Maximum number of SMP processors 1
Supported processor sockets Socket AM4

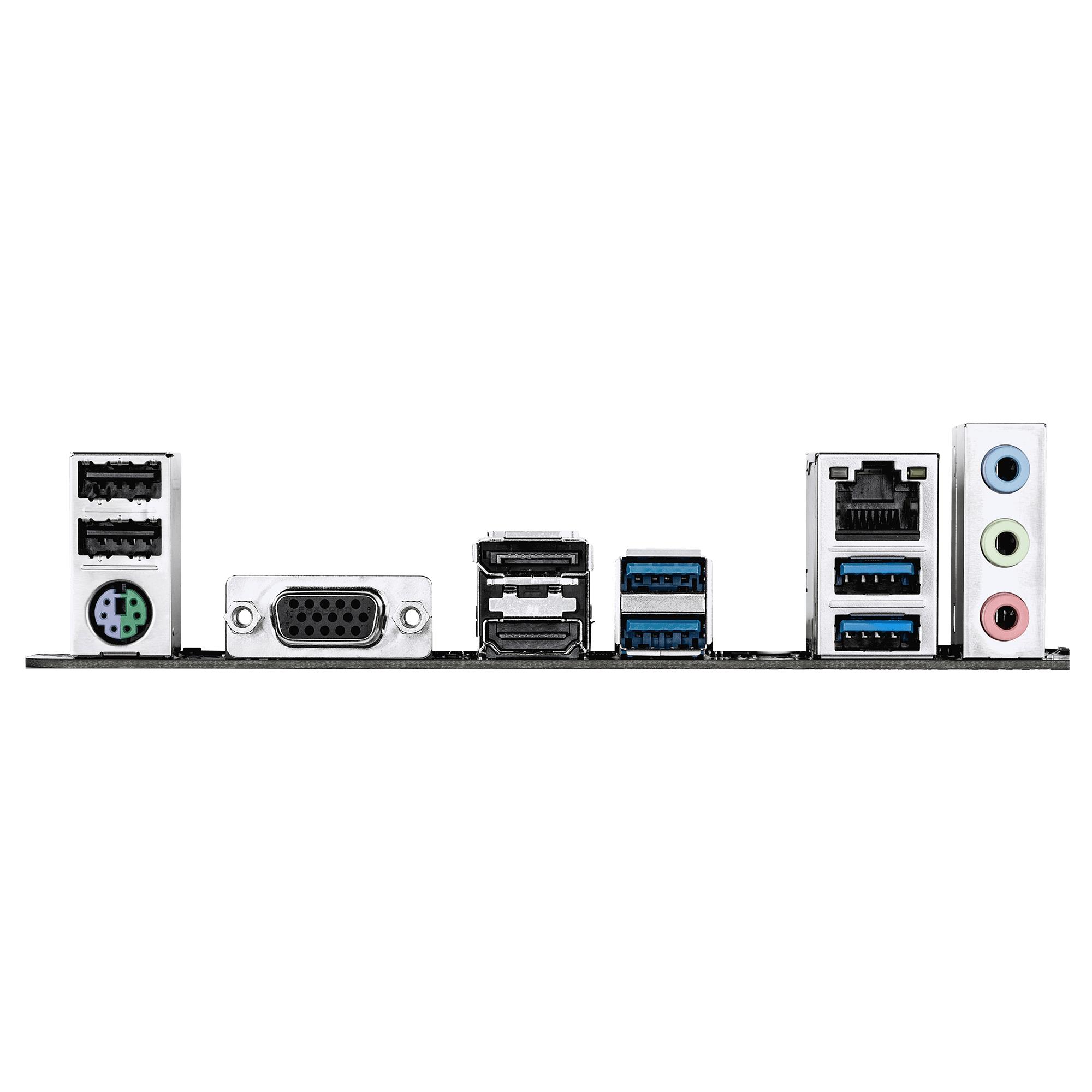

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
Specification
Summary GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Category Code MBA
CnCode 84733020
Unit Box Height 0.055
Unit Box Length 0.27
Unit Box Width 0.23
Name MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE
Storage controllers
Supported storage drive interfaces M.2,PCI Express 3.0,SATA
RAID support Yes
RAID levels 0/1/10
Technical details
Warranty period 3 year(s)
Weight & dimensions
Width 244 mm
Depth 205 mm
Height 35 mm
