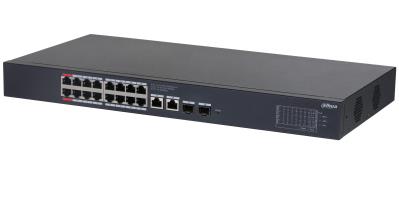

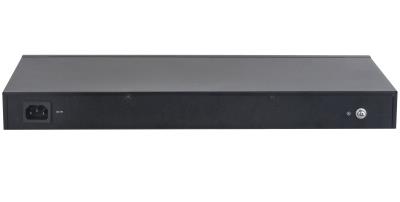

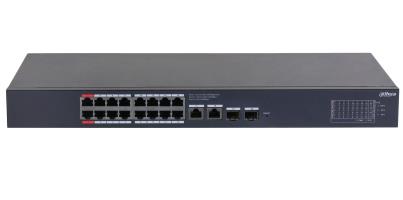

DAHUA PoE ports 16 135 Watts CS4220-16GT-135

Switch|DAHUA|PoE ports 16|135 Watts|CS4220-16GT-135
Ean:
6923172571298
Price:
188.13 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Data transmission
Forwarding rate 29.76 Mpps
Jumbo frames 15000
Jumbo frames support Yes
MAC address table 8000 entries
Packet buffer memory 4 MB
Switching capacity 40 Gbit/s
Design
Housing material Metal
Product colour Black
Rack mounting Yes
Reset button Yes
Management features
Cloud-managed Yes
Switch layer L2
Switch type Managed
Web-based management Yes
Network
10G support No
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs 32
VLAN support Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -10 - 55 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Packaging data
Package depth 342 mm
Package height 90 mm
Package weight 2910 g
Package width 540 mm
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 18
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 18
SFP module slots quantity 2
Power
AC input frequency 47/63 Hz
AC input voltage 100 - 240 V
Input current 3 A
Power consumption (typical) 154 W
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 16
Total Power over Ethernet (PoE) budget 135 W
Security
DHCP features DHCP client
Specification
Summary Dahua Technology CS4220-16GT-135. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
Category Code SWI
Unit Box Height 0.345
Unit Box Length 0.535
Unit Box Width 0.09
Units per Shipping Box 1
Unit Calculated Volume 0.01661 cubm
Unit Calculated Weight 3.15 kg
Weight & dimensions
Depth 220 mm
Height 44 mm
Weight 2260 g
Width 440 mm
