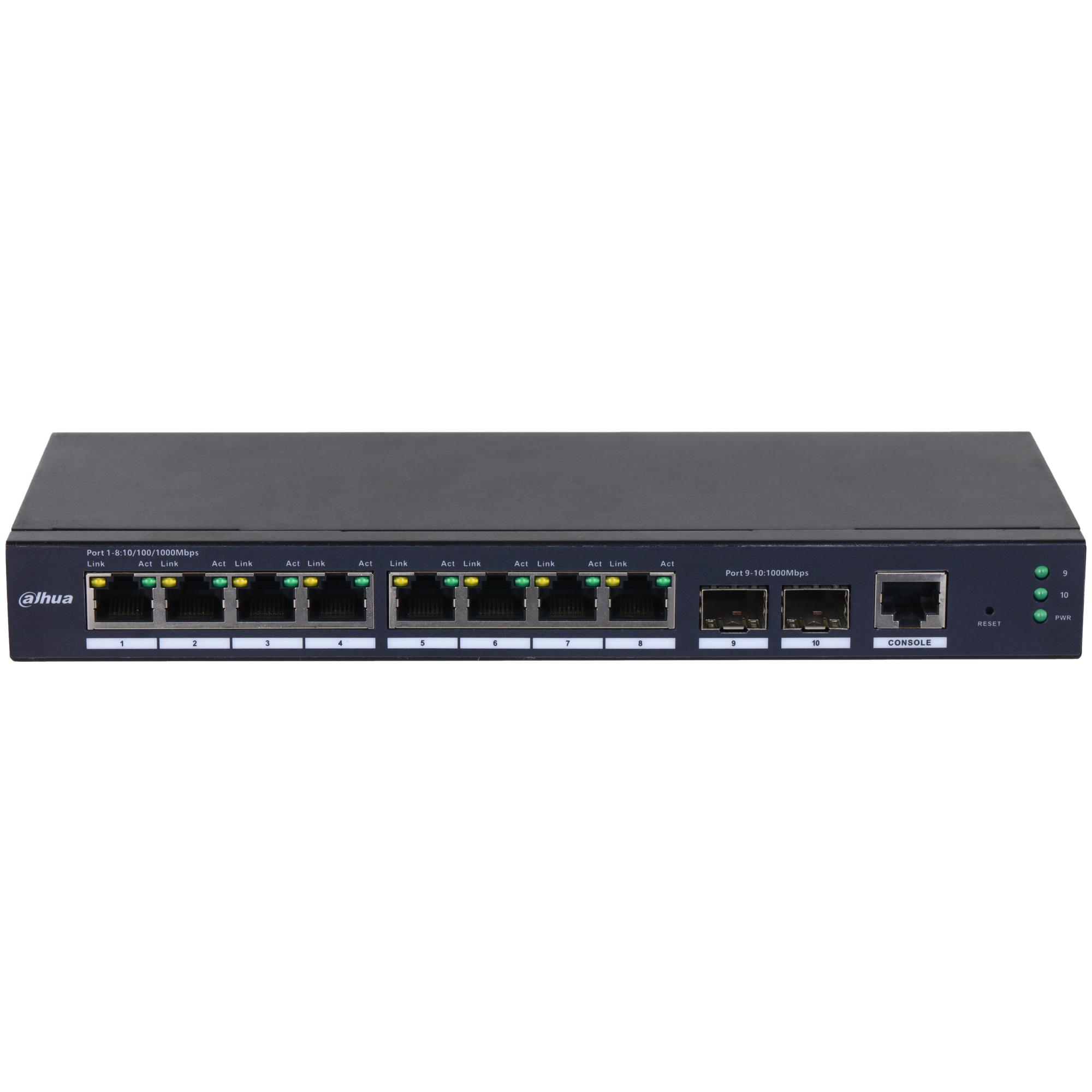

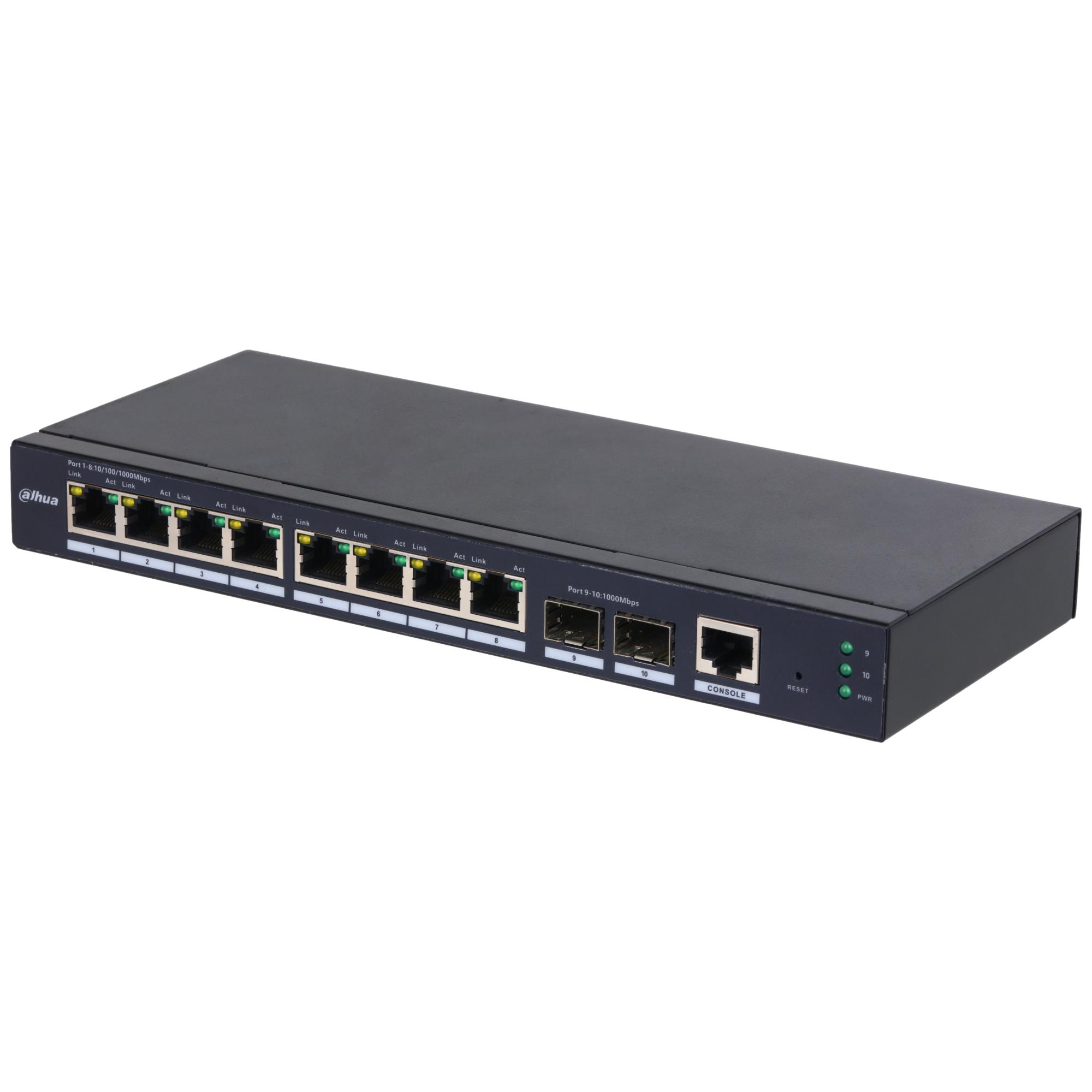

DAHUA DH-SG4010-2F SG4010-2F

Switch|DAHUA|DH-SG4010-2F|SG4010-2F
Ean:
6923172597670
Price:
80.43 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Certificates
Compliance certificates CE
Data transmission
Forwarding rate 14.88 Mpps
Jumbo frames 9000
Jumbo frames support Yes
MAC address table 8000 entries
Packet buffer memory 4.1 MB
Switching capacity 20 Gbit/s
Design
Housing material Steel
LED indicators Yes
Product colour Black
Rack mounting No
Reset button Yes
Wall mountable Yes
Management features
Cloud-managed No
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Web-based management Yes
Multicast features
Multicast support Yes
Network
10G support No
Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Full duplex Yes
Link aggregation Yes
Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs 4000
Spanning tree protocol Yes
Virtual LAN features Port-based VLAN/Tagged VLAN
VLAN support Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -10 - 55 °C
Optical fiber
Fiber ethernet cabling technology 1000BASE-X
Packaging data
Package depth 316 mm
Package height 82 mm
Package weight 1040 g
Package width 240 mm
Performance
Fanless Yes
Mean time between failures (MTBF) 2322286.99 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45
Gigabit Ethernet (copper) ports quantity 8
SFP module slots quantity 2
Uplink ports quantity 2
Power
DC input voltage 12 V
Input current 1 A
Power consumption (max) 12 W
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Protocols
Management protocols SNMP V1/V2C/V3
Security
Access Control List (ACL) Yes
DHCP features DHCP client
IGMP snooping Yes
Specification
Model name DH-SG4010-2F
Units per Shipping Box 12
Unit Calculated Volume 0.007659 cubm
Unit Calculated Weight 1.18 kg
Summary Dahua Technology SG4010-2F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... DC input voltage: 12 V. Wall mountable
Category Code SWI
CnCode 85176200
Unit Box Height 0.08
Unit Box Length 0.315
Unit Box Width 0.24
Sustainability
Sustainability compliance Yes
Weight & dimensions
Weight 640 g
Width 104 mm
Depth 240 mm
Height 28 mm
