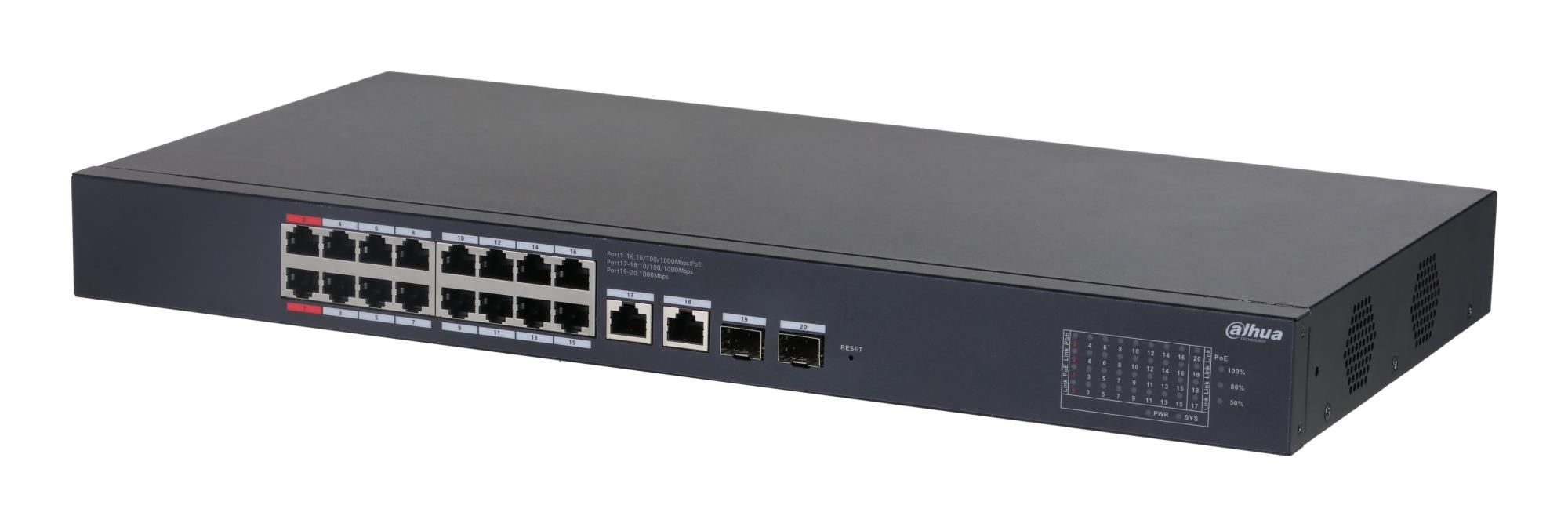

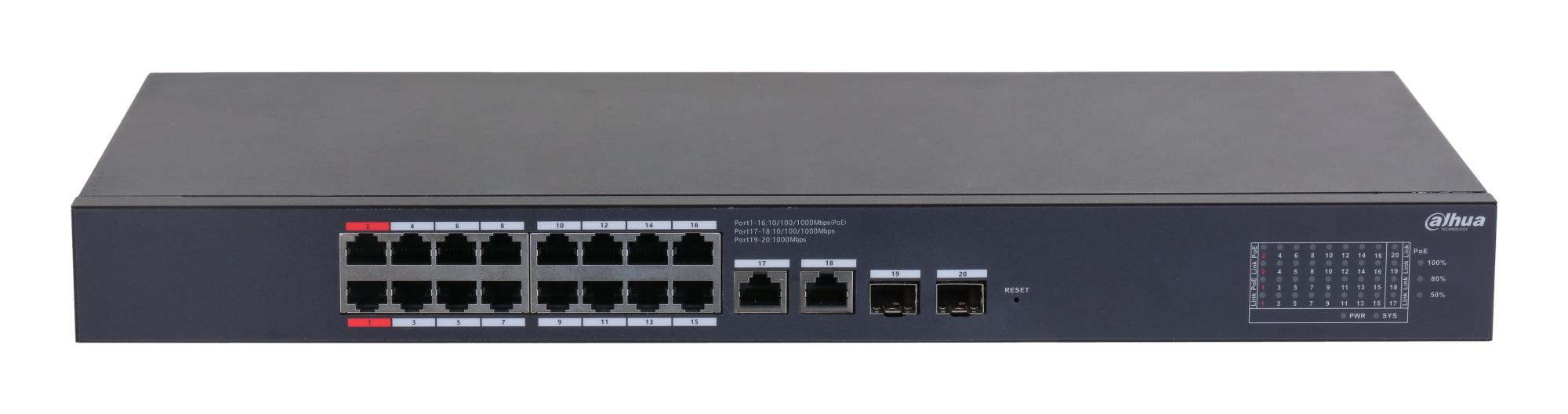

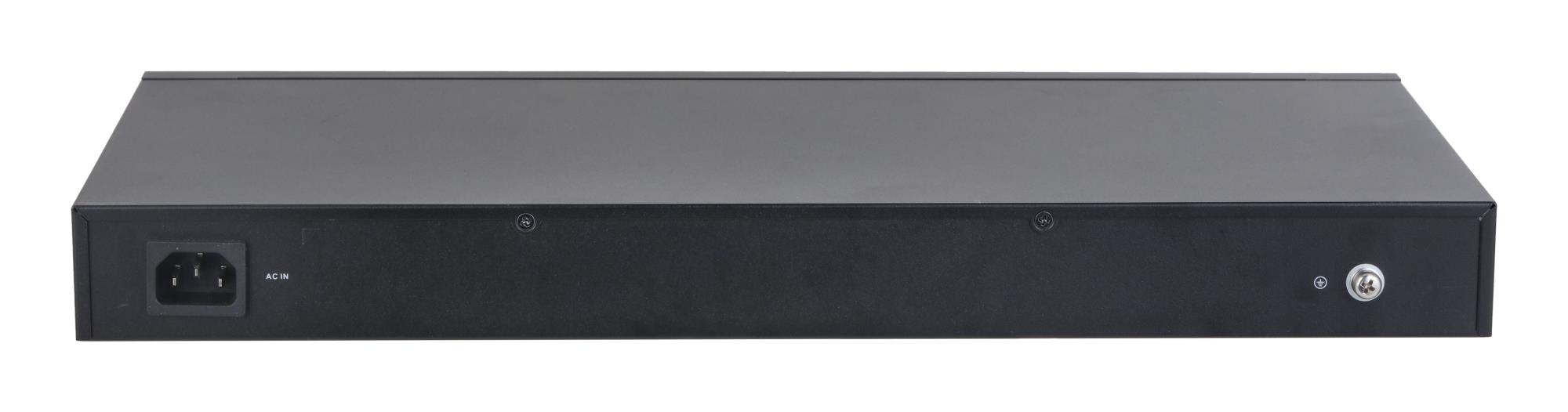

DAHUA CS4220-16GT-190 Switch type Managed Switch layer L2

Switch|DAHUA|CS4220-16GT-190|Switch type Managed|Switch layer L2|Rack mounting Yes|Form factor 1U|18xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|18xGigabit Ethernet (copper) ports quantity|2xSFP module slots quantity|Power over Ethernet (PoE) Yes|16xPower over Ethernet (PoE) ports quantity|Total Power over Ethernet (PoE) budget 190 W|CS4220-16GT-190
Price:
193.91 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Aplinkos sąlygos
Darbo temperatūros diapazonas (TT) -10 - 55 °C
Sandėliavimo temperatūros norma (T-T) -40 - 70 °C
Darbo santykinės drėgmės diapazonas 5 - 95 %
Sandėliavimo santykinis drėgmės diapazonas 5 - 95 %
Duomenų perdavimas
Perjungimo pajėgumas 40 Gbit/s
Persiuntimo dažnis 29.76 Mpps
Adreso lentelės dydis 8000 įrašai
Jumbo Frames palaikymas Taip
„Jumbo“ kadrai 15000
Paketo buferio atmintis 0.5 MB
ELKO Internal Logistics Data
Unit Brutto Volume 0.01652 cubm
Shipping Box Weight 3.27 kg
Shipping Box Height 9 cm
Shipping Box Depth 54 cm
Shipping Box Width 34 cm
ELKO Verified Logistics Data
Bruto svoris 3.27 kg
Vienetų skaičius vienoje siuntimo dėžėje 1
Vieneto plotis 34 cm
Vieneto gylis 54 cm
Vieneto aukštis 9 cm
Energijos valdymas
Maitinimo šaltinis AC/DC/PoE
Pridėtas maitinimo šaltinis Taip
AC įėjimo įtampa 100 - 240 V
AC įėjimo dažnis 47/63 Hz
Galios suvartojimas (maks.) 212 W
Konstrukcija
Stovo montavimas Taip
Forma 1U
Produkto spalva Juoda
Korpuso medžiaga Metalas
Atstatymo mygtukas Taip
LED indikatoriai Energija/Jungtis/PoE/Sistema
Pakuotės duomenys
Pakuotės plotis 540 mm
Pakuotės gylis 342 mm
Pakuotės aukštis 90 mm
Paketo svoris 2970 g
Ryšys
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 18
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (varinis) portų kiekis 18
SFP modulio angų kiekis 2
Saugumas
DHCP funkcijos DHCP client
Apsauga nuo nesklandaus ryšio Taip
Specification
Summary Dahua Technology CS4220-16GT-190. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Category Code SWI
Unit Box Height 0.09
Unit Box Length 0.54
Unit Box Width 0.34
Name NET SWITCH 20PORT 16POE/CS4220-16GT-190 DAHUA
Model name CS4220-16GT-190
Svoris ir matmenys
Plotis 440 mm
Ilgis 220 mm
Aukštis 44 mm
Svoris 2320 g
Tinklas
Tinklo standartai IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
10G parama Ne
Srauto kontrolės palaikymas Taip
VLAN palaikymas Taip
Virtualaus vietinio tinklo ypatybės Port-based VLAN
VLANs skaičius 32
Valdymo funkcijos
Perjungimo tipas Valdomas
Perjungimo sluoksnis L2
Duomenys perduodami į debesies platformą Taip
Web pagrįstas valdymas Taip
Veikimo charakteristikos
Vidutinis laikas tarp trikčių (MTBF) 762116 h
„Power over Ethernet“ (PoE)
Maitinimas per Eternetą (PoE) Taip
Maitinimo per Eternetą (PoE) prievadų skaičius 16
Maitinimo per Eternetą (PoE) galia prievadui 30 W
Bendrosios galios per Eternetą (PoE) charakteriskos 190 W
