BE QUIET ATX PC 100 - 240 V

Power Supply|BE QUIET|ATX|PC|100 - 240 V|1000 W|BP020EU
Ean:
4260052192023
Price:
298.86 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

Certificates
Compliance certificates CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE
Design
Cooling type Active
Fan diameter 135 mm
Fan speed 0 - 2100 RPM
Number of fans 1 fan(s)

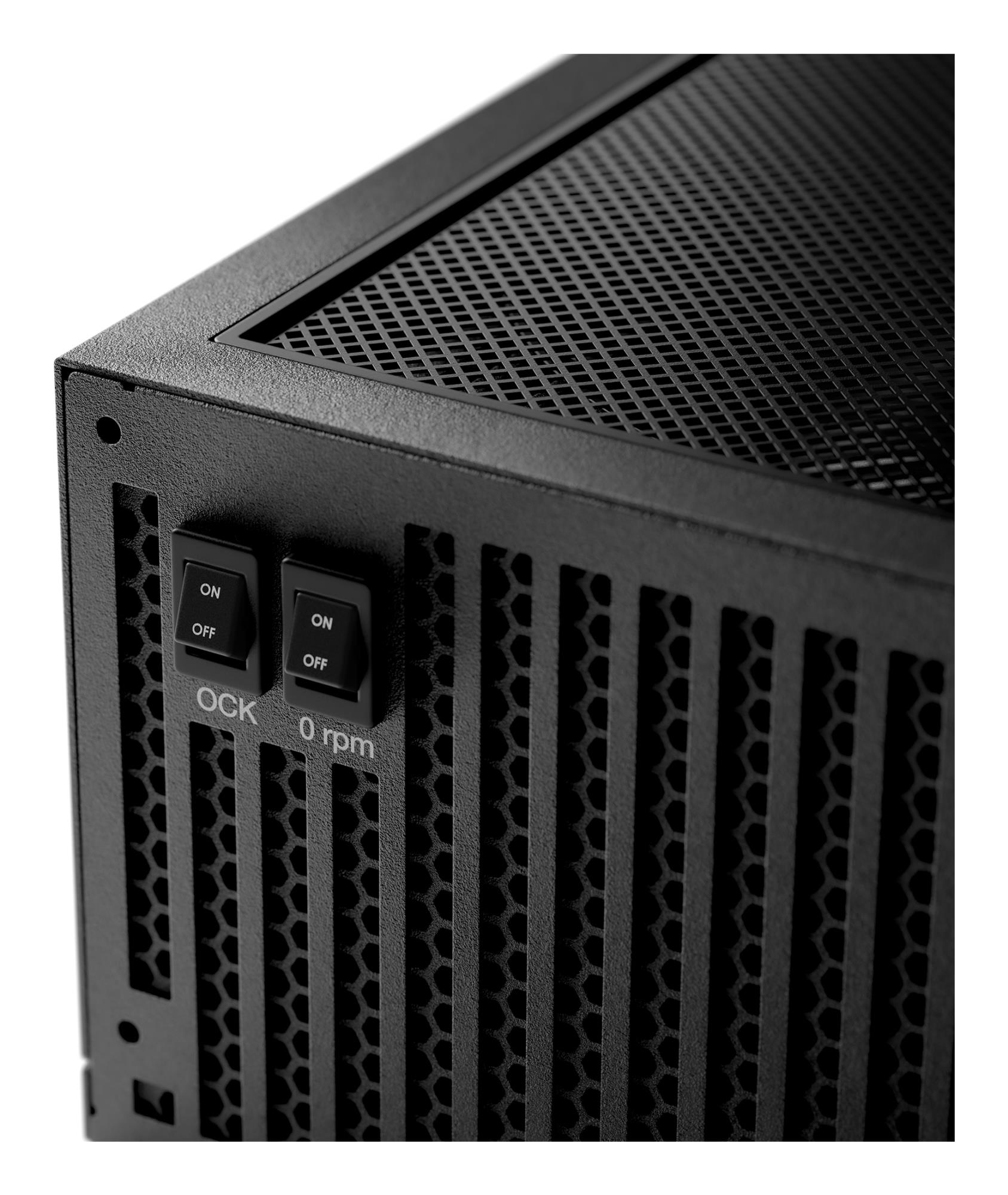

On/off fan switch Yes
On/off switch Yes
Product colour Black
Logistics data
Products per shipping (inner) case 4 pc(s)
Shipping (inner) case height 260 mm
Shipping (inner) case length 528 mm
Shipping (inner) case net weight 19340 g
Shipping (inner) case width 368 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Other features
Cable ties included Yes
Screws included Yes
Packaging data
Manual Yes
Manual languages English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
Package depth 126 mm
Package height 355 mm
Package weight 3500 g
Package width 230 mm
Performance
80 PLUS certification 80 PLUS Titanium
ATX version 3.1
Bearing technology FDB
EPS version 2.92
Mean time between failures (MTBF) 100000 h

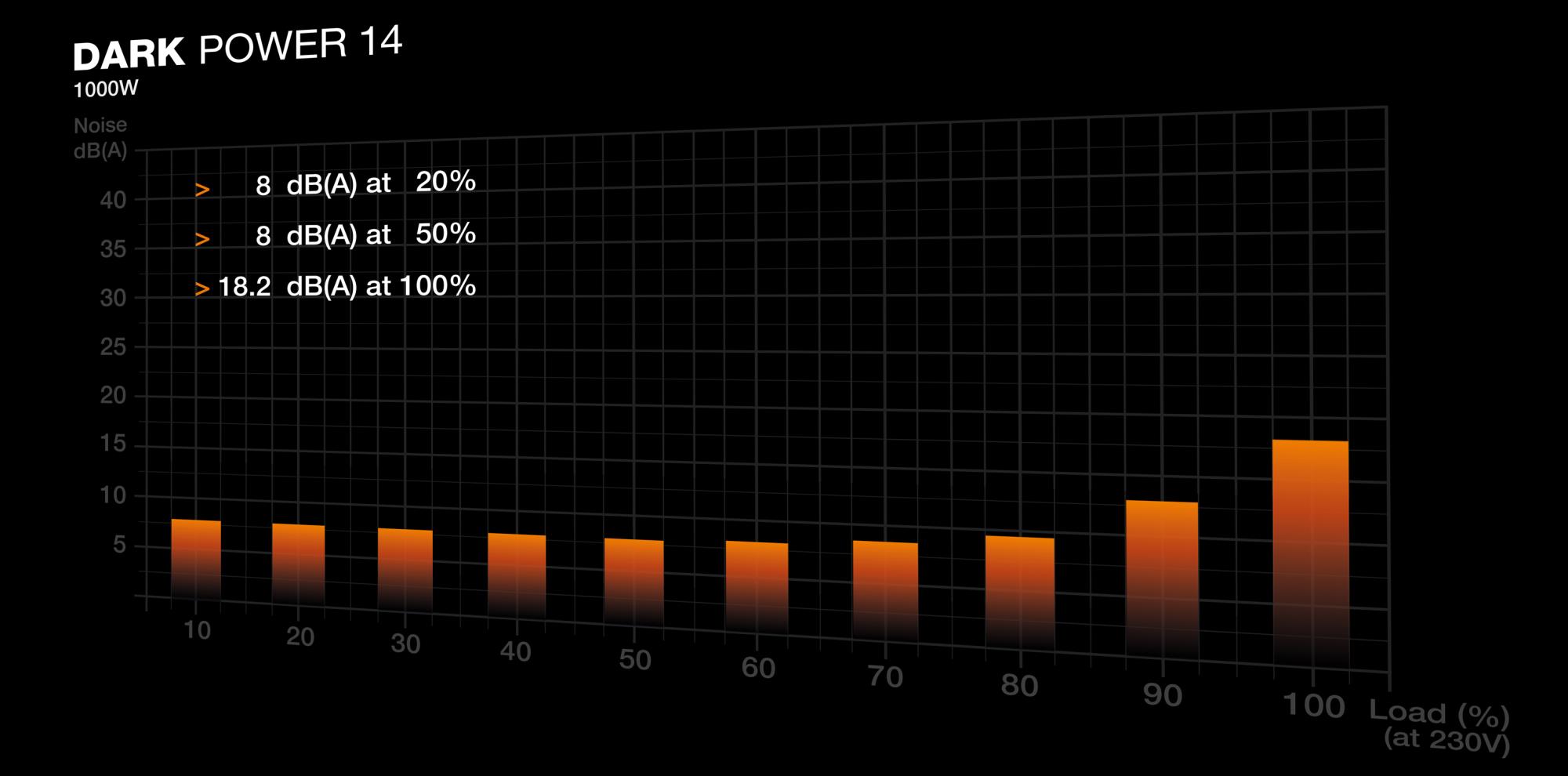

Noise level 18.2 dB
Power supply unit (PSU) form factor ATX
Purpose PC

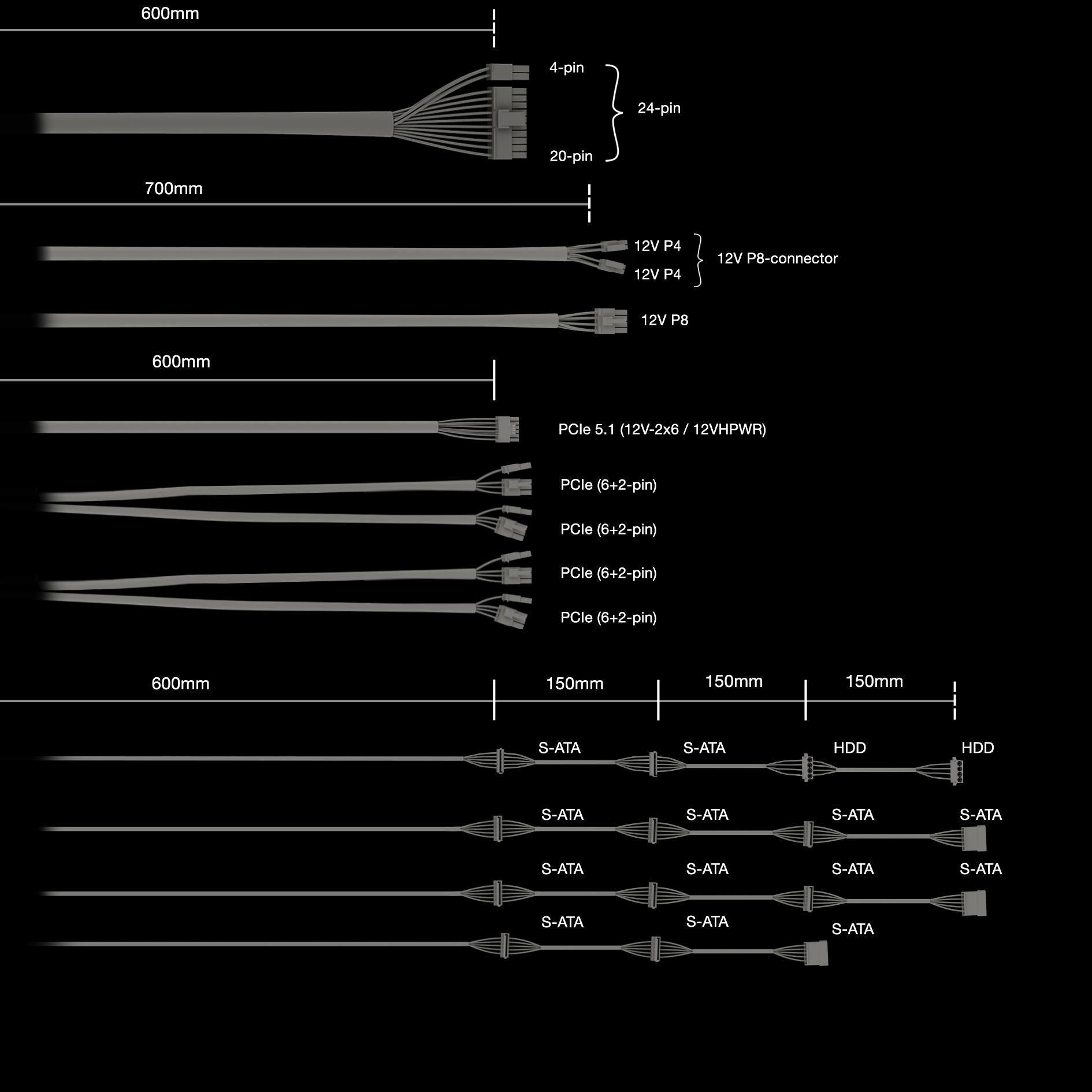

Ports & interfaces
ATX power connector (20+4 pin) Yes

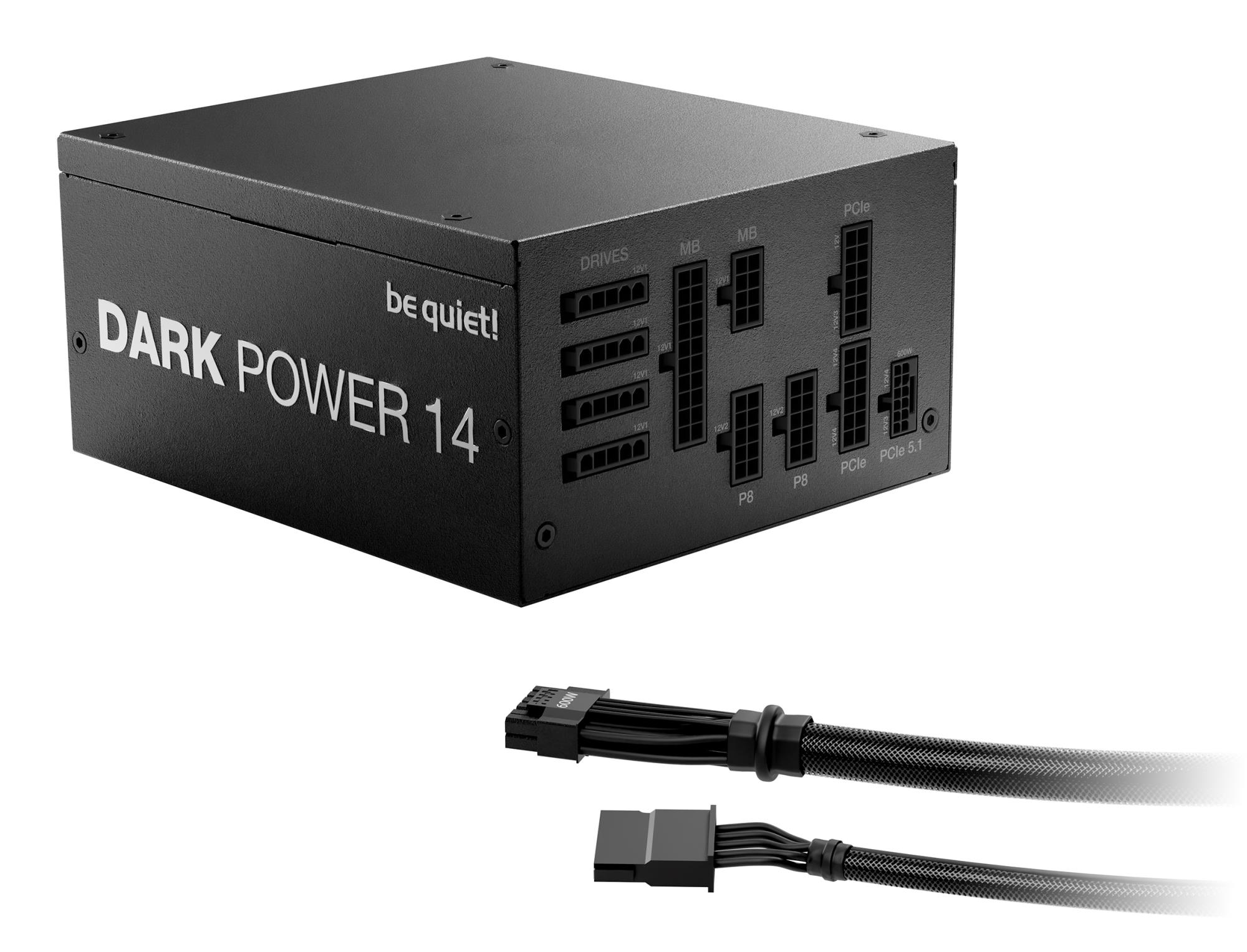

Cabling type Fully-Modular
CPU power cable length 700 mm
CPU power connector (4+4 pin) Yes
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) Yes
Motherboard power cable length 600 mm
Motherboard power connector 20+4 pin ATX
Number of SATA power cables 4
Number of SATA power connectors 13
PCI Express connector Yes
PCI Express power cable length 600 mm
PCI Express power connectors (12-pin) 1
PCI Express power connectors (6+2 pin) 4
Peripheral (Molex) power cable length 1050/900 mm
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 1050/600/750/900 mm
Power
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Combined power (+12V) 996 W
Combined power (+3.3V) 120 W
Combined power (+5V) 120 W
Efficiency 93.8 %
Hold time 20.1 ms
Max output current (+12V1) 33 A
Max output current (+12V2) 33 A
Max output current (+12V3) 40 A
Max output current (+12V4) 40 A
Max output current (+3.3V) 25 A
Max output current (+5V) 24 A
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.5 A
Maximum input current (@110V) 10 A
Maximum input current (@220V) 5 A
Number of +12V rail(s) 4
Peak power 1100 W
Power factor 0.98
Power protection features Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power 1000 W
Specification

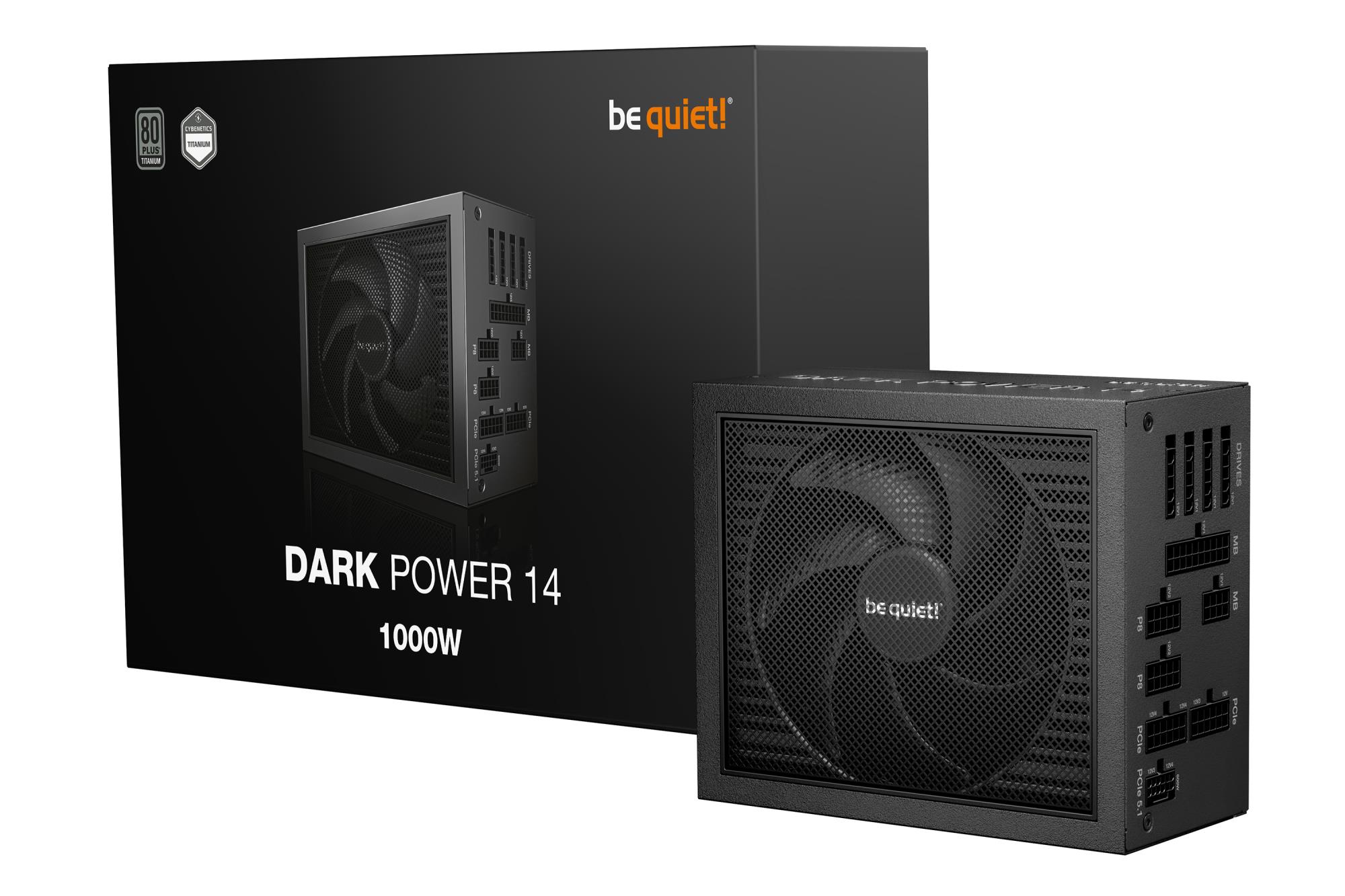

Summary be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Category Code PSU
Unit Box Height 0.231
Unit Box Length 0.354
Unit Box Width 0.127
Units per Shipping Box 4
Unit Calculated Volume 0.01331 cubm
Unit Calculated Weight 4.82 kg
Technical details
Sustainability certificates ENERGY STAR/ErP/Triman
Weight & dimensions
Depth 175 mm
Height 86 mm
Weight 2200 g
Width 150 mm
