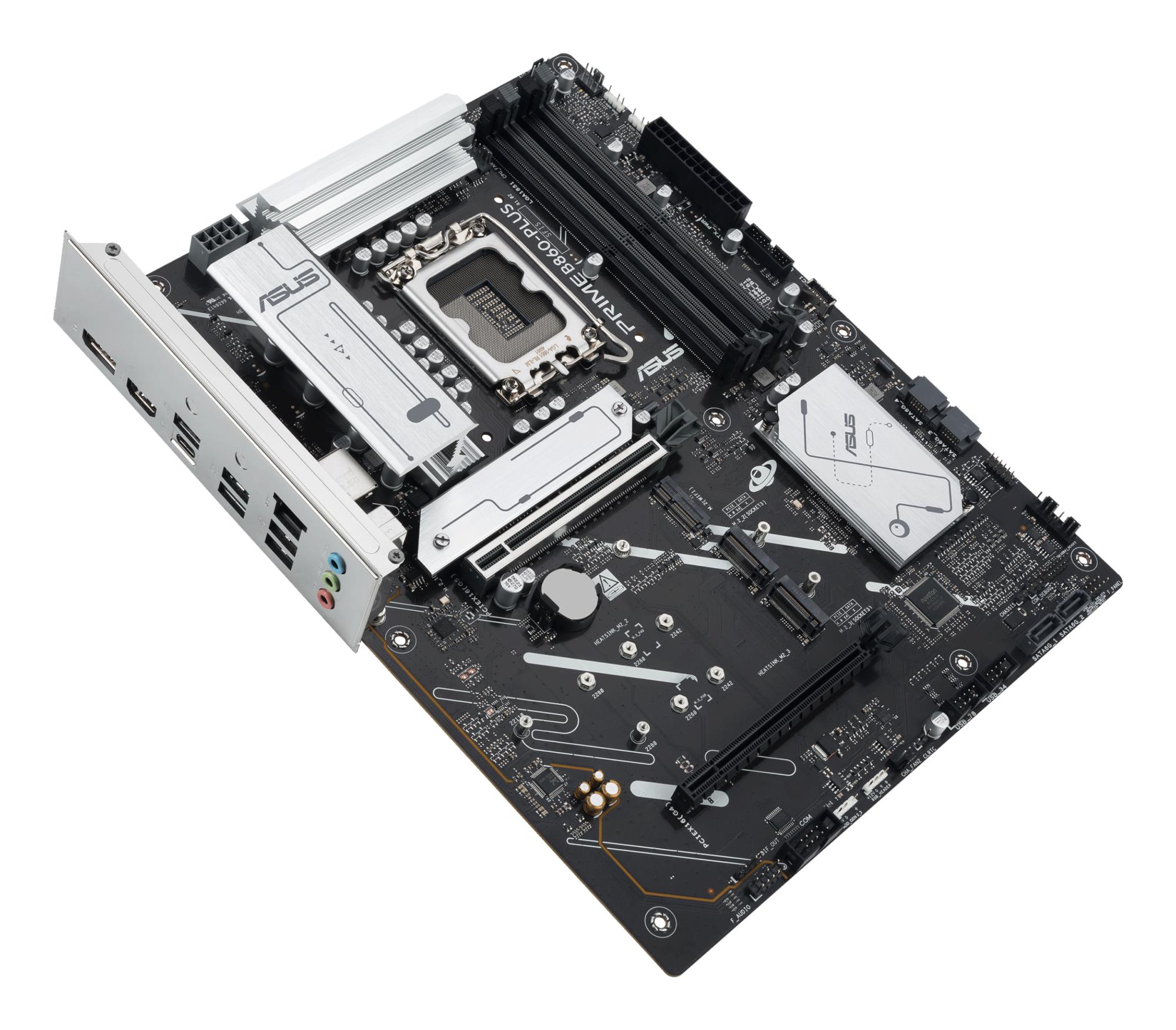

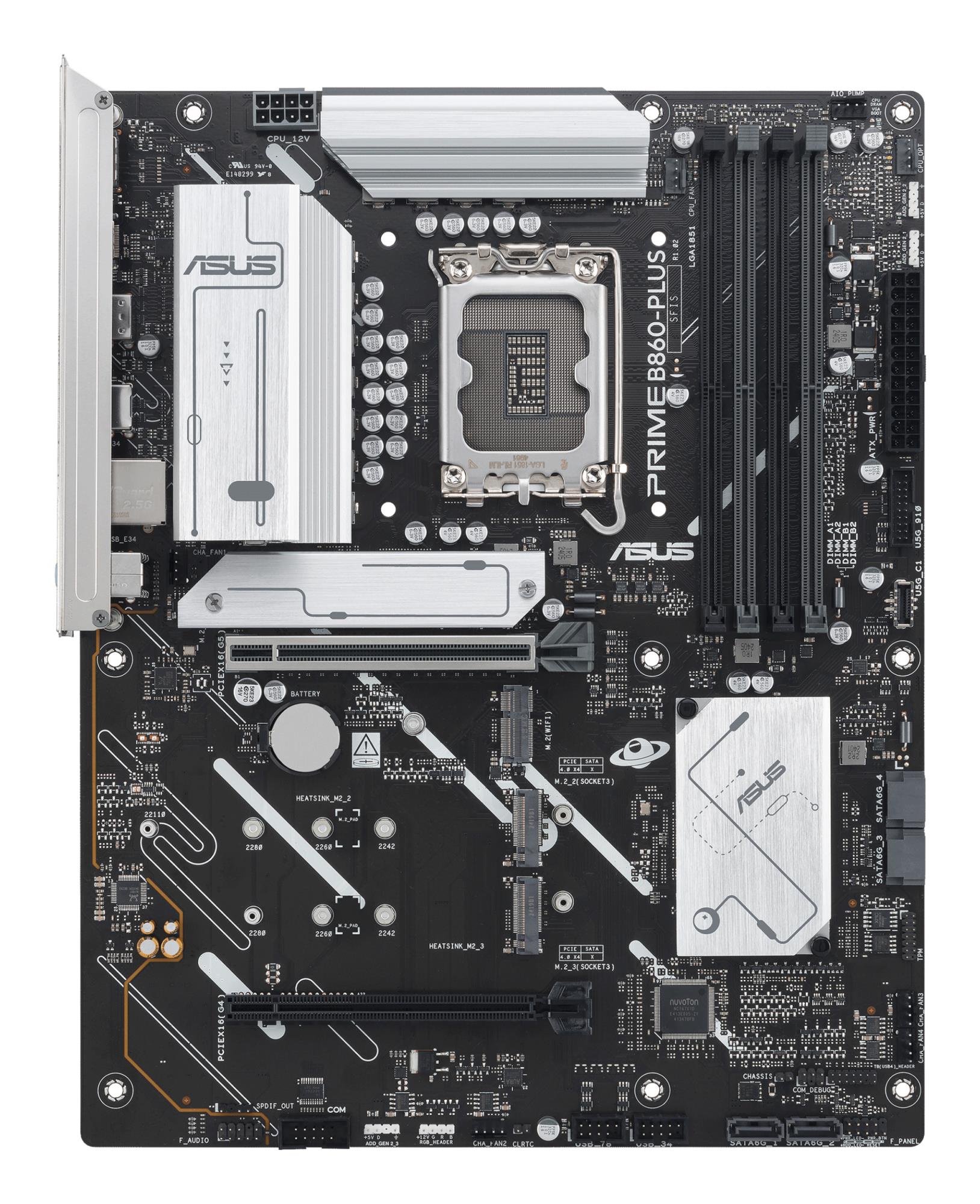

ASUS Intel B860 Express LGA1851 ATX

Mainboard|ASUS|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|PRIMEB860-PLUS-CSM
Ean:
4711387814857
Price:
183.93 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 (Gen 4.x) slots 1
Features
Audio output channels 7.1 channels
Component for PC
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor ATX
Product colour Multicolour
Windows operating systems supported Windows 10 x64/Windows 11
Graphics
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Number of chassis fan connectors 4
Number of COM connectors 1
Number of CPU fan connectors 1
Number of SATA III connectors 4
RGB LED pin header Yes
S/PDIF out connector Yes
Thunderbolt headers 1
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8666 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
Other features
Weight 896 g
Packaging data
Package depth 372 mm
Package height 302 mm
Package weight 1558 g
Package width 377 mm
Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)

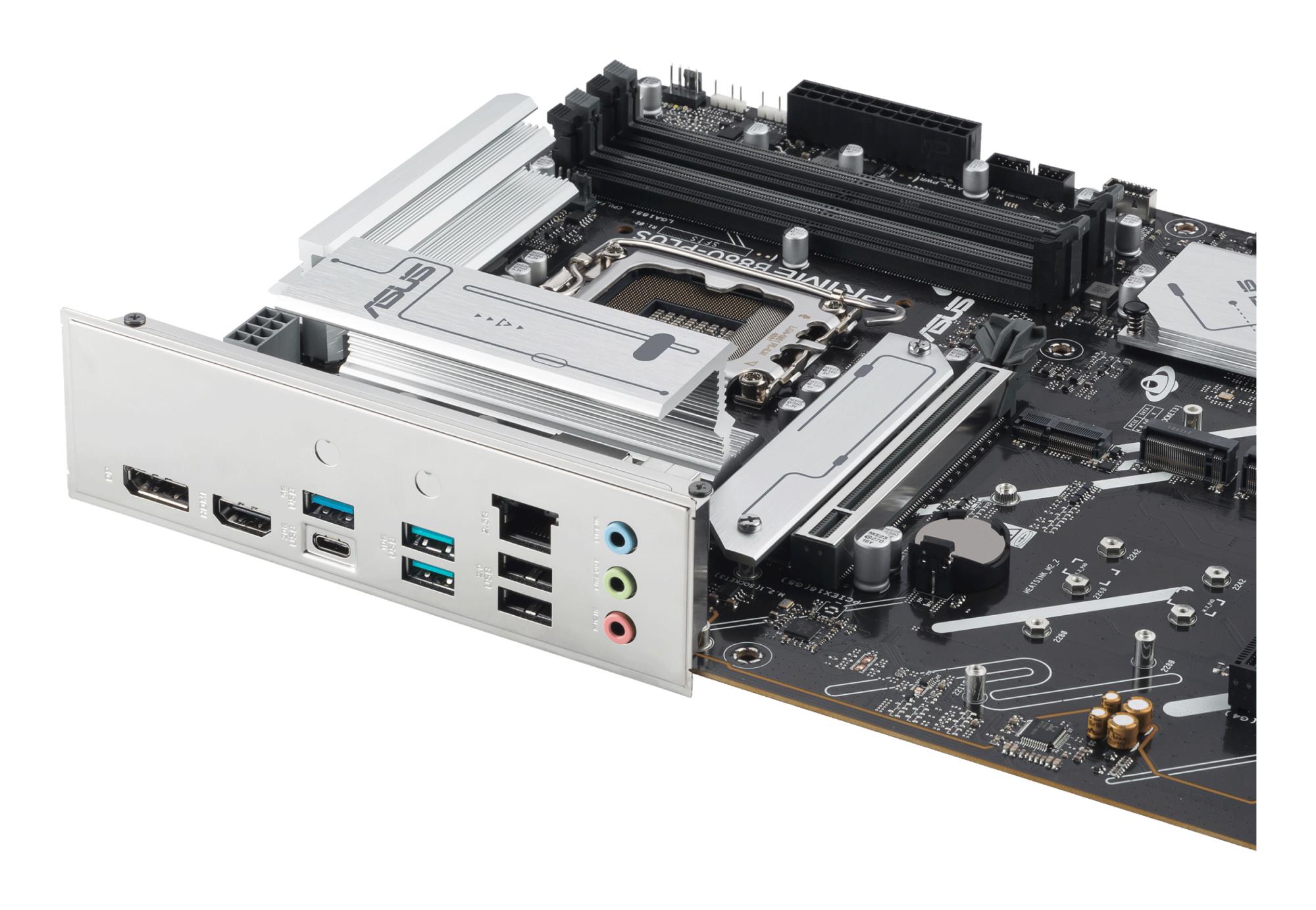

Rear panel I/O ports
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Line-in Yes
Microphone in Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
Specification
Summary ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Category Code MBI
Unit Box Height 0.065
Unit Box Length 0.36
Unit Box Width 0.27
Model PRIME B860-PLUS-CSM
Units per Shipping Box 5
Unit Calculated Volume 0.008214 cubm
Unit Calculated Weight 1.6 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 244 mm
Height 49 mm
Width 305 mm
