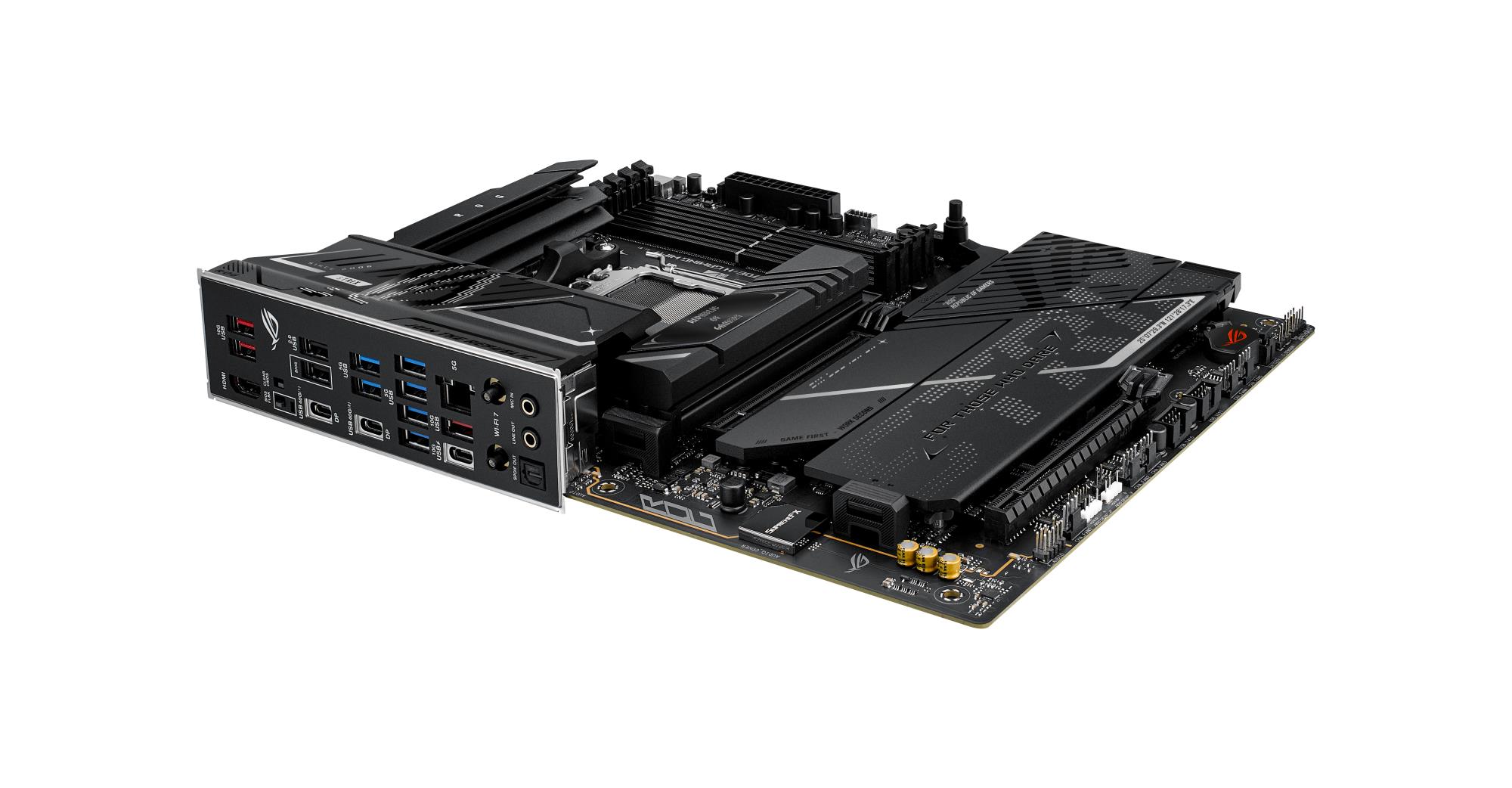

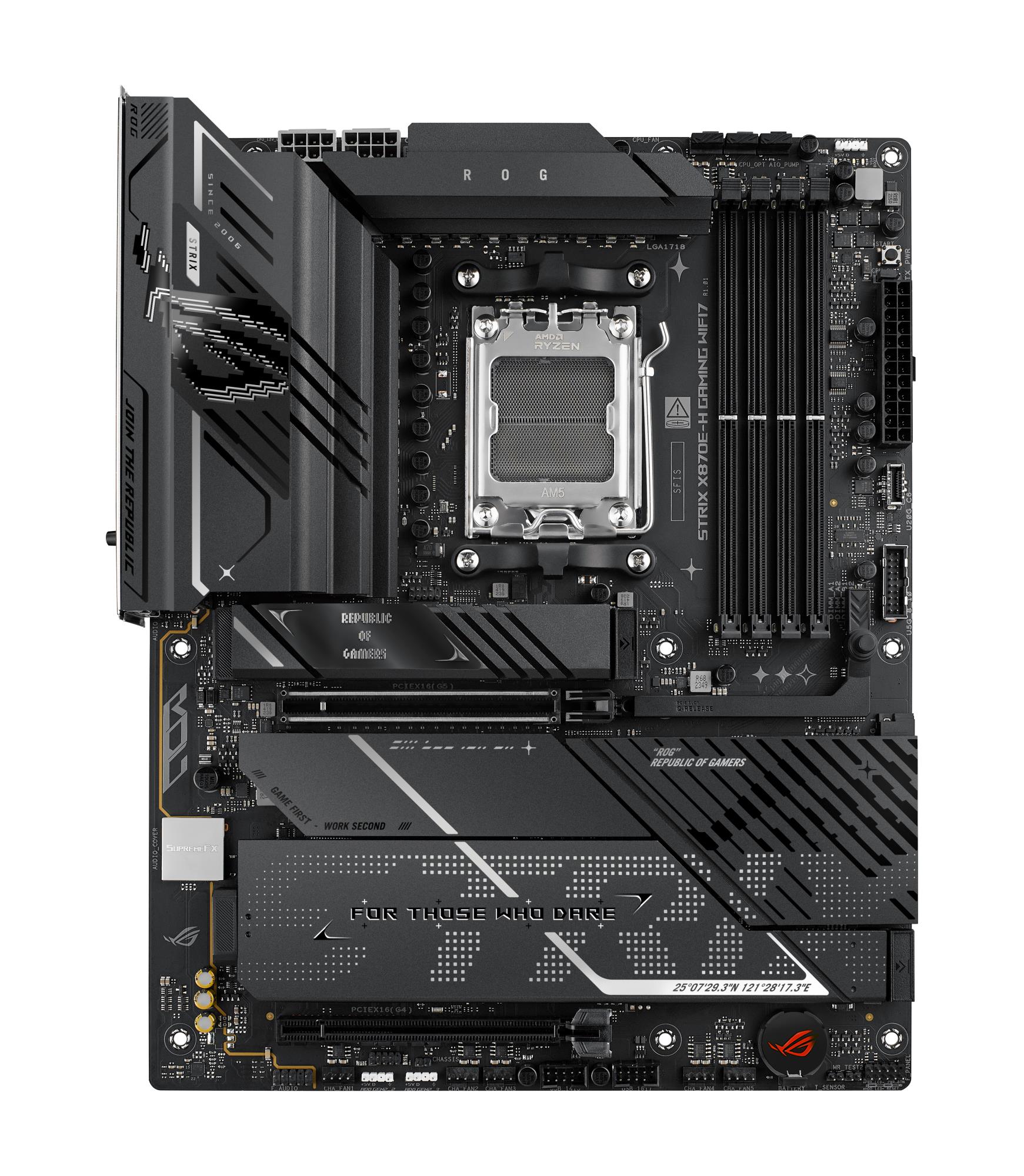

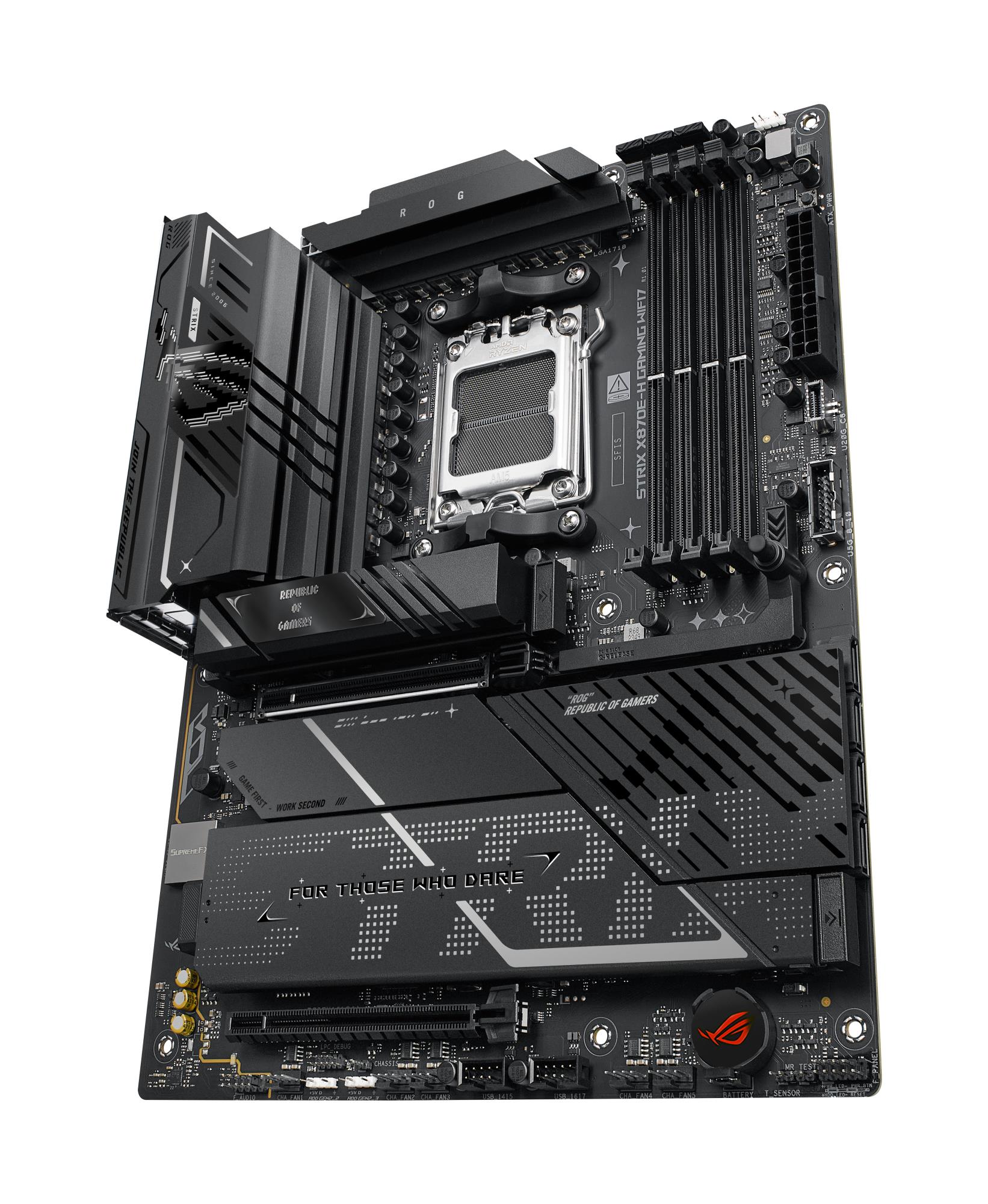

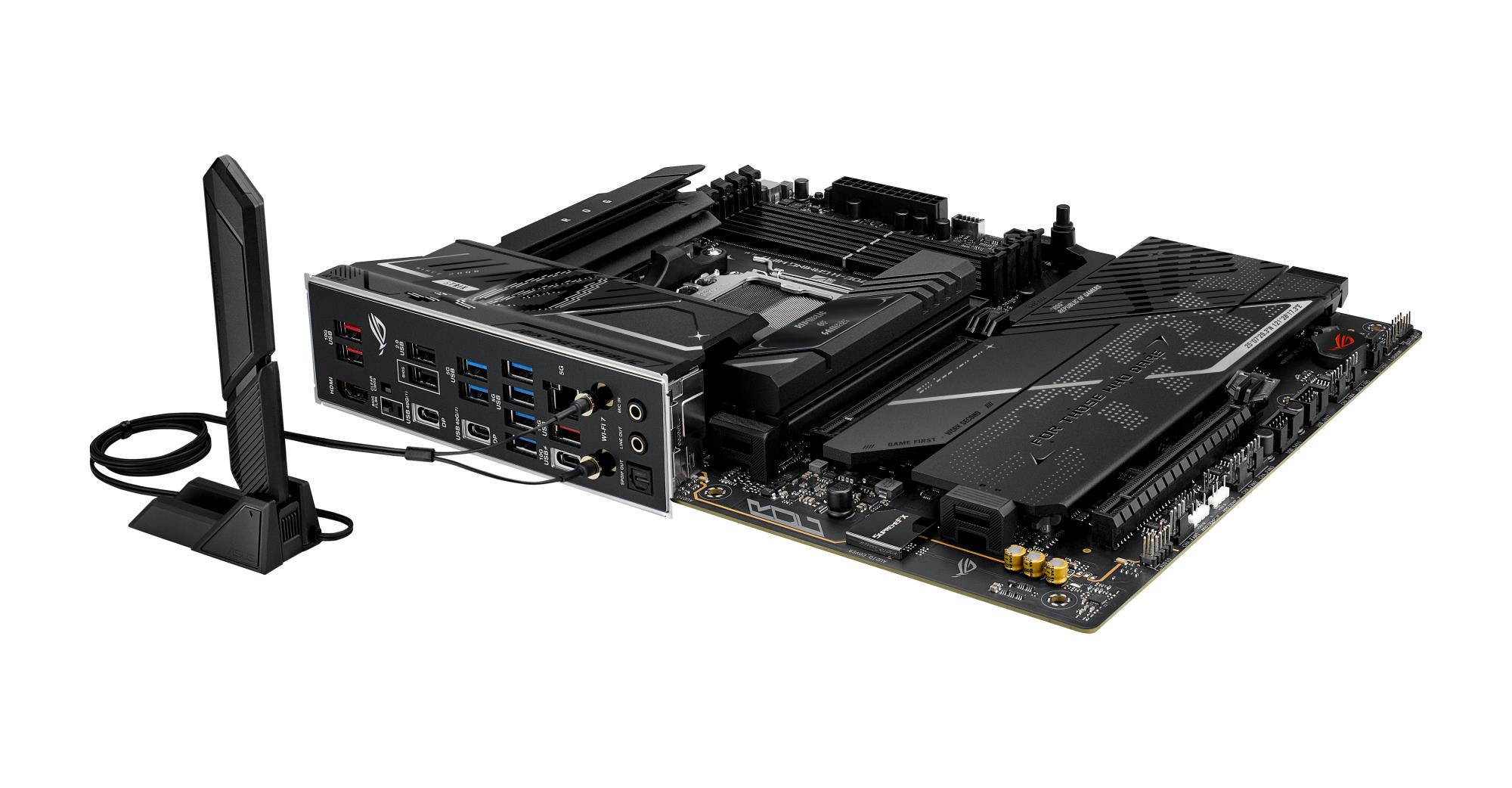

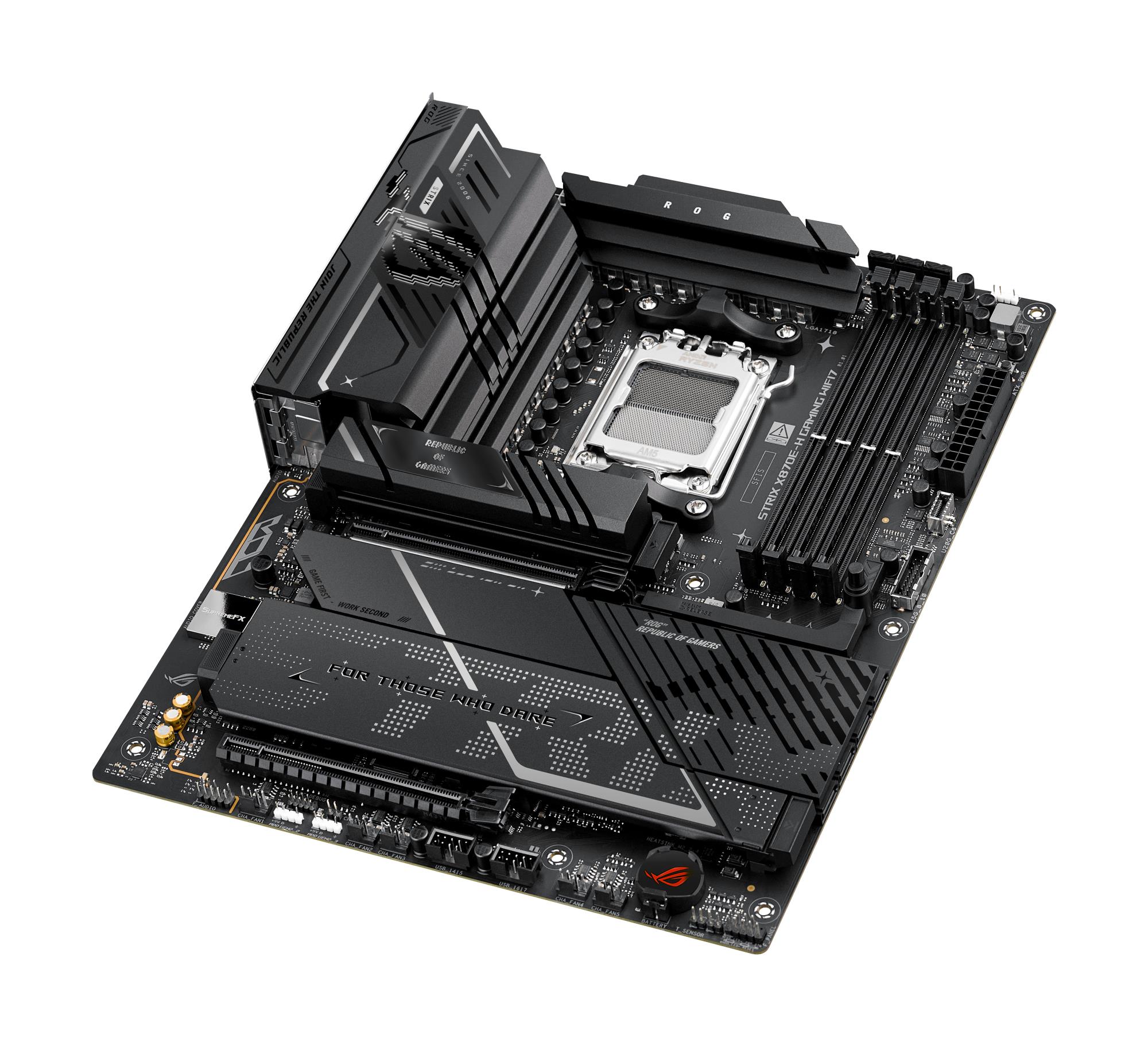

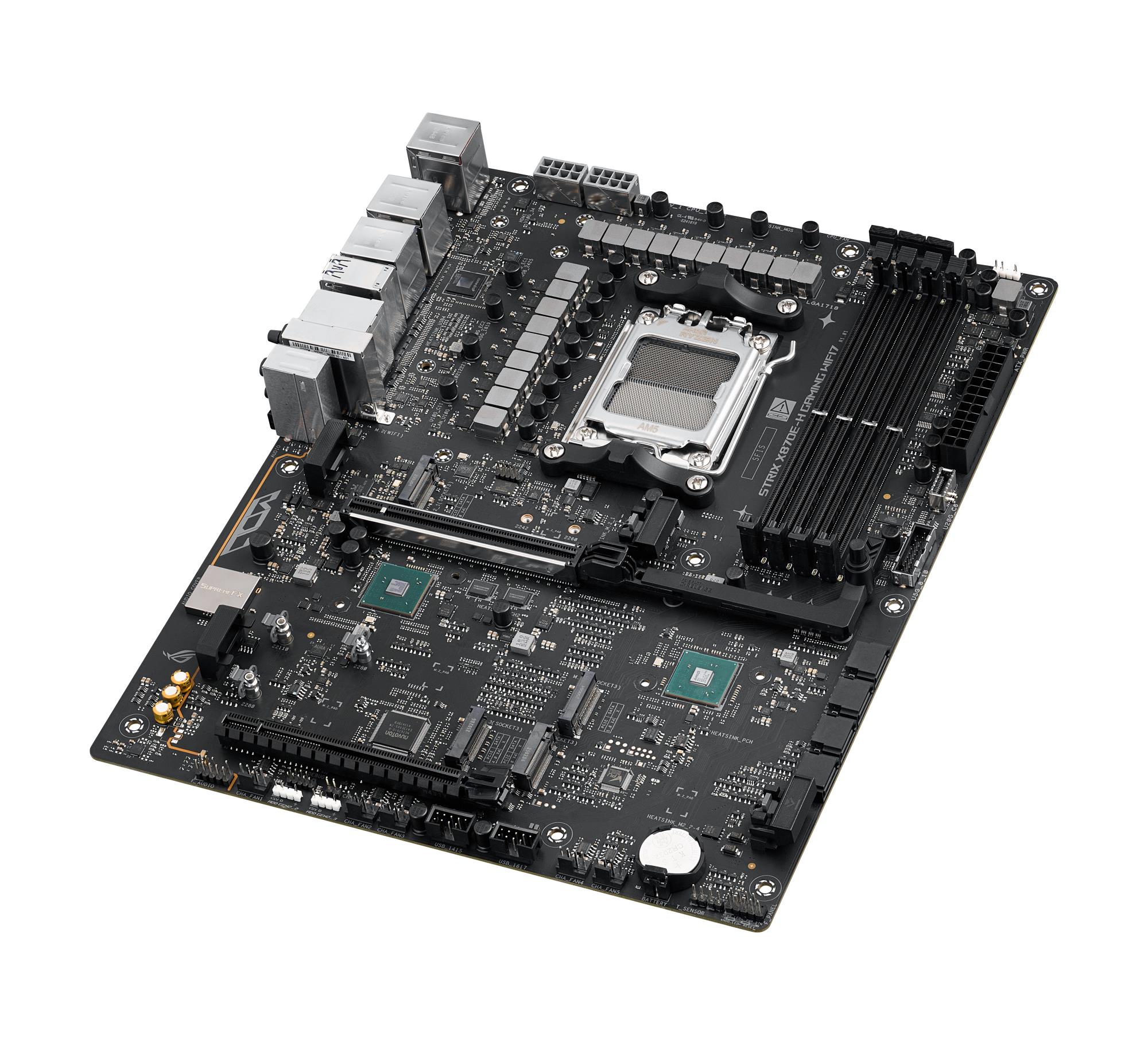

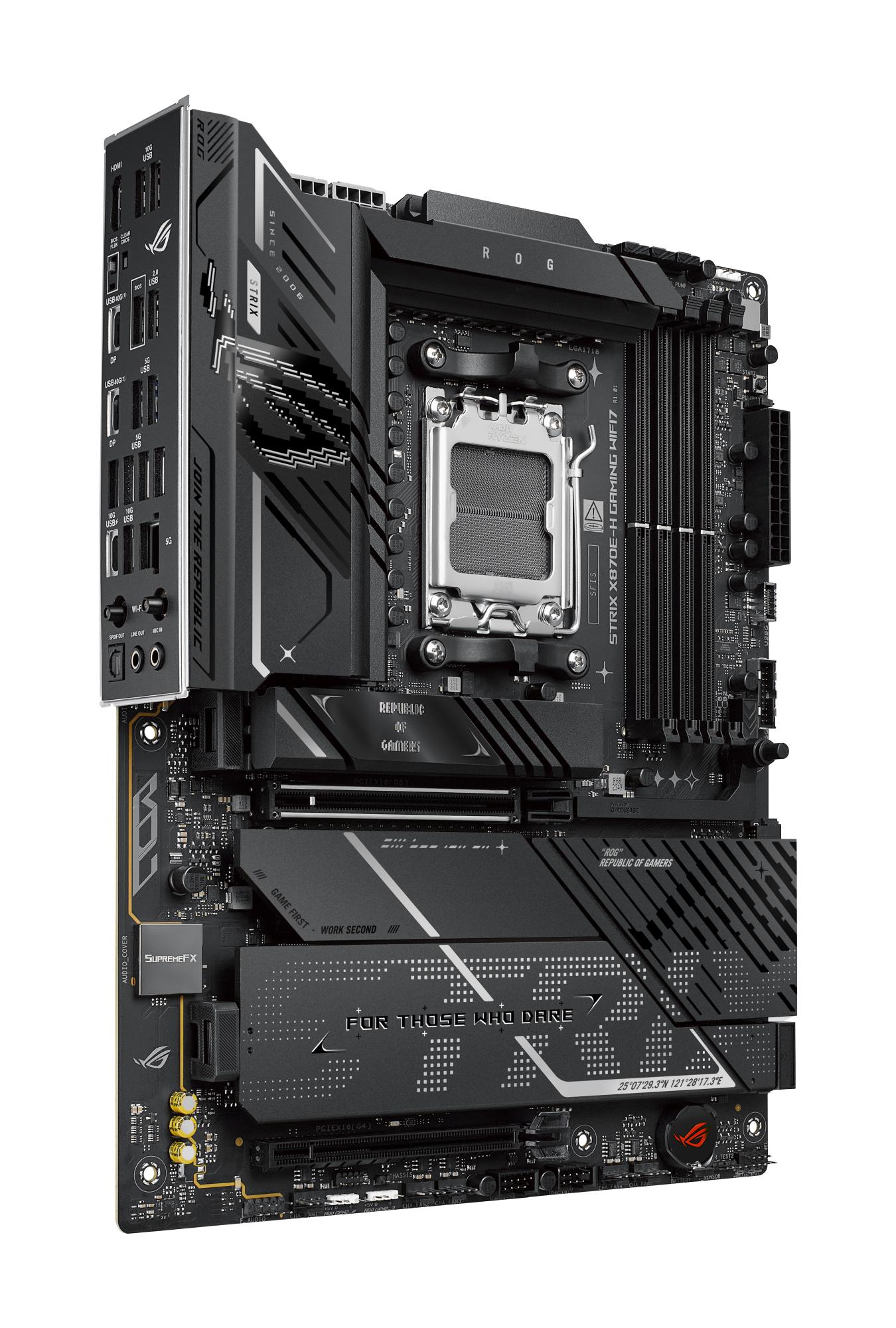

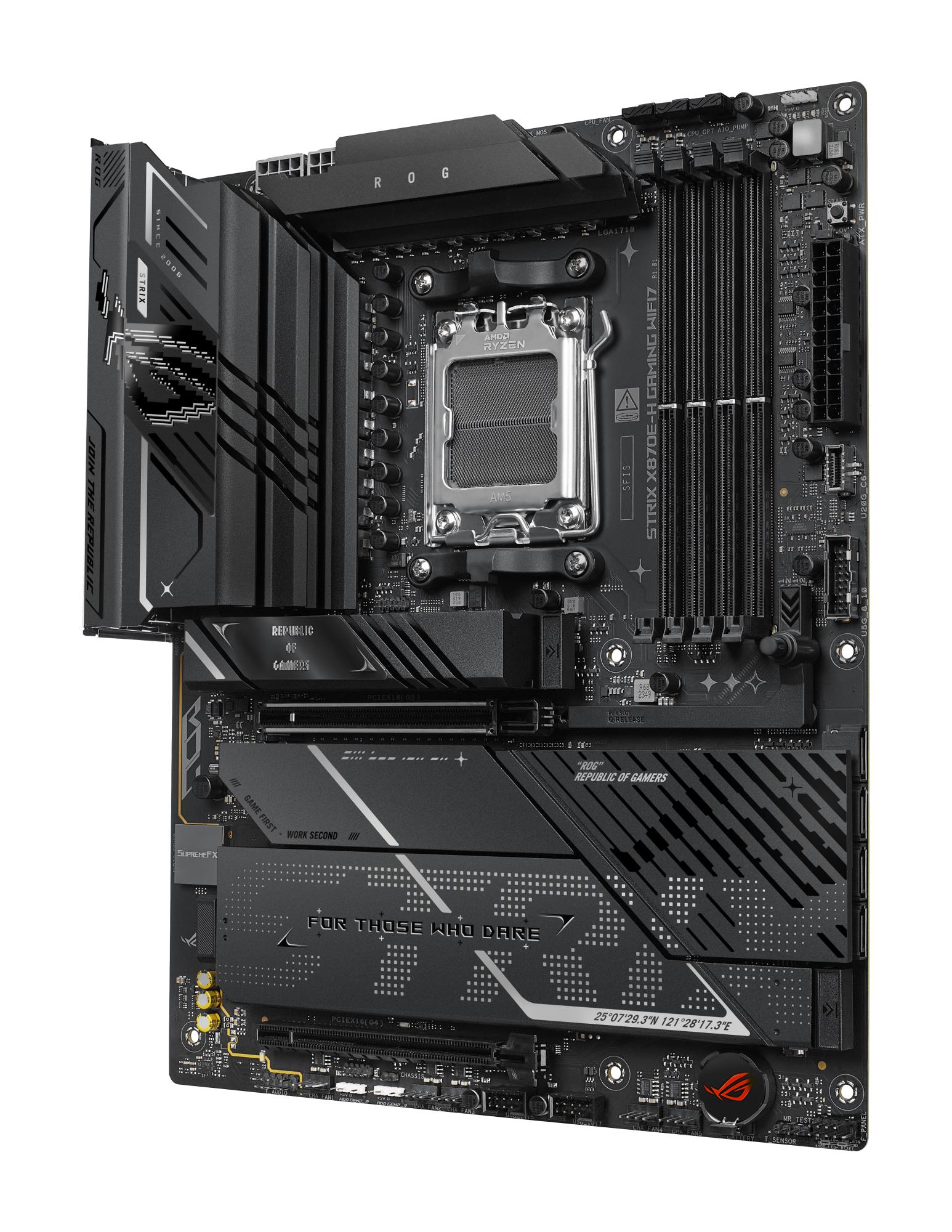

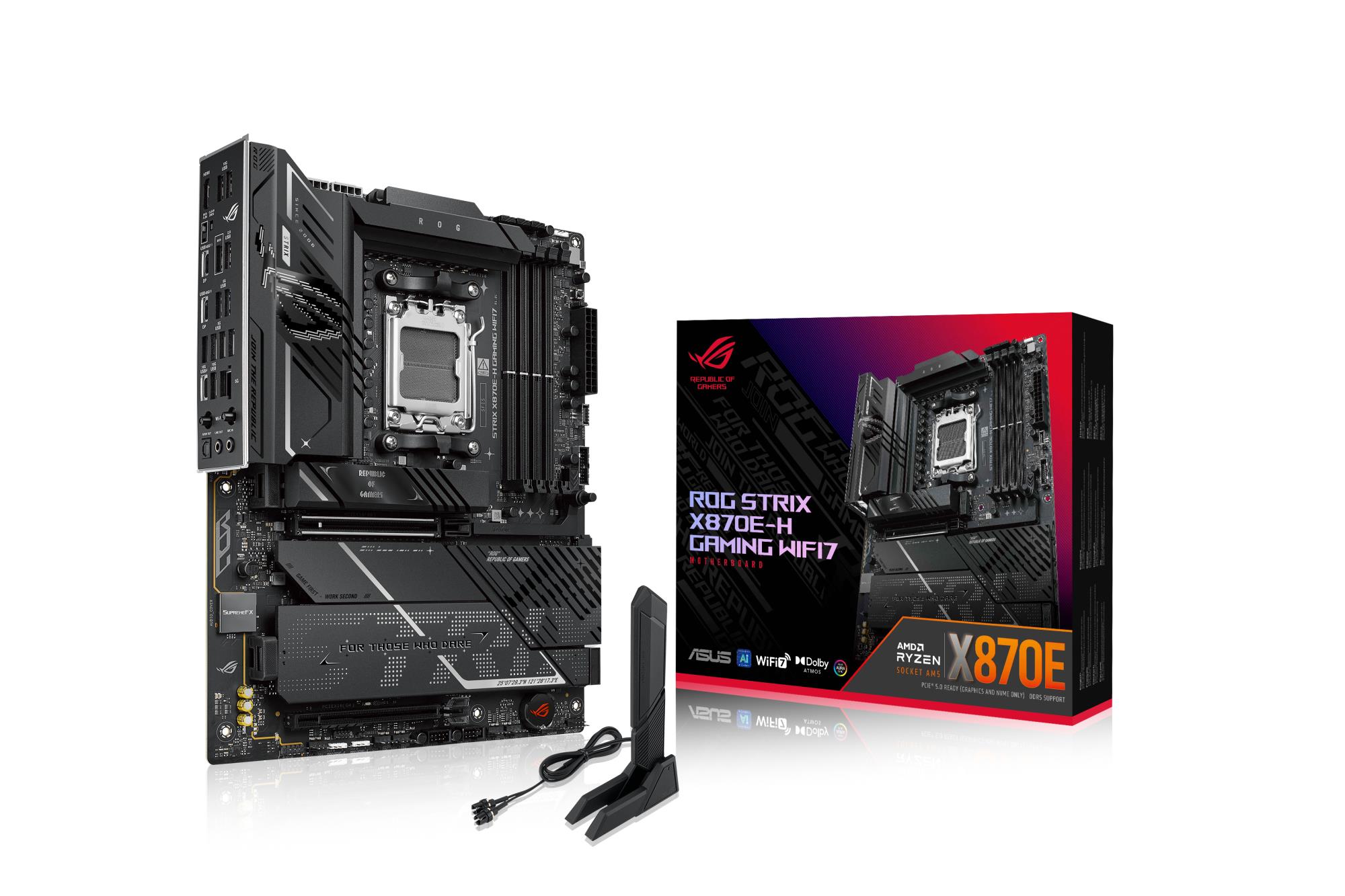

ASUS AMD X870E SAM5 ATX

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|STRIXX870E-HGAMWIFI7
Ean:
4711636167208
Price:
382.55 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
Number of M.2 (M) slots 4
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC1220P
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD X870E
Motherboard chipset family AMD
Motherboard form factor ATX
Product colour Black
Windows operating systems supported Windows 11
Graphics
On-board graphics card No
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 5
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of temperature sensor headers 1
RGB LED pin header Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.4
Ethernet interface type 5 Gigabit Ethernet
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Wi-Fi standards Wi-Fi 7 (802.11be)

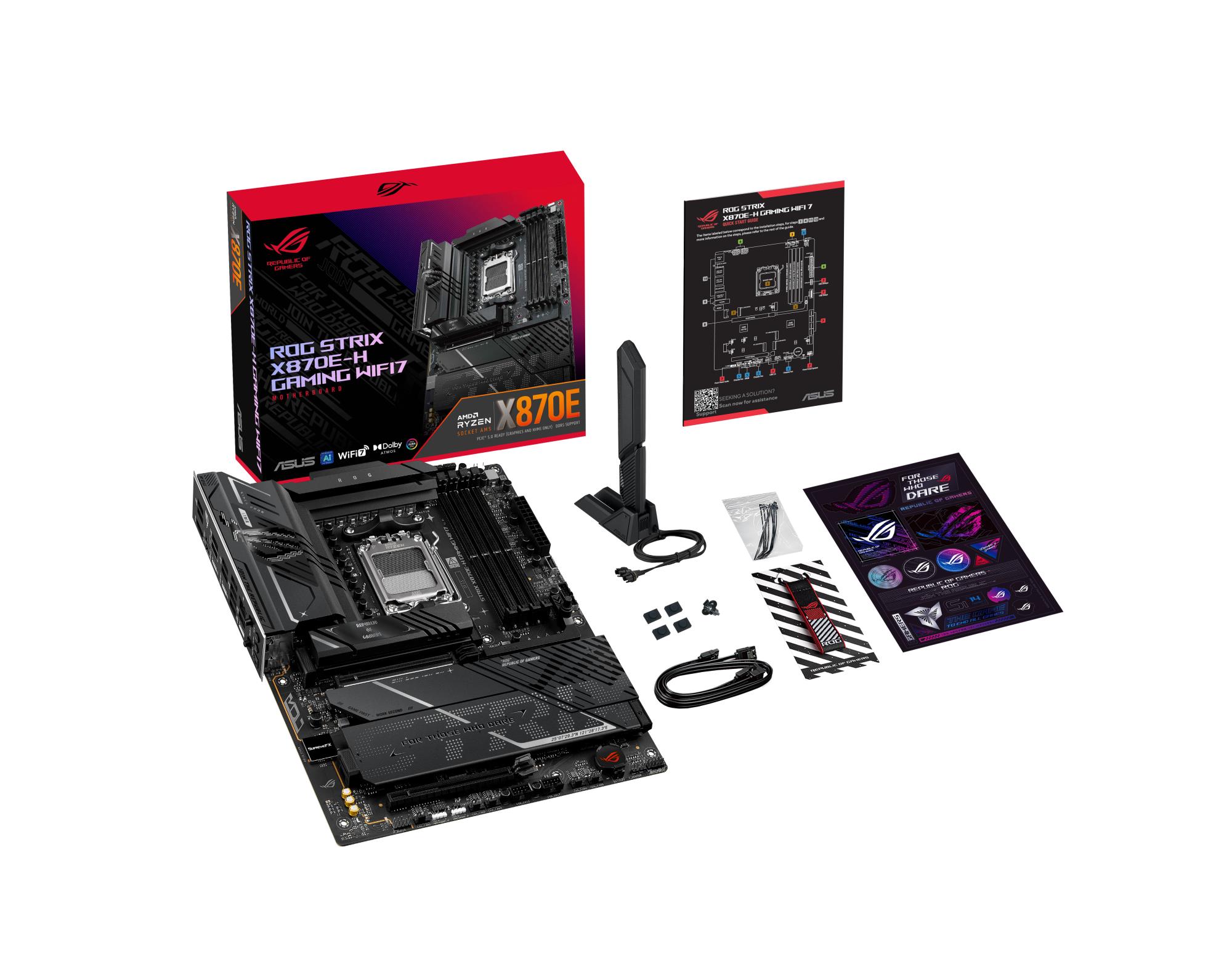

Packaging content
Antenna included Yes
Cables included SATA
Packaging data
Package depth 273 mm
Package height 68 mm
Package weight 2071 g
Package width 353 mm
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5
Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Microphone in Yes
S/PDIF out port Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB4 Gen 3x2 ports quantity 2
WiFi-AP antenna jack 1
Specification
Summary ASUS ROG STRIX X870E-H GAMING WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Category Code MBA
Unit Box Height 0.07
Unit Box Length 0.275
Unit Box Width 0.36
Model ROG STRIX X870E-H GAMING WIFI7
Units per Shipping Box 4
Unit Calculated Volume 0.008186 cubm
Unit Calculated Weight 2.56 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 8
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 244 mm
Width 305 mm
