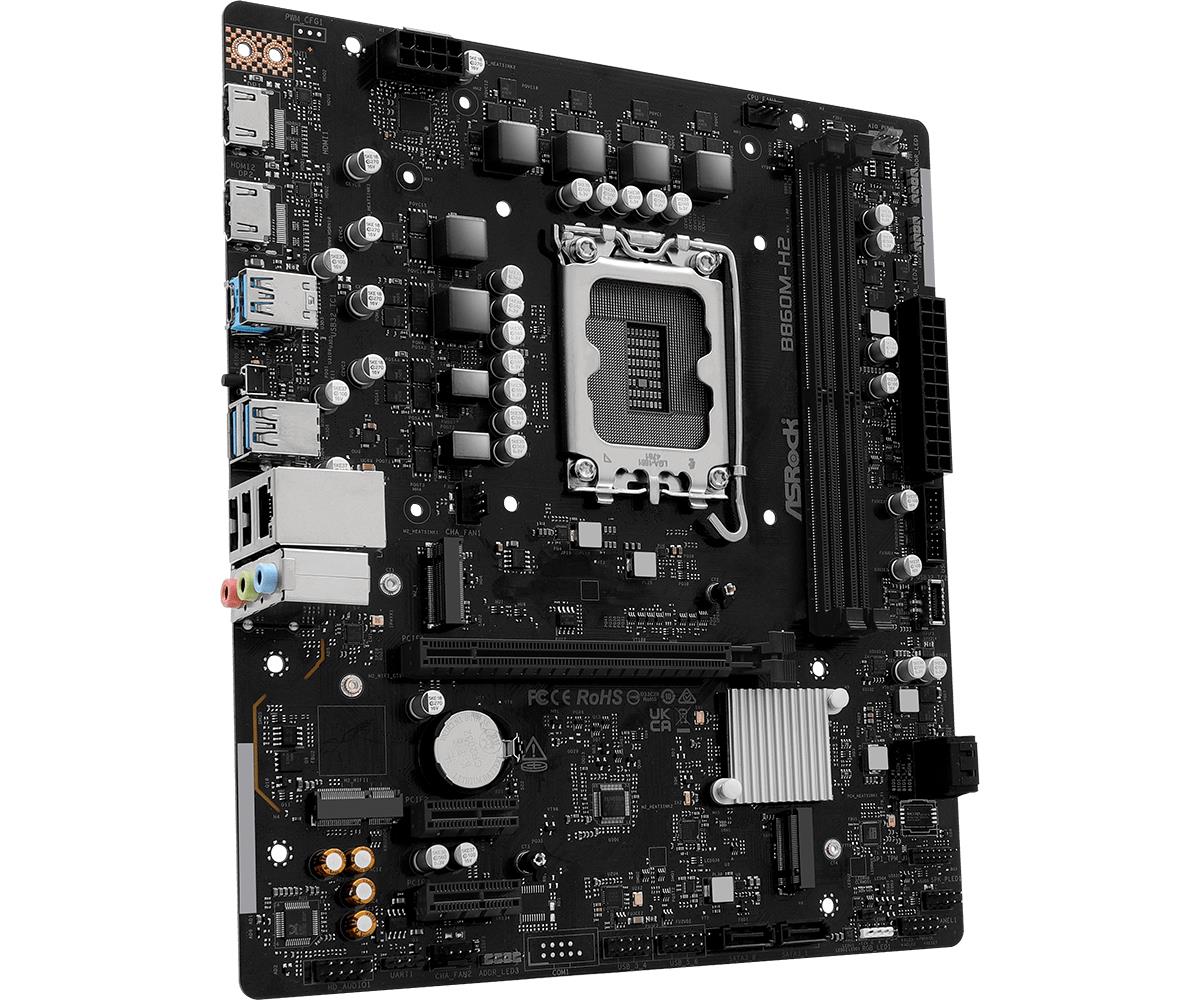

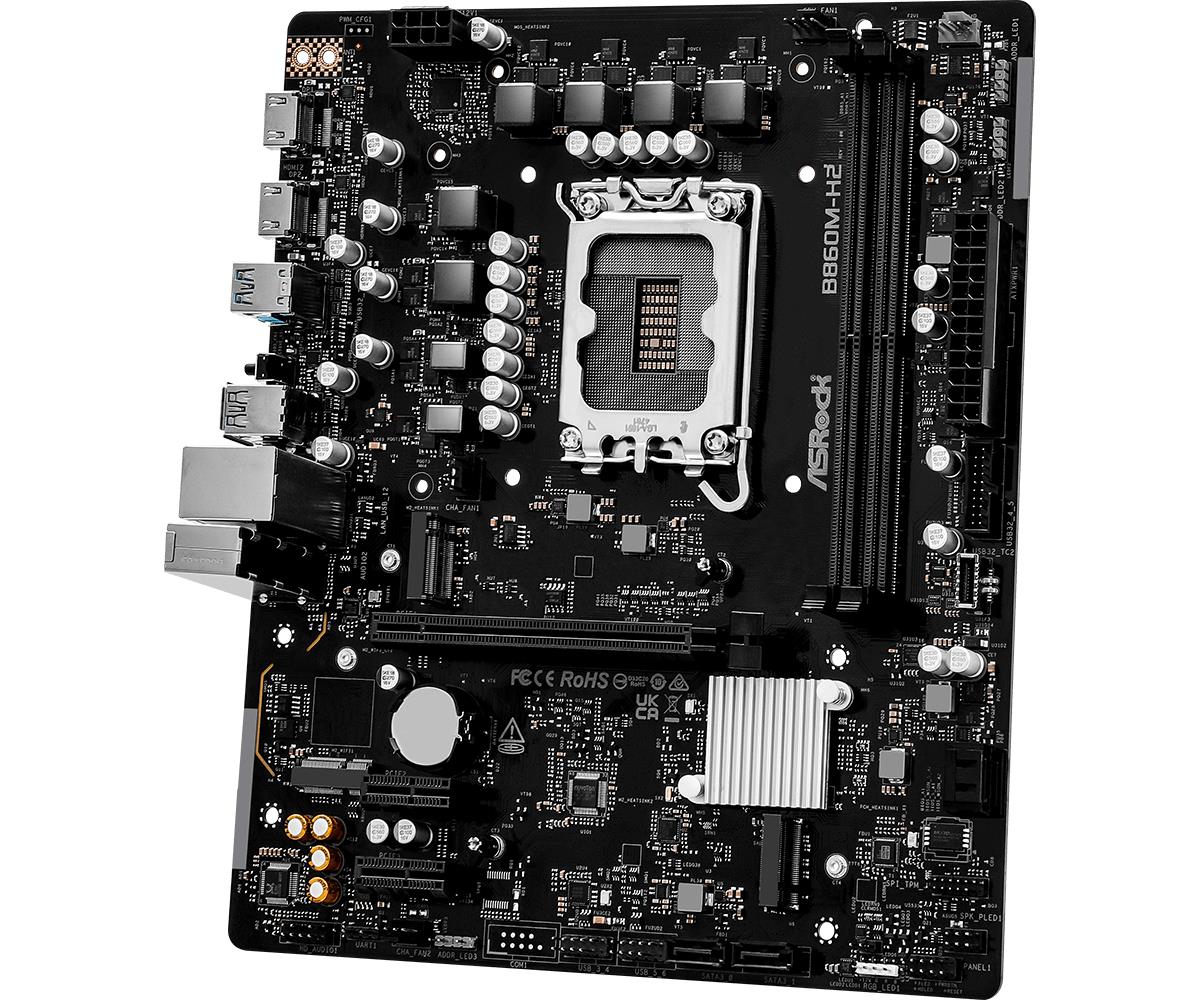

ASROCK Intel B860 Express LGA1851 Micro-ATX

Mainboard|ASROCK|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860M-H2
Ean:
4711581490437
Price:
102.17 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 4.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor micro ATX
Product colour Black
Windows operating systems supported Windows 11 x64
Graphics
HDCP Yes
Internal I/O
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 2
Number of CPU fan connectors 1
Number of SATA III connectors 4
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Memory
ECC сompatibility Non-ECC
Maximum internal memory 128 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory clock speed (max) 8333 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8111H
Wi-Fi No
Packaging content
Cables included SATA
Processor
Compatible processor series Intel Core Ultra (Series 2)
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)

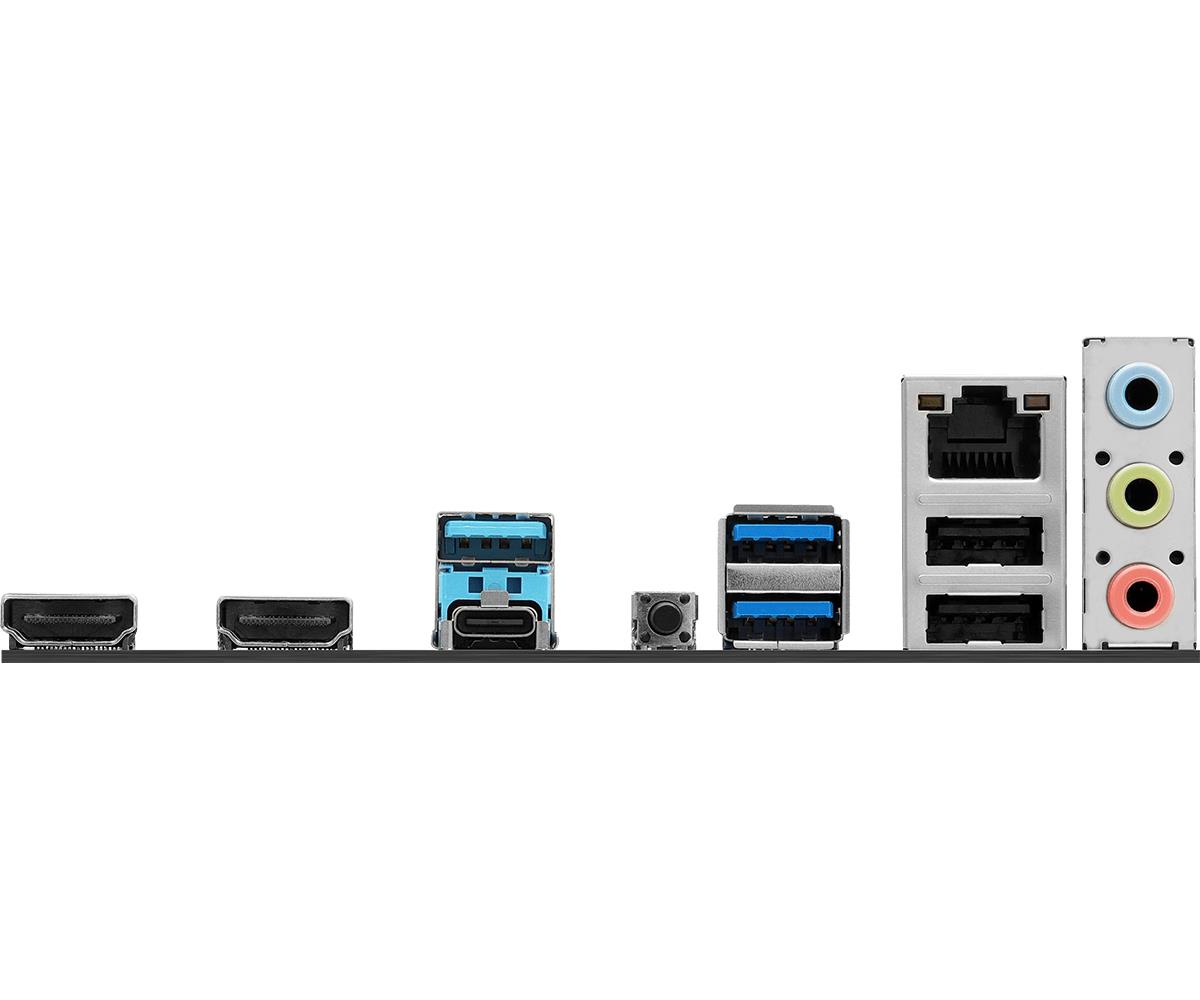

Rear panel I/O ports
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 2
Line-in Yes
Microphone in Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2x2 Type-C ports quantity 1
Specification
Summary Asrock B860M-H2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Category Code MBI
Unit Box Height 0.06
Unit Box Length 0.28
Unit Box Width 0.24
Model B860M-H2
Units per Shipping Box 20
Unit Calculated Volume 0.004423 cubm
Unit Calculated Weight 0.798 kg
Storage controllers
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Weight & dimensions
Depth 211 mm
Width 244 mm
