AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5

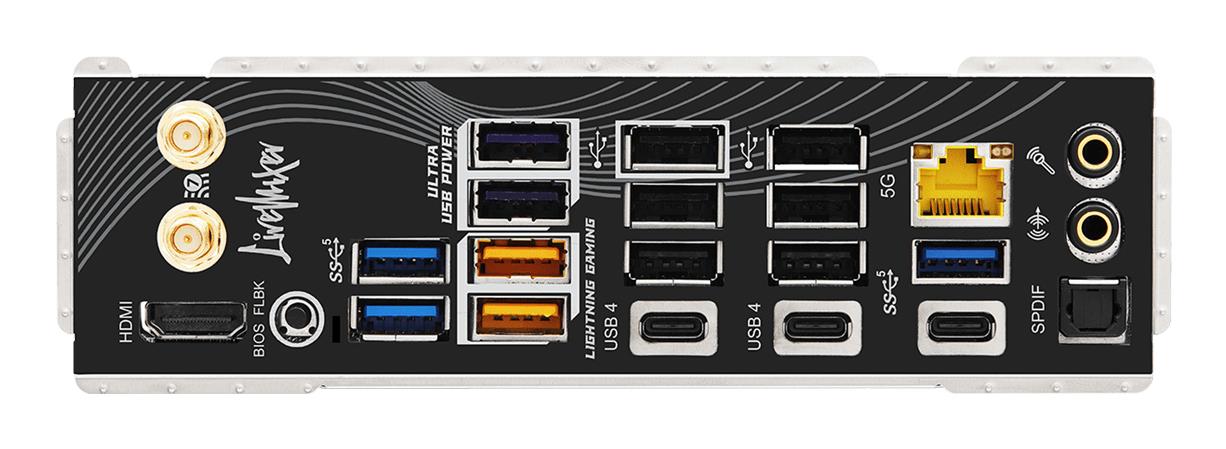

Rear panel I/O ports
USB 2.0 ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
WiFi-AP antenna jack
2
USB connector type
USB Type-A/USB Type-C
Specification
Summary

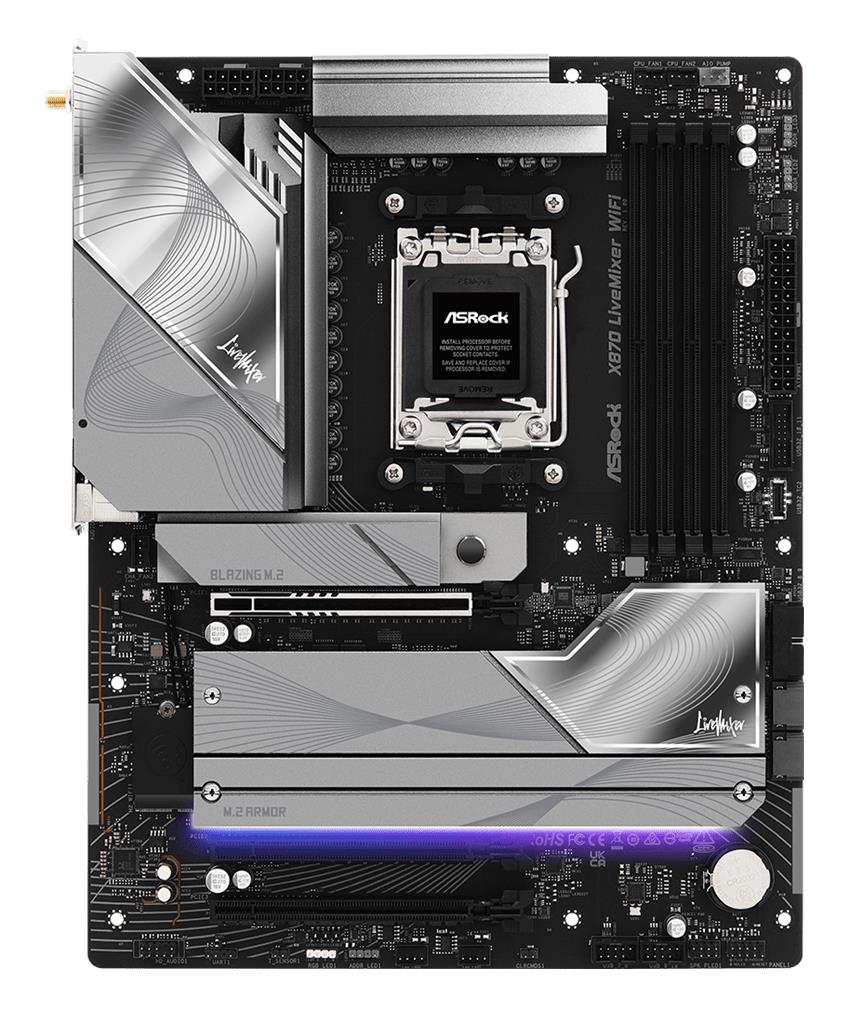

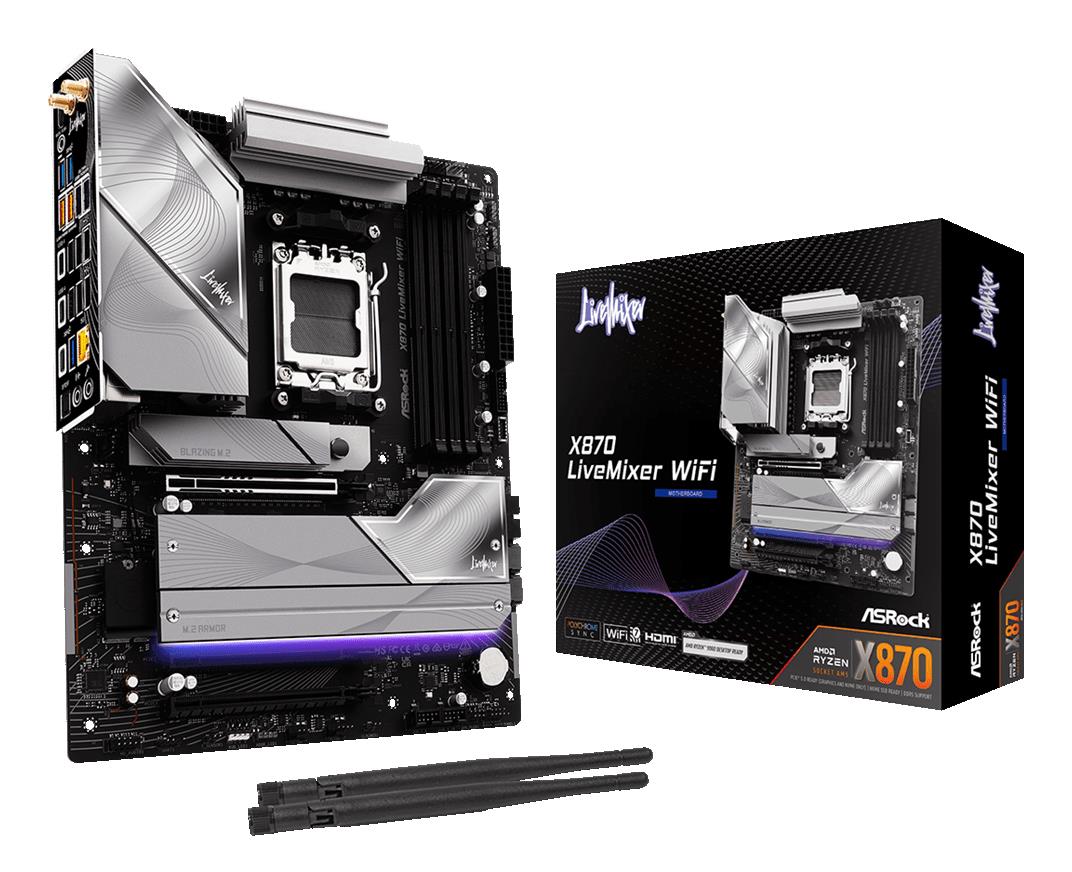

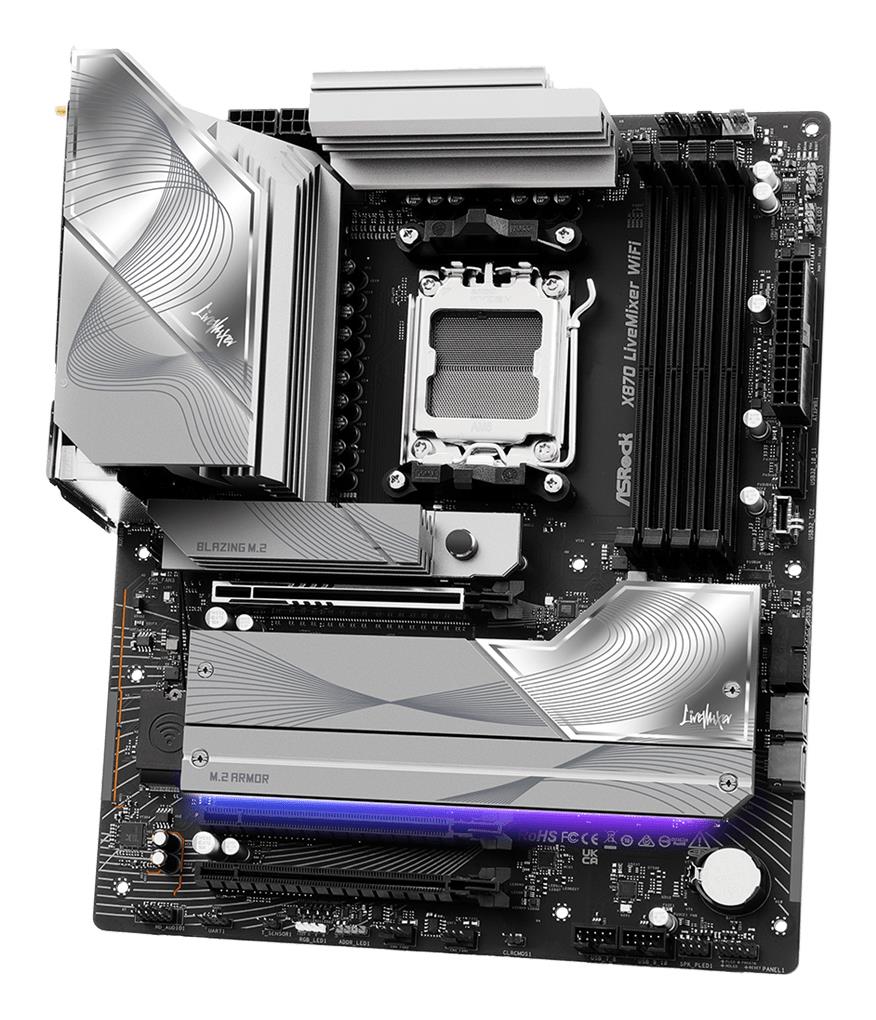

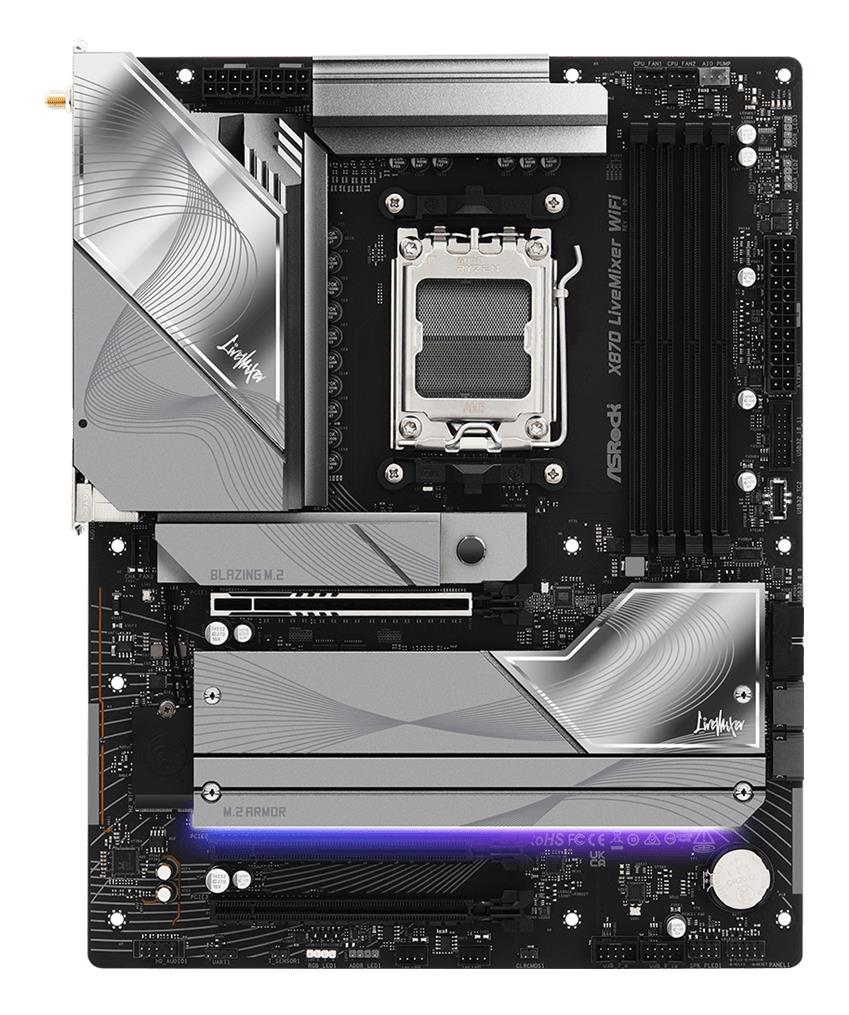

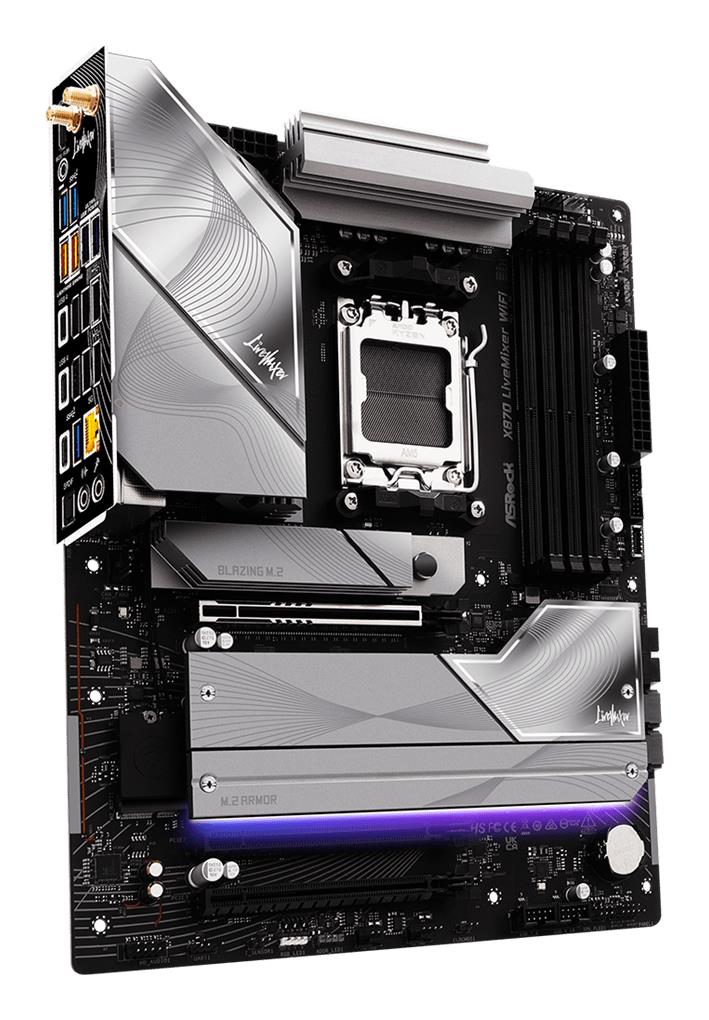

Asrock X870 LiveMixer WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. USB connector type: USB Type-A, USB Type-C
Category Code
MBA
Unit Box Height
0.075
Unit Box Length
0.35
Unit Box Width
0.28
Name
MB AMD X870 SAM5 ATX/X870 LIVEMIXER WIFI ASROCK
Model
X870 LiveMixer WiFi
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
PCI Express 4.0,PCI Express 5.0,SATA III
Number of storage drives supported
6
RAID support
Yes
RAID levels
0/1/10
Technical details
Compliance certificates
CE/Federal Communications Commission (FCC)
Weight & dimensions
Width
305 mm
Depth
244 mm
