ASROCK AMD B850 SAM5 Micro-ATX

Mainboard|ASROCK|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|B850M-XR2.0
Ean:
4711581490758
Price:
116.55 Eur
In stock in LV warehouse

1-2 days

Fast delivery

40+

Countries shipped products

14 years

In IT market

2000+

B2B customers

BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 4.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Features
Audio output channels 7.1 channels
Component for PC
Motherboard chipset AMD B850
Motherboard chipset family AMD
Motherboard form factor micro ATX
Windows operating systems supported Windows 10 x64/Windows 11 x64
Internal I/O
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of SATA III connectors 4
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 128 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Dragon RTL8125BG
Wi-Fi No
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket Socket AM5

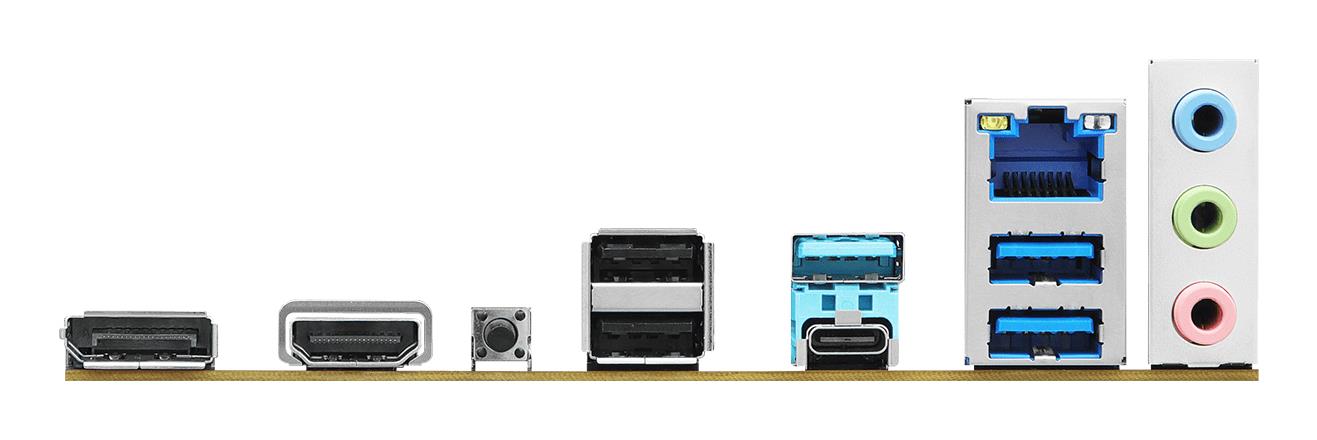

Rear panel I/O ports
DisplayPort version 1.4
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Specification
Summary Asrock B850M-X R2.0. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Category Code MBA
Unit Box Height 0.06
Unit Box Length 0.3
Unit Box Width 0.265
Model B850M-X R2.0
Units per Shipping Box 10
Unit Calculated Volume 0.00553 cubm
Unit Calculated Weight 1.29 kg
Storage controllers
Supported storage drive interfaces M.2,SATA III
Weight & dimensions
Depth 226 mm
Width 244 mm
