BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/Federal Communications Commission (FCC)/Norma Oficial Mexicana (NOM)/RCM/UKCA
Design
Cooling type
Active
Fan diameter
135 mm
Number of fans
1 fan(s)
Product colour
Black
Packaging data
Package depth
338 mm
Package height
157 mm
Package weight
3430 g
Package width
210 mm
Performance
80 PLUS certification
80 PLUS Gold
ATX version
3.0
Bearing technology
FDB
EPS version
2.92
Mean time between failures (MTBF)
100000 h
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (12+4 pin)
Yes
ATX Power connector (24-pin)
Yes
Cabling type
Fully-Modular
EPS power connector (8-pin)
Yes
Motherboard power connector
24-pin ATX
Number of SATA power connectors
9
PCI Express power connectors (6+2 pin)
8
Peripheral (Molex) power connectors (4-pin)
3
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Input current
13 A
Max output current (+12V)
83.5 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Power factor
0.99
Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power
1000 W
Specification
Summary

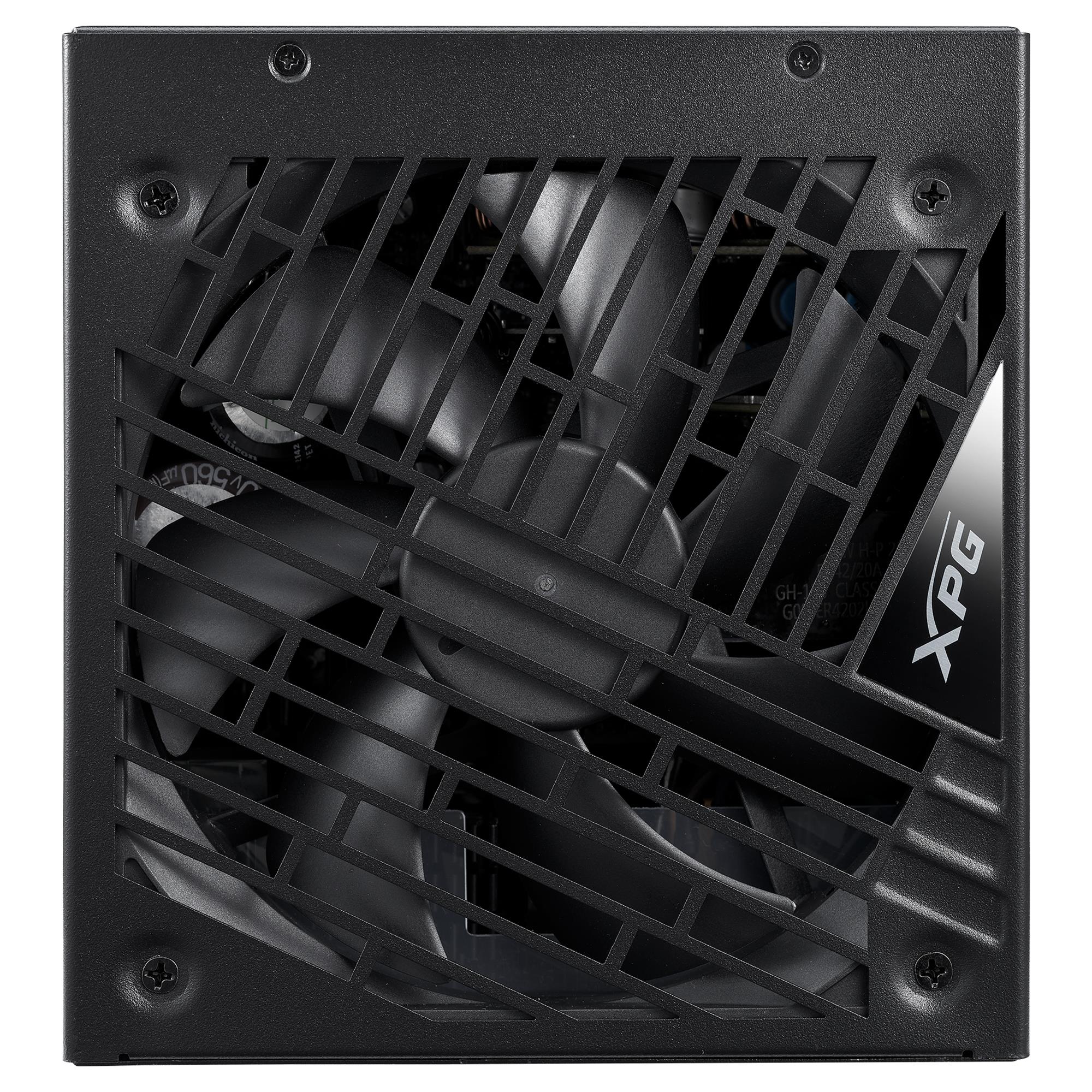

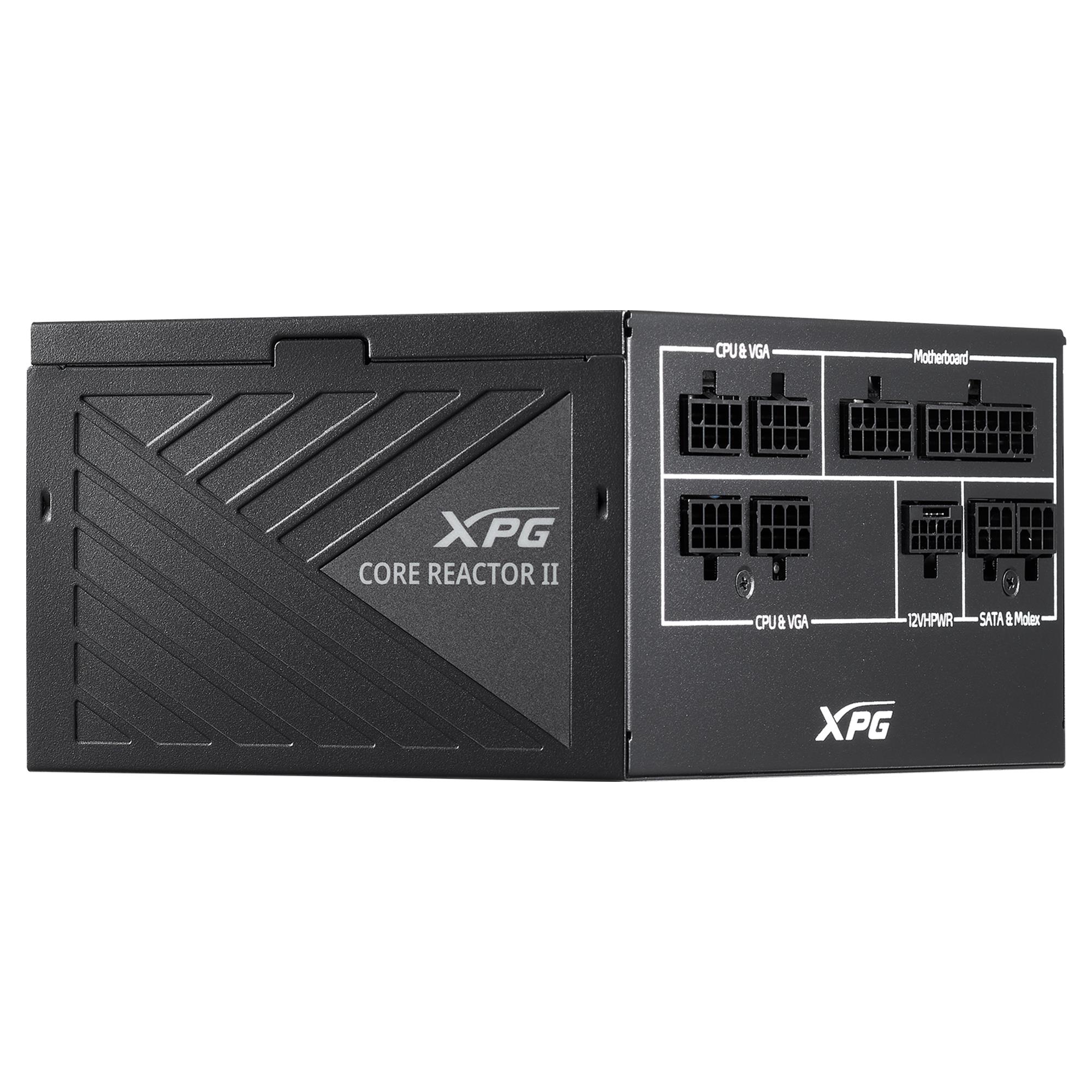

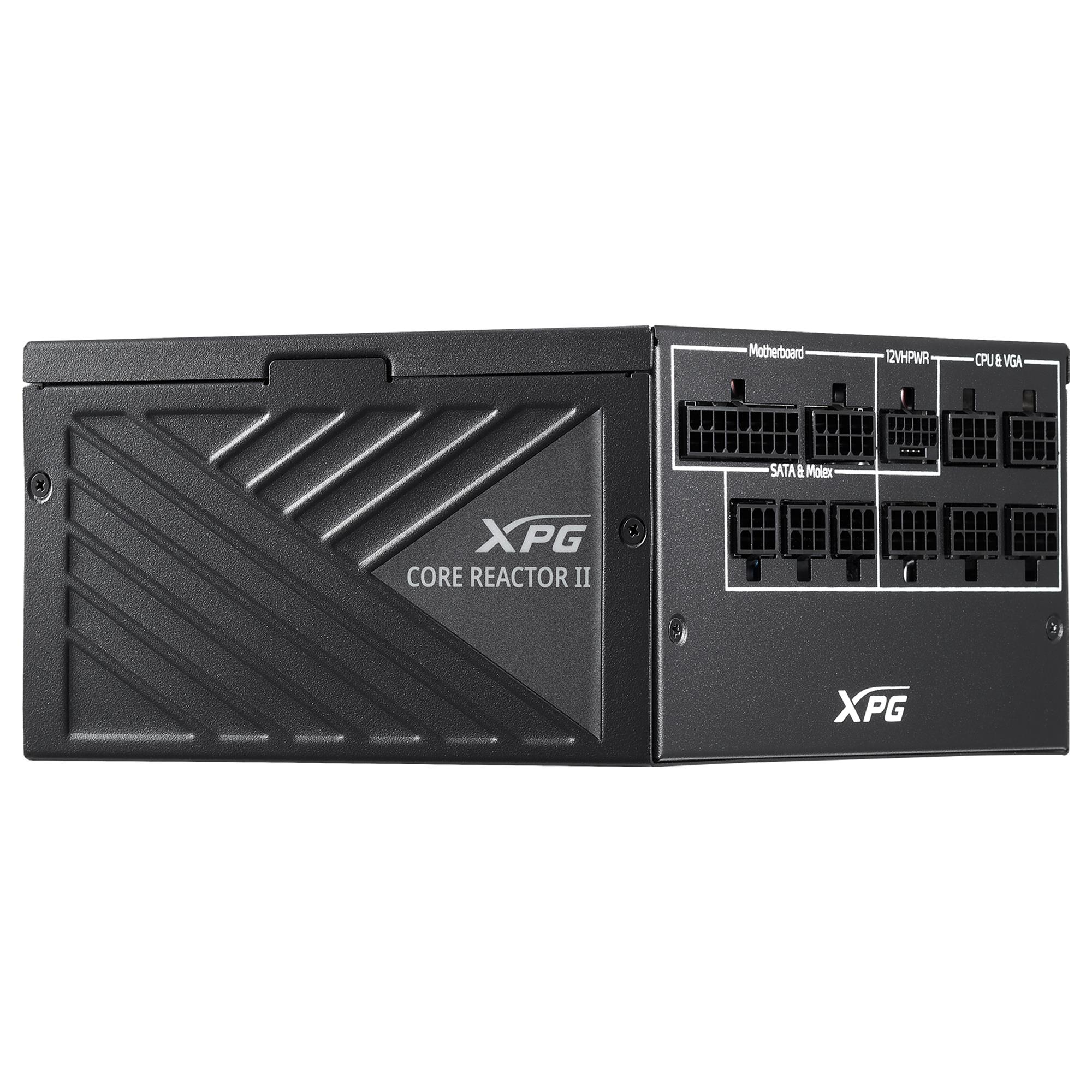

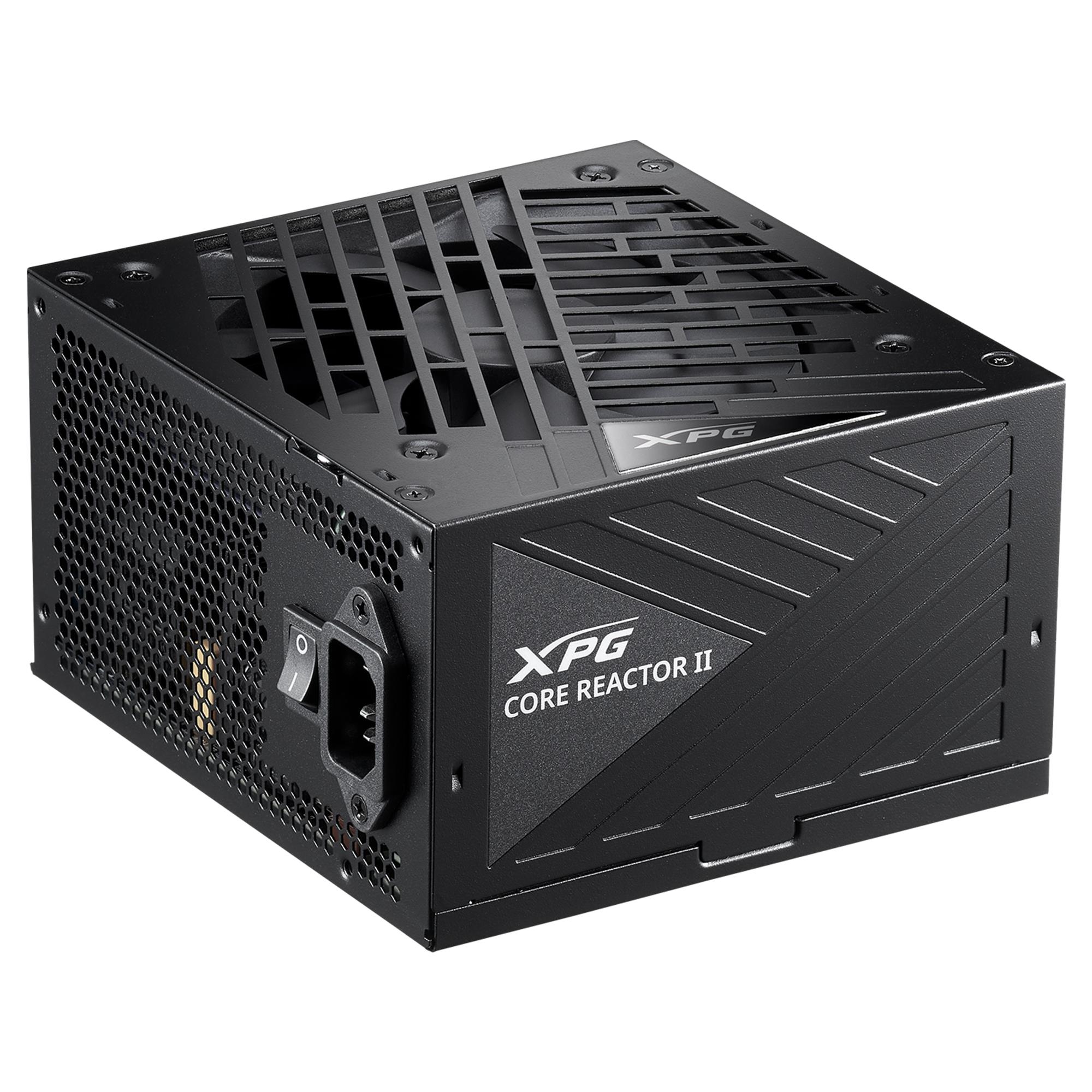

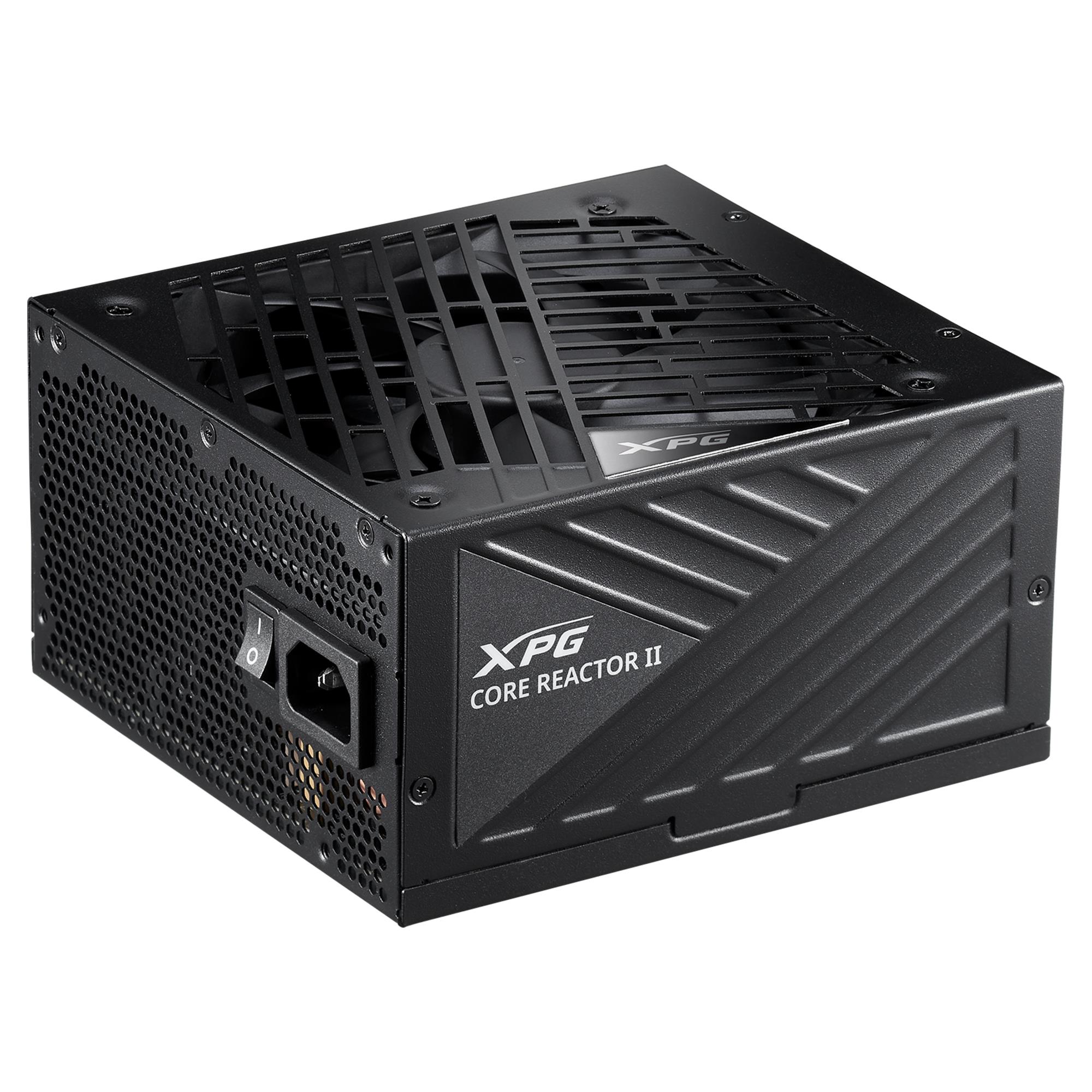

XPG COREREACTOR II 1000W Power Supply. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BSMI, CB, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC),...
Category Code
PSU
CnCode
85044095
Unit Box Height
0.215
Unit Box Length
0.341
Unit Box Width
0.16
Model name
CORE REACTOR II
Units per Shipping Box
4
Unit Calculated Volume
0.01381 cubm
Unit Calculated Weight
4 kg
Weight & dimensions
Depth
150 mm
Height
86 mm
Weight
1770 g
Width
160 mm
