TP-Link

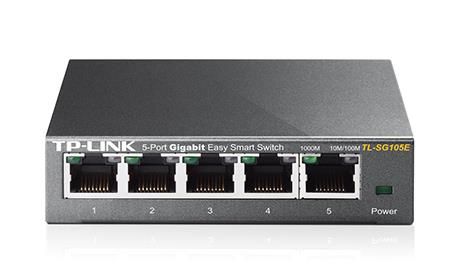

Switch TP-LINK TL-SG105E
Switch|TP-LINK|5x10Base-T / 100Base-TX / 1000Base-T|TL-SG105E
Out of stock
-
1-2 days
Fast delivery
-
40+
Countries shipped products
-
14 years
In IT market
-
2000+
B2B customers
Details
| Certification | FCC, CE, RoHS |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Product colour | Black |
| LED indicators | Yes |
| Unit Calculated Volume | 0.00179 cubm |
| Shipping Box Weight | 17.6000003814697 kg |
| Shipping Box Height | 30.5 cm |
| Shipping Box Depth | 53.5 cm |
| Shipping Box Width | 39.5 cm |
| Unit Calculated Weight | 0.489 kg |
| Product Net Weight | 0.36 kg |
| Units per Shipping Box | 36 |
| Unit Width | 12.6 cm |
| Unit Depth | 13 cm |
| Unit Height | 9.3 cm |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 9.07 BTU/h |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
| Package type | Box |
| Package width | 125 mm |
| Package depth | 128 mm |
| Package height | 92 mm |
| Package weight | 449 g |
| Compatible operating systems | Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 2.82 W |
| Power over Ethernet (PoE) | No |
| IGMP snooping | Yes |
| Category Code | SWI |
| Unit Box Height | 0.093 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.126 |
| Name | NET SWITCH 5PORT 1000M/TL-SG105E TP-LINK |
| Model | TL-SG105E |
| Model name | 5-Port Gigabit Easy Smart Switch |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
