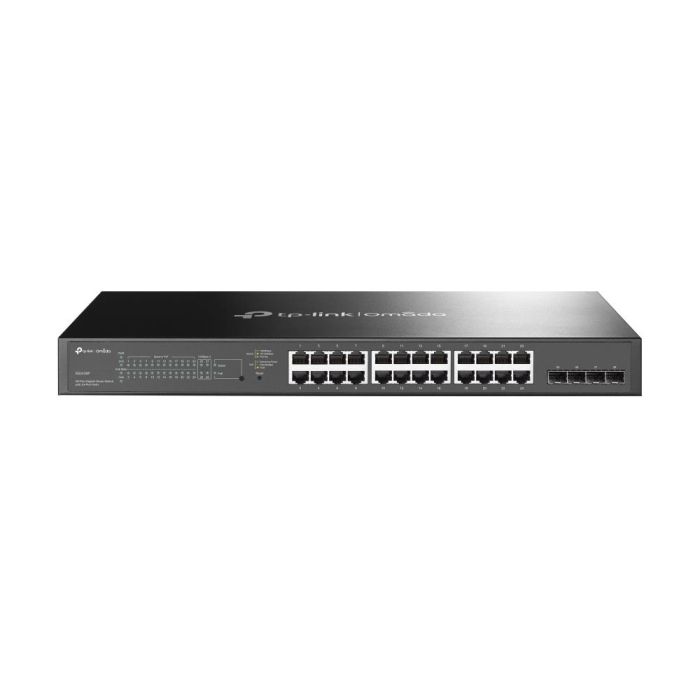

Switch TP-LINK Omada TL-SG2428P
Switch|TP-LINK|Omada|TL-SG2428P|Type L2+|24x10Base-T / 100Base-TX / 1000Base-T|4xSFP|PoE+ ports 24|250 Watts|TL-SG2428P
In stock
-
1-2 days
Fast delivery
-
40+
Countries shipped products
-
14 years
In IT market
-
2000+
B2B customers
Details
| Certification | CE, FCC, RoHS |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Unit Calculated Volume | 0.02104 cubm |
| Shipping Box Weight | 16.9 kg |
| Shipping Box Height | 42.5 cm |
| Shipping Box Depth | 55 cm |
| Shipping Box Width | 36 cm |
| Unit Calculated Weight | 4.22 kg |
| Product Net Weight | 3.98 kg |
| Units per Shipping Box | 4 |
| Unit Width | 33.5 cm |
| Unit Depth | 53 cm |
| Unit Height | 10.5 cm |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T/10BASE-T |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN/Protocol-based VLAN/Voice VLAN |
| Number of VLANs | 4000 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 1052.94 BTU/h |
| Fiber ethernet cabling technology | 1000BASE-X |
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 301.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Queue scheduling algorithms | SP/Weighted Round Robin (WRR)/WRR+SP |
| Security algorithms | HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS |
| SSH/SSL support | Yes |
| Category Code | SWI |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.335 |
| Name | NET SWITCH 28PORT 1000M 24POE+/OMADA SG2428P TP-LINK |
| Series | Omada |
| Model name | Omada 28-Port Gigabit Smart Switch with 24-Port PoE+ |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
