Chieftec

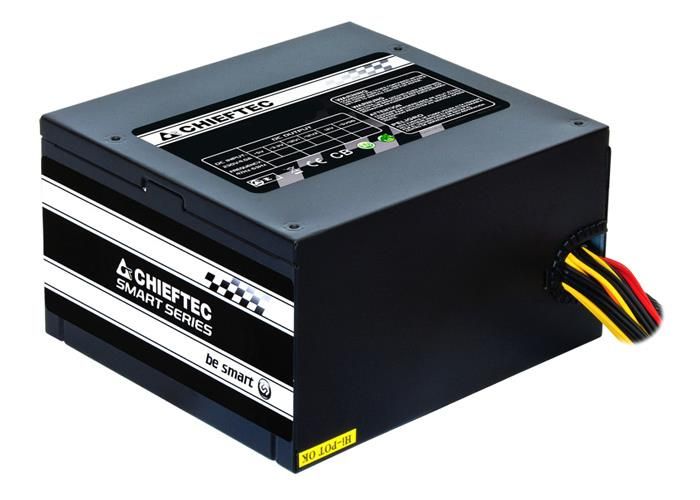

Power Supply CHIEFTEC ATX PC 230 V 500 W
Power Supply|CHIEFTEC|ATX|PC|230 V|500 W|GPS-500A8
-
1-2 days Fast delivery
-
40+ Countries shipped products
-
14 years In IT market
-
2000+ B2B customers
Details
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Unit Calculated Volume | 0.005105 cubm |
| Shipping Box Weight | 16.7000007629 kg |
| Shipping Box Height | 26 cm |
| Shipping Box Depth | 51 cm |
| Shipping Box Width | 38.5 cm |
| Unit Calculated Weight | 1.67 kg |
| Product Net Weight | 1.2 kg |
| Units per Shipping Box | 10 |
| Unit Width | 17 cm |
| Unit Depth | 23.5 cm |
| Unit Height | 9.5 cm |
| 80 PLUS certification | No |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 1 SATA 3 MOLEX/FLOPPY 2/1 |
| Cabling type | Non-Modular |
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 12.5 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80 % |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage |
| Category Code | PSU |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| Name | CASE PSU ATX 500W/GPS-500A8 CHIEFTEC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
