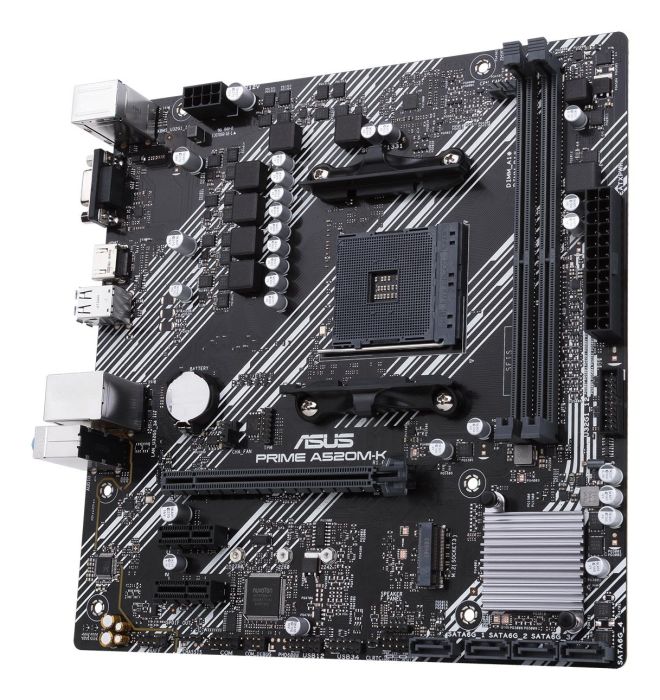

Mainboard ASUS AMD A520 SAM4 MicroATX 2xPCI-Express 3.0 1x DDR4
Mainboard|ASUS|AMD A520|SAM4|MicroATX|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2 type B|1xPS/2|3xStereo jack 3.5mm|1xRJ45|PRIMEA520M-K
-
1-2 days Fast delivery
-
40+ Countries shipped products
-
14 years In IT market
-
2000+ B2B customers
Details
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Battery weight | 2 g |
| Battery | Lithium CMOS battery |
| Unit Calculated Volume | 0.004824 cubm |
| Shipping Box Weight | 8.30000019073486 kg |
| Shipping Box Height | 29.7000007629395 cm |
| Shipping Box Depth | 56.4000015258789 cm |
| Shipping Box Width | 28.7999992370605 cm |
| Unit Calculated Weight | 0.83 kg |
| Product Net Weight | 0.75 kg |
| Units per Shipping Box | 10 |
| Unit Width | 26.5 cm |
| Unit Depth | 27 cm |
| Unit Height | 5 cm |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Harmonized System (HS) code | 84733020 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4866 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Cables included | SATA |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3/AMD Ryzen™ 5/AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Category Code | MBA |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| Name | MB AMD A520 SAM4 MATX/PRIME A520M-K ASUS |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0/1/10 |
| Width | 226 mm |
| Depth | 221 mm |
