Asus

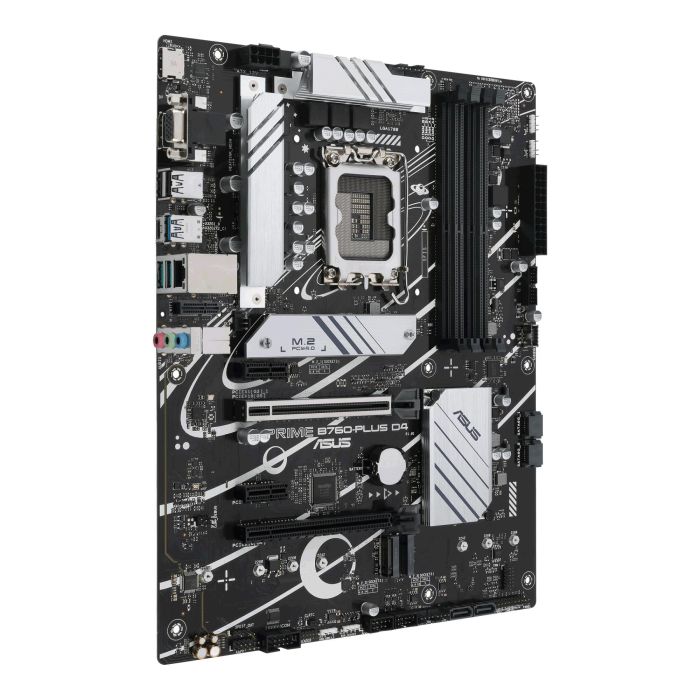

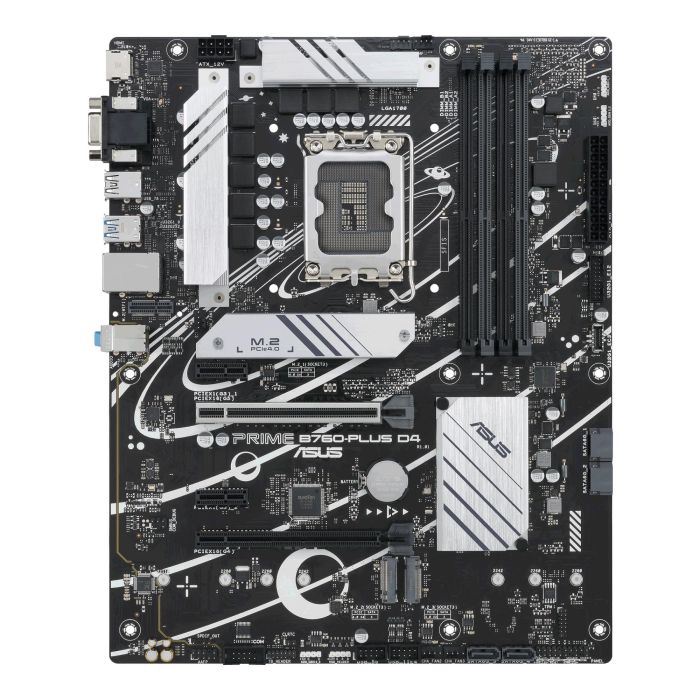

Mainboard ASUS Intel B760 Express LGA1700 ATX 2xPCI-Express 3.0 1x DDR4
Mainboard|ASUS|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|PRIMEB760-PLUSD4
-
1-2 days Fast delivery
-
40+ Countries shipped products
-
14 years In IT market
-
2000+ B2B customers
Details
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Unit Calculated Volume | 0.006038 cubm |
| Shipping Box Weight | 12.65 kg |
| Shipping Box Height | 30 cm |
| Shipping Box Depth | 57.5 cm |
| Shipping Box Width | 35 cm |
| Unit Calculated Weight | 1.27 kg |
| Product Net Weight | 0.8 kg |
| Units per Shipping Box | 10 |
| Unit Width | 27 cm |
| Unit Depth | 33.5 cm |
| Unit Height | 5.5 cm |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Motherboard chipset | Intel B760 |
| Component for | PC |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10/Windows 11 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066 MHz |
| Supported memory clock speed (max) | 5066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Number of M.2 (E) slots | 1 |
| Cables included | SATA |
| User guide | Yes |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1160 g |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Category Code | MBI |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.27 |
| Name | MB B760 S1700 ATX/PRIME B760-PLUS D4 ASUS |
| Model | PRIME B760-PLUS D4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0/1/10/5 |
| Width | 305 mm |
| Depth | 244 mm |
