TP-Link

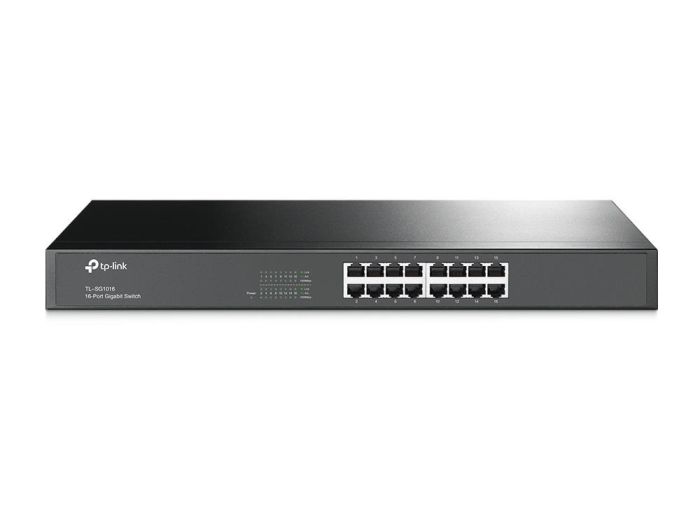

Switch TP-LINK TL-SG1016
Switch|TP-LINK|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG1016
In stock
-
1-2 days
Fast delivery
-
40+
Countries shipped products
-
14 years
In IT market
-
2000+
B2B customers
Details
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Unit Calculated Volume | 0.01174 cubm |
| Shipping Box Weight | 14 kg |
| Shipping Box Height | 27 cm |
| Shipping Box Depth | 55.5 cm |
| Shipping Box Width | 47 cm |
| Unit Calculated Weight | 2.33 kg |
| Product Net Weight | 1.92 kg |
| Units per Shipping Box | 6 |
| Unit Width | 22 cm |
| Unit Depth | 53 cm |
| Unit Height | 8 cm |
| Harmonized System (HS) code | 85176990 |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 35.6 BTU/h |
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Package type | Box |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2040 g |
| Compatible operating systems | Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 10.44 W |
| Power over Ethernet (PoE) | No |
| Category Code | SWI |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.22 |
| Name | NET SWITCH 16PORT 1000M/TL-SG1016 TP-LINK |
| Model name | 16-Port Gigabit Rackmount Network Switch |
| Sustainability compliance | Yes |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
