Gigabyte

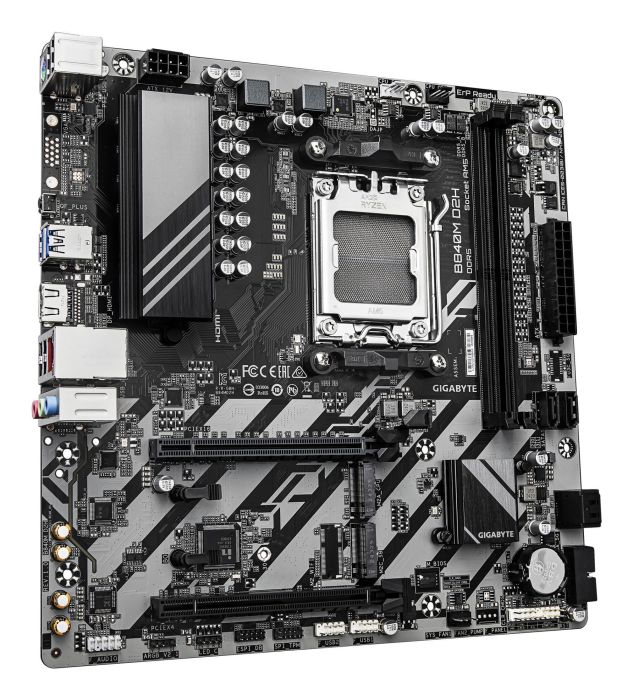

Mainboard GIGABYTE AMD B840 micro ATX 2xSlots B840M D2H (Rev. 1.1) DDR5

Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840M D2H (Rev. 1.1)|B840MD2H1.1

Price:
€108.71
In stock
  • 1-2 days Fast delivery
  • 40+ Countries shipped products
  • 14 years In IT market
  • 2000+ B2B customers

State-prescribed compensatory remuneration for authors

Additionally, a state-prescribed (one-time) compensatory remuneration for authors (also known as the storage media fee) is applied. In accordance with the Republic of Lithuania Law on Copyright and Related Rights, since 2012-03-01, this fee is collected for new digital storage media (phones, memory cards, or computers). The fee is allocated to the Lithuanian Related Rights Association (AGATA). You can obtain a refund by submitting an application to them if you purchased the media for professional use, for the needs of persons with disabilities, or if you are exporting it from the territory of Lithuania.

More information: www.agata.lt.

Details

Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
ELKO Internal Logistics Data
Battery weight 3 g
Battery Lithium battery
Unit Calculated Volume 0.004669 cubm
Shipping Box Weight 10.3500003815 kg
Shipping Box Height 29 cm
Shipping Box Depth 57.5 cm
Shipping Box Width 28 cm
ELKO Logistics Data
Unit Calculated Weight 1.04 kg
Product Net Weight 0.8 kg
Units per Shipping Box 10
Unit Width 26.5 cm
Unit Depth 26.5 cm
Unit Height 5.8 cm
Expansion slots
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2580
1st M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 3.0
Features
Motherboard chipset AMD B840
Audio chip Realtek ALC897
Product colour Dark brown
PC health monitoring Fan/Temperature/Voltage/Water cooling
Component for PC
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Cooling type Passive
Motherboard chipset family AMD
Power source type ATX
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 1
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
Number of water pump connectors 1
TPM connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 3
Logistics data
Products per shipping (inner) case 1 pc(s)
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz
Supported memory clock speed (max) 7600 MHz
Maximum internal memory 128 GB
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
LAN controller Realtek RTL8125
Other features
Weight 940 g
Packaging content
Batteries included Yes
Screws included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Package weight 1026.4 g
Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported processor sockets Socket AM5

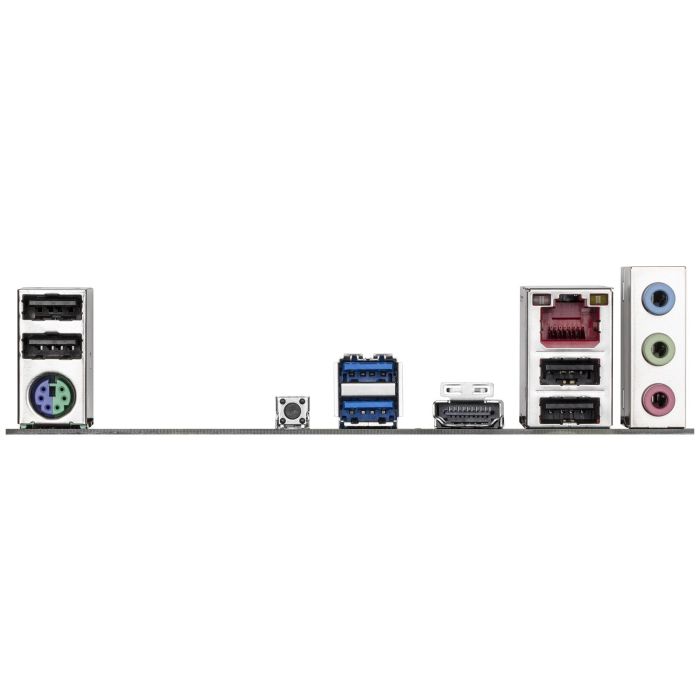

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
Specification
Name MB AMD B840 SAM5 MATX/B840M D2H 1.1 GIGABYTE
Model B840M D2H (Rev. 1.1)
Category Code MBA
Unit Box Height 0.058
Unit Box Length 0.265
Unit Box Width 0.265
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0/1/10
Technical details
Warranty period 3 year(s)
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
