TP-Link

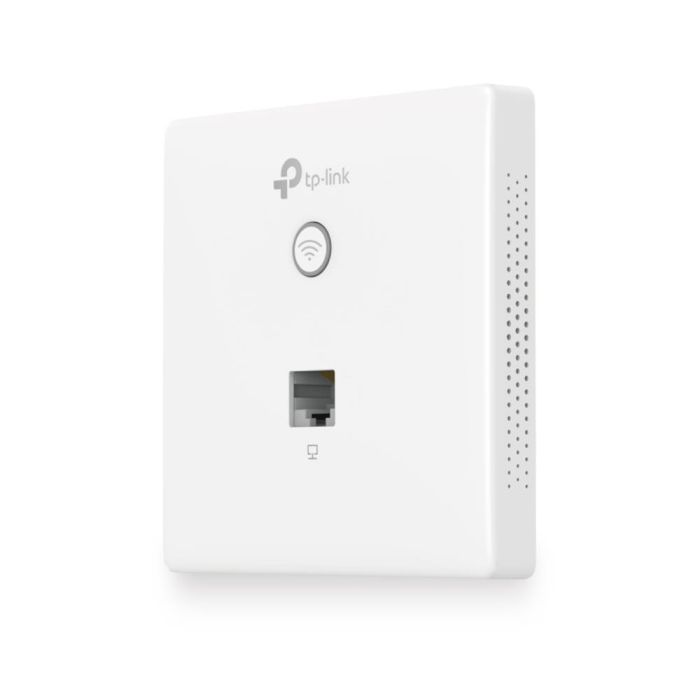

Access Point TP-LINK Omada 1167 Mbps 1x10/100/1000M EAP230-WALL
Access Point|TP-LINK|Omada|1167 Mbps|IEEE 802.11ac|1x10/100/1000M|EAP230-WALL
Out of stock
-
1-2 days
Fast delivery
-
40+
Countries shipped products
-
14 years
In IT market
-
2000+
B2B customers
Details
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.6 dBi |
| Compliance certificates | CE/RoHS |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Operation |
| Unit Calculated Volume | 0.00078 cubm |
| Shipping Box Weight | 0.24 kg |
| Shipping Box Height | 5 cm |
| Shipping Box Depth | 13 cm |
| Shipping Box Width | 12 cm |
| Unit Calculated Weight | 0.24 kg |
| Product Net Weight | 0.16 kg |
| Units per Shipping Box | 1 |
| Unit Width | 12 cm |
| Unit Depth | 13 cm |
| Unit Height | 5 cm |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN/VLAN mapping |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Harmonized System (HS) code | 85176990 |
| Web-based management | Yes |
| Syslog | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Quantity per pack | 2 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Package width | 118 mm |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
| Security algorithms | 128-bit WEP/152-bit WEP/64-bit WEP/SNMP/SNMPv2/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Category Code | WAP |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.12 |
| Name | WRL ACCESS POINT 1167MBPS/OMADA EAP230-WALL TP-LINK |
| Series | Omada |
| Model name | Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point |
| Sustainability compliance | Yes |
| Width | 86.8 mm |
| Depth | 86.8 mm |
| Height | 30.2 mm |
